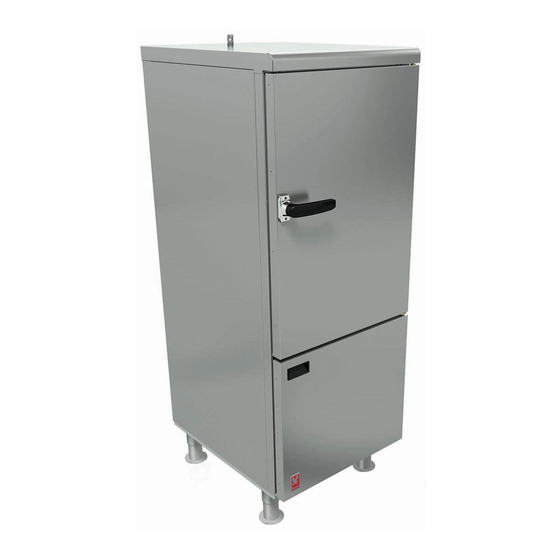

G3478 Steaming Oven
INSTALLATION and
SERVICING INSTRUCTIONS
This appliance must be installed and serviced by a competent person as stipulated by the
Gas Safety (Installation & Use) Regulations.
IMPORTANT
The installer must ensure that the installation of the appliance is in conformity with these instructions
and National Regulations in force at the time of installation. Particular attention MUST be paid to:
Gas Safety (Installation & Use) Regulations
Health And Safety At Work etc. Act
Local and National Building Regulations
Fire Precautions Act
NAtional Water Regulations
The appliance has been CE-marked on the basis of compliance with the Gas Appliance Directive for
the Countries, Gas Types and Pressures as stated on the data plate.
WARNING
TO PREVENT SHOCKS, ALL APPLIANCES WHETHER GAS OR ELECTRIC,
:
MUST BE EARTHED.
On completion of the installation, these instructions should be left with the Engineer-in-Charge for
reference during servicing. Further to this, The Users Instructions should be handed over to the User,
having had a demonstration of the operation and cleaning of the Appliance.
IT IS MOST IMPORTANT THAT THESE INSTRUCTIONS BE CONSULTED BEFORE INSTALLING
AND COMMISSIONING THIS APPLIANCE. FAILURE TO COMPLY WITH THE SPECIFIED
PROCEDURES MAY RESULT IN DAMAGE OR THE NEED FOR A SERVICE CALL.
PREVENTATIVE MAINTENANCE CONTRACT
In order to obtain maximum performance from this unit we would recommend that a maintenance
contract be arranged with SERVICELINE. Visits may then be made at agreed intervals to carry out
adjustments and repairs. A quotation will be given upon request to the contact numbers below.
WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of unit life, dispose of appliance and any replacement
parts in a safe manner, via a licenced waste handler.
Units are designed to be dismantled easily and recycling of all
material is encouraged whenever practicable.
Falcon Foodservice Equipment
HEAD OFFICE AND WORKS
Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
SERVICELINE CONTACT
Phone: 01438 363 000
Fax: 01438 369 900
Detailed recommendations are contained in
Institute of Gas Engineers published documents:
IGE/UP1, IGE/UP/2
BS6173, BS5440 and EN1717
T100789 Ref.1
Advertisement
Table of Contents
Related Manuals for Falcon g3478
Summary of Contents for Falcon g3478
-
Page 1: Installation And Servicing Instructions
G3478 Steaming Oven INSTALLATION and SERVICING INSTRUCTIONS This appliance must be installed and serviced by a competent person as stipulated by the Gas Safety (Installation & Use) Regulations. IMPORTANT The installer must ensure that the installation of the appliance is in conformity with these instructions and National Regulations in force at the time of installation. -
Page 2: Important Information
IMPORTANT INFORMATION Warranty Policy Shortlist Warranty does not cover :- • Correcting faults caused by incorrect installation of a product. • Where an engineer cannot gain access to a site or a product. • Repeat commission visits. • Replacement of any parts where damage has been caused by misuse. •... - Page 3 (mm) (mm) (mm) (kg) A meter is connected to the service pipe by gas supplier. G3478 1625 Steaming Oven Any existing meter should be checked by supplier to ensure it is of adequate capacity to pass the required rate of gas for the unit, in addition to any other gas equipment 1.2 SITING...
- Page 4 2.4 CONNECTION TO ELECTRICITY SUPPLY 1.9 GAS PRESSURES Not applicable to this appliance. Burner pressure Supply pressure Full Rate inches inches Gas type mbar mbar 2.5 PRE-COMMISSIONING CHECK w.g. w.g. After installation and assembly, the following checks must Natural gas be carried out to ensure satisfactory operation of the unit.
- Page 5 SECTION 3 - SERVICING and 3.4 INJECTORS 3.4.1 To Remove Burner Injector CONVERSION Remove injector, located inside air box of burner with a 16mm short armed spanner. Important BEFORE ATTEMPTING ANY SERVICE OPERATION, Note TURN OFF ISOLATING COCK AND TAKE STEPS TO When cleaning injector orifice, a soft fuse wire or wooden ENSURE IT IS NOT INADVERTENTLY TURNED ON splint should be used.
- Page 6 3.7.2 To Regrease Tap Plug 3.10 TO CLEAN BALL VALVE Undo fixings that retain securing plate to valve body. Turn OFF mains water supply and drain steamer tank at Remove securing plate, spindle and brass disc to expose draw off tap. plug.
- Page 7 3.12 IGNITION SYSTEM FAULTS 3.13 FLAME FAILURE DEVICE FAULTS a) If spark igniter does not light pilot, check for a spark It is IMPORTANT that pilot burner is kept clean and and gas. If no spark is evident inspect electrode to properly adjusted.
