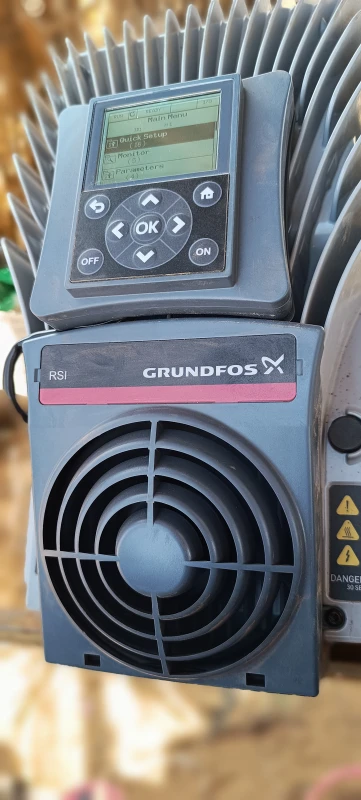

I need to install a grundfoss rsi controller on a new system so I need to know how

Ephraïm Nangadoumngué

May 21, 2025

Pourquoi le convertisseur démarre un instant et s'arrête et redémarre ainsi de suite ?

Summary of Contents for Grundfos RSI

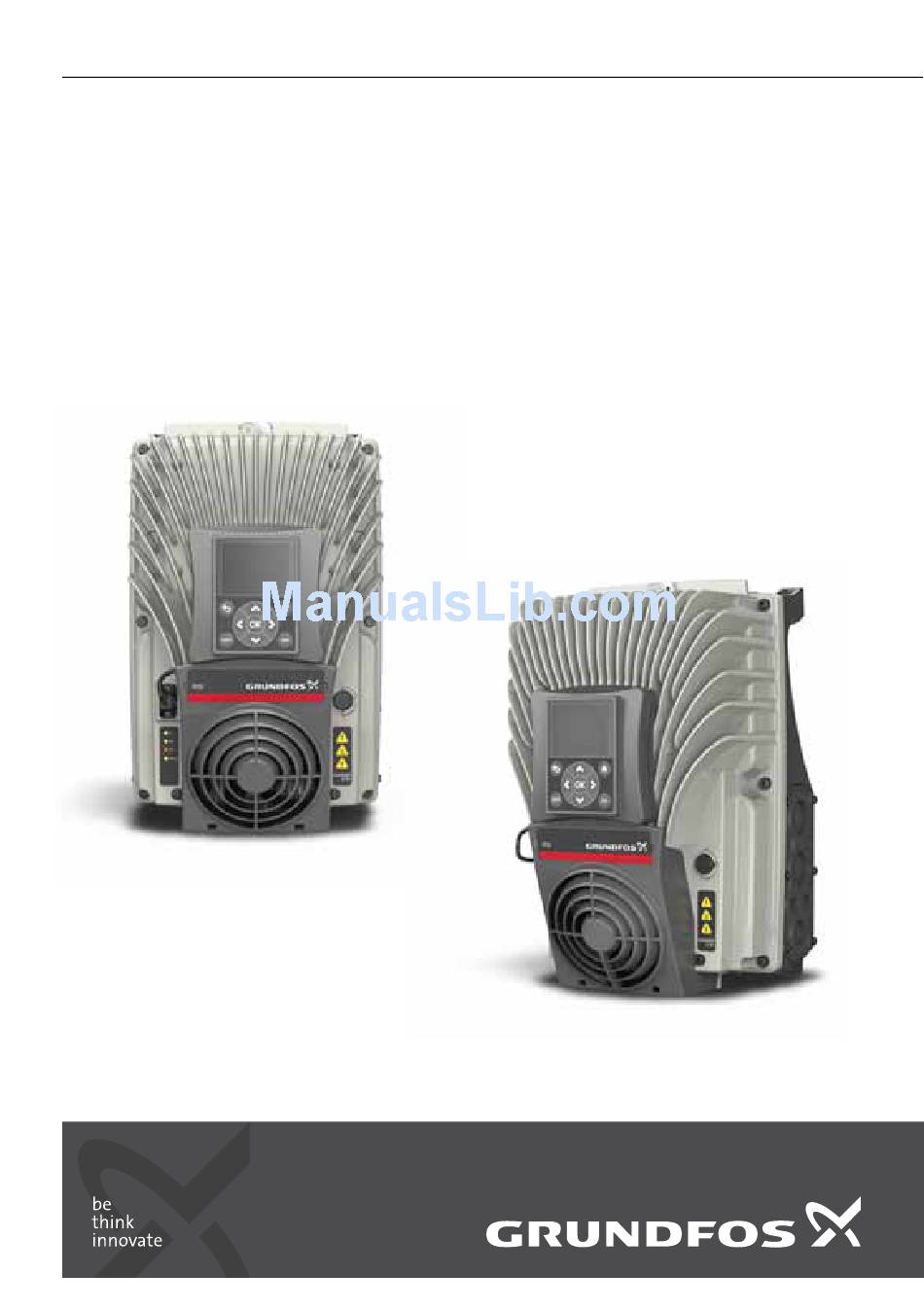

Page 1 GRUNDFOS INSTRUCTIONS RSI, 1.5 - 37 kW Installation and operating instructions...
Page 2: Table Of Contents
6.1.6 Group 3.5: I/O Config Page 6.1.7 Group 3.6: Fieldbus DataMap Grundfos RSI 6.1.8 Group 3.7: Prohibit Frequencies Specific functions of Grundfos RSI 6.1.9 Group 3.8: Supervisions Safety 6.1.10 Group 3.9: Protections Danger 6.1.11 Group 3.10: Automatic reset Warnings 6.1.12 Group 3.11: Appl. Settings 6.1.13 Group 3.12: Timer functions...
Page 3: Grundfos Rsi
The dedicated application software was developed (keypad) and Remote control place. The remote to drive a Solar Pump with an optimized MPPT control place is selectable by parameter (I/O or (Maximum Power Point Tracking) for RSI supplied by Fieldbus) Solar Panels. •...
Page 4: Safety
2. Safety 2.2 Warnings This manual contains clearly marked warning The touch current of RSI exceeds 3.5 information which is intended for your personal mA AC. According to standard safety and to avoid any unintentional damage to the EN61800-5-1, a reinforced protective product or connected appliances.
Page 5: Startup
Wizard. If pressed at the first question, the Startup Wizard will be cancelled. Once you have connected power to your RSI, follow these instructions to easily set up your drive. NOTE: You can have your AC drive equipped with a keypad with either a graphical or a text keypad.
Page 6 Standard Local/Remote Make a selection of an application (P1.2 Multi-step speed Application,ID212) PID control Multi-purpose Motor potentiometer Set a value for P3.1.2.2 Motor Type (so that PM motor it agrees with the nameplate) Induction motor Set value for P3.1.1.1 Motor Nom Voltg Range: Varies (according to nameplate) Set value for P3.1.1.2 Motor Nom Freq...
Page 7: Description Of The Applications
In the Quick Setup parameter group you will find the Use the parameter P1.2 (Application) to make a different wizards of the RSI Solar Pump Application. selection of an application for the drive. Immediately The wizards help you to quickly set up your drive for when the parameter P1.2 changes, a group of...
Page 8 Code Parameter Unit Default Description 0 = Coasting P1.17 Stop function 1 = Ramping 0 = Disabled P1.18 Automatic reset 1 = Enabled 0 = No action 1 = Alarm P1.19 External fault 2 = Fault (Stop according to stop mode) 3 = Fault (Stop by coasting) Response when an analogue signal in use goes below 50 % of the minimum...
Page 9 Code Parameter Unit Default Description Function selection for Basic R01: 0 = None 1 = Ready 2 = Run 3 = General fault 4 = General fault inverted 5 = General alarm 6 = Reversed 7 = At speed 8 = Thermistor fault 9 = Motor regulator active 10 = Start signal active 11 = Keypad control active...
Page 10: Standard Application
Code Parameter Unit Default Description 0 = TEST 0 % (Not used) 1 = TEST 100 % 2 = Output freq (0 -fmax) 3 = Freq reference (0-fmax) 4 = Motor speed (0 - Motor nominal speed) 5 = Output current (0-I nMotor 6 = Motor torque (0-T nMotor...
Page 11: Local/Remote Application
3.2.2 Local/Remote application Use the Local/Remote application when, for example, it is necessary to switch between 2 different control places. To change between the Local and the Remote control place, use DI6. When Remote control is active, you can give the start/stop commands from Fieldbus or from I/O terminal (DI1 and DI2).
Page 12: Pid Control Application
M1.33 Multi-step speed Code Parameter Min Max Unit Default ID Description P1.33.1 Preset Freq 1 P1.3 P1.4 10.0 P1.33.2 Preset Freq 2 P1.3 P1.4 15.0 P1.33.3 Preset Freq 3 P1.3 P1.4 20.0 P1.33.4 Preset Freq 4 P1.3 P1.4 25.0 P1.33.5 Preset Freq 5 P1.3 P1.4 30.0...
Page 13 M1.34 PID Control Code Parameter Unit Default Description If the value of the parameter is set to 100 % a change of 10 % in the error P1.34.1 Gain 0.00 1000.00 100.00 value causes the controller output to change by 10 %. If this parameter is set to 1,00 s a change of 10 % in the error value P1.34.2 Integration Time...
Page 14: Multi-Purpose Application
Code Parameter Unit Default Description 0 = Not used 1 = Keypad setpoint 1 2 = Keypad setpoint 2 3 = AI1 4 = AI2 5 = AI3 6 = AI4 7 = AI5 8 = AI6 9 = ProcessDataIn1 10 = ProcessDataIn2 11 = ProcessDataIn3 12 = ProcessDataIn4...
Page 15 M1.35 Multi-purpose Code Parameter Unit Default Description 0 = U/f Freq ctrl open loop P1.35.1 Control mode 1 = Speed control open loop Automatic torque boost can be used in application where starting torque due to P1.35.2 Auto TorqueBoost starting friction is high. 0 = Disabled 1 = Enabled Start Acceleration...
Page 16: Motor Potentiometer Application
Code Parameter Unit Default Description 0 = Normal; Load drooping factor is constant through the whole frequency Load drooping range P1.35.19 1534 mode 1 = Linear removal; Load drooping is removed linearly from nominal frequency to zero frequency 3.2.6 Motor potentiometer application Use the Motor potentiometer application for the processes where the frequency reference of the motor is controlled (that is, increased and...
Page 17: User Interfaces
4. User Interfaces 4.1 Keypad of the drive The control keypad is the interface between the RSI and the user. With the control keypad it is possible to control the speed of a motor, to supervise the state of the equipment and to set the AC drive's parameters.
Page 18: Rsi Graphical Keypad
4.1.4 RSI graphical keypad Status field Status field Status field Status field STOP/RUN READY/NOT READY/FAULT READY/NOT READY/FAULT STOP/RUN Control place ALARM Control place: ALARM Direction Direction PC/IO/KEYPAD/FIELDBUS PC/IO/KEYPAD/FIELDBUS ST O P READY I/ O Location field Location field Main Menu...
Page 19 Change value of a parameter following the procedure below: 1. Locate the parameter. 2. Enter the Edit mode. 3. Set new value with the arrow buttons up/down. You can also move from digit to digit with the arrow buttons left/right if the value is numerical and then change the value with the arrow buttons up/down.
Page 20 Parameters with check box selection Some parameters allow selecting several values. Make a check box selection at each value you wish to activate as instructed below. 9256.emf Symbol for checkbox selection Fig. 5 Applying the check box value selection on graphical keypad Resetting fault Instructions for how to reset a fault can be found in chapter...
Page 21 Changing control places Change of control place from Remote to Local 3. On the next display, select Local or Remote and (keypad). again confirm with the OK button. 1. Anywhere in the menu structure, push the 4. The display will return to the same location as it FUNCT button.
Page 22 Changing direction Rotation direction of the motor can quickly be 3. Then choose the direction you wish to run the changed by applying the FUNCT button. motor to. The actual rotation direction is blinking. Confirm with the OK button. Note! Changing direction command is not visible in the menu unless the selected control place is Local.
Page 23 Copying parameters note: This feature is available in graphical keypad • First go into User settings menu and locate the only. Parameter backup submenu. In the Parameter backup submenu, there are three possible The parameter copy function can be used to copy functions to be selected: parameters from one drive to another.
Page 24: Rsi Text Keypad
Add to favorites 1430 rpm Fig. 10 Adding item to Favorites 4.1.5 RSI text keypad You can also choose a so-called Text keypad for your user interface. It has mainly the same functionality as the graphical keypad although some of these are somewhat limited.
Page 25 Indicators: Indicators: Status Alarm, Fault Group or parameter name Menu location Indicators: Indicators: Direction Control place Using the text keypad Editing values Change value of a parameter following the 3. Set new value with the arrow buttons up/down. procedure below: You can also move from digit to digit with the arrow buttons left/right if the value is numerical 1.
Page 26 Local control Changing control places Keypad is always used as control place while in local Change of control place from Remote to Local control. Local control has higher priority than remote (keypad). control. Therefore, if, for example, bypassed by 1. Anywhere in the menu structure, push the parameter P3.5.1.7 through digital input while in FUNCT button.
Page 27: Grundfos Pc Tool
4.2 Grundfos PC tool The PC tool is for commissioning and maintenance of the RSI. Grundfos PC tool is an accessory available in Grundfos Product Center.Menu structure Click on and select the item you wish to receive more information about (electronic manual).
Page 28: Quick Setup
4.2.1 Quick setup In the Quick Setup parameter group you will find the different wizards of the Grundfos RSI. More detailed information on the parameters of this group you will find in chapter Startup. 4.2.2 Monitor Multi-monitor Note: This menu is not available in text keypad.
Page 29: Parameters
4.2.3 Parameters Through this submenu, you can reach the application parameter groups and parameters. More information on parameters in chapter Parameters. 4.2.4 Diagnostics Under this menu, you can find Active faults, Reset faults, Fault history, Total counters, Trip counters Software info.
Page 30 Total counters Code Parameter Min Max Unit Default Description Amount of energy taken from supply network. No reset. note for text keypad: The highest V4.4.1 Energy counter Varies 2291 energy unit shown on the standard keypad is MW. Should the counted energy exceed 999.9 MW, no unit is shown on the keypad.
Page 31 Trip counters Code Parameter Unit Default Description Resettable energy counter. note: The highest energy unit shown on the standard keypad is MW. Should the counted energy exceed 999.9 MW, no unit is shown on the keypad. P4.5.1 Energy trip counter Varies 2296 To reset the counter:...
Page 32: I/O And Hardware
4.2.5 I/O and hardware Various options-related settings are located in this menu. Note that the values in this menu are raw values i.e. not scaled by the application. Basic I/O Monitor here the statuses of inputs and outputs. Code Parameter Unit Default Description...
Page 33 Programming of digital and analogue inputs The programming of inputs in the RSI is very flexible. The available inputs on the standard and optional I/O can be used for various functions according to the operator's choice. The available I/O can be expanded with optional boards to be inserted in board slots D and E.
Page 34 Given the standard I/O board compilation on the RSI, there are 6 digital inputs available (Slot A terminals 8, 9, 10, 14, 15 and 16). In the programming view, these inputs are referred to as follows: Input type Input type...
Page 35 Fig. 17 Programming digital inputs with text keypad PROGRAMMING INSTRUCTIONS Graphical keypad Text keypad 1. Select the parameter and push the Arrow right 1. Select the parameter and push the OK button. button. 2. You are now in the Edit mode as the slot value 2.
Page 36 TEXT KEYPAD Parameter value (= selected analogue input) input) Fig. 18 Given the standard I/O terminals on the RSI, there are 2 analogue inputs available. In the programming view, these inputs are referred to as follows: Input type Input type...
Page 37 Assume you need to change the selected input. Instead of AI1 you wish to use the analogue input on your option board in slot D. Do as instructed here: Fig. 19 Programming analogue inputs with graphical keypad Fig. 20 Programming analogue inputs with text keypad Programming Instructions Graphical keypad Text keypad...
Page 38 Number (#) refers to Control Word bit number. FieldbusPD.# Number (#) refers to Process Data 1 bit number. Default assignments of digital and analogue inputs in RSI Digital and analogue inputs are assigned certain functions by the factory. In this application, the default assignments are:...
Page 39 Real time clock Code Parameter Unit Default Description Status of battery. 1 = Not installed V5.5.1 Battery state 2205 2 = Installed 3 = Change battery P5.5.2 Time hh:mm:ss 2201 Current time of day P5.5.3 Date dd.mm. 2202 Current date P5.5.4 Year yyyy...
Page 40 Keypad Code Parameter Unit Default Description Time after which the display returns to page defined with P5.7.1 Timeout time parameter P5.7.2. 0 = Not used The page the keypad shows when the drive is powered on or when the time defined with P5.7.1 has expired.
Page 41 Fieldbus Parameters related to different fieldbus boards can also be found in the I/O and Hardware menu. These parameters are explained in more detail in the respective fieldbus manual. Submenu level 1 Submenu level 2 Submenu level 3 Submenu level 4 RS-485 Common settings Protocol...
Page 42: User Settings
4.2.6 User settings Code Parameter Unit Default Description Depends on language P6.1 Language selections Varies Varies Varies package. P6.2 Application selection M6.5 Parameter backup See chapter Parameter backup below. Give name of drive if P6.7 Drive name needed. Parameter backup Code Parameter Unit...
Page 43: Favorites
4.2.7 Favorites Note: This menu is not available in text keypad. Favorites are typically used to collect a set of parameters or monitoring signals from any of the keypad menus. You can add items or parameters to the Favorites folder, see chapter Adding item to favorites.
Page 44: Example Of Control Connections
Digital input 6 Common for DI1-DI6 Analogue output, AO1+ voltage or current AO-/GND Analogue output common +24 Vin 24 V auxiliary input voltage RS485 Serial bus, negative RS485 Serial bus, positive Can be isolated from ground, see RSI Installation Manual.
Page 45: Relay And Thermistor Input Terminals
RO2/3 TI1+ Thermistor input TI1- 4.3.2 Safe Torque off (STO) terminals For more information on the functionality of the Safe Torque Off (STO), see RSI Installation Manual. Safe Torque Off terminals Terminal Signal Isolated digital input 1 (interchangeable polarity); +24 V ± 20 % 10...15 mA Isolated digital input 2 (interchangeable polarity);...
Page 46: Monitoring Menu
1. Locate the Trend curve menu in the Monitor menu and press OK. RSI provides you with a possibility to monitor the 2. Further enter the menu View trend curve by actual values of parameters and signals as well as pressing OK again.
Page 47 The Trend Curve feature also allows you to halt the 2. The display freezes and the values at the bottom progression of the curve and read the exact of the display correspond to the location of the individual values. hairline. 1.
Page 48: Basic
5.1.3 Basic See the table below in which the basic monitoring values are presented. Only standard I/O board statuses are available in the Monitor menu. Statuses for all I/O board signals can be found as raw data in the I/O and Hardware system Note menu.
Page 49: Extras & Advanced
5.1.5 Extras & advanced Code Monitoring value Unit Scale Description Bit coded word B1 = Ready B2 = Run B3 = Fault B6 = RunEnable V2.6.1 DriveStatusWord B7 = AlarmActive B10 = DC Current in stop B11 = DC Brake Active B12 = RunRequest B13 = MotorRegulatorActive Bit coded information about ready criteria.
Page 50 Code Monitoring value Unit Scale Description 16-bit word where each bit represents the status of one digital input. 6 digital inputs V2.6.6 DIN StatusWord2 from every slot are read. Word 1 starts from input 5 in slot C (bit0) and goes all the way to input 6 in slot E (bit13).
Page 51: Timer Functions
5.1.6 Timer functions Here you can monitor values of timer functions and the Real Time Clock. Code Monitoring value Unit Scale Description Possible to monitor the statuses of the V2.7.1 TC 1, TC 2, TC 3 1441 three Time Channels (TC) V2.7.2 Interval 1 1442...
Page 52: Mainten. Counters
5.1.9 Mainten. counters Code Monitoring value Unit Scale Description Status of maintenance counter in revolutions multiplied by 1000, or hours. V2.11.1 MaintenCounter 1 h/ kRev Varies 1101 For configuration and activation of this counter, see chapter Group 3.16: Maintenance counters. 5.1.10 Fieldbus data Code Monitoring value...
Page 53: Solar
5.1.11 Solar Monitoring Code Unit Scale Description value V2.15.1 Vmp ref 1914 DC voltage reference for MPP regulation Present correction on DC voltage reference V2.15.2 Vmp ref correct 1942 (P&O + oscillation) V2.15.3 Motor Power 1938 Motor shaft power V2.15.4 Energy counter 1937 Counter of energy taken by the supply...
Page 54: Parameters
6. Parameters 6.1 Application parameter lists Find the parameter menu and the parameter groups RSI contains a pre-loaded Grundfos motor library for as guided below. instant use. The parameters of this application are listed in this chapter. ST O P...
Page 55: Column Explanations
6.1.1 Column explanations Code Location indication on the keypad; Shows the operator the parameter number. Parameter Name of parameter Minimum value of parameter Maximum value of parameter Unit Unit of parameter value; Given if available Default Value preset by factory ID number of the parameter Description Short description of parameter values or its function...
Page 56 Code Parameter Unit Default Description Enabling this function prevents the drive from tripping when the motor switch is closed and opened e.g. using flying P3.1.2.6 Motor switch start. 0 = Disabled 1 = Enabled The drooping function enables speed drop as a function of load. Drooping will P3.1.2.7 Load drooping 0.00 50.00...
Page 57 Group 3.1.4: Open loop Code Parameter Unit Default Description Type of U/f curve between zero frequency and the field weakening point. P3.1.4.1 U/f ratio 0 = Linear 1 = Squared 2 = Programmable The field weakening point is the output frequency at which the output P3.1.4.2 Field WeakngPnt 8.00 P3.3.1.2...
Page 58: Output Frequency
Group 3.1.4.12: I/f start The I/f Start function can be used with induction motors (IM), too, e.g. if the tuning of the U/f curve is The I/f Start function is typically used with permanent difficult at low frequencies. magnet synchronous motors (PMSM) to start the motor with constant current control.
Page 59: Group 3.2: Start/Stop Setup
Parameter Unit Default Description Selection of remote control place (start/ stop). Can be used to change back to remote control from Grundfos PC tool P3.2.1 Rem.Ctrl. Place e.g. in case of a broken panel. 0 = I/O control 1 = Fieldbus control...
Page 60: Group 3.3: References
6.1.4 Group 3.3: References Remote control place (I/O B): The source of frequency reference can be selected with parameter Frequency reference P3.3.1.6. The frequency reference source is programmable for Local control place (Keypad): If the default selection all control places except PC, which always takes the for parameter P3.3.1.7 is used the reference set with reference from the PC tool.
Page 61 Code Parameter Unit Default Description Selection of ref source when control place is Fieldbus: 1 = Preset Frequency 0 2 = Keypad reference 3 = Fieldbus P3.3.1.10 Fieldbus Ref Sel 4 = AI1 5 = AI2 6 = AI1+AI2 7 = PID reference 8 = Motor potentiometer 9 = Max Power Group 3.3.3: Preset Freqs...
Page 62: Group 3.4: Ramps And Brakes
Group 3.3.4: Motor Potentiometer The Motor potentiometer reset parameter (P3.3.4.4) is used to choose whether to reset (set to MinFreq) With a motor potentiometer function, the user can the Motor Potentiometer frequency reference when increase and decrease the output frequency. By stopped or when powered down.
Page 63: Group 3.5: I/O Config
Varies Varies 519 Defines the current level for flux braking. 6.1.6 Group 3.5: I/O Config Default assignments of programmable inputs The table below presents the default assignments of programmable digital and analogue inputs in RSI. Input Terminal(s) Reference Assigned function...
Page 64 Group 3.5.1: Digital inputs It is also possible to connect the digital inputs to time channels which are also represented as terminals. Digital inputs are very flexible to use. Parameters are functions that are connected to the required digital NOTE! The statuses of digital inputs and the digital input terminal (see chapter 4.
Page 65 Code Parameter Default Description Start the Auto-cleaning sequence. The sequence will be aborted if activation signal is removed before the sequence has P3.5.1.48 AutoClean Activ. DigIN Slot0.1 1715 been completed. Note! The drive will start if the input is activated! Parameter set 1/2 selection.
Page 66 Group 3.5.2: Analog inputs Note! The number of usable analogue inputs depends on your (option) board setup. The standard I/O board embodies 2 analogue inputs. Group 3.5.2.1: Analog Input 1 Code Parameter Unit Default Description Connect the AI1 signal to the analogue input of your AnIN P3.5.2.1.1...
Page 67 Group 3.5.2.4: Analog Input 4 Code Parameter Unit Default Description AnIN P3.5.2.4.1 AI4 signal selection See P3.5.2.1.1. SlotD.2 P3.5.2.4.2 AI4 signal filter time 0.00 300.00 See P3.5.2.1.2. P3.5.2.4.3 AI4 signal range See P3.5.2.1.3 P3.5.2.4.4 AI4 custom. min -160.00 160.00 0.00 See P3.5.2.1.4.
Page 68 Group 3.5.3: Digital outputs Group 3.5.3.2: Slot B Basic Code Parameter Unit Default Description Function selection for Basic R01: 0 = None 1 = Ready 2 = Run 3 = General fault 4 = General fault inverted 5 = General alarm 6 = Reversed 7 = At speed 8 = Thermistor fault...
Page 69 Group 3.5.4: Analogue outputs Group 3.5.4.1: Slot A Basic Code Parameter Unit Default Description 0 = TEST 0 % (Not used) 1 = TEST 100 % 2 = Output freq (0-fmax) 3 = Freq reference (0-fmax) 4 = Motor speed (0 - Motor nominal speed) 5 = Output current (0-I nMotor...
Page 70: Group 3.6: Fieldbus Datamap
6.1.7 Group 3.6: Fieldbus DataMap Code Parameter Unit Default Description Data sent to fieldbus can be chosen with parameter and monitor value ID numbers. The data is scaled to P3.6.1 FB DataOut 1 Sel 35000 unsigned 16-bit format according to the format on keypad.
Page 71: Group 3.7: Prohibit Frequencies
6.1.8 Group 3.7: Prohibit Frequencies In some systems it may be necessary to avoid certain frequencies due to mechanical resonance problems. By setting up prohibit frequencies it is possible to skip these ranges. When the (input) frequency reference is increased, the internal frequency reference is kept at the low limit until the (input) reference is above the high limit.
Page 72: Group 3.9: Protections
6.1.10 Group 3.9: Protections Group 3.9.1: General Code Parameter Unit Default Description 0 = No action 1 = Alarm P3.9.1.2 External fault 2 = Fault (Stop according to stop mode) 3 = Fault (Stop by coasting) 0= 3 Phases support P3.9.1.3 InputPhase Fault 1= 1 Phase support...
Page 73 Group 3.9.2: Motor Thermal Protection The thermal stage of the motor can be monitored on the control keypad display. See chapter The motor thermal protection is to protect the motor 6.1 Application parameter lists. from overheating. The AC drive is capable of supplying higher than nominal current to the motor.
Page 74 Group 3.9.3: Motor Stall The motor stall protection protects the motor from short time overload situations such as one caused by a stalled shaft. The reaction time of the stall protection can be set shorter than that of motor thermal protection. The stall state is defined with two parameters, P3.9.3.2 (Stall Current) and P3.9.3.4 (Stall Freq.
Page 75 Group 3.9.4: Motor Underload The torque values for setting the underload curve are set in percentage which refers to the nominal torque The purpose of the motor underload protection is to of the motor. The motor's name plate data, ensure that there is load on the motor when the drive parameter motor nominal current and the drive's is running.
Page 76 Group 3.9.6: Temperature input fault 1 Note! This parameter group is visible only with an option board for temperature measurement (OPT- BH) installed. Code Parameter Max Unit Default ID Description Selection of signals to use for alarm and fault triggering. B0 = Temperature Signal B1 = Temperature Signal 2 B2 = Temperature Signal 3 B3 = Temperature Signal 4...
Page 77 Group 3.9.8: AI Low Protection Code Parameter Min Max Unit Default ID Description This parameter defines if the AI Low protection is enabled or disabled. P3.9.8.1 AI Low Protection 0 = Disabled 1 = Enabled in Run State 2 = Enabled in Run and Stop States Response when an analogue signal in use goes below 50 % of the minimum signal range.
Page 78: Group 3.10: Automatic Reset
6.1.11 Group 3.10: Automatic reset Code Parameter Unit Default Description 0 = Disabled P3.10.1 Automatic reset 1 = Enabled Wait time before the first reset is P3.10.2 Wait time 0.10 10.0 executed. NOTE: Total number of trials P3.10.3 Automatic reset tries (irrespective of fault type) We can choose what kind of start function we want to use when doing an...
Page 79: Group 3.12: Timer Functions
6.1.13 Group 3.12: Timer functions The time functions (Time Channels) in the RSI give you the possibility to program functions to be controlled by the internal RTC (Real Time Clock). Practically every function that can be controlled by a digital input can also be controlled by a Time Channel.
Page 80 Timers Timers can be used to set a Time Channel active during a certain time by a command from a digital input (or a Time Channel). Remaining Remaining time time Time Time Activation Activation Duration Duration 9137.emf Fig. 23 Activation signal comes from a digital input or "a virtual digital input" such as a Time channel. The Timer counts down from falling edge The below parameters will set the Timer active when the drive to run outside working hours if there are...
Page 81 Interval 2: P3.12.6.1: Duration: 1800 s (30 min) P3.12.6.3: Assign to channel: Time channel 1 P3.12.2.1: ON Time: 09:00:00 P3.12.2.2: OFF Time: 13:00:00 P3.12.2.3: Days: Saturday, Sunday P3.12.6.2: Timer 1: DigIn SlotA.1 (Parameter located P3.12.2.4: AssignToChannel: Time channel 1 in digital inputs menu.) Timer 1 Finally select the Channel 1 for the I/O Run command.
Page 82 Group 3.12.3: Interval 3 Code Parameter Unit Default Description P3.12.3.1 ON time 00:00:00 23:59:59 hh:mm:ss 00:00:00 1474 See Interval 1 P3.12.3.2 OFF time 00:00:00 23:59:59 hh:mm:ss 00:00:00 1475 See Interval 1 P3.12.3.3 Days 1476 See Interval 1 P3.12.3.4 Assign to channel 1478 See Interval 1 Group 3.12.4: Interval 4 Code...
Page 83: Group 3.13: Pid Controller
6.1.14 Group 3.13: PID Controller Group 3.13.1: Basic Settings Code Parameter Unit Default Description If the value of the parameter is set to 100 % a change of 10 % in the error P3.13.1.1 Gain 0.00 1000.00 100.00 value causes the controller output to change by 10 %.
Page 84 Group 3.13.2: Setpoints Code Parameter Unit Default Description P3.13.2.1 Keypad SP 1 Varies Varies Varies P3.13.2.2 Keypad SP 2 Varies Varies Varies Defines the rising and falling ramp times for setpoint P3.13.2.3 Ramp Time 0.00 300.0 0.00 1068 changes. (Time to change from minimum to maximum) FALSE = No boost P3.13.2.4...
Page 85 Group 3.13.3: Feedbacks Code Parameter Unit Default Description 1 = Only Source1 in use 2 = SQRT (Source1); (Flow = Constant x SQRT (Pressure)) 3 = SQRT (Source1- Source 2) 4 = SQRT (Source 1) + SQRT (Source 2) P3.13.3.1 Function 5 = Source 1 + Source 2 6 = Source 1 - Source 2...
Page 86 The feedforward part does not use any feedback measurements of the actual controlled process value (water level in the example on page 127). RSI feedforward control uses other measurements which are indirectly affecting the controlled process value.
Page 87 Group 3.13.6: Feedback Superv. Process supervision is used to control that the PID Feedback value (process actual value) stays within predefined limits. With this function you can e.g. detect a major pipe burst and stop unnecessary flooding. See more on page 129. Code Parameter Unit...
Page 88 Group 3.13.8: Soft Fill The process is brought to a certain level (P3.13.8.3) at slow frequency (P3.13.8.2) before the PID controller starts to control. In addition, you can also set a timeout for the soft fill function. If the set level is not reached within the timeout a fault is triggered.
Page 89 Group 3.13.9: Input Press.Superv. The Input pressure supervision function is used to If the pump inlet pressure falls below the defined supervise that there is enough water in the inlet of alarm limit, an alarm will be trigged and the pump the pump, to prevent the pump from sucking air or output pressure reduced by decreasing the PID causing suction cavitation.
Page 90 Code Parameter Unit Default Description 0 = Disabled 1 = Enabled P3.13.9.1 Superv. Enable 1685 Enables the Input Pressure Supervision. The source of input pressure measurement signal: 0 = Analogue input 1 1 = Analogue input 2 2 = Analogue input 3 3 = Analogue input 4 4 = Analogue input 5 5 = Analogue input 6...
Page 91: Group 3.14: Extpid Controller
6.1.15 Group 3.14: ExtPID Controller Group 3.14.1: Basic settings For more detailed information, see chapter 6.1.14 Group 3.13: PID Controller. Code Parameter Unit Default Description 0 = Disabled P3.14.1.1 Enable ExtPID 1630 1 = Enabled FALSE = PID2 in stop mode TRUE = PID2 regulating This parameter will have no P3.14.1.2...
Page 92 Group 3.14.2: Setpoints Code Parameter Unit Default Description P3.14.2.1 Keypad SP 1 0.00 100.00 Varies 0.00 1640 P3.14.2.2 Keypad SP 2 0.00 100.00 Varies 0.00 1641 P3.14.2.3 Ramp Time 0.00 300.00 0.00 1642 FALSE = Setpoint 1 P3.14.2.4 Setpoint Selection Varies Varies DigIN Slot0.1 1048 TRUE = Setpoint 2...
Page 93 Group 3.14.3: Feedbacks For more detailed information, see chapter 6.1.14 Group 3.13: PID Controller. Code Parameter Unit Default Description P3.14.3.1 Function 1650 P3.14.3.2 Gain -1000.0 1000.0 100.0 1651 P3.14.3.3 FB 1 Source 1652 See P3.13.3.3. Minimum value at assssssssnalogue P3.14.3.4 FB 1 Minimum -200.00 200.00 0.00 1653 signal minimum.
Page 94: Group 3.16: Maintenance Counters
6.1.16 Group 3.16: Maintenance Counters Note: Revolutions are based on motor speed which is only an estimate (integration every second). The maintenance counter is a way of indicating the operator that maintenance needs to be carried out. When the counter exceeds the limit an alarm or fault For example, a belt needs to be replaced or oil in a will be trigged respectively.
Page 95: Group 3.22: Solar
6.1.18 Group 3.22: Solar Group 3.22.1: Start Settings Code Parameter Unit Default Description DV voltage threshold level P3.22.1.1 Start DC Voltage 1916 to activate Run enable P3.22.1.2 Short restart delay 1917 Delay time to restart P3.22.1.3 Short restart delay tries 1918 Number of restart tries P3.22.1.4 Long restart delay...
Page 96: Group 3.23: Flow Meter
6.2 Additional parameter information Due to its user-friendliness and simplicity of use, most parameters of the RSI only require a basic description which is given in the parameter tables in chapter 6.1 Application parameter lists.
Page 97 When this parameter is changed, parameters P3.1.4.2 and P3.1.4.3 will be automatically initialized according to the selected motor type. See the table below for the initialization values: Permanent Magnet Synchronous Motor Parameter Induction Motor (IM) (PMSM) P3.1.4.2 Motor nominal frequency Internally calculated (Field WeakngPnt) P3.1.4.3...
Page 98 P3.1.2.6 Motor switch This function is typically used if there is a switch between the drive and the motor. Such switches are often found in residential and industrial applications to make sure that an electrical circuit can be completely de-energized from the motor for service or maintenance.
Page 99 P3.1.2.7 Load drooping The drooping function enables speed drop as a function of load. This parameter sets that amount corresponding to the nominal torque of the motor. This function is used e.g. when balanced load is needed for mechanically connected motors or dynamic speed drooping is needed because of changing load.
Page 100 Stator Voltage Adjust (50..200%) Field Weakening Point Voltage Motor Nominal Voltage 9208.emf Field Motor Nominal Weakening Frequency Point Fig. 29 Principle of Stator voltage adjustment P3.1.3.1 Current limit This parameter determines the maximum motor current from the AC drive. The parameter value range differs from size to size.
Page 101: Open Loop
6.2.2 Open Loop P3.1.4.1 U/f ratio Selection Selection name Description number The voltage of the motor changes linearly as a function of output frequency from zero frequency voltage (P3.1.4.6) )to the field Linear weakening point (FWP) voltage (P3.1.4.3) at FWP frequency (P3.1.4.2) This default setting should be used if there is no special need for another setting.
Page 102 U [V] U[V] ID603 Default: Nominal voltage of Default: Nominal Field weakening point ID603 Field weakening point the motor voltage of the motor ID605 ID605 Default: Nominal Default: Nominal ID606 ID606 frequency of the motor frequency of the f [Hz] motor f[Hz] ID604...
Page 103: Start/Stop Setup
6.2.3 Start/Stop Setup P3.2.5 Stop function Selection Selection name Description number The motor is allowed to stop on its own inertia. The control by the drive is Coasting discontinued and the drive current drops to zero as soon as the stop command is given.
Page 104 Selection Selection name Note number CS1: Forward The functions take place when the contacts are closed. CS2: Backward Output frequency Set frequency 0 Hz Set frequency Run enable Ctrl signal 1 Ctrl signal 2 Keypad start button Keypad stop button 9135.emf Fig.
Page 105 Selection Selection name Note number CS1: Start The function takes place when the contacts are closed. CS2: Reverse Output frequency Set frequency 0 Hz Set frequency Run enable Ctrl signal 1 Ctrl signal 2 Keypad start button Keypad stop button 9142.emf Fig.
Page 106: References
6.2.4 References P3.3.1.2 MaxFreqReference Maximum frequency reference. P3.3.1.1 MinFreqReference Minimum frequency reference. 6.2.5 Preset Freqs NOTE: When drive is fed by solar power, if available P3.3.3.1 PresetFreqMode power is not sufficient to maintain dc voltage above You can use the preset frequency parameters to the minimum and frequency above the minimum, the define certain frequency references in advance.
Page 107: Motor Potentiometer
Value "1" selected for parameter P3.3.3.1: According to how many of the inputs assigned for Preset frequency selections are active, you can apply the Preset frequencies 1 to 3. Activated input Activated frequency P3.3.3.12 P3.3.3.11 P3.3.3.10 Preset Freq 1 P3.3.3.12 P3.3.3.11 P3.3.3.10 Preset Freq 1...
Page 108: Ramps And Brakes
Frequency Reference Frequency Motor potentiometer ramp time Frequency Time [s] Motor potentiometer Motor potentiometer DOWN 9122.emf Fig. 34 Motor potentiometer parameters 6.2.7 Ramps And Brakes P3.4.1.4 Start acceleration time A specific acceleration time from zero to minimum P3.4.1.2 Accel Time 1 frequency is available (P3.4.1.4).
Page 109: Digital Inputs
6.2.9 Digital inputs P3.5.1.15 Run Enable Contact open:Start of motor disabled Contact closed:Start of motor enabled The AC drive is stopped according to the selected function at P3.2.5. The follower drive will always coast to stop. P3.5.1.16 Run Interlock 1 P3.5.1.17 Run Interlock 2 The drive cannot be started if any of the interlocks...
Page 110: Frequency Reference
P3.5.2.1.3 AI1 Signal Range The signal range for the analogue signal can be selected as: Type of the analogue input signal (current or voltage) is selected by the dip switches on the control board (see Installation manual). In the following examples, the analogue input signal is used as a frequency reference.
Page 111 Selection Selection name Description number Analogue input signal range 2…10 V or 4…20 mA 2…10 V/4…20 mA (depending on dip switch settings on the control board). Input signal used 20…100 %. Frequency Frequency reference reference [Hz] [Hz] Max freq Max freq reference reference Analog input...
Page 112 P3.5.2.1.4 AI1 Custom Min P3.5.2.1.5 AI1 Custom Max These parameters allow you to freely adjust the analogue input signal range between -160…160 %. Example: If the analogue input signal is used as frequency reference and these parameters are set to 40…80 %, the frequency reference is changed between the Minimum frequency reference and the MaxFreqReference when the analogue input signal...
Page 113 P3.5.2.1.6 AI1 Signal Inv Invert the analogue signal with this parameter. In the following examples, the analogue input signal is used as frequency reference. The figures show how the scaling of the analogue input signal is changed depending on the setting of this parameter. Selection Selection name Description...
Page 114: Digital Outputs
Selection Selection name Description number Signal inverted. The analogue input signal value 0 % corresponds to the MaxFreqReference and the analogue Inverted input signal value 100 % to the Minimum frequency reference. Frequency Frequency reference reference [Hz] [Hz] Max freq Max freq reference reference...
Page 115 Selection Selection name Description No function The preset frequency has been selected with digital input Preset Frequency active signals. No function PID in Sleep mode PID-controller is in Sleep mode. PID Soft Fill activated PID-controller Soft Fill function is activated. PID process supervision PID-controller feedback value is beyond the supervision limits.
Page 116: Analog Outputs
6.2.12 Analog outputs P3.5.4.1.1 AO1 function This parameter defines the content of the analogue output signal 1. The scaling of the analogue output signal depends on the selected signal. See the table below. Selection Selection name Description Analogue output is forced either to 0 % or 20 % depending on Test 0 % (Not used) parameter P3.5.4.1.3.
Page 117 P3.5.4.1.4 AO1 MinScale P3.5.4.1.5 AO1 MaxScale These parameters can be used to freely adjust the analogue output signal scaling. The scale is defined in process units and it depends on the selection of parameter P3.5.4.1.1. Example: The drive's output frequency is selected for the content of the analogue output signal and parameters P3.5.4.1.4 and P3.5.4.1.5 are set to 10…40 Hz.
Page 118: Prohibit Freq
6.2.13 Prohibit Freq P3.7.1 Range 1 Low Lim P3.7.2 Range 1 High Lim P3.7.3 Range 2 Low Lim P3.7.4 Range 2 High Lim P3.7.5 Range 3 Low Lim P3.7.6 Range 3 High Lim Actual reference Actual Refer ence High Lim High Lim Low Lim Low Lim...
Page 119 P3.7.7 RampTimeFactor The Ramp time factor defines the acceleration/ deceleration time when the output frequency is in a prohibited frequency range. The Ramp time factor is multiplied with the value of parameters P3.4.1.2/ P3.4.1.3 (Ramp acceleration/deceleration time). For example the value 0.1 makes the acceleration/ deceleration time ten times shorter.
Page 120: Protections
6.2.14 Protections P3.9.1.2 External Fault An alarm message or a fault action and message is generated by an external fault external fault signal in one of the programmable digital inputs (DI3 by default) using parameters P3.5.1.11 and P3.5.1.12. The information can also be programmed into any of the relay outputs.
Page 121 P3.9.2.4 ThermalTimeConst This is the thermal time constant of the motor. The bigger the motor, the bigger the time constant. The time constant is the time within which the calculated thermal stage has reached 63 % of its final value. The motor thermal time is specific to the motor design and it varies between different motor manufacturers.
Page 122 P3.9.2.5 MotThermLoadbil Setting value to 130 % means that the nominal temperature will be reached with 130 % of motor nominal current. Current Fault/ Alarm Tr ip area 105% Loadability 80% Loadability 100% Loadability 130% Fig. 46 Motor temperature calculation...
Page 123 P3.9.3.2 Stall Current The current can be set to 0.0…2*IL. For a stall stage to occur, the current must have exceeded this limit. See Figure 47. If parameter P3.1.3.1 Current Limit is changed, this parameter is automatically calculated to 90 % of the current limit. NOTE! In order to guarantee desired operation, this limit must be set below the current limit.
Page 124 P3.9.4.2 Fieldweak. Load The torque limit can be set between 10.0 - 150.0 % x TnMotor. This parameter gives the value for the minimum torque allowed when the output frequency is above the field weakening point. See Figure 48. If you change parameter P3.1.1.4 (Motor Nom Currnt) this parameter is automatically restored to the default value.
Page 125: Automatic Reset
P3.9.4.4 Time Limit This time can be set between 2.0 and 600.0 s. This is the maximum time allowed for an underload state to exist. An internal up/down counter counts the accumulated underload time. If the underload counter value goes above this limit the protection will cause a trip according to parameter P3.9.4.1).
Page 126: Feedbacks
P3.10.5 to P3.10.7 Underload Reset time 1-3 P3.10.8 Underload Tries T1, T2 Undervoltage fault is reset without limitations, also Trials attempted during Underload Reset time 1 and when P10.1 is not active. The drive will restart Underload Reset time 2. according the delay times defined by the parameters 6.2.16 Feedbacks P14.1.1 to P14.1.4.
Page 127: Feedforward
The feedforward part does not use any feedback measurements of the actual controlled process value (water level in the example on page 127). RSI feedforward control uses other measurements which are indirectly affecting the controlled process value.
Page 128: Sleep Function
6.2.18 Sleep Function P3.13.5.1 Sleep frequency limit 1 P3.13.5.2 SP 1 Sleep Delay P3.13.5.3 SP 1 WakeUpLevel This function will put the drive into sleep mode if the frequency stays below the sleep limit for a longer time than that set with the Sleep Delay (P3.13.5.2). This means that the start command remains on, but the run request is turned off.
Page 129: Feedback Superv
6.2.19 Feedback Superv. P3.13.6.1 Enable Superv These parameters define the range within which the PID Feedback signal value is supposed to stay in a normal situation. If the PID Feedback signal goes above or below the defined supervision range for longer time than what is defined as the Delay, a PID Supervision fault (F101) will be triggered.
Page 130: Press.loss.comp
6.2.20 Press.Loss.Comp Pressure No flow Pipe length Position 1 Position 2 9101.emf Fig. 54 Position of pressure sensor If pressurizing a long pipe with many outlets, the best place for the sensor would probably be halfway down the pipe (Position 2). However, sensors might, for example, be placed directly after the pump.
Page 131 P3.13.7.1 Enable SP 1 P3.13.7.2 Setpoint 1 max compensation The sensor is placed in Position 1. The pressure in the pipe will remain constant when we have no flow. However, with flow, the pressure will drop farther down in the pipe. This can be compensated by raising the setpoint as the flow increases.
Page 132: Soft Fill
6.2.21 Soft fill P3.13.8.1 Enable P3.13.8.2 SoftFill Freq P3.13.8.3 SoftFill Level P3.13.8.4 Timeout TIme The drive runs at the soft fill frequency (par. P3.13.8.2) until the feedback value reaches the soft fill level set parameter P3.13.8.3. After this the drive starts to regulate, bump less, from the soft fill frequency.
Page 133: Solar
P3.21.1.9 Cleaning deceleration time See parameter P3.21.1.8 Cleaning acceleration time above. Output Frequency Cleaning Forward Time Cleaning Forward Frequency Zero Frequency Cleaning Reverse Frequency Cleaning Reverse Time Cycle 1 Cycle 2 Cleaning Cycles Cleaning Function Cleaning Activation 9139.emf Fig. 57 Auto-cleaning functionality 6.2.23 Solar MPPT...
Page 134 P3.22.2.1 Vmp at 100 % power P3.22.2.8 P&O update time P3.22.2.2 Vmp at 10 % power P3.22.2.9 P&O voltage step The Vmp parameters should be obtained from panel DC voltage reference is periodically (at intervals characteristics, considering standard temperature defined by P3.22.2.8) increased or decreased by a and irradiation at 10 % and 100 % level.
Page 135 Global maximum point MAX2 MAX3 MAX1 Local maximum points Voltage across PV array (V) Fig. 58 P3.22.2.11 P&O local max volt step MPPT Oscillation Damping To bypass discontinuity on power/voltage curve of If the power regulation enters the "current source" array, after having reached a stable point, the P&O branch of the panel current/voltage characteristic, takes a bigger downward step (P3.22.2.11) in...
Page 136: Fault
7. Fault 7.1 Fault Tracing When an unusual operating condition is detected by the AC drive control diagnostics, the drive initiates a notification visible, for example, on the keypad. The keypad will show the code, the name and a short description of the fault or alarm.
Page 137: Fault History
7.3 Fault History In menu M4.3 Fault history you find the maximum number of 40 occurred faults. On each fault in the memory you will also find additional information, see below. STO P RE ADY I/ O STO P RE ADY I/ O ...
Page 138: Fault Codes
7.4 Fault codes Fault Fault Fault name Possible cause Remedy code Overcurrent AC drive has detected too high a Check loading. (hardware fault) current (> 4*I ) in the motor cable: Check motor. • sudden heavy load increase Check cables and connections. Overcurrent Make identification run.
Page 139 Fault Fault Fault name Possible cause Remedy code Communication between control board and power unit has failed. Communication between control Reset the fault and restart. board and power unit has Should the fault re-occur, interference, but it is still working. contact the distributor near to you.
Page 140 Fault Fault Fault name Possible cause Remedy code Brake chopper Check brake resistor and supervision No brake resistor installed. cabling. (hardware fault) Brake resistor is broken. If these are ok, the chopper is Brake chopper failure. faulty. Contact the distributor Brake chopper near to you.
Page 141 Fault Fault Fault name Possible cause Remedy code Option board changed for one Device changed previously inserted in the same slot. Device is ready for use. Old (same type) The board's parameter settings are parameter settings will be used. saved. Option board added.
Page 142 Fault Fault Fault name Possible cause Remedy code Actual status of mechanical brake Check the status and remains different from the control 1058 Mechanical brake connections of the mechanical signal for longer than what is brake. defined. Check settings and water level 1063 Low water level The minimum water level is not ok.
Page 143 Fault Fault Fault name Possible cause Remedy code Input pressure supervision signal Check the process. 1109 has gone below the alarm limit. Input pressure Check the parameters supervision Check the input pressure sensor Input pressure supervision signal 1409 and connections. has gone below the fault limit.
Page 144 99116147 0616 ECM: 1186774 www.grundfos.com...

Grundfos RSI Installation And Operating Instructions Manual

1 Grundfos RSI

2 Safety

3 Startup

4 User Interfaces

5 Monitoring Menu

6 Parameters

7 Fault

Quick Links

Need help?

Questions and answers

Related Manuals for Grundfos RSI

Summary of Contents for Grundfos RSI

Table of Contents
