Summary of Contents for Olympia HAPPY

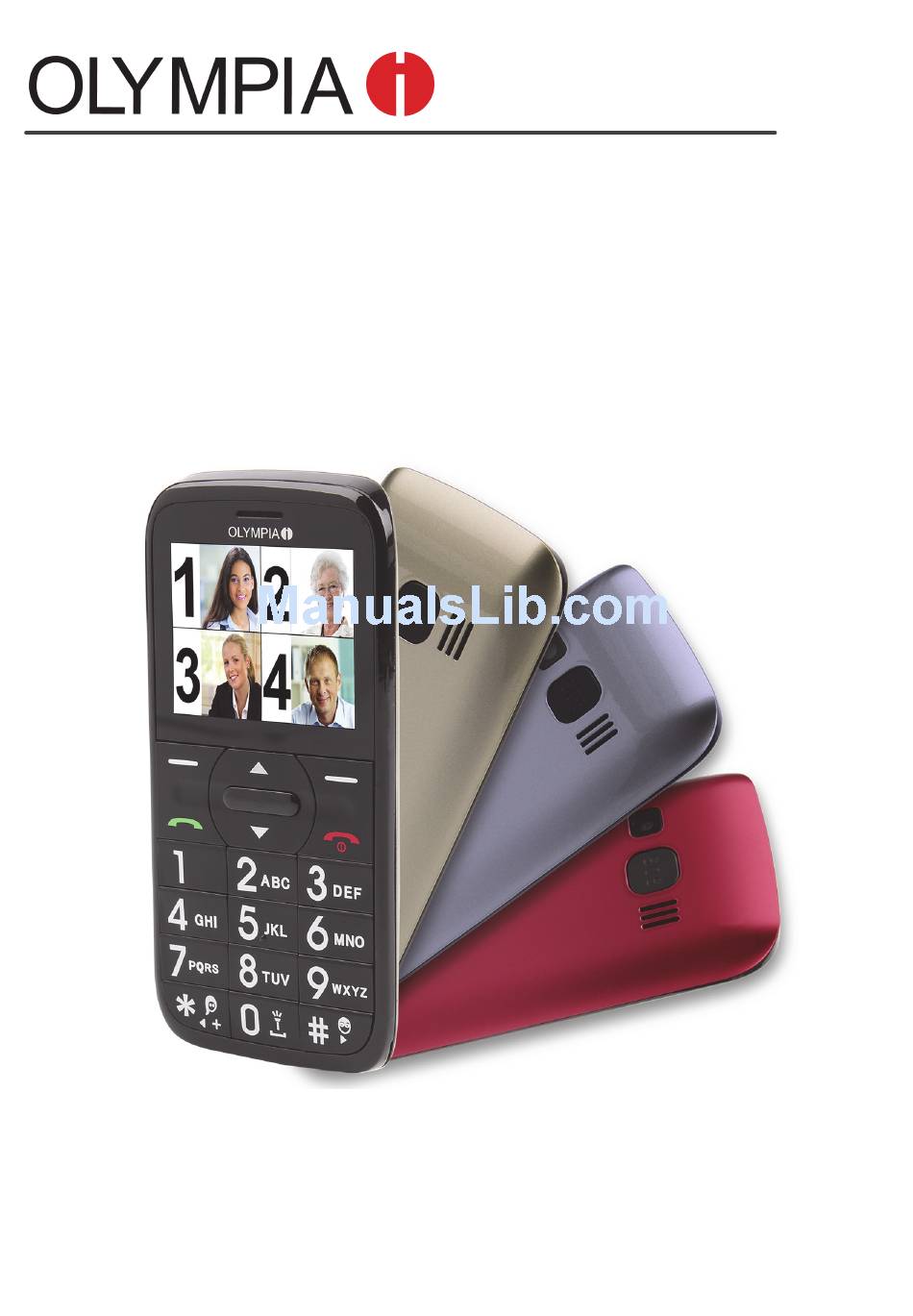

- Page 1 HAPPY Operating Manual 09.2015 en Olympia Business Systems Vertriebs GmbH Zum Kraftwerk 1 45527 Hattingen...
- Page 2 HAPPY...
-
Page 3: Table Of Contents
Contents HAPPY Contents For Your Safety ......... . - Page 4 Contents HAPPY Restore Factory Settings ........
-
Page 5: For Your Safety
For Your Safety HAPPY SAFETY INSTRUCTIONS For Your Safety Throughout this document, highlighted texts indicate potential dangers and risks. Safety Instructions Observe the following safety instructions in order to protect yourself from the possibility of personal injury and the product from damage. - Page 6 For Your Safety HAPPY SAFETY INSTRUCTIONS CAUTION! Risk of explosion through improper replacement or removal of the lithium battery! Only replace the lithium battery by a type approved by the manufactur Risk of hearing damage! The ringing tone is issued via the loudspeaker. Take an incoming call first and then hold the mobile phone to your ear.
- Page 7 For Your Safety HAPPY SAFETY INSTRUCTIONS ATTENTION! Prevent the risk of property damage to your device and observe the infor mation! Protect the device from moisture, dust, liquids, chemicals, vapours, heat and direct sunlight. The phone is not waterproof; therefore, keep it dry.
-
Page 8: Intended Use
For Your Safety HAPPY INTENDED USE Tips concerning the battery Only use batteries and power adapters approved by the manufacturer, oth erwise the battery could be damaged. Do not short circuit the battery. Always leave the battery in the mobile phone to avoid accidentally short circuiting the battery contacts. -
Page 9: General Overview
General Overview HAPPY General Overview This chapter provides information on the individual elements of the mobile phone. -
Page 10: Keys And Operating Elements
General Overview HAPPY KEYS AND OPERATING ELEMENTS Keys and Operating Elements The following diagrams illustrate the keys and operating elements which you can use used to exploit the functional scope of the mobile phone to the full. Front View Important elements are provided on the front of the mobile phone. - Page 11 General Overview HAPPY KEYS AND OPERATING ELEMENTS Earpiece Display Left-hand softkey Call key Keypad Star key Navigation keys, up / down Menu key (confirm, trigger camera) Right-hand softkey 10 On-hook key 11 Hash key...
- Page 12 General Overview HAPPY KEYS AND OPERATING ELEMENTS Rear View and Underside Important elements are provided on the rear and underside of the mobile phone.
- Page 13 General Overview HAPPY KEYS AND OPERATING ELEMENTS 12 Camera 13 Emergency call key (SOS) 14 Headphone socket 15 MicroUSB connection port 16 Charge contacts 17 Torch lamp (LED)
-
Page 14: Scope Of Delivery
General Overview HAPPY SCOPE OF DELIVERY Scope of Delivery The following are enclosed with the mobile phone supplied: 1 mobile phone 1 USB connection cable 1 lithium ion battery 1 charging cradle 1 quick reference manual 1 charging adapter Display Icons The table below indicates a series of display icons which frequently appear and indicate a specific status of the mobile phone. -
Page 15: Start Screen
General Overview HAPPY START SCREEN Start Screen The start screen is the standard display which appears when the mobile phone is switched on. Press any key in order to switch on the start screen on the mobile phone display . - Page 16 Display of the time HAPPY START SCREEN Display of the network availability The current network availability is displayed at the top left of the mobile phone screen: Very good Poor The more bars displayed, the better the reception quality. If you use the dual SIM function offered by the mobile phone, the network availability and name of each mobile phone network used are displayed.
-
Page 17: Putting The Mobile Phone Into Operation
Putting the Mobile Phone into Operation HAPPY INSERTING THE SIM CARD Putting the Mobile Phone into Operation This chapter provides information on preparing the mobile phone for use. Before you start, please read the safety information on Pages 5 - 8. -
Page 18: Inserting A Microsd Memory Card
Putting the Mobile Phone into Operation HAPPY INSERTING A MICROSD MEMORY CARD Inserting a MicroSD Memory Card A microSD memory card (not included in the equipment supplied) can be inserted, as an option, in the mobile phone. This increases the quantity of data which can be stored on the mobile phone. -
Page 19: Inserting The Battery
Putting the Mobile Phone into Operation HAPPY INSERTING THE BATTERY Inserting the Battery Before you can use the mobile phone, you must insert the battery in the mobile phone. 1. Insert the battery (2) as illustrated. The shape of the compartment ensures the battery cannot be inserted in... -
Page 20: Charging The Battery
Putting the Mobile Phone into Operation HAPPY CHARGING THE BATTERY Charging the Battery When charging the battery for the first time, it should be charged for at least 4 hours. Some batteries only reach their full capacity after several complete charge/discharge cycles. If the battery is fully discharged, it may take some time for the charging process to be indicated. - Page 21 Putting the Mobile Phone into Operation HAPPY CHARGING THE BATTERY Charging the battery with the charging cradle 1. Connect the power plug to a properly installed power socket. 2. Connect the microUSB plug to the USB connection port on the rear side of the charging cradle.
-
Page 22: Switching The Mobile Phone On And Off
Putting the Mobile Phone into Operation HAPPY SWITCHING THE MOBILE PHONE ON AND OFF Switching the Mobile Phone On and Off 1. Press the On-hook key for 3 seconds. Some SIM cards will require you to enter a PIN code. Follow the instruc... -
Page 23: Using The Mobile Phone
Using the Mobile Phone HAPPY INFORMATION ON NAVIGATION Using the Mobile Phone This chapter provides information on the ways to operate the mobile phone. Information on Navigation Press the navigation keys to navigate through the menus and submenus provided by the mobile phone and press the softkeys (on the left and right) to start functions. -
Page 24: Methods Of Entering Text
Using the Mobile Phone HAPPY METHODS OF ENTERING TEXT Methods of Entering Text You can change the text input method to enter other characters. • Multi-tap, capital letters • Multi-tap, small letters • Digits 123 Multi-tap In order to enter text in multi-tap mode, press the key labelled with the cor... -
Page 25: Making, Taking And Ending Calls
Using the Mobile Phone HAPPY MAKING, TAKING AND ENDING CALLS Making, Taking and Ending Calls The following descriptions of functions assume that the start screen is dis played as the starting point. Making calls 1. Enter the phone number required. -
Page 26: Menu Options Available During A Call
Using the Mobile Phone HAPPY MENU OPTIONS AVAILABLE DURING A CALL Menu Options Available During a Call You can change some settings while a call is in progress. 1. Press the left-hand softkey while a call is in progress in order to open the menu during the call. - Page 27 Using the Mobile Phone HAPPY MENU OPTIONS AVAILABLE DURING A CALL Conference calls You can set-up a conference call, meaning communicating with at least two other parties at the same time. Options Phonebook 1. While a call is in progress, navigate to and select an...
-
Page 28: Setting The Receiver Volume
Using the Mobile Phone HAPPY SETTING THE RECEIVER VOLUME Setting the receiver volume Adjust the receiver volume of the mobile phone while a call is in progress: 1. Use the Navigation keys to raise or lower the volume. CAUTION! Risk of damage to hearing! Listening at full volume for a longer period could cause hearing dam... -
Page 29: Mobile Phone Menu
Mobile Phone Menu HAPPY Mobile Phone Menu The main mobile phone menu is divided into topically organised groups (submenus). All the most important functions are explained below. Some texts in the menu appear as scrolling text. Wait a moment for the... -
Page 30: Call Lists
Mobile Phone Menu HAPPY CALL LISTS Call Lists Your mobile phone stores the last numbers dialled, calls received and calls missed in various call lists. If one of the phone numbers received matches an entry in the phone book, the associated name appears. - Page 31 Mobile Phone Menu HAPPY CALL LIST OPTIONS Call list options Received calls Dialled calls The call list options are identical in all the call lists ( Missed calls Call You can call an entry from the call lists. Menu Call center Call logs 1.
- Page 32 Mobile Phone Menu HAPPY CALL LIST OPTIONS Writing a text message You can write and send a text message to the selected entry. Menu Call center Call logs 1. Navigate to Received calls Dialled calls Missed calls 2. Select the required call list ( 3.
- Page 33 Mobile Phone Menu HAPPY CALL LIST OPTIONS Delete You can delete an entry from the call lists. Menu Call center Call logs 1. Navigate to Received calls Dialled calls Missed calls 2. Select the required call list ( 3. Select the required entry.
-
Page 34: Call Settings
Mobile Phone Menu HAPPY CALL SETTINGS Call Settings You can use this menu to define various settings which affect the phoning behaviour of your mobile phone. Send own phone number You can define whether you send your own phone number to the person... - Page 35 Mobile Phone Menu HAPPY CALL SETTINGS Call divert Divert if no answer You can define whether and in what situations ( Divert if busy Divert all data calls Cancel all diverts ) incoming calls to your mobile phone should be forwarded to another phone number which you define.
- Page 36 Mobile Phone Menu HAPPY CALL SETTINGS Call time reminder You can define whether an acoustic signal should be issued to remind you of the call time which has elapsed until that moment while a call is in progress. You can define a single period or a repeated interval for the acoustic signal.
-
Page 37: Phone Book
Mobile Phone Menu HAPPY PHONE BOOK Phone Book The phone book in the phone can store up to 300 entries. You can store other entries on the SIM card. - Page 38 Mobile Phone Menu HAPPY PHONE BOOK Adding a contact Always enter phone numbers with the country and area codes. When the memory capacity is used up, the corresponding message ap pears when an attempt is made to store another contact. Before new en...
- Page 39 Mobile Phone Menu HAPPY PHONE BOOK SETTINGS Deleting a contact You can delete a contact from the phone book as follows: Menu Phonebook 1. Navigate to 2. Select the required contact. Options Clear 3. Select and confirm the prompt. The contact is deleted.
-
Page 40: Speed Dialling
Mobile Phone Menu HAPPY SPEED DIALLING Speed Dialling You can assign speed dialling for up to eight phone book entries to the keys Activating the speed dialling function Firstly, the speed dialling function must be switched on. Menu Phonebook Options Phonebook settings Speed dial Status 1. -
Page 41: Text Messages
Mobile Phone Menu HAPPY TEXT MESSAGES Text Messages You can use the mobile phone to send and receive text messages (SMS). A standard text message contains 160 characters. - Page 42 Mobile Phone Menu HAPPY TEXT MESSAGES Writing text messages Use the function to write short text messages: Extra costs may be incurred for texts in excess of 160 characters. Menu Messages Write message 1. Navigate to 2. Enter your text.
- Page 43 Mobile Phone Menu HAPPY TEXT MESSAGES Reply Send a reply to the sender of the text message received. Menu Messages Inbox 1. Navigate to 2. Select the required text message. Options Reply 3. Select 4. Enter your text. Options Send to 5.
- Page 44 Mobile Phone Menu HAPPY TEXT MESSAGES Delete You can delete a text message you have received. Menu Messages Inbox 1. Navigate to 2. Select the required text message. Options Clear 3. Select and confirm the prompt. The text message is...
- Page 45 Mobile Phone Menu HAPPY TEXT MESSAGES Drafts You can save a text message you have written in the Draft folder. This provides you access to frequently used texts. Save to drafts Write a text which you want to save as a draft.
- Page 46 Mobile Phone Menu HAPPY TEXT MESSAGES Edit You can edit a text which you have already saved as a draft. Menu Messages Drafts 1. Navigate to 2. Select the required draft message. Options Edit 3. Select 4. Edit the draft text according to your requirements.
- Page 47 Mobile Phone Menu HAPPY TEXT MESSAGES Sent messages The text messages sent from your mobile phone can be stored. Menu Messages Sent messages 1. Navigate to View Open the text message to read the content. Menu Messages Sent messages 1. Navigate to 2.
- Page 48 Mobile Phone Menu HAPPY TEXT MESSAGES Delete You can delete a text message you have sent. Menu Messages Sent messages 1. Navigate to 2. Select the required text message. Options Clear 3. Select and confirm the prompt. The sent message, which was stored, is deleted.
- Page 49 Mobile Phone Menu HAPPY TEXT MESSAGES Memory status Information appears regarding the number of text messages saved and storage locations available: Menu Messages SMS settings Memory status 1. Navigate to . The storage loca tions available are displayed. If two SIM cards are inserted in the mobile phone, the overview distin...
-
Page 50: Settings
Mobile Phone Menu HAPPY SETTINGS Settings The Settings menu is used to change the basic settings such as time, lan guage, call settings, telephone settings, network and security settings etc. -
Page 51: Phone Settings
Mobile Phone Menu HAPPY PHONE SETTINGS Phone Settings You can define the basic settings for the mobile phone, such as language, time, date, back-lighting etc. Time and date Set the time and date before using the mobile phone for the first time. - Page 52 Mobile Phone Menu HAPPY PHONE SETTINGS Display Define which background image (wallpaper) you want on the start screen and whether the time should be displayed on the start screen. Menu Settings Phone settings Display Wallpaper 1. Navigate to Show date and time 2.
-
Page 53: Security Settings
Mobile Phone Menu HAPPY SECURITY SETTINGS Security Settings You can define your own individual PIN and phone lock password. You can deactivate the request for your PIN from the SIM card if so re quired. The risk here is, should you lose your mobile phone, the data stored on it could be misused by third-parties and subsequent costs could be charged to you. - Page 54 Mobile Phone Menu HAPPY SECURITY SETTINGS The PIN is stored on the SIM card. If you give your SIM card to someone else or insert it in another mobile phone, the newly entered PIN is valid. If you forget your PIN, you can reset the SIM card to its default settings af...
-
Page 55: Network Settings
Mobile Phone Menu HAPPY NETWORK SETTINGS Automatic key lock Define whether and, if so, when the mobile phone key lock should be auto matically switched on. The key lock prevents functions being triggered in advertently, e.g. when you put the mobile phone in your pocket. -
Page 56: Dual-Sim Settings
Mobile Phone Menu HAPPY DUAL-SIM SETTINGS Dual-SIM Settings The dual-SIM function can be used, for example, to keep private and busi ness calls separate without the need to use a second mobile phone. In addition, you can use two different, specifically chosen mobile phone rates if, for example, you are frequently abroad. -
Page 57: Bluetooth
Mobile Phone Menu HAPPY BLUETOOTH Bluetooth The Bluetooth function, a standard for wireless data transfer, can be used to exchange data with other Bluetooth-capable devices free of charge. Switching Bluetooth on/off Switch the function on or off. Menu Settings Bluetooth Power 1. -
Page 58: Restore Factory Settings
Mobile Phone Menu HAPPY RESTORE FACTORY SETTINGS Device name You can assign your mobile phone a name via which it can be identified and located under other Bluetooth-capable devices. The default setting for the mobile phone is the name MTKBTDEVICE. -
Page 59: Emergency Call Function (Sos Key)
Mobile Phone Menu HAPPY EMERGENCY CALL FUNCTION (SOS KEY) Emergency Call Function (SOS Key) Die SOS key on the rear of the mobile phone is assigned an emergency call function. Press and hold the SOS key for approx. 3 sec. to trigger an emergency call. - Page 60 Mobile Phone Menu HAPPY EMERGENCY CALL FUNCTION (SOS KEY) Call chain Set whether the emergency call numbers should be called once or repeat edly. If the telephone chain function is activated, all the phone numbers stored are dialled in succession in 3 complete cycles. This ensures that the emer...
- Page 61 Mobile Phone Menu HAPPY EMERGENCY CALL FUNCTION (SOS KEY) SOS text message Save an SOS text message which will be sent to the stored phone num bers after triggering the emergency call function. The content of the emergency text messages is limited to 139 characters.
-
Page 62: Reminder, Discharged Battery
Mobile Phone Menu HAPPY REMINDER, DISCHARGED BATTERY Reminder, Discharged Battery The alert function in the case low battery power can be used to initiate the dispatch of a text message to any phone numbers informing you that the battery in your mobile phone is almost empty and must be recharged. -
Page 63: Automatic Handsfree Function
Mobile Phone Menu HAPPY AUTOMATIC HANDSFREE FUNCTION Number list Set-up a list not exceeding five phone numbers to which the text message should be sent. Menu Settings Charge remind Number List 1. Navigate to <Empty> 2. Select an empty storage location ( 3. -
Page 64: Organiser
Mobile Phone Menu HAPPY ORGANISER Organiser The organiser contains helpful functions, such as pocket calculator, alarm clock and calendar, for use in planning organisation. -
Page 65: Calendar
Mobile Phone Menu HAPPY CALENDAR Calendar The calendar provides an overview of the days, weeks and months of the year. Menu Organizer Calendar 1. Navigate to . An overview of the current month with the weekdays appears. Use the keys to navigate horizontally and the keys to navigate vertically. -
Page 66: Alarm Clock
Mobile Phone Menu HAPPY ALARM CLOCK Alarm Clock You can use the mobile phone as an alarm clock. You can set up to five different alarms. Menu Organizer Alarm 1. Navigate to 2. Select the required alarm. Edit 3. Select Switching the alarm clock on/off 1. - Page 67 Mobile Phone Menu HAPPY ALARM CLOCK Snooze Snooze (min) 1. Select Use the key to set the duration of the snooze period to 1, 3, 5 or 10 minutes. Setting the ringing tone You can set a ringing tone for the alarm clock.
-
Page 68: Multimedia
Mobile Phone Menu HAPPY MULTIMEDIA Multimedia There is a camera and a radio integrated in your mobile phone. -
Page 69: Camera
Mobile Phone Menu HAPPY CAMERA Camera Use the camera to take photos at any time and any place. Observe local regulations and respect other peoples' rights of privacy. 1. Press the Navigation key The subject in front of the camera lens appears on the mobile phone screen. - Page 70 Mobile Phone Menu HAPPY CAMERA Camera settings Define the camera settings regarding the ambient conditions, scene mode, white balance and self-timer. Options Camera settings 1. Navigate to . Adjust and define the settings as required. Camera settings Open the menu and press the key in the individual menu options to select the required setting.
-
Page 71: Radio
Mobile Phone Menu HAPPY RADIO Radio The mobile phone is equipped with an integrated radio with which you can receive radio stations in the FM frequency range. The headphone serves as the antenna. The radio only works when the headphone is connected. - Page 72 Mobile Phone Menu HAPPY RADIO Automatic station search The mobile phone can search for all the locally available radio stations over the entire frequency band automatically and save those found in the channel list. Options Auto search 1. Navigate to 2.
-
Page 73: File Manager
Mobile Phone Menu HAPPY FILE MANAGER File Manager The file manager enables you to manage the memory of the mobile phone and memory of a microSD card if inserted. Menu File manager 1. Navigate to 2. You can manage the files according to your needs. -
Page 74: User Profiles
Mobile Phone Menu HAPPY USER PROFILES User Profiles A user profile compiles diverse settings, such as ringing tone, ringing vol ume, vibration alert, text message tones, switching on/off tones and other acoustic signals, together in a personalised menu. You have the option of selecting one of the preinstalled user profiles... - Page 75 Mobile Phone Menu HAPPY ACTIVATING A USER PROFILE Activating a user profile Activate the user profile which corresponds as closely as possible to your demands. The preinstalled user profiles will help you find the required ring ing and vibrating settings for the mobile phone quickly and easily.
- Page 76 Mobile Phone Menu HAPPY CUSTOMISING A USER PROFILE Ringing type You can also define whether the mobile phone should issue the acoustic Beep once signal selected once ( ), an acoustic signal which slowly becomes Ascending Repeat louder ( ) or the set tone should be repeatedly issued ( Ring type 1.
- Page 77 Mobile Phone Menu HAPPY CUSTOMISING A USER PROFILE Ringing tone for incoming text messages You can select one of the seven different ringing tones available to be played when a text message is received. You can select a ringing tone and a short time later the selected tone is played briefly.
- Page 78 Mobile Phone Menu HAPPY CUSTOMISING A USER PROFILE Key tone volume You can adjust the volume of the key tone. Keytone volume 1. Navigate to 2. Select the required setting. 3. Select . The setting is saved. Power on tone You can select one of the five different power on tones available.
-
Page 79: Picture Dialling
Mobile Phone Menu HAPPY PICTURE DIALLING Picture Dialling Assign pictures to your favourite contacts. These pictures are displayed in the picture menu. On selecting a picture, the phone number of the contact assigned to the picture is dialled. - Page 80 Only pictures in ".jpeg" format can be displayed. In order to adapt your pictures, use the image converter provided on our homepage at www.olympia-vertrieb.de. Transferring pictures from a computer Insert a microUSB memory card in your mobile phone before loading pic...
- Page 81 Mobile Phone Menu HAPPY PICTURE DIALLING Adding a picture for picture dialling If you add a picture to a picture dialling contact, you can recognise the pic ture dialling contact calling according to the picture easily and also call them.
- Page 82 Mobile Phone Menu HAPPY PICTURE DIALLING Sending a text message to a picture dialling contact Phonebook 1. Select 2. Press and hold the key assigned the picture selection contact to which a text message should be sent. The numbers above the picture dialling contacts correspond to the num...
-
Page 83: Shortcut
Mobile Phone Menu HAPPY SHORTCUT Shortcut The mobile phone is equipped with a so called Shortcut ("quick access") key. The Camera and Phone Book functions can be started simply by pressing the key. 1. When the mobile phone is in Standby mode, press the Navigation key . -
Page 84: Other Important Information
Other Important Information HAPPY TROUBLESHOOTING Other Important Information Troubleshooting Problems Solutions The mobile phone No battery inserted. cannot be switched on. Battery is not charged. Battery is defect. Place the mobile phone correctly in the charg ing unit or connect the power adapter proper... -
Page 85: Technical Data
Other Important Information HAPPY TECHNICAL DATA Technical Data Subject to change without notice! Feature Value Standard 900 / 1800 MHz quad band Dimensions (H x W x D) 118.7 x 57 x 12.1 [mm] Weight Approx. 87 g incl. battery... -
Page 86: Ce Mark
HAPPY CE MARK CE Mark Olympia Business Systems Vertriebs GmbH, Zum Kraftwerk 1, 45527 Hat tingen hereby declares that this device in fulfils the basic requirements and other relevant provisions stipulated in the Directive 1999/5/EC. The CE mark on the device confirms its conformity. The Declaration of Conformity for this product is available at www.olympia-vertrieb.de. -
Page 87: Disposal
Other Important Information HAPPY DISPOSAL Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. -
Page 88: Index
HAPPY Automatic handsfree function, 63 Emergency call function, 59 Emergency text message, 61 On/Off, 59 Emergency call function , Emergency Battery call numbers, 60 Battery charge, 16 Charging, 20 Inserting, 19 Factory settings, 58 Bluetooth, 57 File manager, 73 Call lists, 30... - Page 89 HAPPY Phone book, 37 Speed dialling, 40 Adding contacts, 38 Activating, 40 Calling a contact, 38 Adding contacts, 40 Deleting a contact, 39, 82 Calling contacts, 40 Phone book settings, 39 Start screen, 15 Memory status, 39 Starting up, 17 Preferred storage location, 39 Switching the mobile phone off.
- Page 90 HAPPY...
- Page 91 HAPPY...
- Page 92 HAPPY © Please note that the copyright for this operating instruction manual lies with Olympia and, therefore, may not be copied or sold. The data and information in the operating in struction manual is only intended for personal use. Subject to technical modifications and changes to the content.
