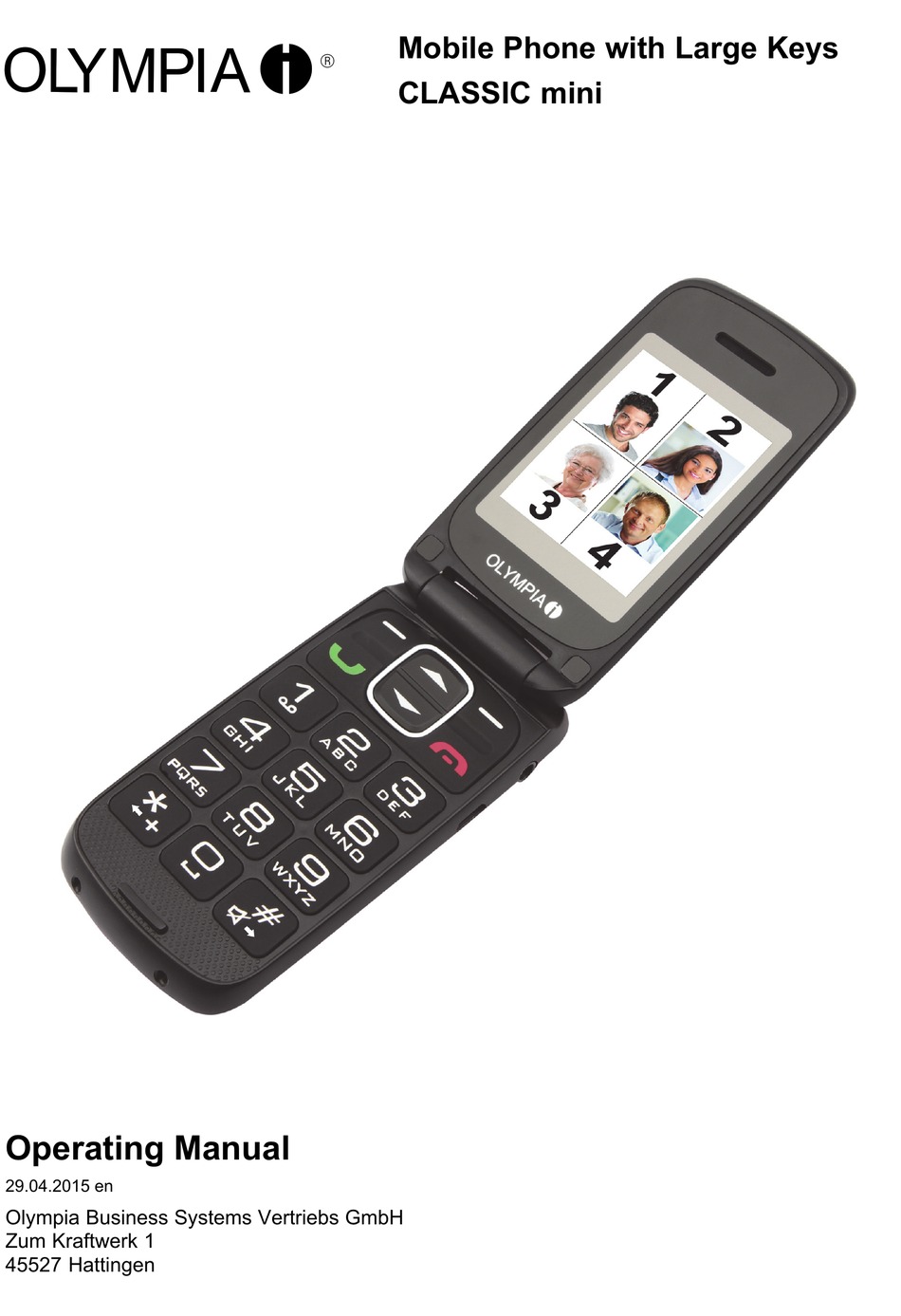

- Page 1 Mobile Phone with Large Keys CLASSIC mini Operating Manual 29.04.2015 en Olympia Business Systems Vertriebs GmbH Zum Kraftwerk 1 45527 Hattingen...
- Page 2 STYLE LEERSEITE...
-
Page 3: Table Of Contents
CLASSIC mini For Your Safety ......... . - Page 4 Überschrift, Ebene 2 CLASSIC mini Other Important Information ......Troubleshooting ..........
-
Page 5: For Your Safety
For Your Safety CLASSIC mini For Your Safety Throughout this document, highlighted texts indicate potential dangers and risks. Observe the following safety instructions in order to protect yourself from the possibility of personal injury and the product from damage. WARNING! -
Page 6: For Your Safety
For Your Safety CLASSIC mini CAUTION! Risk of explosion through improper replacement or removal of the lithium battery! Only replace the lithium battery by a type approved by the manufacturer. Risk of hearing damage! The ringing tone is issued via the loudspeaker. Take an incoming call first and then hold the mobile phone to your ear. - Page 7 For Your Safety CLASSIC mini ATTENTION! Avoid the risk of property damage to your device and observe the information! Protect the device from moisture, dust, liquids, chemicals, vapours, heat and direct sunlight. The phone is not waterproof; therefore, keep it dry.
-
Page 8: Intended Use
For Your Safety Intended Use CLASSIC mini Tips concerning the battery Only use batteries and power adapters approved by the manufacturer, otherwise the battery could be damaged. Do not short circuit the battery. Always leave the battery in the mobile phone to avoid accidentally short circuiting the battery contacts. -
Page 9: General Overview
General Overview CLASSIC mini General Overview This chapter provides information on the individual elements of the mobile phone. -
Page 10: General Overview
General Overview Keys and Operating Elements CLASSIC mini Keys and Operating Elements Front View Earpiece Display Left-hand softkey Call key Keypad Star key Navigation keys, up / down Right-hand softkey On-hook key 10 Hash key... - Page 11 General Overview CLASSIC mini Keys and Operating Elements Rear View 11 MicroUSB connection port 12 Headphone socket 13 SOS (emergency call) key 14 Battery compartment cover 15 Charge contacts...
-
Page 12: Scope Of Delivery
General Overview Scope of Delivery CLASSIC mini Scope of Delivery The following are enclosed with the mobile phone supplied: 1 mobile phone 1 USB connection cable 1 lithium-ion battery 1 charging cradle 1 quick reference manual 1 charging adapter Display Icons The table below indicates a series of display icons which frequently appear and indicate a specific status of the mobile phone. -
Page 13: Start Screen
General Overview CLASSIC mini Start Screen Start Screen The start screen is the standard display which appears when the mobile phone is switched on. Flip the mobile phone open to deactivate the key lock function and activate the start screen in the mobile phone display. - Page 14 General Overview Start Screen CLASSIC mini Display of the network availability The current network availability is displayed graphically at the top left of the mobile phone screen: " Very good Poor The more bars in the display icon, the better the reception quality.
- Page 15 General Overview CLASSIC mini Start Screen Display of the time The time is displayed at the bottom edge of the mobile phone screen. Set the time before using the phone for the first time. If you reset the mobile phone settings to their factory settings, the current time must be set again.
-
Page 16: Putting The Mobile Phone Into Operation
Putting the Mobile Phone into Operation Inserting the SIM Card CLASSIC mini Putting the Mobile Phone into Operation This chapter provides information on preparing the mobile phone for use. Before you start, please read the safety information on Pages 5 - 8. -
Page 17: Inserting A Microsd Memory Card
Putting the Mobile Phone into Operation CLASSIC mini Inserting a MicroSD Memory Card Inserting a MicroSD Memory Card A microSD memory card (not included in the equipment supplied) can be inserted, as an option, in the mobile phone. This increases the quantity of data which can be stored on the mobile phone. -
Page 18: Inserting The Battery
Putting the Mobile Phone into Operation Inserting the Battery CLASSIC mini Inserting the Battery Before you can use the mobile phone, you must insert the battery in the mobile phone. Insert the battery (2) as illustrated. The shape of the compartment ensures the battery cannot be inserted incorrectly. -
Page 19: Charging The Battery
Putting the Mobile Phone into Operation CLASSIC mini Charging the Battery Charging the Battery When charging the battery for the first time, it should be charged for at least 4 hours. Some batteries only reach their full capacity after several complete charge/discharge cycles. -
Page 20: Switching The Mobile Phone On And Off
Putting the Mobile Phone into Operation Switching the Mobile Phone On and Off CLASSIC mini Charging the battery with the charging cradle Connect the power plug (1) to a properly installed power socket. Connect the microUSB plug (2) to the USB connection port (3) on the charging cradle. -
Page 21: Using The Mobile Phone
Using the Mobile Phone CLASSIC mini Information on Navigation Using the Mobile Phone This chapter provides information on the ways to operate the mobile phone. Information on Navigation Press the navigation keys to navigate through the menus and submenus provided by the mobile phone and press the softkeys (on the left and right) to start functions. -
Page 22: Methods Of Entering Text
Using the Mobile Phone Methods of Entering Text CLASSIC mini Methods of Entering Text You can change the text input method to enter other characters. • Multi-tap, capital letters • Multi-tap, small letters • Digits 123 Multi-tap In order to enter text in multi-tap mode, press the key labelled with the corresponding letter/character. -
Page 23: Making And Taking Calls
Using the Mobile Phone CLASSIC mini Making and Taking Calls Making and Taking Calls The following descriptions of functions assume that the start screen is displayed as the starting point. Making calls Enter the necessary phone number. Press the right-hand softkey to delete entries. - Page 24 Using the Mobile Phone Making and Taking Calls CLASSIC mini Setting the receiver volume Adjust the receiver volume of the mobile phone while a call is in progress: While a call is in progress, navigate to Options Volume . Use the Navigation keys to increase or lower the volume.
-
Page 25: Menu Options Available During A Call
Using the Mobile Phone CLASSIC mini Menu Options Available During a Call Menu Options Available During a Call You can change some settings while a call is in progress. Handsfree You can select whether to hear the caller via the loudspeaker. - Page 26 Using the Mobile Phone Menu Options Available During a Call CLASSIC mini Conference calls You can set-up a conference call, meaning communicating with at least two other parties at the same time. While a call is in progress, navigate to...
-
Page 27: Mobile Phone Menu
Mobile Phone Menu CLASSIC mini Mobile Phone Menu The main mobile phone menu is divided into topically organised groups (submenus). All the most important functions are explained below. Some texts in the menu appear as scrolling text. Wait a moment for the... -
Page 28: Call Lists
Mobile Phone Menu Call Lists CLASSIC mini Call Lists Your mobile phone stores the last numbers dialled, calls received and calls missed in various call history lists. If one of the phone numbers received matches an entry in the phone book,... - Page 29 Mobile Phone Menu CLASSIC mini Call Lists Call list options The same options are available for all of the call lists. Call You can call an entry. Menu Call center Call history Navigate to Missed calls Dialled calls Received calls Select the required call list ( Select the required entry.
- Page 30 Mobile Phone Menu Call Lists CLASSIC mini Send text message Write and send a text message to the selected entry. Navigate to Menu Call center Call history Missed calls Dialled calls Received calls Select the required call list ( Select the required entry.
- Page 31 Mobile Phone Menu CLASSIC mini Call Lists Delete You can delete an entry from the call lists. Navigate to Menu Call center Call history Missed calls Dialled calls Received calls Select the required call list ( Select the required entry.
-
Page 32: Call Settings
Mobile Phone Menu Call Settings CLASSIC mini Call Settings You can use this menu to define various settings which affect the phoning behaviour of your mobile phone. Send own phone number You can define whether you send your own phone number to the person... - Page 33 Mobile Phone Menu CLASSIC mini Call Settings Automatic redialling You can define whether your mobile phone should automatically try and redial a number previously dialled but which was engaged or could not be reached at the time as soon as the mobile phone detects the line to the person called is no longer busy.
-
Page 34: Phone Book
Mobile Phone Menu Phone Book CLASSIC mini Phone Book The phone book in the phone can store up to 100 contacts and respective phone numbers. You can also store other entries on the SIM card. - Page 35 Mobile Phone Menu CLASSIC mini Phone Book Adding a contact Always enter phone numbers with the country and area codes. When the memory capacity is used up, the corresponding message appears when an attempt is made to store another contact. Before new entries can be stored, old contacts must be deleted.
- Page 36 Mobile Phone Menu Phone Book CLASSIC mini Deleting a contact You can delete a contact from the phone book as follows: Navigate to Menu Phonebook Select the required contact. Options Clear Select and confirm the prompt. The contact is deleted.
-
Page 37: Speed Dialling
Mobile Phone Menu CLASSIC mini Speed Dialling Speed Dialling You can assign speed dialling for up to eight phone book entries to the keys Activating the speed dialling function Firstly, the speed dialling function must be switched on. Menu Phonebook Options... -
Page 38: Text Messages
Mobile Phone Menu Text Messages CLASSIC mini Text Messages You can use the mobile phone to send and receive text messages (SMS). A standard text message contains 160 characters. - Page 39 Mobile Phone Menu CLASSIC mini Text Messages Writing text messages Use the function to write short text messages: Extra costs may be incurred for texts in excess of 160 characters. Menu Messaging Write message Navigate to Enter your text. Options Send to Insert number Select Enter the necessary phone number.
- Page 40 Mobile Phone Menu Text Messages CLASSIC mini Reply Send a reply to the sender of the text message received. Navigate to Menu Messaging To new number Select the required text message. Options Reply Select Enter your text. Options Send to Select Call the sender of the text message received.
- Page 41 Mobile Phone Menu CLASSIC mini Text Messages Delete You can delete a text message you have received. Navigate to Menu Messaging To new number Select the required text message. Options Clear Select Confirm the prompt. The text message is deleted Delete all You can delete all the text messages saved in the Inbox folder.
- Page 42 Mobile Phone Menu Text Messages CLASSIC mini Drafts You can save a text message you have written as a draft in the Draft folder. This provides you access to frequently used texts. Save to drafts Write a text which you want to save as a draft.
- Page 43 Mobile Phone Menu CLASSIC mini Text Messages Edit You can edit a text which you have already saved as a draft. Navigate to Menu Messaging Drafts Select the required draft message. Options Edit Select Edit the draft text according to your requirements.
- Page 44 Mobile Phone Menu Text Messages CLASSIC mini Delete You can delete a text message you have sent. Navigate to Menu Messaging Sent messages Select the required text message. Options Clear Select Confirm the prompt. The text message is deleted Delete all You can delete all the text messages you previously sent.
- Page 45 Mobile Phone Menu CLASSIC mini Text Messages Text message settings Define any settings necessary, whether you want to receive text delivery reports and where you want to save your text messages. Delivery reports You can define whether you want to receive a transmission (delivery) report for text messages sent.
-
Page 46: Settings
Mobile Phone Menu Settings CLASSIC mini Settings The Settings menu is used to change the basic settings such as time, language, call settings, telephone settings, network and security settings etc. -
Page 47: Phone Settings
Mobile Phone Menu CLASSIC mini Phone Settings Phone Settings You can define the basic settings for the mobile phone, such as language, time, date, back-lighting etc. Time and date Set the time and date before using the mobile phone for the first time. - Page 48 Mobile Phone Menu Phone Settings CLASSIC mini Automatic key lock The key lock function is intended to prevent other functions being activated inadvertently. You must define a period of time after which the key lock should be automatically switched on.
- Page 49 Mobile Phone Menu CLASSIC mini Phone Settings Flight mode Change to flight mode when you want to switch off all transmission units in the device, including all communication functions, without deactivating the remaining functions (such as the calculator, torch or calendar).
-
Page 50: Emergency Call Function (Sos Key)
Mobile Phone Menu Emergency Call Function (SOS Key) CLASSIC mini Emergency Call Function (SOS Key) The acoustic alarm signals is very loud and can cause hearing damage if sounded close to the ear. Hold the mobile phone away from your ear if you press the SOS key. - Page 51 Mobile Phone Menu CLASSIC mini Emergency Call Function (SOS Key) Emergency call numbers You can save up to five phone numbers to which an emergency call and emergency text are sent after being triggered by pressing the SOS key. Do not assign any official emergency call service numbers. A false alarm can lead to considerable costs which could be charged to you.
-
Page 52: Low Battery Power Alert
Mobile Phone Menu Low Battery Power Alert CLASSIC mini Low Battery Power Alert The alert function in the case low battery power can be used to initiate the dispatch of a text message to any phone numbers informing you that the battery in your mobile phone is almost empty and must be recharged. -
Page 53: Network Settings
Mobile Phone Menu CLASSIC mini Network Settings Network Settings The mobile phone searches for and automatically selects the mobile network assigned to the SIM card or mobile phone provider (network operator) . The presettings in this menu are set-up by the SIM card or network operator. - Page 54 Mobile Phone Menu Security Settings CLASSIC mini Switching the phone lock on/off In its default setting, the phone lock password is 0000. The phone lock is also active when there is no SIM card inserted in the mobile phone. Menu Settings Security settings Phone security Phone lock Navigate to Enter the phone lock password.
-
Page 55: Bluetooth
Mobile Phone Menu CLASSIC mini Bluetooth Bluetooth The Bluetooth function, a standard for wireless data transfer, can be used to exchange data with other Bluetooth-capable devices free of charge. Switching Bluetooth on/off Switch the function on or off. Menu Settings Connectivity Bluetooth On/Off... -
Page 56: Restore Factory Settings
Mobile Phone Menu Restore Factory Settings CLASSIC mini Restore Factory Settings You should reset the phone settings to their default factory settings before transferring the device to third parties, e.g. for repair or sale. Make a copy of your personal data on your SIM card or microSD memory card prior to initiating a reset to the factory settings. -
Page 57: Organiser
Mobile Phone Menu CLASSIC mini Organiser Organiser The organiser contains helpful functions, such as pocket calculator, alarm clock and calendar, for use in daily organisation. -
Page 58: Calculator
Mobile Phone Menu Calculator CLASSIC mini Calculator The calculator integrated in the mobile phone can perform basic arithmetic calculations (addition, subtraction, multiplication and division). You can use the mobile phone calculator to solve simple arithmetical problems. Navigate to Menu Organizer Calculator Enter the initial number using the keypad. -
Page 59: Alarm Clock
Mobile Phone Menu CLASSIC mini Alarm Clock Alarm Clock You can use the mobile phone as an alarm clock. You can set up to five different alarms. Navigate to Menu Organizer Alarm Select the required alarm. Edit Select Switching the alarm clock on/off... -
Page 60: Radio
Mobile Phone Menu Radio CLASSIC mini Radio The mobile phone is equipped with an integrated radio with which you can receive radio stations in the FM frequency range. Navigate to Menu FM radio... - Page 61 Mobile Phone Menu CLASSIC mini Radio The main screen for the radio appears and you can perform some functions using the mobile phone keypad. • Use the keys to adjust the frequency range precisely. • Use the key to interrupt playback via the mobile phone loudspeaker.
- Page 62 Mobile Phone Menu Radio CLASSIC mini Settings Make any necessary adjustments to the background playback of the radio and the telephone loudspeaker. Background playback Define whether the radio should remain on in the background (meaning that FM radio the radio continues to be played although the menu is no longer selected and the mobile phone has been closed).
-
Page 63: File Manager
Mobile Phone Menu CLASSIC mini File Manager File Manager The file manager enables you to manage the memory of the mobile phone and memory of a microSD card if inserted. Navigate to Menu File manager You can manage the files according to your needs. -
Page 64: User Profiles
Mobile Phone Menu User Profiles CLASSIC mini User Profiles A user profile compiles diverse settings, such as ringing tone, ringing volume, vibration alert, text message tones, volume, switching on/off tones and other acoustic signals, together in a personalised menu. General... - Page 65 Mobile Phone Menu CLASSIC mini User Profiles Activating a user profile Menu Profiles Navigate to Select the user profile required. Options Activate Select . The user profile selected is activated. Customising a user profile Adapt your user profile according to your needs.
- Page 66 Mobile Phone Menu User Profiles CLASSIC mini Ringing tone for incoming call Ring1 Ring10 Select one of the 10 ringing tones available ( You can select a ringing tone and a short time later the selected tone is played briefly.
- Page 67 Mobile Phone Menu CLASSIC mini User Profiles Key tone volume You can adjust the volume of the key tone. Navigate to Keytone volume Select the required setting. Power on tone You can select one of the five different power on tones available.
- Page 68 Mobile Phone Menu User Profiles CLASSIC mini Tone on flipping the mobile phone open You can define whether the mobile phone should issue an acoustic signal when the mobile phone is flipped opened. You can select a ringing tone and a short time later the selected tone is played briefly.
-
Page 69: Picture Dialling
Mobile Phone Menu CLASSIC mini Picture Dialling Picture Dialling Assign pictures to your favourite contacts. These pictures are displayed in the picture menu. On selecting a picture, the phone number of the contact assigned to the picture is dialled. You can transfer your own pictures from a computer to the mobile phone or the memory card and set them up for picture dialling. - Page 70 Mobile Phone Menu Picture Dialling CLASSIC mini Dialling via pictures You can call the phone book entry by selecting the corresponding picture. You can then see the person to be called on the screen before actually making the call. Pic.
-
Page 71: Classic Mini Other Important Information
Other Important Information CLASSIC mini Troubleshooting Other Important Information Troubleshooting Problems Solutions The mobile phone - No battery inserted. cannot be switched on. - Battery is not charged. No signal quality is - No network connection. The mobile phone is in displayed. -
Page 72: Technical Data
CE mark on the device. To view the complete Declaration of Conformity, please refer to the free download available on our website www.olympia-vertrieb.de. GSM = Global System for Mobile Communications = Standard for mobile... -
Page 73: Sar Information
Other Important Information CLASSIC mini SAR Information SAR Information Information on radio frequency emissions and specific absorption rates (SAR = Specific Absorption Rate). All the applicable safety standards related to radio frequency emissions were implemented during the development of this mobile phone. -
Page 74: Disposal
Other Important Information Disposal CLASSIC mini Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container. -
Page 75: Maintenance
Other Important Information CLASSIC mini Maintenance Maintenance • Clean the housing surfaces with a soft, fluff-free cloth. • Do not use and solvents or cleaning agents. Guarantee Dear Customer, we are pleased that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and... - Page 77 CLASSIC mini Battery Factory settings, 55 Battery charge, 13 File manager, 62 Charging, 18 Inserting, 17 Bluetooth, 54 Getting started Inserting a microSD memory card, 16 Inserting the battery, 17 Call lists, 27 Inserting the SIM card, 15 Calling an entry, 28...
- Page 78 CLASSIC mini Phone book, 33 Speed dialling, 36 Adding contacts, 34 Activating, 36 Calling a contact, 34 Adding contacts, 36 Deleting a contact, 35, 69 Calling contacts, 36 Phone book settings, 35 Start screen, 12 Memory status, 35 Starting up, 15 Preferred storage location, 35 Switching the mobile phone off.
- Page 80 CLASSIC mini LEERSEITE...
- Page 81 CLASSIC mini LEERSEITE...
- Page 82 CLASSIC mini LEERSEITE...
- Page 83 © Please note that the copyright for this operating instruction manual lies with Olympia and, therefore, may not be copied or sold. The data and information in the operating instruction manual is only intended for personal use. Subject to technical modifications and changes to the content.
