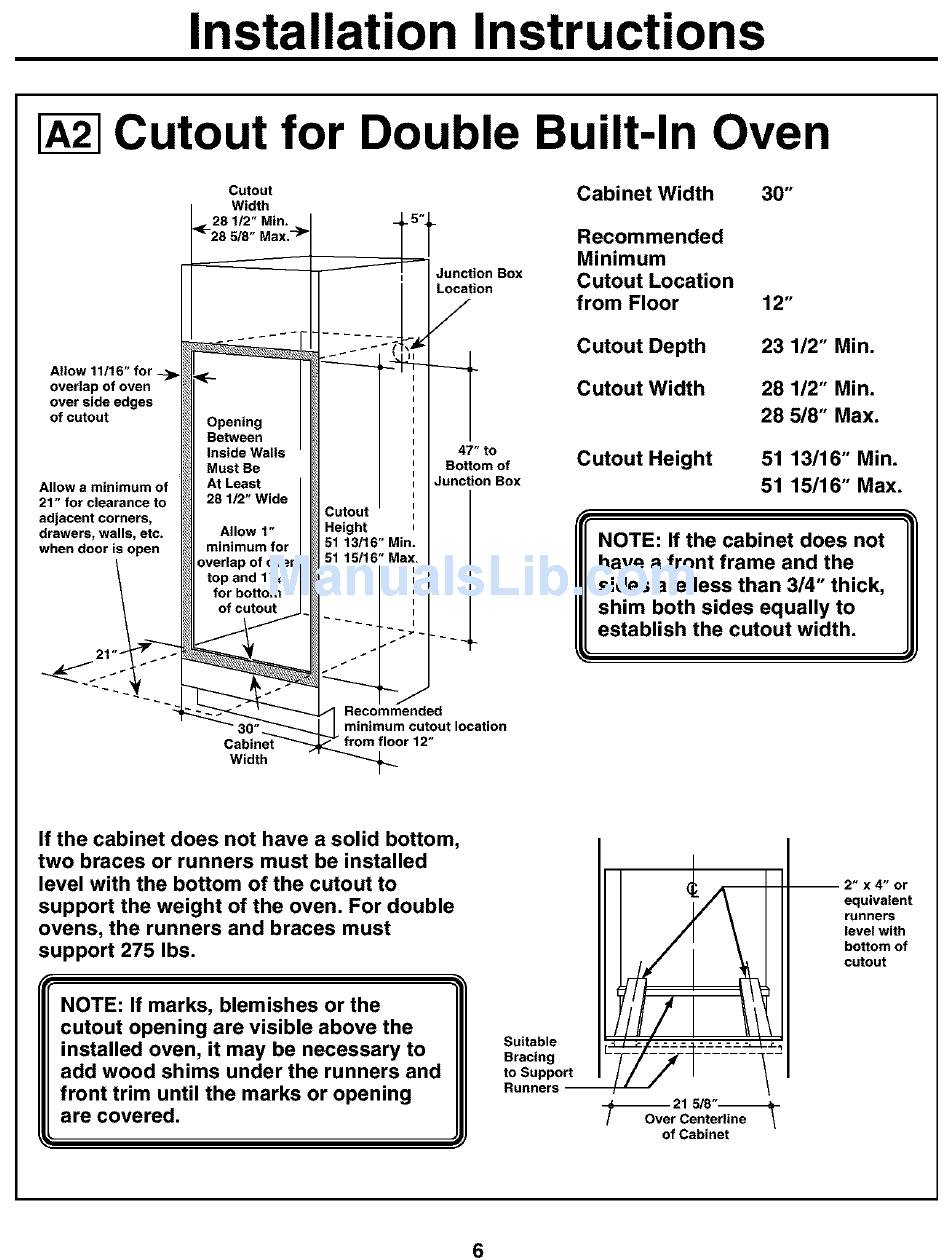

Installation Instructions
Cutout for Double Built-In Oven
Allow 11/16" for
overlap of oven
over aide edgea
of cutout
Allow a minimum of
21" for clearance to
adjacent
corners_
drawers, walls, etc.
when door is open
21"
Cutout
Width
28 l/2"Min,
<--28 518" Max. -'_
Opening
Between
Inside Wails
Must Be
At Least
28 1/2" Wide
Allow 1"
minimum for
overlap of oven
top and 1V¢'
for bottom
of cutout
_
5"fJunction
Box
47" to
Bottom of
Junction Box
Height
51 13116" Min.
15/16" Max.
_._- _ '_
_
Recomn_ended
30"_-_-L
I minimum cutout location
Cab'met_--_____rom
,floor 12"
Width
Cabinet Width
30"
Recommended
Minimum
Cutout Location
from Floor
Cutout Depth
Cutout Width
Cutout Height
12"
23 1/2" Min.
28 1/2" Min.
28 5/8" Max.
51 13/16" Min.
51 15/16" Max.
NOTE: If the cabinet does not
have a front frame and the
sides are less than 3/4" thick,
shim both sides equally to
establish
the cutout width.
If the cabinet does not have a solid bottom,
two braces or runners
must be installed
level with the bottom of the cutout to
support
the weight of the oven. For double
ovens, the runners
and braces
must
support
275 Ibs.
NOTE: If marks, blemishes
or the
cutout opening are visible above the
installed oven, it may be necessary
to
add wood shims under the runners
and
front trim until the marks or opening
are covered.
Suitable
Bracing
to Support
Runners --
_21
5/8"_
r Centerline
/
of Cabinet
--2"x4"or
equivalent
runners
level with
bottom of
cutout
6
