Basics

Description of the operating surface

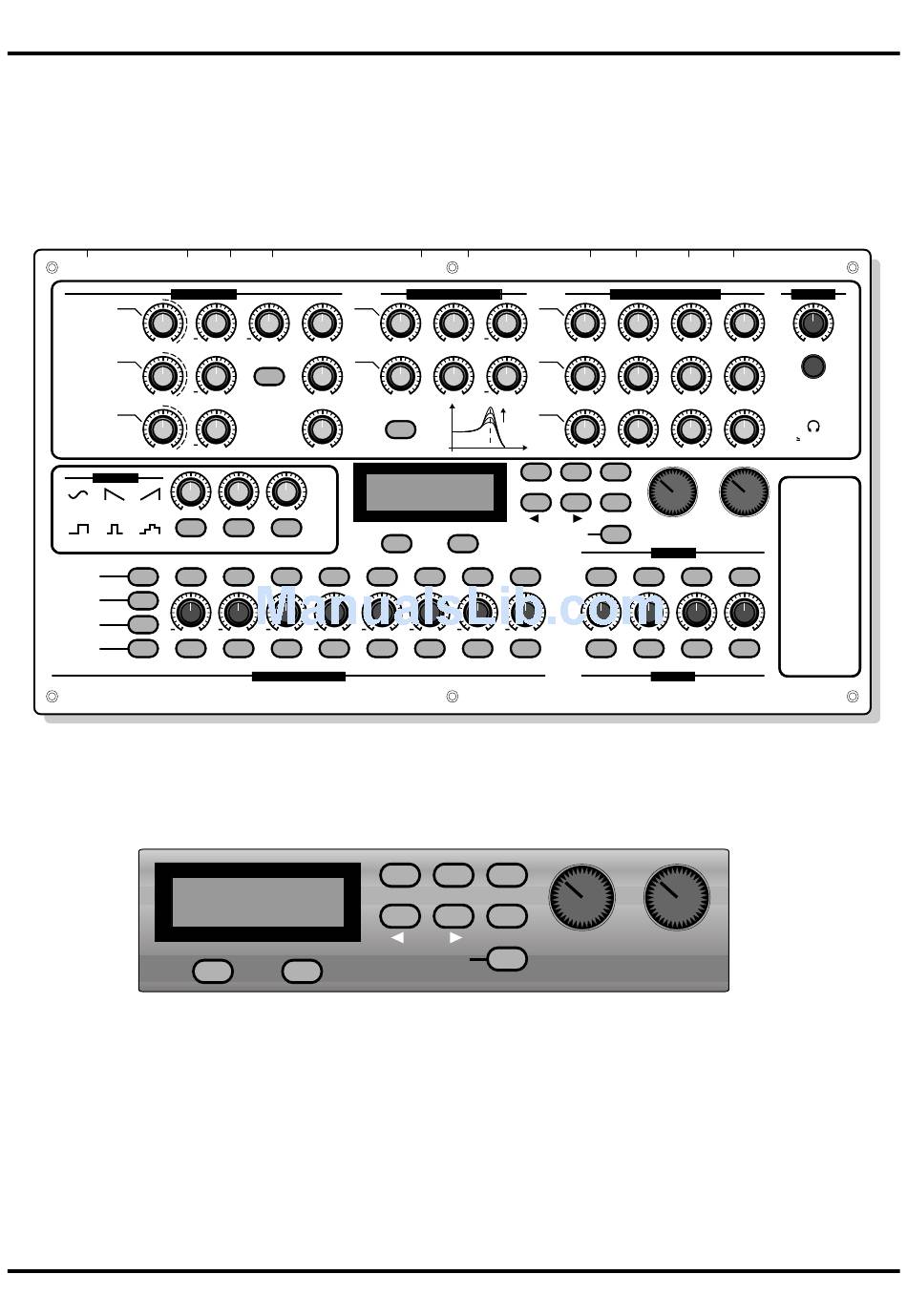

On the illustration below you see the operator controls of the POLYMORPH. This diagram in
conjunction with the explanations will clarify 80% of the operation of the POLYMORPH.
In this chapter you'll find the answers to most of your questions.

An overview of the operating elements

POWER MIDI:
ON / OFF
OSCILLATORS OSCILLATORS
OSCILLATOR-1
WAVE-1
OSCILLATOR-2
WAVE-2
OSCILLATOR-3
OR EXTERNAL
INPUTS
WAVE-3
LFO 1-3
SIN SWD SWU
LFO-WAVE
SQR TRL RND
STEP-MUTE
STEP-HOLD
CYCLE-
LENGTH
SEQUENCE-
SELECT
QUASIMIDI POLYMORPH

The functions of the controls and buttons

DISPLAY AREA

On the right and directly beneath the display you will find more buttons and dials, whose functions
are dependant upon the respective menu.
[F1] AND [F2] SOFTKEYS
These buttons are found directly below the display. Their present function is shown in brackets in
the display. If a parameter value is displayed above [F2], it can be set to a standard value by
pressing [F2].
[EDIT] - CALLING UP THE EDIT MENU
With this button you can go into different menus for extensive editing of the sounds, sequences,
effects etc. There you find all of the parameters of the operating surface and many more.
IN OUT THRU
PW
+ +
TUNE ENV-MOD LEVEL-1
PW
+
TUNE SYNC LEVEL-2
PW
+
TUNE LEVEL-3
LFO-RATE LFO-DEPTH
PWM VCO-FM VCF-MOD
PITCH LINE-1 LINE-2 LINE-3
+ + + +
VALUE VALUE VALUE VALUE
1 2 3 4
MORPH-SEQUENCER
F1 F2
OUT-1 OUT-2 AUDIO
RESONANCE-FILTERS RESONANCE-FILTERS
HIGH-
PASS
+
CUTOFF RESONANCE ENV-MOD
LOW-
PASS
+
CUTOFF RESONANCE ENV-MOD
dB
RESO.
LP 24 dB
CUTOFF-FREQ.
F1 F2
NOTE-FWD FORWARD BACKWARD RANDOM
+ + +
VALUE VALUE VALUE VALUE
5 6 7 8
ANALOG-EMULATION-SYNTHESIS BY QUASIMIDI
EDIT COMPARE WRITE
PAGE EXIT
START/STOP
12
OUT-3 OUT-4 IN-1
ENVELOPE-GENERATORS ENVELOPE-GENERATORS
HP-ENV
ATTACK DECAY SUSTAIN
LP-ENV
ATTACK DECAY SUSTAIN
VCA-ENV
ATTACK DECAY SUSTAIN
EDIT COMPARE WRITE
PAGE EXIT
VALUE-TEMPO
START/STOP
MODE MODE
UNISON ROTATE MULTI
+
MIX-VOL-1 MIX-VOL-2 MIX-VOL-3
SEL-1 SEL-2 SEL-3
MIXER
VALUE-TEMPO SOUND
EXPANSION-SLOTS
IN-2
SEE BOTTOM-PLATE
OUTPUT OUTPUT
RELEASE VOLUME
RELEASE PHONES
32 OHM
RELEASE
MULTI-EFFECT-
ALGORITHMS
SOUND
Space-Distortion 1
Space-Distortion 2
STACK
Bright-Distortion 1
Bright-Distortion 2
EQ-Pan-Delay
Super-Chorus
Super-Flanger
MIX-VOL-4
Multitap-Delay
SEL-4
