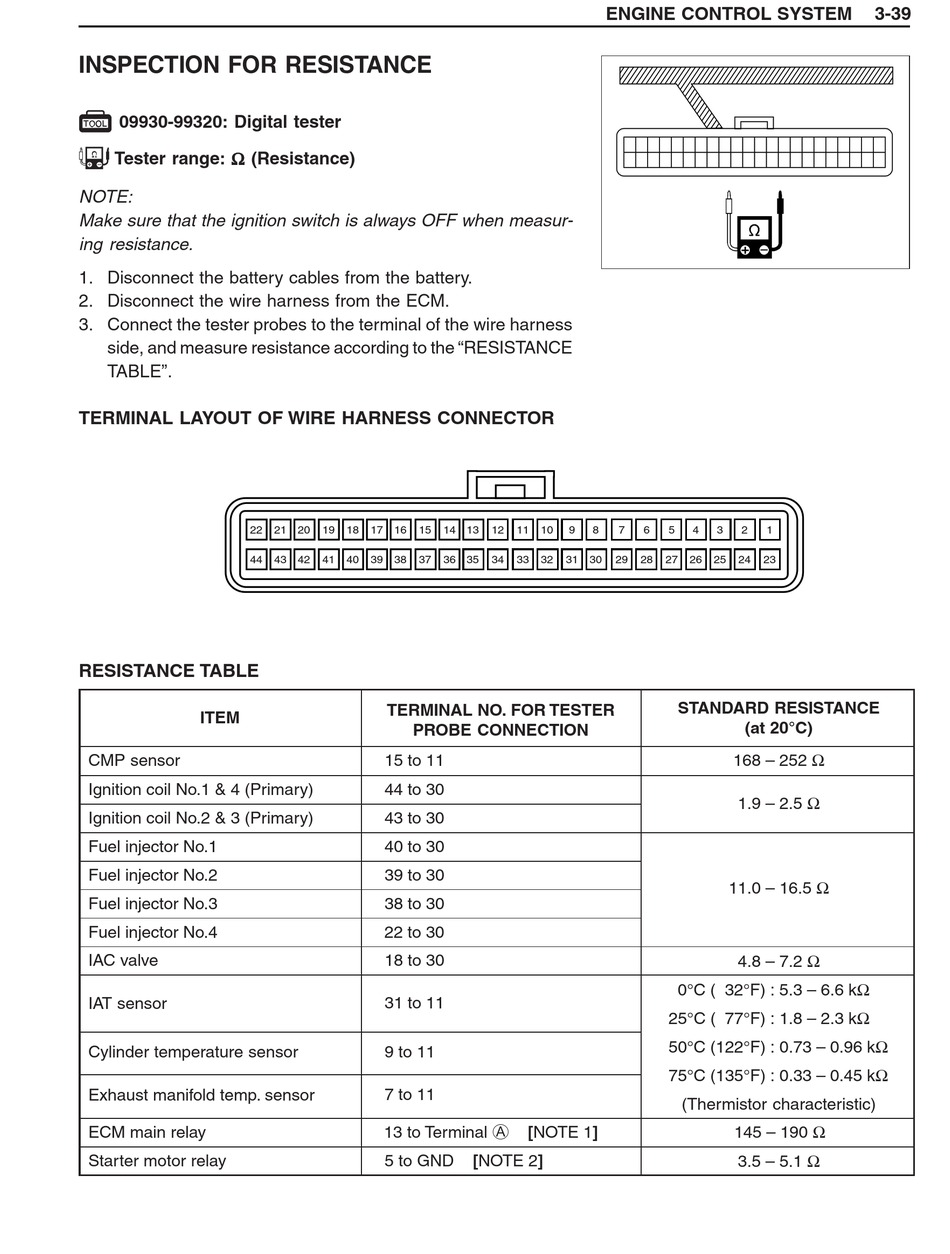

INSPECTION FOR RESISTANCE

# 09930-99320: Digital tester
& Tester range: Ω Ω Ω Ω Ω (Resistance)
NOTE:
Make sure that the ignition switch is always OFF when measur-
ing resistance.
1. Disconnect the battery cables from the battery.
2. Disconnect the wire harness from the ECM.
3. Connect the tester probes to the terminal of the wire harness
side, and measure resistance according to the "RESISTANCE
TABLE".
TERMINAL LAYOUT OF WIRE HARNESS CONNECTOR
22
44
RESISTANCE TABLE
ITEM
CMP sensor
Ignition coil No.1 & 4 (Primary)
Ignition coil No.2 & 3 (Primary)
Fuel injector No.1
Fuel injector No.2
Fuel injector No.3
Fuel injector No.4
IAC valve
IAT sensor
Cylinder temperature sensor
Exhaust manifold temp. sensor
ECM main relay
Starter motor relay
21 20 19 18 17 16 15 14 13
43 42 41 40 39 38 37 36 35
TERMINAL NO. FOR TESTER
PROBE CONNECTION
15 to 11
44 to 30
43 to 30
40 to 30
39 to 30
38 to 30
22 to 30
18 to 30
31 to 11
9 to 11
7 to 11
13 to Terminal A
5 to GND
ENGINE CONTROL SYSTEM
12 11 10 9 8 7 6
34 33 32 31 30 29 28
[NOTE 1]
[NOTE 2]
5 4 3 2 1
27 26 25 24 23
STANDARD RESISTANCE
(at 20°C)
168 – 252 Ω
1.9 – 2.5 Ω
11.0 – 16.5 Ω
4.8 – 7.2 Ω
0°C ( 32°F) : 5.3 – 6.6 kΩ
25°C ( 77°F) : 1.8 – 2.3 kΩ
50°C (122°F) : 0.73 – 0.96 kΩ
75°C (135°F) : 0.33 – 0.45 kΩ
(Thermistor characteristic)
145 – 190 Ω
3.5 – 5.1 Ω
3-39
