OPERATING HOUR INDICATION SYSTEM

(For remote control model)
When the ignition switch is initially turned "ON" (from "OFF"),
the ECM tests the caution system by turning on all four lamps
in the monitor-tachometer and sounding the caution buzzer for
an initial two seconds.
For the next three seconds, the ECM indicates the total operat-
ing hours, using a combination of the tachometer needle and
"REV-LIMIT" lamp flashing.
NOTE:
The total operating hours displayed are those of actual engine
operation, not ignition switch "ON" time.

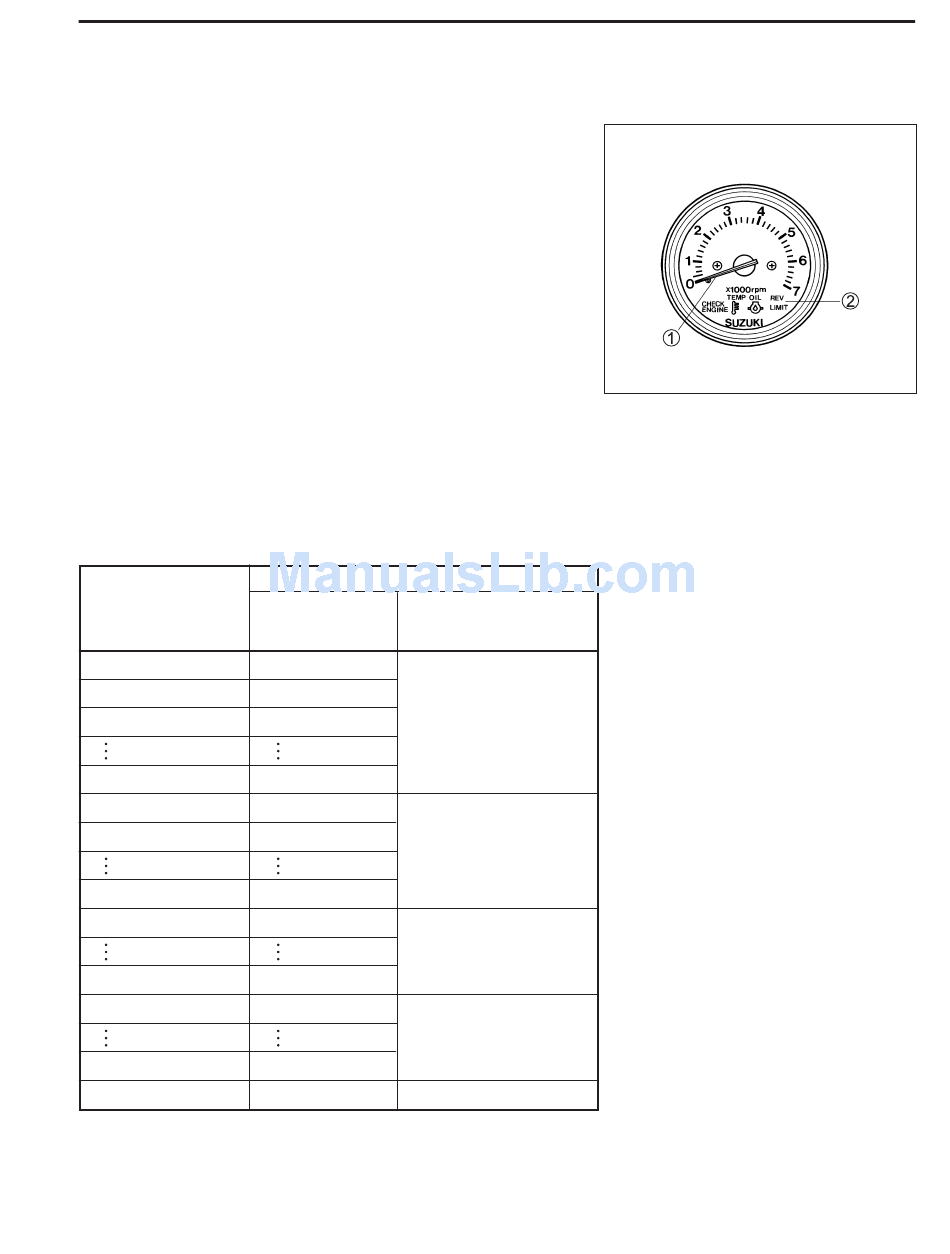

CHART OF TOTAL OPERATING HOURS INDICATION
Total
operating
hours
0 h – (49 h)
50 h
60 h
540 h
550 h
560 h
1040 h
1050 h
1540 h
1550 h
2030 h
2040 h or over
* : One flashing is corresponded to 500 hours.
MONITOR-TACHOMETER
Needle 1 1 1 1 1 REV-LIMIT lamp 2 2 2 2 2
indication
flashing *
No
500 rpm
600 rpm No
5400 rpm
500 rpm
600 rpm
1 time
5400 rpm
500 rpm
2 times
5400 rpm
500 rpm
3 times
5300 rpm
5400 rpm 3 times
