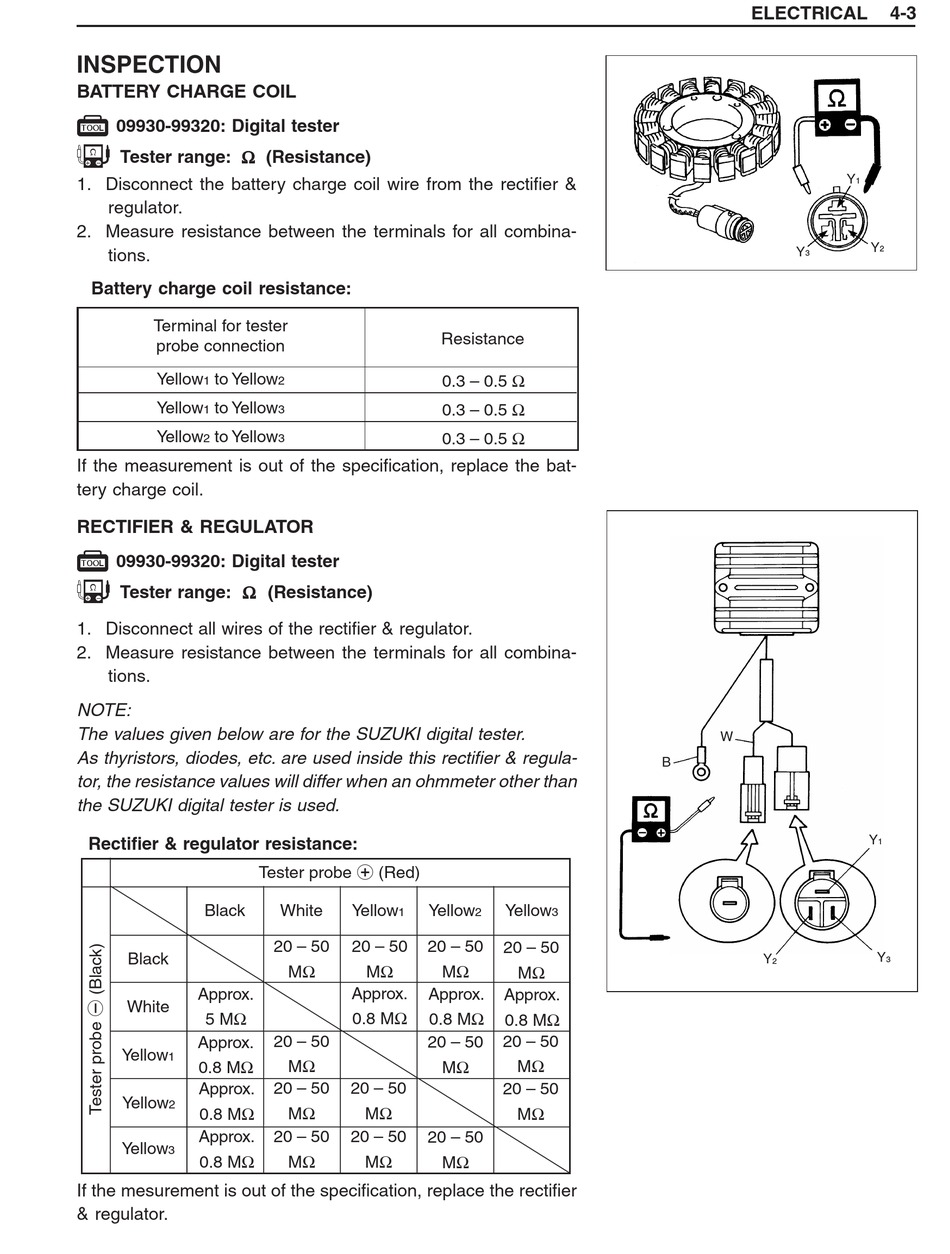

INSPECTION

BATTERY CHARGE COIL
!
09930-99320: Digital tester
"# # # # # Tester range: Ω Ω Ω Ω Ω (Resistance)
1. Disconnect the battery charge coil wire from the rectifier &
regulator.
2. Measure resistance between the terminals for all combina-
tions.
Battery charge coil resistance:
Terminal for tester
probe connection
Yellow to Yellow
1
Yellow to Yellow
1
Yellow to Yellow
2
If the measurement is out of the specification, replace the bat-
tery charge coil.
RECTIFIER & REGULATOR
!
09930-99320: Digital tester
" Tester range: Ω Ω Ω Ω Ω (Resistance)
1. Disconnect all wires of the rectifier & regulator.
2. Measure resistance between the terminals for all combina-
tions.
NOTE:
The values given below are for the SUZUKI digital tester.
As thyristors, diodes, etc. are used inside this rectifier & regula-
tor, the resistance values will differ when an ohmmeter other than
the SUZUKI digital tester is used.
Rectifier & regulator resistance:
Black
Black
Approx.
White
5 MΩ
Approx.
Yellow
1
0.8 MΩ
Approx.
Yellow
2
0.8 MΩ
Approx.
Yellow
3
0.8 MΩ
If the mesurement is out of the specification, replace the rectifier
& regulator.
2
3
3
Tester probe + (Red)
White Yellow Yellow
1
20 – 50 20 – 50 20 – 50
MΩ MΩ
Approx. Approx.
0.8 MΩ 0.8 MΩ
20 – 50
20 – 50
MΩ
20 – 50 20 – 50
MΩ MΩ
20 – 50 20 – 50 20 – 50
MΩ MΩ
Resistance
0.3 – 0.5 Ω
0.3 – 0.5 Ω
0.3 – 0.5 Ω
Yellow
2 3
20 – 50
MΩ
MΩ
Approx.
0.8 MΩ
20 – 50
MΩ MΩ
20 – 50
MΩ
MΩ
ELECTRICAL
Y
3
W
B
Y
2
4-3
Y
1
Y
2
Y
1
Y
3
