Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide

2 Device Installation

Note:

Please make sure the installation surface can min support the 3X weight of the camera

and the bracket.

Step 1

Open accessories bag, take out installation position map and stick it to designated surface where

you will install the device (wall or ceiling).

Step 2

Dig a hole according to position of hole on installation position map.

Step 3

Open accessories bag, take out expansion bolts and insert them into the holes you just dug.

Step 4

Open accessories bag and take out the self-tapping screws. Aim the expansion bolts to the

installation holes on the device pedestal and fix the device on the installation surface (wall or

ceiling) with self-tapping screws.

Step 5

Plug external wiring of the device properly.

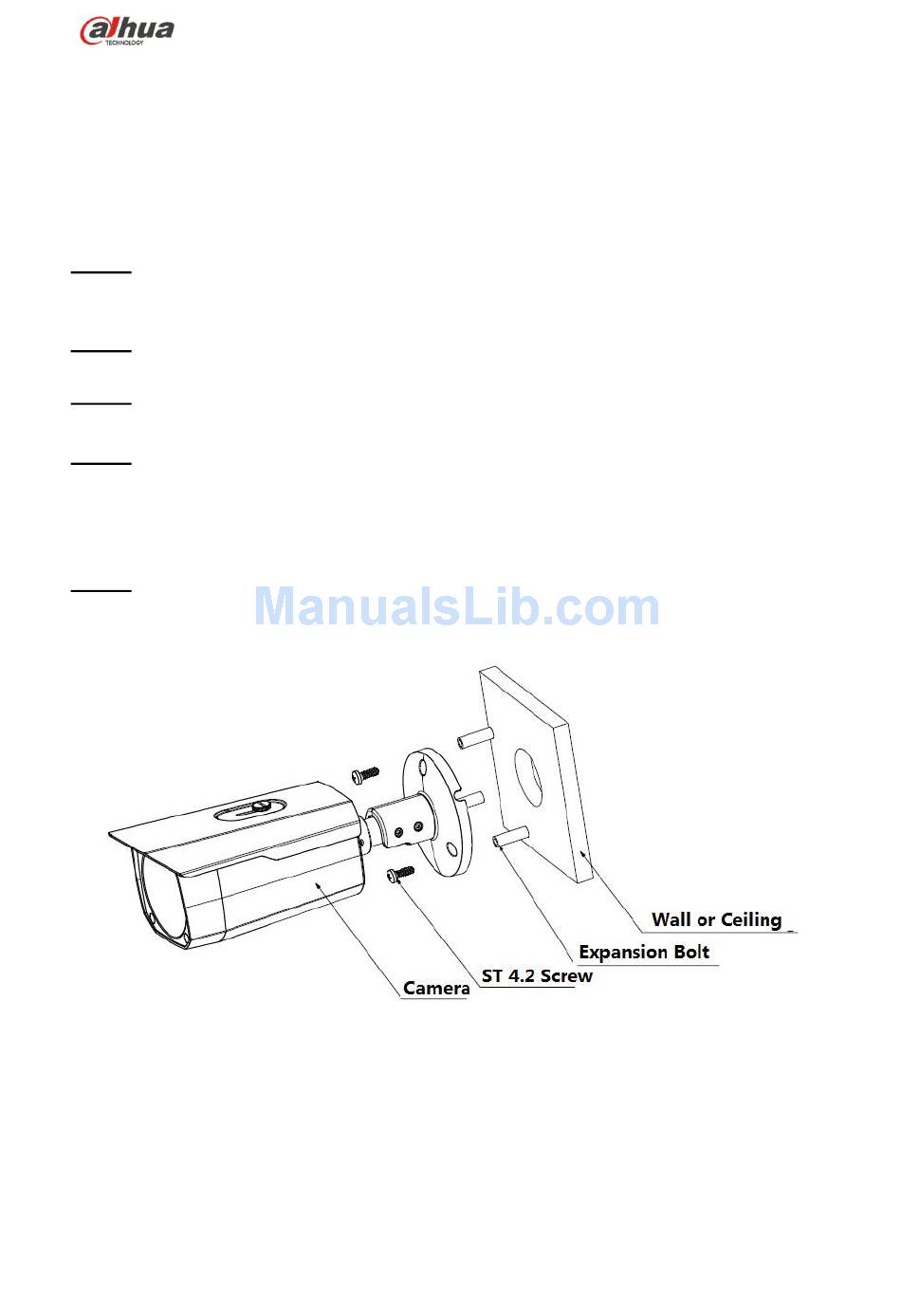

Figure 2-1
