Dahua HD IR Waterproof Fixed Network Camera Quick Start Guide

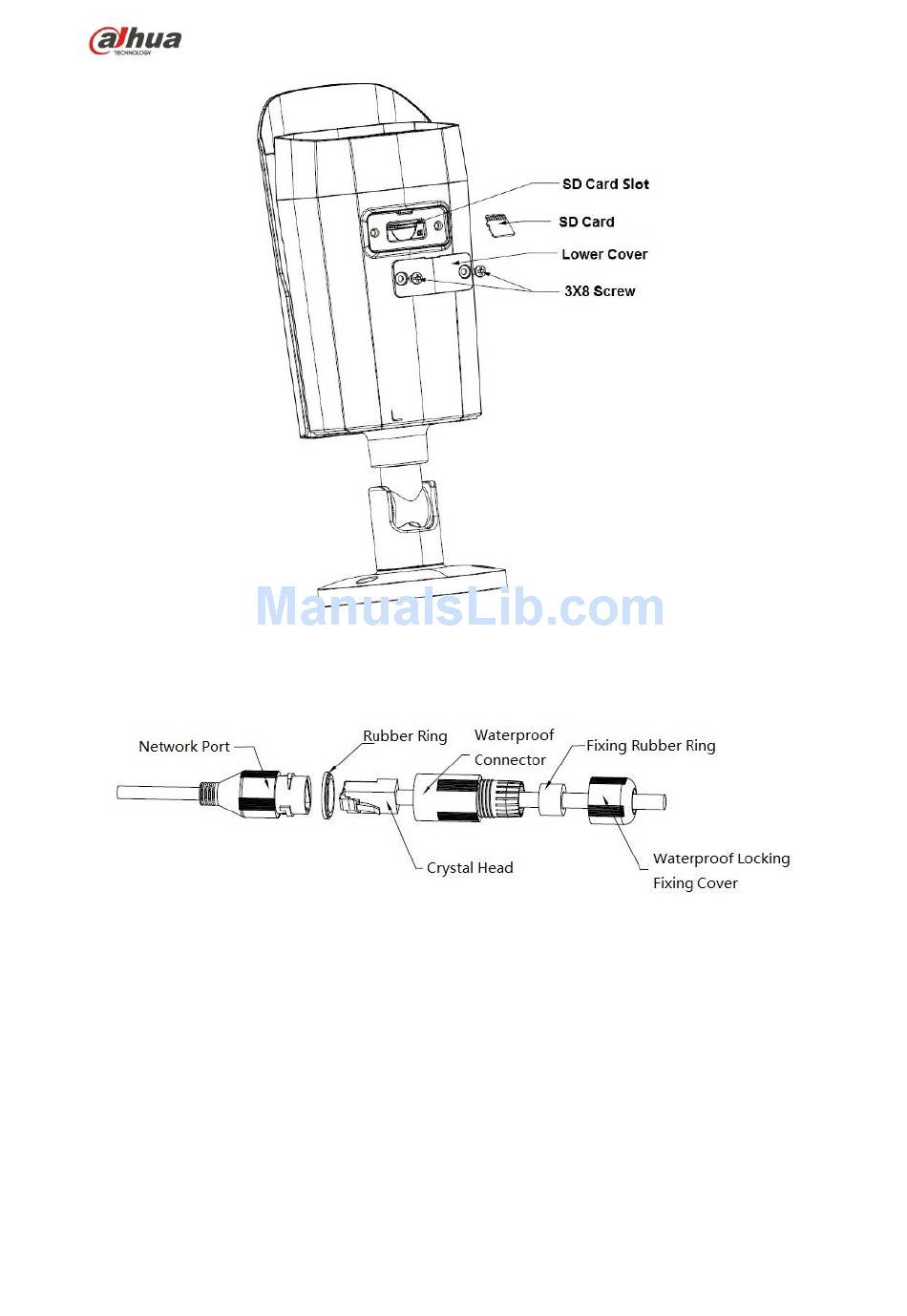

2.3 Install Waterproof Connector
1. Keep the convex groove outward and install the rubber ring into the network port, keep the
smaller hole of the rubber ring outward and install the fixing rubber ring into the main body of
the waterproof connector.
2. Pull the network cable without crystal head through main body of waterproof connector, fixing
rubber ring and waterproof locking cover, make the crystal head of network cable, and then
insert it into the network cable.
3. Put the main body of waterproof connector on the network port and rotate it clockwise to lock
the network port and waterproof connector firmly.
4. Put the waterproof locking cover on the main body of waterproof connector and rotate it
clockwise to lock the waterproof connector and waterproof locking cover firmly.
Figure 2-3
Figure 2-4
6
