Thrust Bearing Block - mycom 1612LSC series Instruction Manual

5.5.6 Thrust Bearing Block

Table 5-9 Configuration Parts of Thrust Bearing Block
P/N
42-2 Thrust bearing alignment spacer (2)
41-2 Thrust bearing outer race spacer (2)
38-2 Thrust bearing (2)
250-2 Thrust washer (for 125***)
40-2 Lock washer (2)
237-2 Torsional slip washer (2)
39-2 Lock nut (2)
43-2A Thrust bearing gland (2)A for high-stage F rotor
43-2B Thrust bearing gland (2)B for high-stage M rotor
46-2 Spring washer (2)
45-2 Hexagon head bolt
P/N
42-1A Thrust bearing alignment spacer (1)A for low-stage M rotor
42-1B Thrust bearing alignment spacer (1)B for low-stage F rotor
41-1 Thrust bearing outer race spacer (1) *Low-stage F rotor only
38-1A Thrust bearing (1)A for low-stage M rotor
38-1B Thrust bearing (1)B for low-stage F rotor
250-1 Thrust washer
40-1A Lock washer (1)A for low-stage M rotor
40-1B Lock washer (1)B for low-stage F rotor
237-1A Torsional slip washer (1)A for low-stage M rotor
237-1B Torsional slip washer (1)B for low-stage F rotor
39-1A Lock nut (1)A for low-stage M rotor
39-1B Lock nut (1)B for low-stage F rotor
43-1A Thrust bearing gland (1)A for high-stage M rotor
43-1B Thrust bearing gland (1)B for low-stage F rotor
46-1A Spring washer (1)A for low-stage M rotor
46-1B Spring washer (1)B for low-stage F rotor
45-1A Hexagon head bolt for low-stage M rotor
45-1B Hexagon head bolt for low-stage F rotor
Compound 2-stage Screw Compressor
1612LSC Speed Increaser Type

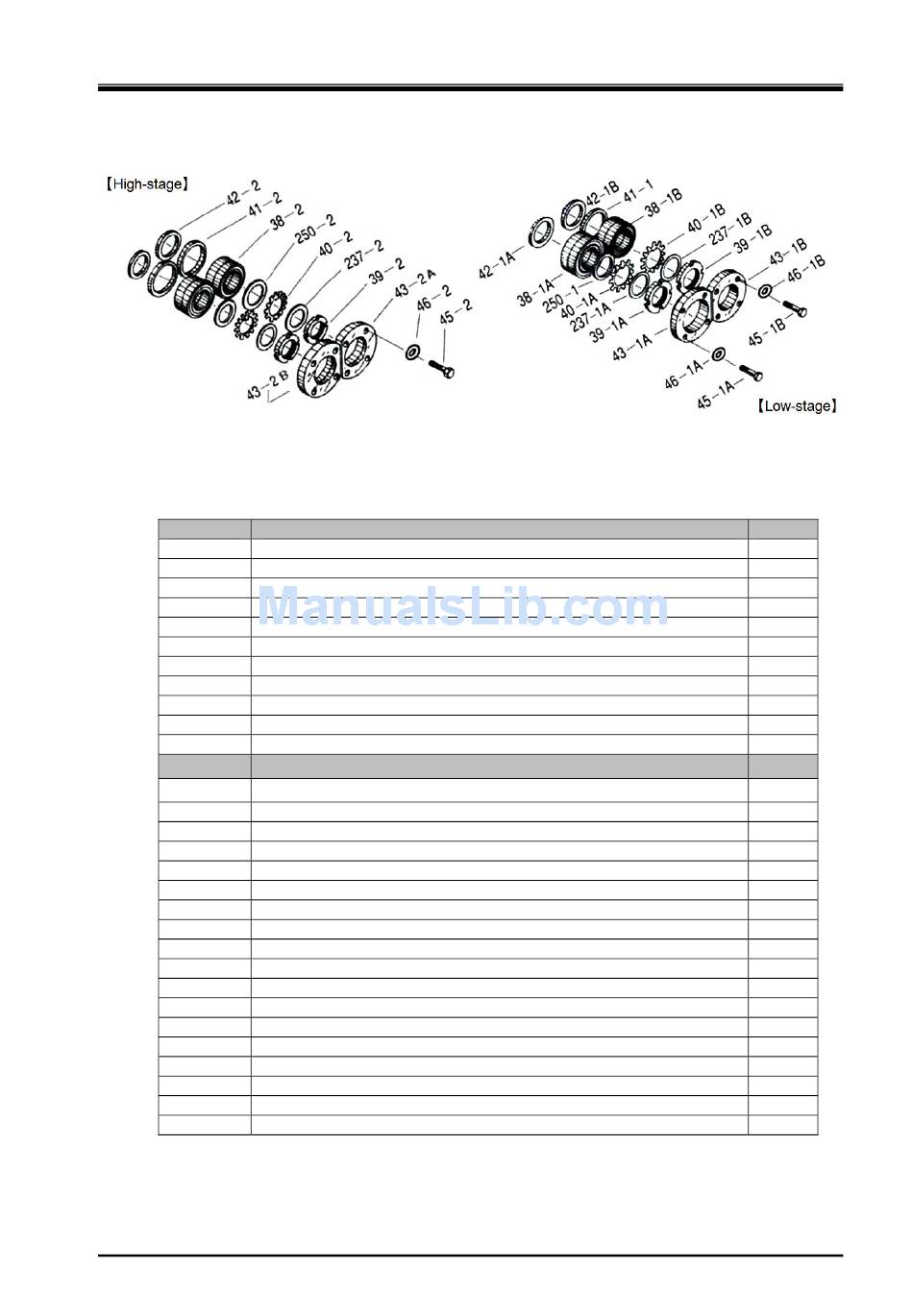

Figure 5-15 Thrust Bearing Block
Part Name (High-stage)
*High-stage only
Part Name (Low-stage)
*for Low-stage M rotor only
5-50
2202L5JE-DA-C5-N_2015.05.
5 Maintenance and Inspection
Q'ty
2
2
2 sets
2
2
2
2
1
1
8
8
Q'ty
1
1
1
1 set
1 set
1
1
1
1
1
1
1
1
1
4
4
4
4
5.5 Reassembly
