5 Maintenance and Inspection

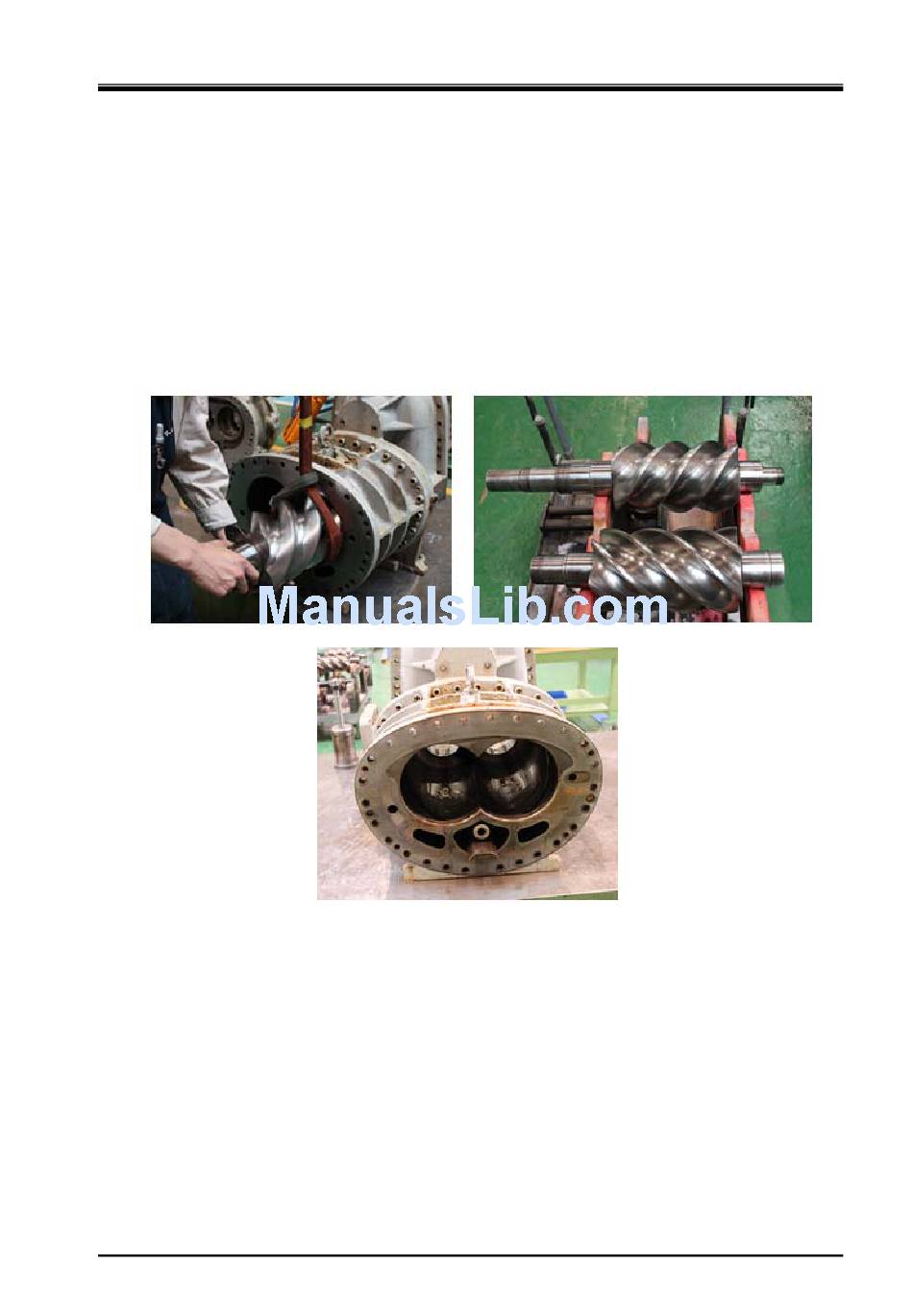

5.4.15 Low-stage Rotors and Main Rotor Casing

Care must be taken because the low-stage rotors are heavy.
In addition, since the low-stage M rotor is installed with a mechanical seal; do the work very carefully
not to damage the shaft. It is recommended to apply a protective tape on the shaft surface.
Inspect the ends of the rotor lobes and main rotor casing in the same way as the high-stage, but be
aware that there is an unloader slide valve on the low-stage which may hit against the ends of the rotor
lobes. If the contact is particularly hard, scrape off the contacting parts with a scraper or file. Finally,
make the surface smooth with sandpaper. After making the surface smooth, wash thoroughly with wash
oil and make sure that no iron powder is left inside.
Compound 2-stage Screw Compressor 5.4 Disassembly and Inspection
1612LSC Speed Increaser Type
5-38
