Outer Dimensions, Mass and Lifting Position

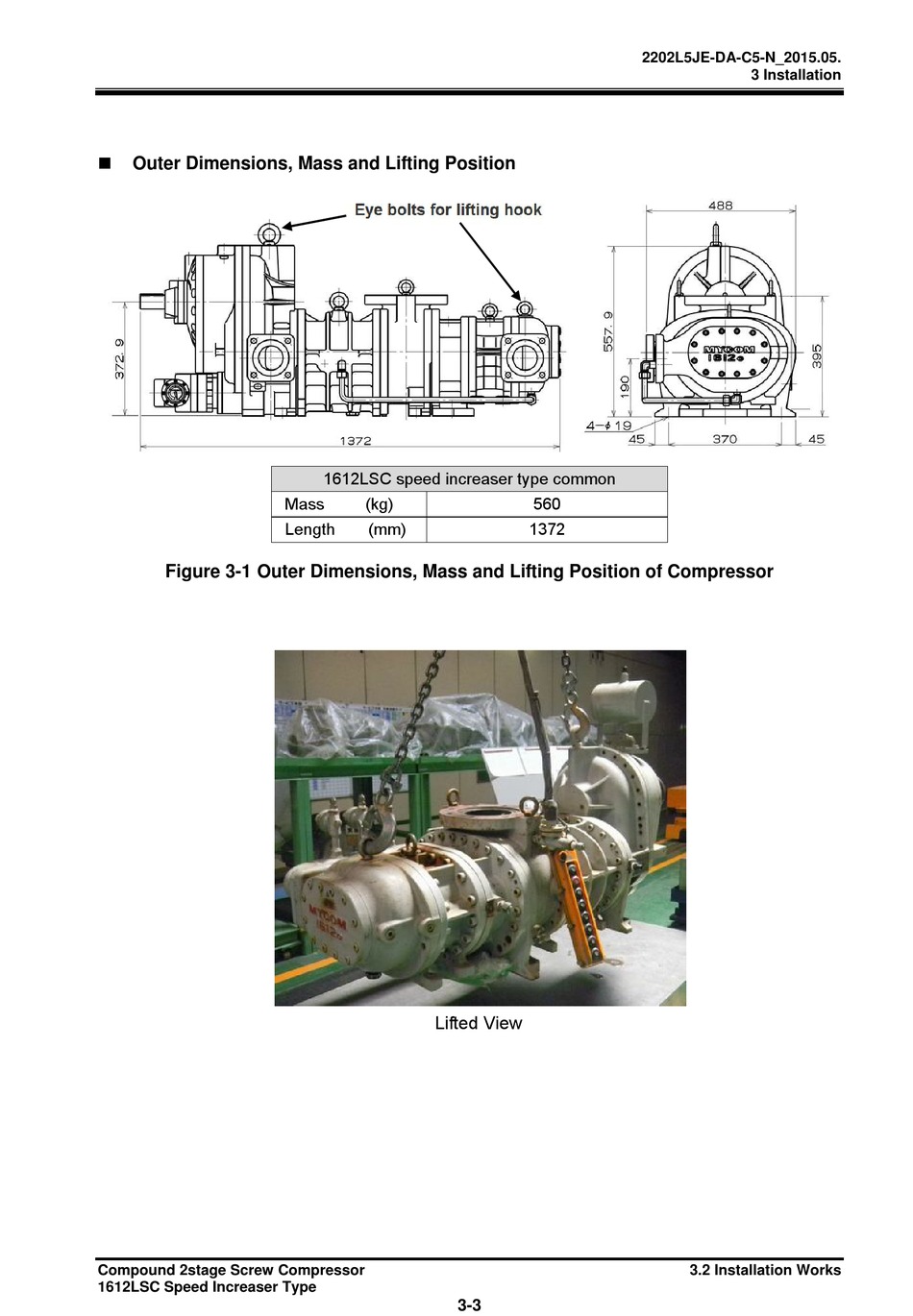

Figure 3-1 Outer Dimensions, Mass and Lifting Position of Compressor
Compound 2stage Screw Compressor
1612LSC Speed Increaser Type
1612LSC speed increaser type common
Mass
(kg)
Length
(mm)
Lifted View
3-3
2202L5JE-DA-C5-N_2015.05.
560
1372
3.2 Installation Works
3 Installation
