3.
Using the 5/32" drill bit and power drill, drill pilot holes into the crossmember on the 4 marks made
during step 2.
4. Using four #12 x 3/4" screws with lock washers (Fig. 3A), attach the controller to the crossmember
ensuring the orientation is correct (Fig. 3).

Sway Command Wiring

1.
Connect the Sway Command™ main wire
harness (Fig. 4A) to the port on the Sway
Command™ controller.
2.
Connect the Light Pod extension harness
(Fig. 4B) to the two-pin connector on the
main harness.
3. Connect the loose wires (Fig. 4C) on the main
wire harness as described in the table below.
NOTE: All wiring connections should be made at
the trailer junction box according to RVIA
codes.
Sway Command™ Wire
2 Pin Connector
Light Pod Extension Harness
Black
White
Blue
Rev: 09.17.2015

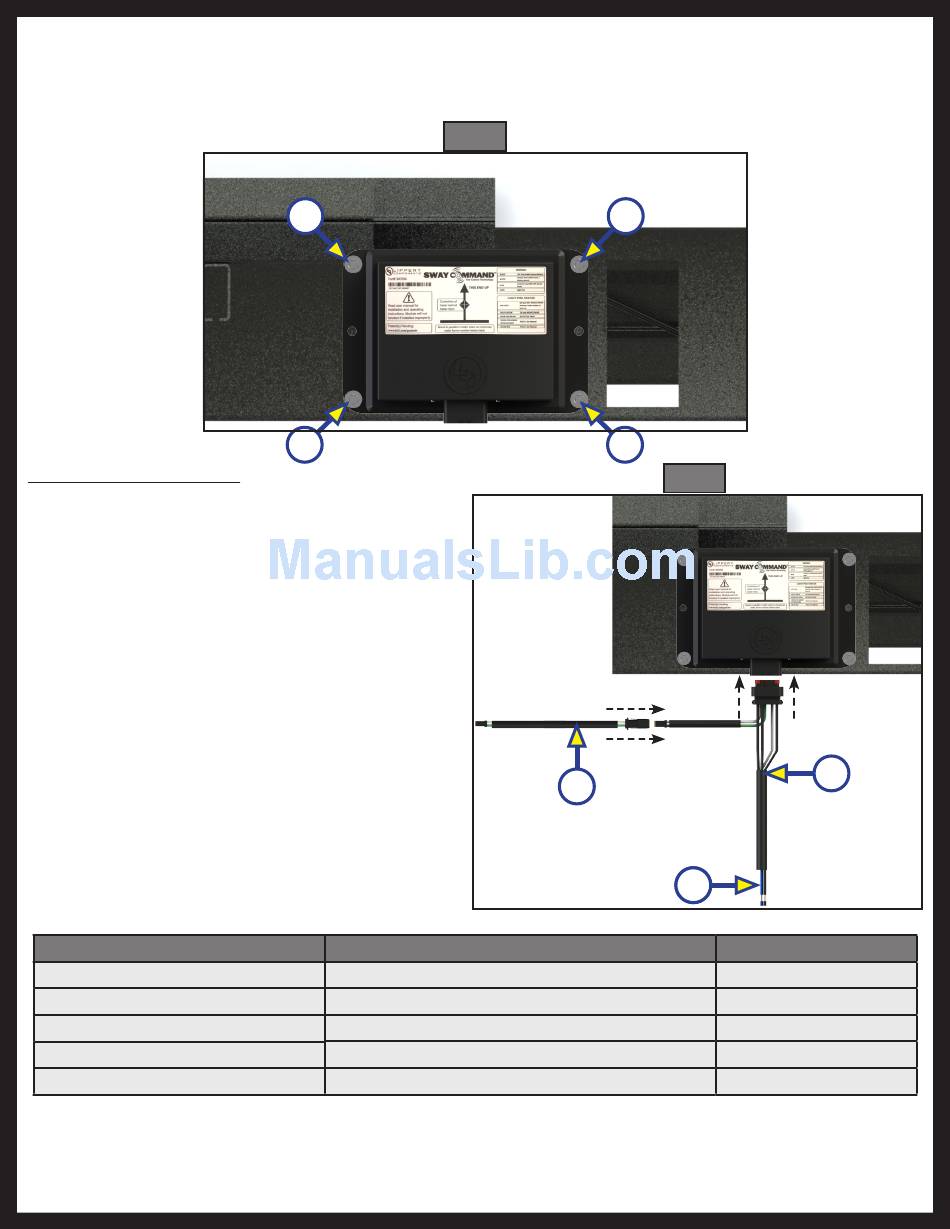

Fig. 3
A
A
Connection
Light Pod Extension Harness
Light Pod
12VDC from tow vehicle/breakaway battery
Trailer Battery/Frame ground
Electric Brake wire from tow vehicle
Page 4
A
A
Fig. 4
B
A C
Wire Gauge
N/A
N/A
12AWG
12AWG
12AWG
Sway Command™ OEM Install Manual
A
