Summary of Contents for Avantco 177CU55ETL

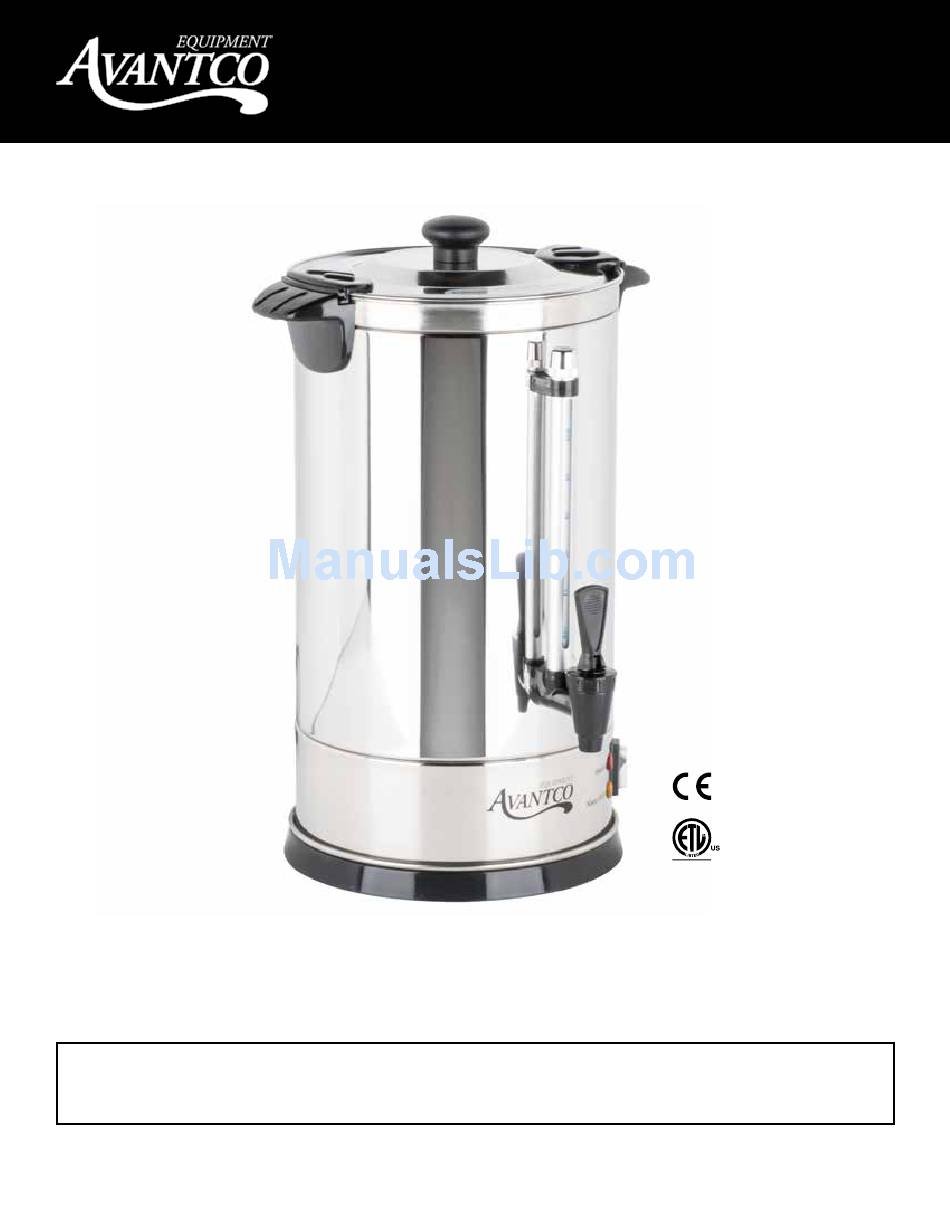

- Page 1 User Manual User Manual Intertek Stainless Steel Coffee Urns Models: 177CU55ETL, 177CU110ETL 10/2016 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Table Of Contents
User Manual NOTE: Save these instructions for future reference. Index Important Safety Information ............. 3 Specifications..................4 Coffee Measuring Guide ..............4 Coffee Urn Parts................... 5 Prior to First Use................... 6 Helpful Hints..................6 How to Use................... 6 Boil Dry Protection & Manual Reset Button ......... 7 Cleaning &... -
Page 3: Important Safety Information
User Manual IMPORTANT SAFETY INFORMATION 1. Read all instructions carefully. Remember to follow basic safety measures when using electrical equipment. 2. Only use urn with a grounded 120V AC socket. 3. Do not use the coffee urn if the cord or plug is damaged. Replace before use. a. -
Page 4: Parts Diagram
User Manual Parts Diagram www.AvantcoEquipment.com... - Page 5 User Manual Parts Key Parts Diagram # Part Name Replacement Part Item # Lid Handle Stainless Steel Body Cool Touch Handles Water Gauge Faucet 177CUFAUCET (CU55ETL & CU110ETL) Plastic Bottom On/Off Switch Heating Light Keep Warm Light Brew Basket 177CU55EB (CU55ETL) 177CU110EB (CU110ETL) Stem 177PCU55ES (CU55ETL)
-
Page 6: Specifications
User Manual Specifications MODEL NO. POWER VOLTAGE VOLUME 177CU55ETL 950W 120V/60Hz 55 cups 177CU110ETL 1500W 120V/60Hz 110 cups Coffee Measuring Guide CUPS (5 OZ. SERVING) GROUND COFFEE (8 OZ. DRY) 12-15 3/4 Cup 20-25 1 1/2 Cups 30-36 2 Cups... -
Page 7: Prior To First Use
User Manual Prior to First Use 1. Remove all packaging from inside and outside of the coffee urn. 2. Fill the coffee urn with water, boil and discard. This clears the urn of any packaging residue. Helpful Hints 1. Do not use soft water. Soft water may cause the coffee basket to flood. 2. -
Page 8: Cleaning & Maintenance
User Manual Boil Dry Protection Boil dry accidents are the result of boiling all the water out of an urn. These kinds of accidents shorten component and product life in all water boiling appliances. To prevent boil dry accidents, this appliance is equipped with a thermal limiter with an auto reset limit on. -
Page 9: Thermal Fuse Information
User Manual Thermal Fuse This coffee urn is fitted with a thermal fuse for added safety. If this appliance’s boil dry protection measures fail, its thermal fuse will activate and shut off the appliance. The thermal fuse is a one-time-use component. Once it activates, the fuse automatically breaks and cannot be used again. -
Page 10: Replacing The Fuse
User Manual Replacing the Fuse 1. Twist the fixed screw. 2. Pull out the power connection. 3. Take down the fuse fixed clip. 4. Replace the power supply leads combination. 5. Fixed new fuse. (supply leads combination) 6. Inner parts inspection (see next page). www.AvantcoEquipment.com... -
Page 11: Replacing The Fuse
User Manual Replacing the Fuse Inner Parts Inspection USE THE BELOW REFERENCE FOR REPLACING YOUR FUSE Match the color references below to your unit. www.AvantcoEquipment.com... -
Page 12: Limited Warranty
This warranty does not apply to, and Avantco is not responsible for, any warranty claims made on products sold or used outside of the United States. Residential use voids the warranty.
