Summary of Contents for Avantco UDD1

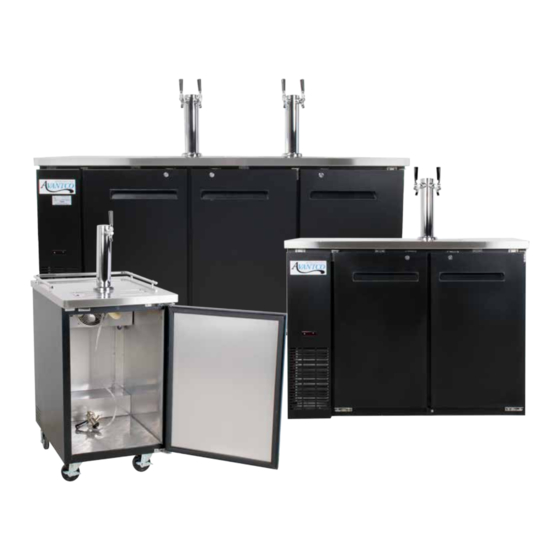

- Page 1 User Manual Beer Dispenser User’s Manual 07/2015 UDD1, UDD1S, UDD2448, UDD2448S, UDD2460, UDD2460S, UDD2472, UDD2472S Please read the manual thoroughly prior to equipment set-up, operation and maintenance. - 1 -...
-
Page 2: Table Of Contents
User Manual Table of Contents Installation and Operation Uncrating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Locating . -
Page 3: Installation And Operation
User Manual Installation & Operation Uncrating If the unit has recently been transported on its side, please let the unit stand upright for a minimum of 24 hours before plugging it in. 1 . Remove the outer packaging . All of the packaging (including cardboard, bubbles and plastic wrap) should be removed from the unit . -
Page 4: Proper Disposal
User Manual Proper Disposal of the Refrigerator PROPER DISPOSAL OF EQUIPMENT DANGER! RISK OF CHILD ENTRAPMENT SAFETY If you are getting rid of an old refrigerator, please follow the below instructions to help prevent a terrible accident . - Remove the doors . - Leave shelves in place to prevent children from easily climbing inside . -
Page 5: Electrical Instruction
User Manual Electrical Instruction When using electrical appliances basic safety precautions should be followed: - This cooler must be properly installed and located in accordance with the installation service representative . - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance . -
Page 6: Draft Tower Installation
User Manual Draft Beer Tower Installation Installing Draft Tower 1 . Connect beer line connector to keg coupler . 2 . Place rubber washer over draft arm mounting holes in cabinet . 3 . Put beer line connector down through hole . 4 . -
Page 7: Drain Installation
. Recommendation: Before loading product, we recommend you run your Avantco unit empty for 2-3 days . This allows you to be sure the electrical wiring and installation are correct and no shipping damage has occurred . -
Page 8: Temperature
User Manual Temperature Correct temperature is a key factor to consider when storing and dispensing draft beer . Too cool or too warm may cause flavor loss and dispensing problems . Hints on Controlling Temperature - Keep a thermometer handy . - Monitor temperature of draft both inside your cooler and at the tap . -
Page 9: Knockout Co2 Installation
*Depending on setup and amount of kegs, a CO manifold may be needed . NOTE: In models UDD1 & UDD1S, the CO tank (up to 5 lbs . in size) can be placed inside the cooler to maintain complete mobility... -
Page 10: Changing Co2 Gas Cylinder
User Manual Changing CO Gas Cylinder Follow these instructions at ALL times when you replace a CO gas cylinder . 1 . Close cylinder at A . 2 . Remove tap D from keg . Pull pressure release ring on body of tap to release pressure remaining in line . -
Page 11: Cleaning The Bar System
User Manual Cleaning Bar System Draft dispensers, regardless of design, must be cleaned at least every two weeks . Flushing the lines with water only is not enough . Tools: 1 . Hand Pump Cleaning Bottle 2 . Beer Faucet Brush 3 . -
Page 12: Cleaning The Condenser Coil
User Manual Regular Maintenance WARNING: Disconnect power cord before cleaning any parts of the unit. Cleaning the Condenser Coil - For efficient operation, it is important that the condenser surface be kept free of dust, dirt, and lint . - We recommend cleaning the condenser coil and fins at least once per month . -
Page 13: Stainless Steel Care & Cleaning
User Manual Stainless Steel Equipment Care & Cleaning CAUTION: Do not use any steel wool, abrasive, or chlorine based products to clean stainless steel surfaces. Stainless Steel Destroyers: There are three basic things which can break down your stainless steel’s outer defenses and allow corrosion to develop . - Page 14 User Manual Preventing Rust on Stainless Steel: 1. Use the Correct Cleaning Tools Use non-abrasive tools when cleaning . The stainless steel’s outer layer will not be harmed by soft cloths and plastic scouring pads . 2. Clean Along the Grain Polishing lines or grain are visible on some stainless steels .
-
Page 15: Dispenser
User Manual Dispenser Trouble Shooting Compressor is Not Running Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. Power cord unplugged. Plug in power cord. Thermostat is at wrong temperature setting. Dial Controls: Set to higher number. Digital Controls: Set to lower number. -
Page 16: Draft Beer
User Manual Draft Beer Trouble Shooting Flat Beer Foamy head disappears quickly. Beer lacks usual zestful, fresh flavor. CO2 turned off when not in use. Keep lines properly charged at all times. Contaminated air source (usually compressed air). Drain air source & refill with clean air. Greasy glasses. -
Page 17: Warranty Information
Next, call 1-800-678-5517 . Be sure to have the model number, cabinet serial number, and service plate number available when contacting service technicians . This warranty does not apply to, and Avantco is not responsible for, any warranty claims made on products sold or used outside of the United States .
