Siemens TALON Installation Instructions

TALON™ Digital Room Temperature
Sensors

Product Description

These sensors allow users to view and adjust points
in the controller using the sensor buttons and digital
display.
These sensors work with Siemens controllers, and
use a 10K Ω thermistor to detect temperature. The
effective sensing and set point range is 55 to 95°F
(13 to 35°C).
The 587-612B includes an integral fan speed switch
that allows users to override the ventilation fan.
These sensors can be mounted on electrical boxes,
stud-type mounting brackets, or drywall. Obtain the
necessary mounting hardware and follow the
appropriate mounting procedures for the type of
installation required.
Product Numbers
587-610B BACnet Digital Room Temperature
Sensor - white
587-612B BACnet Digital Room Temperature
Sensor with fan switch - white
Warning/Caution Notations
CAUTION
Required Tools
•
Phillips sizes 1 and 2 screwdrivers
•
Medium, flat-blade screwdriver
•
Small, flat-blade screwdriver
•
Medium-duty electric drill
•
3/16-inch (4.8 mm) drill bit
•
1-inch (25 mm) hole saw
•
Small level
•
Tape measure
•
Marker or pencil
Item Number 540-149, Rev BA
Equipment damage, or loss of
data may occur if you do not
follow a procedure as
specified.
Installation Instructions
If using non-terminated or damaged cables, you also
need:
•
Room sensor connector tool (RJ-11
crimping tool)
•
Room sensor connector kit
Expected Installation Time
20 minutes
Prerequisites
•
Review these instructions before beginning.
•
Installed: appropriate field wiring (standard
six-conductor room sensor cables, plenum),
within the maximum wiring run length for the
individual equipment controller. The
maximum recommended length is 100 feet
(30 m).
•
All wiring must comply with National Electric
Code (NEC) and local regulations.

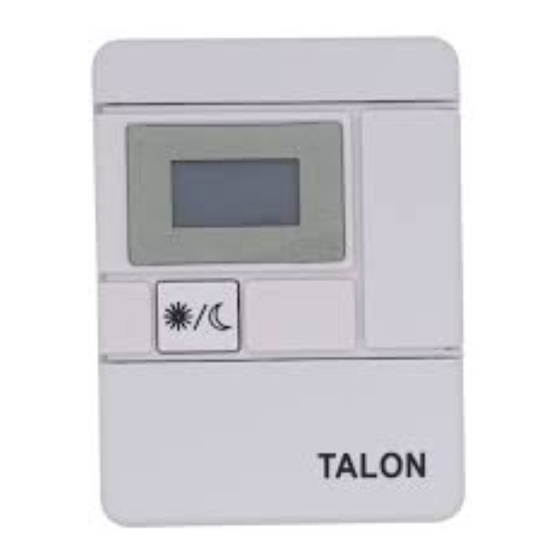

Figure 1. Room Temperature Sensor with Fan Speed.
Document No. 540-149
September 2, 2008
Page 1 of 4
