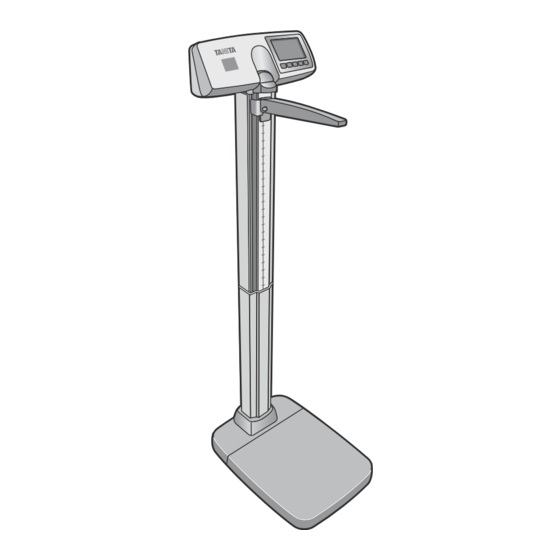

- Page 1 ELECTRONIC PHYSICIAN SCALE WB-3000 plus INSTRUCTION MANUAL Please keep this manual in a safe place, and make sure it is readily available whenever necessary. Please use this product only after carefully reading this manual and fully understanding its contents.
-
Page 2: Table Of Contents
• When disposing of this equipment, please do so in accordance with the prevailing regulations in your country, state and city. • If an unauthorized person attempts to disassemble or repair any part of the equipment, the warranty will become invalid. When the unit malfunctions, please consult your nearest Tanita sales office or agent. -
Page 3: Based On Nih/Who Bmi Guidelines
3. Based on NIH/WHO BMI Guidelines Under Weight 18.5 Normal Range 18.5 Pre obese Obese CLASS l Obese CLASS ll CLASS lll Obese 4. Part Names & ccessories ccessories Battery Compartment C dapter Screw x 4 Back Cover Front Cover Display Box Height Rod rm Instruction Manual... -
Page 4: Assembly Instructions
5. Assembly Instructions 1. List of Components Base (fully assembled and pre-wired to display assembly) Cable (Base side) Lower Pillar ssembly Screw Cable (Top Head Display ssembly Side) Top Head Display ssembly (fully assembled and pre-wired to base) Back Cover Front Cover Top Height Rod ssembly (fully assembled with pivoting height measuring lever) Height Rod rm... -
Page 5: Set Up
6. Set up Use the scale in a firm, flat and stable location. To obtain the highest level of accuracy, please make sure that all four (4) feet are touching on the floor evenly. For further accuracy and security, please position the two (2) adjustable supporting feet on the base (found under the front cover) until they just make contact with the floor (do not overextend) •... -
Page 6: Operation
9. Operation 1. Standard Weighing Procedures 1) Turn on the power by pressing the key. fter all the segments flash, [0.0lb/0.0kg] is displayed. 3) The person to be weighed should still in the middle of the platform. 4) The weight will be locked-in and displayed on the display. “ (Hold)”... - Page 7 3. Step on Function The scale will turn on automatically when the user steps onto the platform. ote: • If the weight is less than 22lb/10kg, the “Step-On” function will not work. • If person less than 22lb/10kg, press the key manually to turn on the scale.
-
Page 8: Measuring Height Procedure
10. Measuring height procedure The user should step on the platform without wearing shoes for accurate measurement. Always have someone assist the user for accurate measurement. djust the Height Rod rm position before the user steps on the platform. Place hand on the Height Rod rm. -
Page 9: Output Data Format
RS-232C Port RS-232C/USB Select SW US Port If you want to use the USB output, you must install the necessary driver onto your PC, available to download from http://www tanita com. Signal Line Name and Connection Method Terminal no. Signal name... - Page 10 Output data Pattern Header Name of item Output data (ASCII code) kg mode lb mode BMI mode Weight mode Control data Fix to 16 2 Bytes fixed Control data ˜0 Fix to 1 1 Byte fixed Control data ˜1 Fix to 1 1 Byte fixed Control data ˜2...
-
Page 11: Specifications
12. Specifications Model WB-3000 plus Measurement System Strain Gauge Load Cell 660lb / 0.2lb 300kg / 0.1kg Maximum Capacity / Minimum Graduation Weight Measurement Standard 0 - 660lb 0 - 300kg Range of Weight Step on 22 - 660lb 10 - 300kg... - Page 12 • Consult the dealer or an experienced radio or television technician for help. Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Tanita Corporation may void the user’s authority to operate the equipment.
