(REMOTE DISPLAY VERSION)
<Usage Conditions>
Temperature
: 5°C – 35°C
: 30% – 80%
Relative Humidity
: 3,000m ASL
Maximum Altitude
Pressure
: 86kPa –106kPa
Please read this Instruction Manual carefully and keep it
for future reference.
ELECTRONIC SCALE
WB-150MA
Instruction manual
<Storage Conditions>
Temperature
Relative Humidity
(no condensation)
To avoid malfunctions, avoid storing the equipment in a location that is subject to
direct sunlight, significant temperature changes, dampness, large amounts of dust,
the risk of vibration or impact, or near naked flames.
(COLUMN MOUNTED VERSION)
: -10°C – 60°C
: 10% – 90% (no condensation)
GB

Advertisement

Table of Contents
loading

Related Manuals for Tanita WB-150MA

Summary of Contents for Tanita WB-150MA

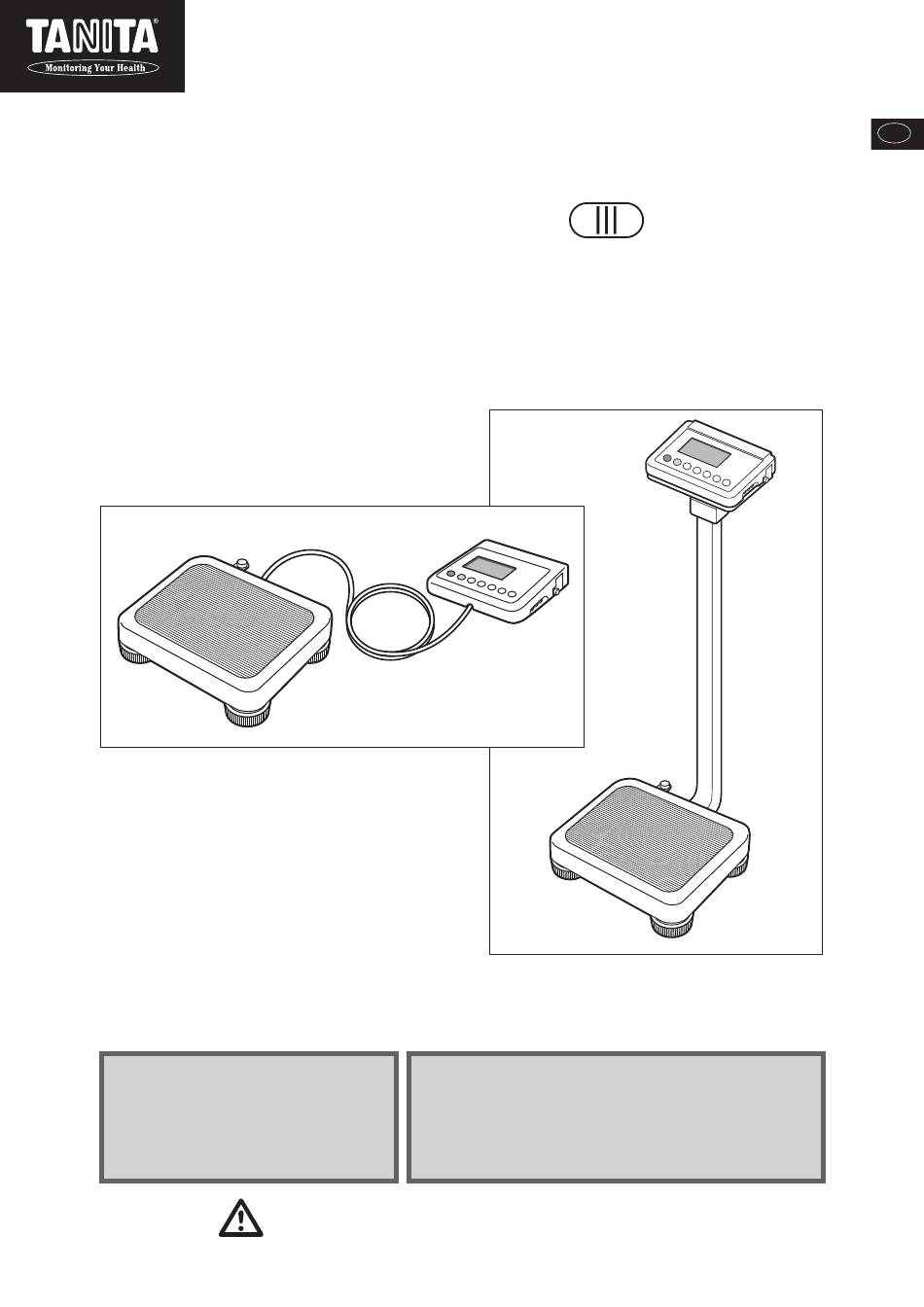

  • Page 1 ELECTRONIC SCALE WB-150MA Instruction manual (REMOTE DISPLAY VERSION) (COLUMN MOUNTED VERSION) <Usage Conditions> <Storage Conditions> Temperature : 5°C – 35°C Temperature : -10°C – 60°C : 30% – 80% : 10% – 90% (no condensation) Relative Humidity Relative Humidity (no condensation)
  • Page 2 Intended use ・This equipment has been calibrated as a precision weighing instrument and can be used to certify weights and/or business transactions. ・It can be used to obtain reference data during medical examinations, such as peri- odic checkups, and can help the prevention of obesity. Efficiency Measurements can be taken quickly and easily, causing minimal inconvenience to the patient during measurements.

  • Page 3: Table Of Contents

    Contents Before use For Your Safety 1.Product Assembly and Components Product Components Remote Display Version Column Mounted Version Control Panel Symbols and their Meanings 2.Preparation for Use Level Adjustment Installation of the Equipment (Remote Display Version) Installation of the Equipment (Column mounted version) Preparing the Power Supply How to use 3.Operating Instructions...

  • Page 4: For Your Safety

    For Your Safety This section explains precautionary measures to be taken to avoid injury to the users of this device and others, and to prevent damage to property. Please familiarise yourself with this contents to ensure safe operation of this equipment. Warning Failure to follow instructions highlighted with this mark could result in death or severe injury.
  • Page 5 Caution Keep away from water. Do not jump on the equipment. Do not insert fingers into gaps or holes. Prohibited Do not apply force to the display. The screen panel may break and cause injury. Ensure that the batteries are inserted with the correct polarity whenever applicable. Continually monitor both the user and the equipment for anomalies.
  • Page 6 The warranty will be invalidated if an unauthorised person attempts to disassemble or repair any of the parts of this equipment. If the equipment malfunctions, please consult your nearest Tanita sales office or agent. The equipment should be inspected in accordance with the regulations of your country.
  • Page 7 Shut Down Loosen the screw to slide the Battery Compartment out In case of emergencies, keep the area around the outlet clear while operating this equipment.

  • Page 8: Product Assembly And Components

    1. Product Assembly and Components Product Components Please verify that the following components are in the package. (Remote Display Version) Accessories AC Adapter Display Box MODEL:FW7333SM/09 Platform Level Gauge Fixing Screw for the Bracket (x 2) Battery Compartment Instruction Manual Adjustable Feet (Column Mounted Version) Battery Compartment...

  • Page 9: Control Panel

    Control Panel Turn power ON / ● Input Preset Tare value ● Scale reset to zero Turn Weight Lock ● Turn power OFF ● function ON/OFF Increase numerical value Setup various functions ● ● Tare / ● Decrease numerical value STEP ON : Start measuring weight.

  • Page 10: Preparation For Use

    2.Preparation for Use Level Adjustment (Remote Display Version) For accurate measurement, place the equipment on as flat a surface as possible and adjust the level with the adjustable feet so the bubble in the level gauge is in the centre of the frame. Level Gauge Caution Place the equipment on a level surface.

  • Page 11: Installation Of The Equipment (Column Mounted Version)

    Installation of the Equipment (Column mounted version) Attach the column to the platform before use. Turn the platform over. Install the column before use. Connect the connectors on the platform and column. Screw the column to the platform using three screws. Insert the connector into the column.

  • Page 12: Preparing The Power Supply

    Preparing the Power Supply When using the AC Adapter Insert the AC adapter jack into the DC jack socket of the Display Box, and insert the AC Adapter plug into a wall socket. Check that the Pilot Lamp on the AC Adapter lights. Plug Warning To avoid electric shocks, do not insert and remove the plug with...

  • Page 13: Operating Instructions

    3.Operating Instructions Preparation (Automatic power-off to save battery life) This scale has power saving function that automatically turns the power off after a specified time. Set the power-off time in advance when using this function. Turn on the power by pressing After flashes, is displayed.

  • Page 14: Preparation (Weight Lock Mode)

    Preparation (Weight Lock Mode) This scale has weight lock function. In order to use this function, enable the “Weight Lock Mode” in advance. When this function is enabled, the display is locked after the weighing value is stabilized. Turn on the power by pressing After flashes, is displayed.

  • Page 15: Measuring Weight

    Measuring Weight Standard Weighing. Turn on the power by pressing After flashes, is displayed. Step on the centre of the platform. After load is stabilized, “Stabilized” mark is indicated. Step off the scale. When use <Preset Tare> functions. Turn on the power by pressing After flashes, is displayed.
  • Page 16 Measuring Weight (continued) To cancel the <Preset Tare> temporarily Press in using preset tare. The input preset tare is cancelled temporarily. is displayed. When inactivate preset tare function, please set preset tare value to 0.0kg. To change preset tare value. Press in using preset tare.
  • Page 17 Tare Weighing Turn on the power by pressing the key. After all the segments flash, is displayed. Carefully place the tare items (clothes, etc.) on the centre of the platform. The weight of the items will be displayed. Press the key.

  • Page 18: Output Data Format

    4.Output Data Format Explanation for RS-232C-compliant output This explanation is for the interface to output the readings from WB-150MA to external equipment (e.g. PC) as a RS-232C-compliant signal. When connecting a computer or peripherals, be sure that compliance with IEC60601-1 (EN60601-1) is maintained.

  • Page 19: Troubleshooting

    Transmission data Transmission data is output immediately after measurement regard-less of the status of the reception side (e.g. PC). Therefore, the reception side must always be ready to receive data before any measurements are taken. When the display is held Item Header Output data (ASCII code)

  • Page 20: Specifications

    <EU representative> Hoogoorddreef 56-E, 1101 BE Amsterdam, The Netherlands Tel: +31-20-560-2970 Fax: +31-20-560-2988 http://www.tanita.eu 1-14-2, Maeno-cho, Itabashi-ku, Tokyo, Japan Tel: +81 (0) 3-3968-7048 Fax: +81 (0) 3-3967-3766 http://www.tanita.co.jp 2625 South Clearbrook Drive, Unit 301-303,Wing On Plaza, 3/F., 62 Mody Rord, Arlington Heights, Illinois 60005, U.S.A.
