RADWAG AS X2 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
X2 Synergy
SERIES

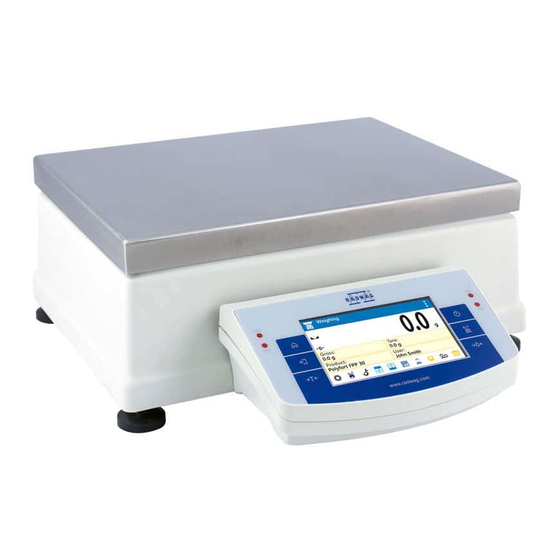

AS X2 Analytical Balances
PS X2 Precision Balances
APP X2 Precision Balances
WLC X2 Precision Balances

USER MANUAL

IMMU-16-18-07-16-EN
www.radwag.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS X2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RADWAG AS X2 Series

Summary of Contents for RADWAG AS X2 Series

  • Page 1: User Manual

    X2 Synergy SERIES AS X2 Analytical Balances PS X2 Precision Balances APP X2 Precision Balances WLC X2 Precision Balances USER MANUAL IMMU-16-18-07-16-EN www.radwag.com...
  • Page 2 If you are reading this, it means that you are bound to achieve success. You have purchased a device that has been designed and manufactured to give you years of service. Congratulations and thank you for selecting RADWAG product. User manual no.:...

  • Page 3: Table Of Contents

    CONTENTS General Information ..................7 1.1. Dimensions ................... 7 1.2. Connectors .................... 9 1.3. Connection Cables – Diagrams ..............9 1.4. Intended Use ..................9 1.5. Precautions ................... 9 1.6. Warranty Conditions ................10 1.7. Supervision over metrological parameters ..........10 1.8.
  • Page 4 8.10. WEIGHING Mode Settings ..............40 8.11. Proximity Sensors ................42 8.12. AUTOTARE ..................42 8.13. Print Mode ................... 43 8.14. Minimum Sample Weight ............... 44 8.15. Cooperation with Titrators ..............46 8.16. Dual Range Balances and Weighing ............46 Miscellaneous Parameters .................
  • Page 5 17.2. Solids Density – Quick Access Keys ............77 17.3. Solids Density Determination ..............77 18. Density of Liquids ..................79 18.1. Supplementary Settings for Liquids Density Mode ........80 18.2. Liquids Density – Quick Access Keys ............80 18.3. Liquids Density Determination..............80 19.
  • Page 6 26. Ambient Conditions ................. 116 27. Communication Protocol ................. 118 27.1. List of Commands................118 27.2. Response Format ................119 27.3. Manual Printout / Automatic Printout .............129 28. Peripheral Devices .................. 130 29. Error Messages ..................130 30. Additional Equipment ................131 31.

  • Page 7: General Information

    1. GENERAL INFORMATION 1.1. DIMENSIONS AS X2 series PS X2 series - 7 -...
  • Page 8 APP X2 series WLC X2 series - 8 -...

  • Page 9: Connectors

    1.2. CONNECTORS 1. Ethernet RJ45 connector 2. USB 1, Type A connector 3. USB 2, Type B connector 4. COM 1 connector 5. COM 2 connector 6. Power supply socket CAUTION! Ethernet RJ45 connector is not applicable in WLC X2 series. 1.3.

  • Page 10: Warranty Conditions

    EX zones. 1.6. WARRANTY CONDITIONS A. RADWAG feels obliged to repair or exchange all elements that appear to be faulty by production or by construction, B. Defining defects of unclear origin defects and means of their elimination can only be realized with assistance of manufacturer and user representatives, C.

  • Page 11: Transport And Storage

    2. TRANSPORT AND STORAGE 2.1. DELIVERY CHECKLIST Upon delivery it is necessary to check the package, make sure that your package bears no signs of damage. 2.2. PACKAGE Keep all package elements should your device be transported in the future. Remember that only original packaging can be used for shipping purposes.
  • Page 12 AS balance, d=0.01/0.1 mg AS balance, d=0.1 mg • remove a transport lock (1) – gently press the transport lock and turn it accordingly to <OPEN> instruction, keep the transport lock should your balance be transported in the future. • Install components following the above diagram: •...
  • Page 13 • remove tape protecting the grounding spring, located on one of the rubber mandrels (1) • install components following the above diagram: • weighing pan (2), • glass draft shield (3). WLC X2, 128x128 mm WLC X2, 195x195 mm • remove tape protecting the grounding spring, located on one of the rubber mandrels (1) •...

  • Page 14: Settings

    Connect an indicator using port located at the back, next connect supplementary equipment. Now, connect the device to the mains (power supply socket is located at the back). 3.3. SETTINGS It is necessary to level the balance prior connecting it to the mains. To level the balance turn its feet until an air bubble takes central position.
  • Page 15 In the case when contamination is hard to remove, e.g. adhesive, rubber, resin, polyurethane foam residues etc., you can use a special cleaning agents based on a mixture of aliphatic hydrocarbons that do not dissolve plastics. Before using the cleanser for all surfaces we recommend carrying out tests.
  • Page 16 Cleaning aluminium components: While cleaning aluminium components use products acid by nature, e.g. spirit vinegar, lemon. Do not use abrasive substances. Avoid using hard brush, this may cause scratches. It is recommended to use microfibre cloth. While polishing the surface use circular movements. Use clean, dry cloth AS series –...

  • Page 17: Powering The Device

    Remove a weighing pan, a draft shield, a bottom insert. Clean the components when detached. With this your balance mechanism is protected against accidental damage. Thus prepared draft shield and panes can be properly cleaned. All the operations should be done carefully.

  • Page 18: Start-Up

    4. START-UP • Plug the power adapter to a socket, next connect the connector to port located at the back of the housing. • Press button located in the top right hand corner of the terminal. • Wait until start-up procedure is completed, the home screen of balance software is displayed automatically.

  • Page 19: Weighing Mode Home Screen

    6. WEIGHING MODE HOME SCREEN The main window of balance software can be divided into 4 sections: • Top section displaying data on active working mode (pictogram and name), metrologically important data and button enabling selection of functions available for a particular working mode.

  • Page 20: Entering Balance Menu

    7.1. ENTERING BALANCE MENU In order to enter balance menu, press <PARAMETERS> button. Clicking any button comprised within information section, or clicking any button with particular parameter name, results with change of colour. This is for signalling purposes. If a given area has any function or action assigned, then it is performed automatically upon clicking (e.g.

  • Page 21: Runnining Software Functions

    Press to export databases (key active Press to confirm changes. upon plugging a USB flash drive). Press resign form Press to import databases (key active introducing function upon plugging a USB flash drive). modifications. Press to add a new record to Press to select variables, out of the list, a database.

  • Page 22: Return To Weighing Mode

    Press to develop an internal adjustment operation (internal adjustment function is assigned to the text field). • Functions selections pictogram, Press to select respective function out of list comprising functions available for a particular working mode. CAUTION! For instruction on configuration of buttons, labels and text fields refer to section 7.6 of this user manual. 7.5.
  • Page 23 The division lines presented above are not visible on the balance screen, they serve only for informative purposes. This section is designed to comprise user-selected widgets: buttons, labels, text fields, bar graphs. • button – pictogram to which a particular function is assigned, the function is triggered upon pressing the pictogram;...
  • Page 24 2. Always click extreme left side of a particular field that is to hold a selected widget. 3. A new widget can only take such area that holds no other widgets yet. The software automatically detects which widgets can be applied for a particular area, this is conditioned by widget dimensions. 4.

  • Page 25: Quick Access Keys

    5. In order to rearrange widgets layout, it is necessary to delete already applied widgets first, and define new arrangement of buttons, labels and text fields next. 7.6.1. Quick Access Keys You can define quick access keys, the keys are displayed underneath weight indication section. Quick access key provides direct access to the most frequently operated functions, it is selected from a list of available keys.
  • Page 26 Enter particular key setup. Select the key. The selected key is displayed automatically on a home screen. - 26 -...
  • Page 27 Quick access keys list: Function Modes featuring the key Accept/Print All modes Print header All modes Print footer All modes Zero All modes Tare All modes All modes (Parts Counting and Change unit Percent Weighing modes excluded) All modes (Parts Counting and Select unit Percent Weighing...

  • Page 28: Labels

    Determine mass using 20 parts Parts Counting mode exclusively Determine mass using 50 parts Parts Counting mode exclusively Determine mass using 100 parts Parts Counting mode exclusively Thresholds Checkweighing mode exclusively Min threshold Checkweighing mode exclusively Max threshold Checkweighing mode exclusively Target value Dosing mode exclusively Percent Weighing mode...
  • Page 29 Select a label and its size. Label settings window opens, click INFORMATION field in order to see a list of information type available for the selected label. Select data to be displayed. The selected label is displayed automatically on a home screen. Information type: Label information type Modes featuring the information...
  • Page 30 Gross weight All modes User All modes Product All modes Packaging All modes Customer All modes Variable 1 All modes Variable 2 All modes Variable 3 All modes MSW value Weighing mode exclusively MSW tare Weighing mode exclusively MSW status Weighing mode exclusively Part mass Parts Counting mode exclusively...

  • Page 31: Text Fields

    7.6.3. Text fields You can select text field size and type of information to be displayed in the first and the second line of the field, plus you can decide on a function that is to be assigned to a particular text field. Upon completed setup operation, the selected text field is displayed automatically on a specified home screen spot.
  • Page 32 Procedure: Press and hold for a while the spot where a given key is to be placed. Select text field and its size. Text field settings window opens. Define particular text field parameters: • Line 1: e.g. text <Time:>, • Line 2: e.g.

  • Page 33: Bar Graphs

    • function: e.g. adjustment. When all text field parameters have been defined, the window displays respective values. The defined text field is displayed automatically on a home screen. 7.6.4. Bar graphs Bar graph function is accessible for all weighing modes. The bar graph presents in a graphic form how much of balance capacity is in use.

  • Page 34: Weighing Operation

    Select bar graph and its size. Bar graph settings window opens. The selected bar graph is displayed automatically on a home screen. Example for bar graph with <Zoom> function on: Example for bar graph with <Zoom> function off: 8. WEIGHING OPERATION Load a weighed object on a balance weighing pan.

  • Page 35: Good Weighing Practice

    • for non-verified balances – stable or unstable measurement result can be saved or printed (regardless of stability marker absence). If unstable measurement result is printed then it is accompanied by question mark <?> in front of printed mass value. 8.1.

  • Page 36: Units

    • When logged, add users and set the permissions levels (for the procedure of assigning permissions levels read section 23). On future Logging In, select a user from the list and enter the password, the software initiates operation with permissions level set for the selected user. Log out operation –...

  • Page 37: Weighing Units Accessibility

    kilogram [kg] yes * carat [ct] yes * pound [lb] ounce [oz] ounce Troy [ozt] pennyweight [dwt] Taele Hongkong [tlh] Taele Singapore [tls] Taele Taiwan [tlt] Taele China [tlc] Momme [mom] Grain [gr] Newton Tical [ti] baht [baht] tola [tola] mesghal [msg] * - Accessibility of measuring units is conditioned by balance type.

  • Page 38: User-Defined Unit

    8.7. USER-DEFINED UNIT You may declare two units. Displayed value of a user-defined unit is a multiplication of measured mass value and a coefficient specified for the particular user-defined unit. The units can be freely named with use of 3 characters maximum. By default the names are displayed as [u1] – user unit 1, and [u2] –...
  • Page 39 The software enables assigning tare value to a database-stored product. Using this option, the software automatically uploads data on tare value for a particular product upon its selection from the database. CAUTION! Taring negative values is impossible. On taring negative values the balance responds with an error message. In such case, zero balance indication and repeat taring procedure.

  • Page 40: Weighing Mode Settings

    Deleting tare The tare value indicated on balance display can be deleted by pressing key on balance overlay, or by using programmable function key <Deactivate tare>. PROCEDURE 1 - on taking the tared load off the weighing pan • Press key.
  • Page 41 Filter level setting Filter settings adjustment depends on the working environment. For the best possible conditions the filter can work in a very fast mode (V.FAST value for Filter parameter); however, if the conditions are poor (shakes, drafts), the filter should be set to slow or very slow option (SLOW or V. SLOW value for Filter parameter).

  • Page 42: Proximity Sensors

    balance zeroes automatically, marker of stable measurement result – , and precise zero marker – are displayed. If AUTOZERO function is enabled, then each weighing process starts from precise zero point. There are, however, some cases when this function can be a disturbing factor for the measuring process; e.g.

  • Page 43: Print Mode

    For correct operation of the balance with AUTOTARE function it is necessary to adjust the threshold value. <AUTO THRES> parameter is connected with the following functions: • automatic tare, • automatic operation, No automatic taring takes place as long as the gross weight value stays within the range set in <AUTO THRES>...

  • Page 44: Minimum Sample Weight

    (MSW) value and tare values for which the MSW value is to be obligatory. For standard X2 series models the values equal zero. Only authorized RADWAG employee or operator with Administrator permissions level, providing that balance factory settings enable this, can carry out procedure aiming to determine minimum sample weight and next enter the respective data.
  • Page 45 use of minimum sample weight goes blank. Example 3 for AS 220.X2 with d=0.0001 g: Tare value Minimum Operation Sample Weight 0.0000 g 0.2500 g Minimum sample weight refers to all net weights subjected to weighing where no tare container is used (<TARE> button not used).

  • Page 46: Cooperation With Titrators

    8.15. COOPERATION WITH TITRATORS In order to provide correct cooperation with Titrators, go to settings of standard printout content and set <Mass value for a titrator> parameter to <Yes> value. With this, other variables for the printout are turned off. With <Yes>...

  • Page 47: Miscellaneous Parameters

    To return to weighing with accuracy of the weighing range: • take the load off the weighing pan as the indication returns to zero and when symbols →0← and • are displayed, press button The balance returns to weighing with readability d =0.001g, the II weighing range symbol gets blanked, last but one digit is no longer grey.
  • Page 48 Backlight and adjusting display brightness Display brightness parameter enables setting the brightness of the backlight or switching off the display brightness completely. Procedure: Proximity sensors sensitivity adjustment Proximity sensors sensitivity parameter specifies distance within which the sensors can be operated, its scale is expressed in percent and it ranges from 0% to 100%.
  • Page 49 Time Time parameter enables setting the current time. Procedures for change of time settings and date settings are likewise. Date format Date form. parameter enables altering the date format on the printout [YYYY.MM.DD / YYYY.DD.MM / DD.MM.YYYY / MM.DD.YYYY], where: YYYY – year; MM – month; DD – day. Time format Time form.
  • Page 50 optional moment and saving records from the carried out tests in the form of printed reports of the tests that are automatically generated at the end of examination. Up to 50 reports can be recorded. The test controls repeatability of placing the interval weight and determining error of indication with reference to balance’s maximum capacity.

  • Page 51: Adjustment

    On completed procedure the parameter screen is displayed, value informing on recorded autotest number, to be found in <RESULT> field, is increased by <1>. To view particular results press <RESULTS> field and select the given autotest. To print a report go to <Details> window and press printer pictogram. The software can store up to 50 reports.

  • Page 52: External Adjustment

    10.2. EXTERNAL ADJUSTMENT External adjustment is carried out by means of an external mass standard of specified accuracy class and weight. Both, accuracy class and mass standard weight depend on balance type and max capacity. The process takes semi-automatic form, successive stages are signalled with prompts. CAUTION! External adjustment is possible for balances that are not a subject to conformity assessment (verification).

  • Page 53: Automatic Adjustment Time

    10.6. AUTOMATIC ADJUSTMENT TIME <Automatic adjustment time> parameter determines time interval between successive internal adjustments carried out automatically. The time interval is declared in hours and ranges between 0.5 and 12 hours. To set time interval for automatic adjustment: • select <Automatic adjustment time>...

  • Page 54: Header, Footer, Glp Printouts

    CAL. DIFFER Option enables printing out the difference between mass of an adjustment weight measured during the last adjustment and the current measured mass of this weight. DASHES Option enables printing out dashes that separate the date of a printout from a signature.
  • Page 55 FOOTER group of parameters enabling to declare data that is to be printed on a footer printout Printout variables list Variable Overview Active for WORKING MODE Option enables printing out the name of a working Header mode. Footer BALANCE TYPE Option enables printing out the balance type.
  • Page 56 Footer VARIABLE 3 Option enables printing out the value of VARIABLE Header GLP printout Footer Option enables printing out net weight value in a GLP printout basic unit (calibration unit). TARE Option enables printing out the tare value in the GLP printout current unit.

  • Page 57: Non-Standard Printouts

    Footer 11.3. NON-STANDARD PRINTOUTS The balance software enables entering 100 non-standard printouts. Each of them can consist of approximately 1900 characters. Non-standard printout may include: • variables dependent on the working mode and other needs (mass, date etc.) • permanent text from the user menu. Non-standard printout can have approximately 1900 characters.
  • Page 58 {21} Statistics: D {22} Statistics: RDV {32} Factory no. {35} Parts counting: Mass standard weight {36} Percent weighing: Reference mass {45} Target value {46} Tolerance {50} Product: Name {51} Product: Code {52} Product: EAN code {53} Product: Mass {54} Product: Tare {56} Product: Minimum {57}...
  • Page 59 Gross weight in current unit {147} Tare weight in current unit {150} Form feed for PCL printers {151} Paper crop for EPSON printers {155} Cooperation with RADWAG CONECT PC software {275} Ambient conditions readout date and time {276} THB: Temperature {277} THB: Humidity {278}...

  • Page 60: Variables

    If you want to carry out HEADER or GLP or FOOTER printout using EPSON printer (equipped with autocutter blade) and crop the paper beneath the respective printout, then you have to select an option of non-standard printout comprising {151} variable, and set this option in header, GLP printout or footer settings, respectively.

  • Page 61: Working Modes - General Information

    12. WORKING MODES – GENERAL INFORMATION Standard version of X2 series balances features the following working modes: Weighing Means of operation: weight of a load is determined through an indirect measurement. A balance measures gravitational force which attracts the load. An obtained result is processed to a digital format and displayed in a form of measurement result.

  • Page 62: Working Modes Accessibility

    12.1. WORKING MODES ACCESSIBILITY Group of parameters enabling you to declare which functions are to be accessible. You can deactivate functions that are not used in course of balance operation, to do it, value <NO> has to be selected for a particular parameter. Procedure: 12.2.

  • Page 63: Parts Counting

    13. PARTS COUNTING < Parts counting> is a working mode enabling determination of quantity of small parts with equal weight. Determined mass of a single part is used for the counting procedure. The single part mass may be: • determined from a reference quantity of parts subjected to weighing, •...

  • Page 64: Parts Counting - Quick Access Keys

    ACAI, Automatic Accuracy Correction, provides the following options: • YES, single part mass is updated, • NO, single part mass is not updated. Means of operation of ACAI function: 1. Number of pieces (on adding) on balance weighing pan has to be greater than before. 2.

  • Page 65: Setting Reference Mass By Determining Part Mass

    • Enter the requested value and confirm by pressing key, <Parts counting> mode is run with automatically specified part mass. CAUTION! If you enter weight of value that is lower than 0.1 reading unit, then <Value too low> message is displayed. 13.4.

  • Page 66: Acquiring Part Mass From A Database

    • The software automatically recalculates single part mass, next it moves to <Parts counting> mode displaying number of parts loaded on the weighing pan (pcs marking). CAUTION! It is important to remember the following: Total mass of all parts loaded on the weighing pan must not exceed the maximum capacity (weighing •...

  • Page 67: Parts Counting Procedure

    Entering reference mass to balance memory Procedure for entering single part mass to products database: • Press < Databases> button, • While in database press <Products> button, • Press button (add product), located in the top bar, • Fill in fields referring to product (Name, Code, EAN, Mass – for Parts Counting mode it is single part weight), •...

  • Page 68: Supplementary Settings For Checkweighing Mode

    Procedure for activation of checkweighing mode Select < Checkweighing> mode, home screen featuring checkweighing pictogram in a top bar is automatically displayed. Info field provides the following information: • Bar graph with checkweighing thresholds • Gross weight, • Tare weight, •...

  • Page 69: Dosing

     Green colour: weight value within set threshold values  Red colour: weight value above Max threshold value PROCEDURE 2 – entering checkweighing thresholds manually • Press < Checkweighing Thresholds> button, • Window with an on-screen numeric keyboard is displayed, use it to enter Min threshold value, •...

  • Page 70: Supplementary Settings For Dosing Mode

    Procedure for activation of dosing mode Select < Dosing> mode, home screen featuring dosing pictogram in a top bar is automatically displayed. Info field provides the following information: • Bar graph with target value • Net weight, • Tare weight, •...

  • Page 71: Percent Weighing

    • Bar graph colour corresponds to the current status of weight:  Yellow colour: weight value below Target Value - Tolerance  Green colour: weight value within tolerance, Target Value +/- Tolerance  Red colour: weight value above Target Value + Tolerance PROCEDURE 2 –...

  • Page 72: Supplementary Settings For Percent Weighing Mode

    Select < Percent Weighing> mode, home screen featuring percent weighing pictogram a top bar is automatically displayed. Info field provides the following information: • Gross weight, • Tare weight, • Net weight, • Reference mass, • Product, • User, • Keys: parameters, adjustment, print header, print footer, set reference mass, determine reference mass (set as 100%), product, user, databases.
  • Page 73 • Mass of all weighed products is compared to reference mass, the weight difference is displayed in [%]. PROCEDURE 2 – accepting currently loaded mass as reference mass • Put the sample on a weighing pan. • On measurement result stabilization, press < Determine reference mass (set as 100%)>...

  • Page 74: Density Of Solids

    • Remove the sample form the weighing pan. • All samples weighed afterwards are compared with the reference mass, and the display indicates the difference, expressed in [%], for each weighed sample in relation to the reference mass. PROCEDURE 3 – selecting product from Products Database •...
  • Page 75 Kit intended for PS and WLC balances featuring 128x128 mm weighing pan Weighing pan with stand Bottom weighing pan for solids density determination Flexible connector Top weighing pan for solids density determination Beaker Hanger Thermometer Thermometer holder Sinker Beaker basis Additional stand for a set of pans or a sinker Additional set of weighing pans for...
  • Page 76 Installation procedure: AS balances PS, WLC balances CAUTION! Components of density determination kit shall be stored in a respective box. • Weighing pans and sinker shall not be put directly on a table, this might cause their damage. • Weighing pans and sinker, if not operated, shall be put on an additional stand. •...

  • Page 77: Supplementary Settings For Solids Density Mode

    17.1. SUPPLEMENTARY SETTINGS FOR SOLIDS DENSITY MODE The supplementary settings enable adjusting the working mode to your needs and requirements. Liquid Parameter allowing to specify liquid used for measurement performance: Water/Ethanol/Other. Liquid density Parameter allowing to enter density of liquid used for measurement performance. This parameter is operable only when OTHER option for LIQUID parameter has been selected.
  • Page 78 2. Enter <SOLIDS DENSITY> function. 3. Prepare sample that is to be measured. 4. Start the process by pressing < Start> button. 5. Select liquid type intended for the test performance. 6. Enter the liquid temperature (the program displays the most recently operated temperature value). 7.

  • Page 79: Density Of Liquids

    The report can be printed repeatedly, press < > key. To finish density determination process, press key. The home screen for solid density mode is displayed. The next measurement can be started now. The balance operates with previously entered settings (liquid, temperature) thus providing quicker start of the very measurement. 18.

  • Page 80: Supplementary Settings For Liquids Density Mode

    Info field provides the following information: • Weighing in air, • Weighing in liquid, • Sinker volume, • User, • Keys: parameters, adjustment, print header, print footer, product, user, start, databases. 18.1. SUPPLEMENTARY SETTINGS FOR LIQUIDS DENSITY MODE The supplementary settings enable adjusting the working mode to your needs and requirements. Sinker volume Parameter allowing to enter volume of the sinker.

  • Page 81: Animal Weighing

    immersed in the liquid (measurement carried out in the liquid), confirm the indication upon stabilization. 10. Upon confirmation of the second indication, the software automatically calculates measured liquid density, which is next displayed together with a respective message, report on measurement is sent to a selected printer port.

  • Page 82: Supplementary Settings For Animal Weighing Mode

    Select < Animal Weighing> mode, home screen featuring animal weighing pictogram in a top bar is automatically displayed. Info field provides the following information: • Gross weight, • Tare weight, • Product, • User, • Keys: parameters, adjustment, print header, print footer, product, user, databases. 19.1.

  • Page 83: Animal Weighing - Quick Access Keys

    19.2. ANIMAL WEIGHING – QUICK ACCESS KEYS Each working mode features automatically displayed set of default keys. The set can be modified by assigning out-of-list quick access keys to on-screen keys. Such operation requires particular permissions level. Read section 7.6.1 for list of quick access keys. Procedure for animal weighing •...

  • Page 84: Statistics

    20. STATISTICS < Statistics> is a working mode allowing to acquire data from series of measurements and to produce statistics using the acquired data. Settings of this function determine which data is displayed. Procedure for activation of Statistics mode Select < Statistics>...

  • Page 85: Peak Hold

    • Results of performed measurements are displayed, top bar features delete and print options. • Select: • , if you want to print a report • , if you want to delete all information on statistics Procedure 2: • press < Finish>...

  • Page 86: Supplementary Settings For Peak Hold Mode

    Info field provides the following information: • • Gross • Tare • Threshold • Product • User • Keys: parameters, adjustment, print header, print footer, product, user, delete, databases. 21.1. SUPPLEMENTARY SETTINGS FOR PEAK HOLD MODE The supplementary settings enable adjusting the working mode to your needs and requirements. THRESHOLD –...

  • Page 87: Formulations

    • Press button in order to print the result. • The start of the next process of peak hold measurement is possible only after removing the load from the weighing pan and pressing button. This causes returning to the home screen of <PEAK HOLD>...

  • Page 88: Supplementary Settings For Formulations Mode

    Info field provides the following information: • Bar graph, • Formulation, • Target value, • Sum, • Keys: parameters, adjustment, print header, print footer, product, user, formulation, start, databases. CAUTION! Information area may contain bar graph – a graphic interpretation of ingredient weight which informs if the weight stays within correct thresholds and specified +/- tolerance.
  • Page 89 Particular procedure steps are displayed in a form of prompts. Make sure you know complete recipe as it is necessary to specify name and weight of each mixture ingredient. Procedure: • Enter <Databases> submenu, press <Formulations> key. • Press < Add>...

  • Page 90: Using Formulations For Weighing

    • enter remaining formulation ingredients. • Target value – target weight, total mass of all the ingredients, non-editable option, it is updated automatically by the program upon each ingredient adding. • Go back to the home screen. 22.4. USING FORMULATIONS FOR WEIGHING With FORMULATIONS function launched, you can prepare mixture either manually or by selecting formulation out of database.
  • Page 91 • list of formulations is displayed, • press <None> button, • home screen is displayed, container weight is tared automatically, navigation bar with messages for ease of operation is shown, • pour specified amount of ingredient no. 1, • press < >...
  • Page 92 • boost mixture weight, weigh as much as required to provide specified weight value, • press button to confirm, mixture dosing ends, formulation report is printed and recorded in a database (read next section of this manual to view an example of the report), the following message is displayed: •...
  • Page 93 • home screen is displayed, container weight is tared automatically, <Formulation> field provides formulation name, <Target value> field provides total weight value for a selected formulation, navigation bar with messages for ease of operation and with names of particular mixture ingredients is shown, At the top of information area there is a bar graph, underneath the bar graph weight value that is to be dosed is displayed.
  • Page 94 PROCEDURE 3 – Preparing formulation that is saved in the Formulation Database – using multiplier function. Go to Formulation mode settings and set <Multiplier> parameter to <YES> value, next follow the below procedure. Procedure: • With <YES> value selected, the program asks you to specify multiplier value prior to each process start.

  • Page 95: Performed Formulations Report

    • home screen is displayed, container weight is tared automatically, <Formulation> field provides formulation name, <Target value> field provides total weight value for a selected formulation, navigation bar with messages for ease of operation and with names of particular mixture ingredients is shown, Weight of ingredient from bar graph area is also multiplied by the multiplier •...
  • Page 96 Status Completed -------------------------------------------------------- Signature ..............- 96 -...

  • Page 97: Databases

    23. DATABASES Balance software features the following databases < >: Products (5 000 products) Users (100 users) Packaging (100 packaging types) Customers (1 000 customers) Formulations (100 formulations consisting of 25 ingredients maximally) Formulations reports (500 reports) Ambient Conditions (10 000 records) Weighings (50 000 records) Alibi (512 000 records) CAUTION!

  • Page 98: Products

    123456.wei Alibii 123456.ali Files can be read using ALIBI Reader by RADWAG that can be downloaded from the website: www.radwag.pl. AMBIENT CONDITIONS database serves informative purposes only. Using records preview option you can check ambient conditions and observe how they changed over time. The data saved to records can be printed by pressing pictogram located in the top bar.

  • Page 99: Operators

    Remember to assign product to particular mode, as some of data values are adopted to the particular mode functions, e.g. mass in <Percent Weighing> mode is accepted as reference mass, whereas mass in <Parts Counting> mode is accepted as single part mass. When a particular product is used for different modes then its weight, taken from product data, is associated with different data for these modes.

  • Page 100: Customers

    23.5. CUSTOMERS Customers database features a list of names of customers for whom the measurements are carried out. Procedure: • Enter < Databases> menu, press <Customers> key, • Press < Add> button for adding a new customer, • For operating an already introduced customer, press the customer field, fill in respective data. List of parameters defined for a customer: Name Code...

  • Page 101: Ambient Conditions

    • Status 23.8. AMBIENT CONDITIONS Ambient Conditions database comprises ambient conditions related information. Depending on the setup, the ambient conditions record may comprise data such as temperature, humidity, atmospheric pressure. When the THB module is connected to the balance then its indications are recorded to the database too.
  • Page 102 Procedure: • Enter < Databases> submenu. • Enter <Alibi> database and press selected record. Information defined for a particular measurement recorded into a database: • Measurement date • Measurement time • Measurement result • Weight • Tare value • User •...

  • Page 103: Communication

    24. COMMUNICATION COMMUNICATION menu is comprised within Parameters menu. It is accessed by pressing key. The balance can communicate with a peripheral device, wherein the communication is established via the following ports: • COM 1 (RS232), • COM 2 (RS232), •...
  • Page 104 2. For correct communication via Wi-Fi, set port parameter for computer to <WIFI> value: <PERIPHERALS/COMPUTER/PORT/WIFI>, next set the parameters as follows: Balance equipped with Wi-Fi module features a respective pictogram at the home screen in the top right-hand corner: Pictogram for Wi-Fi network connection status: Pictogram Overview Balance connected, very strong signal...
  • Page 105 with DHCP set to NO value, enter manually IP; MASK; DEFAULT GATE parameters, with DHCP set to YES value, the balance software automatically reads and displays data assigned by Wi-Fi router by means of which the balance is to be connected, •...

  • Page 106: Porty Usb

    • if you fail to reestablish connection contact RADWAG service. The selected network and parameters for connection are stored in the balance program. The program connects to the network using the stored parameters each time the balance is activated. To disconnect the network turn the communication off: COMMUNICATION/WIFI/WIFI –...
  • Page 107 Steps: Run driver installer Startup dialog window: Select language version. In order to continue, press „Next” button. Window for target folder selection: Select a respective folder and click „Next” key to proceed. “Ready to Install” window: In order to run installation process, press „Install” key and clicking respective keys, follow the install wizard.
  • Page 108 Having completed driver installation, connect balance to a computer, use 1,8-meter long USB A/B cable maximally (in case of already connected balance, it is necessary to disconnect it and using USB cable connect the balance again). - 108 -...

  • Page 109: Peripheral Devices

    The system detects the new USB device and automatically starts searching a respective driver Go to Device Manager and check number assigned to virtual COM port. For this very case it is STMicroelectronics Virtual COM Port (COM8). Set balance parameters: select USB value for parameter COMPUTER/PORT. Run software for measurement readout.

  • Page 110: Printer

    USB type A – USB port, the one to which a PCL printer or EPSON printer is connected  Ethernet – port sending data to a dedicated RADWAG software, e.g. PW-WIN, operated on a computer connected to a balance via network. CAUTION: Communication via Ethernet does not refer to WLC X2 series.
  • Page 111 Additionally you can send a controlling code (of a hexadecimal form) to a printer either at the beginning of the printout - <PREFIX> parameter, or at the end of it - <SUFFIX> parameter. Sending these codes allows to control globally both, information and actions carried out at the beginning and/or at the end of each printout sent from a balance to a printer.

  • Page 112: Record Of Measurement Data Onto A Usb Flash Drive

    • code page - 1250 • prefix - 1B742D • port - COM 1 or COM 2 (the one to which the printer is connected) • code page - 852 • prefix - 1B7412 If in the place of the last digit there are any unexpected signs on the printout (for verified balances), than <CONTROL CODES>...
  • Page 113 The data can be printed using any printer connected to a computer. New data can be recorded to an existing file therefore you can continue recording measurement data using the file once created. - 113 -...

  • Page 114: Additional Display

    NONE, COM 1, COM 2 CAUTION! The balance cooperates with an additional display manufactured by RADWAG. Ensuring correct cooperation between the balance and the additional display requires baud rate parameter value to be set to 115200 bit/s for the port to which the additional display is plugged.

  • Page 115: External Buttons

    • set balance parameters for cooperation with barcode reader: < PORT> - selection of the port, to which the barcode reader is to be connected  accessible options: NONE, COM 1, COM 2 25.6. EXTERNAL BUTTONS Submenu <EXTERNAL BUTTONS> comprises settings that enable the balance to cooperate with external buttons: TARE and PRINT.

  • Page 116: Ambient Conditions

    Exemplary settings for connected ambient conditions module: Baud rate – 115200 bit/s Address - 15 26. AMBIENT CONDITIONS Parameters group which has been designed to enable you to turn on readout of ambient conditions recorded by THB 3/5 ambient conditions module, and to specify tolerance temperature and humidity values and a change rate for the values per hour.
  • Page 117 Ambient conditions module – parameter specifying module’s working mode. Available options: None – readout of ambient condition module indications turned off; Record and alert – readout and record of indications into database turned on, option of display of warnings informing on ambient conditions change turned on, the warnings are displayed in accordance with the following tolerance values settings.

  • Page 118: Communication Protocol

    General information A. A character based communication protocol balance-terminal is designed for establishing communication between a RADWAG balance and a peripheral device via RS-232C serial interface. B. It consists of commands sent from a peripheral device to the balance and responses from the balance.

  • Page 119: Response Format

    Send all implemented commands Give balance type Give Max capacity Give program version Set autozero function Set ambient conditions state Set filter Set value release Set last digit LOGIN Operator Logging LOGOUT Operator Logout Cooperation with PUE 7.1, PUE 10 terminal CAUTION! Each command must end with CR LF characters;...
  • Page 120 Give tare value Format: OT CR LF Response: OT_TARE CR LF - command carried out Response format: 4-12 space tare space unit space Tare - 9 characters with right justification Unit - 3 characters with left justification CAUTION! Tare value is always given in calibration unit. Set tare Format: UT_TARE CR LF, where TARE –...
  • Page 121 Send stable measurement result in a current measuring unit Format: SU CR LF Response options: SU_A CR LF - command understood and in progress SU_E CR LF - time limit exceeded while waiting for a stable measurement result SU_I CR LF - command understood but not accessible at this moment MASS FRAME - response: mass value in a current measuring unit...
  • Page 122 7-15 stability space character mass space unit marker Switch off continuous transmission in a current measuring unit Format: CU0 CR LF Response options: CU0_I CR LF - command understood but not accessible at this moment CU0_A CR LF - command understood and carried out Set min checkweighing threshold Format: DH_XXXXX CR LF, where: _ - space, XXXXX –...
  • Page 123 Response options: RM_OK CR LF - command carried out - command understood but not accessible at this moment (e.g. mode other than RM_I CR LF PERCENT WEIGHING) ES CR LF - command not recognised (mass format incorrect) Value release Format: SS CR LF Response options: SS_OK CR LF - command understood and in progress...
  • Page 124 Give available working modes Command overview: Command returns accessible working modes. Format: OMI <CR><LF> Response options: OMI <CR><LF> n_”Nazwa modu” <CR><LF>: – command carried out, response: accessible working modes n_”Nazwa modu” <CR><LF> OK <CR><LF> OMI_I <CR><LF> – command understood but not accessible at this moment Mode name –...
  • Page 125 OMG_n_OK <CR><LF> – command carried out, response: current working mode OMG_I <CR><LF> – command understood but not accessible at this moment n – parameter, decimal value determining working mode number. To see detailed description go to OMI command. An example: Command: OMG<CR><LF>...
  • Page 126 An example: Command: BP_350<CR><LF> – activate BEEP for 350 ms Response: BP_OK<CR><LF> – BEEP activated CAUTION! BEEP sound activated via BP command is inhibited if in-course of its activation the sound is activated by means of other device: keypad, touch panel, proximity sensors. Send all implemented commands Format: PC CR LF Command:...
  • Page 127 Set ambient conditions state Format: EV_n <CR><LF> Response options: EV_OK <CR><LF> – command carried out EV_E <CR><LF> – error in-course of command execution, no parameter or incorrect format EV_I <CR><LF> – command understood but not accessible at this moment n – parameter, decimal value determining ambient conditions state n →...
  • Page 128 Set last digit Format: LDS_n <CR><LF> Response options: LDS_OK <CR><LF> – command carried out LDS_E <CR><LF> – error in-course of command execution, no parameter or incorrect format LDS_I <CR><LF> – command understood but not accessible at this moment n – parameter, decimal value determining last digit settings n →...

  • Page 129: Manual Printout / Automatic Printout

    Tare 9 characters with dot - right justification (when floating-point tare gets turned off automatically then zero value is sent) Tare unit 3 characters - left justification Hidden digits quantity Number specifying quantity of hidden digits: [space] when no digits are hidden, [1] when 1 digit is hidden An example: NT CR LF...

  • Page 130: Peripheral Devices

    Customer Current result Packaging Adjustment report Universal variable 1 Non-standard printout NONE Universal variable 2 28. PERIPHERAL DEVICES The balance can cooperate with the following peripheral devices: • computer, • EPSON labeller, • PCL printer, • an optional peripheral device operating in ASCII communication protocol. 29.

  • Page 131: Additional Equipment

    30. ADDITIONAL EQUIPMENT Type Name P0151 RS232 cable for EPSON printer EPSON Impact printer CITIZEN Labeller PCL printer Anti-vibration table for AS and PS series balances PC keyboard – USB type. THB 3/5 Ambient conditions module PC software: • „LABEL EDITOR”, •...
  • Page 132 - 132 -...

This manual is also suitable for:

App x2 seriesPs x2 seriesWlc x2 series

Table of Contents
