Operating instructions

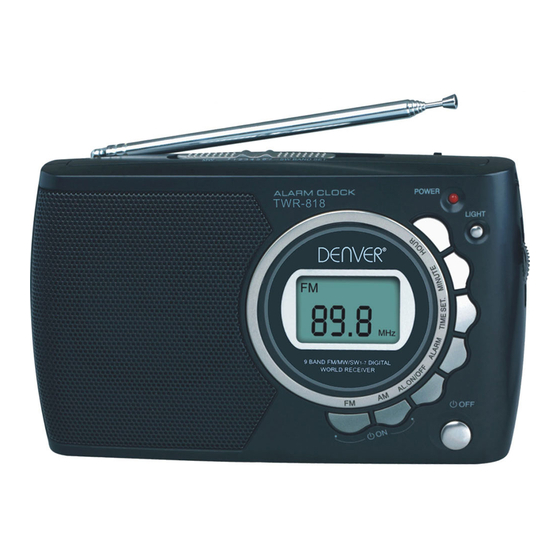

FM/MW/SW1-7 MINI 9 BAND DIGITAL RADIO WITH ALARM CLOCK
APPEARANCE DIAGRAM & FUNCTION INDICATION
1.
Band switch
2.
Display screen
3.
Hour adjustment button
indicator
5.
Hand belt
6. L
ight illumination
7.
Minute adjustment button
8.
Tuner
9.
Time set button
10.
Alarm set button
11. Power OFF button
12. Alarm ON/OFF button
13. AM band/Power ON button
14. FM band/Power ON button
15. Telescopic antenna
16. Volume control
17. Earphone jack
18. External power socket
19. Battery slot
15
19
41
England
1
2
3
4
5
6
7
8
9
10
11
16
14
13
12
17
18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver TWR-818
Summary of Contents for Denver TWR-818
- Page 1 Operating instructions England FM/MW/SW1-7 MINI 9 BAND DIGITAL RADIO WITH ALARM CLOCK APPEARANCE DIAGRAM & FUNCTION INDICATION Band switch 11. Power OFF button Display screen 12. Alarm ON/OFF button Hour adjustment button 13. AM band/Power ON button 4. Power indicator 14.
- Page 2 LCD EXPLANATION FM band indication AM band/AM time indication PM time indication 4. Alarm set indication Alarm indication Frequency/time indication 7. MW frequency unit indication 8. SW or FM frequency unit indication POWER Installing batteries 1. The radio uses two UM1 1.5V batteries, please put the new batteries in the battery slot according to the polarity.
- Page 3 Attention: 1. Do not use new and old or different type batteries together. 2. In order to prevent the leakage of the electrolysis liquid or danger of explosion, do not charge, heat or resolve the batteries. 3. If you do not use the radio for a long time, please take out the batteries, lest the leakage of the battery corrodes the parts in the radio.
- Page 4 CLOCK SETTING 1. After installing batteries, the time"12:00"appears on the LCD. 2. Keep the Time set button(9)pressed, meanwhile press the Hour adjustment button (3) to adjust hour, or press the Minute adjustment button (7) to adjust minute, set the clock time. 3.
- Page 5 ALARM FUNCTION 1. After setting the alarm time, keep the radio in the state of clock. 2. Press the Alarm ON/OFF button (12) once, the symbol of " " displays on the display screen, the Alarm ON/OFF function begins to work. When the turn on time reaches, the radio will automate to be turned on, the FM band frequency will display on the display screen.
- Page 6 USE ANTENNA Receive MW Broadcast Receiving MW broadcast by using the internal magnetic antenna, and you can get the best reception by rotating the direction of the radio. Receive FM Broadcast Receiving FM broadcast by using the telescopic antenna, please pull out it to get the best reception by changing its length and direction.
- Page 7 COMMON PROBLEMS & HANDLE 1. The MW and SW are strongly jammed by the TV set, fluorescent lamp, silicon controlled table lamp, computer and motor and so on. When you use the radio, please keep the radio away from the above-mentioned electrical equipment. 2.
- Page 8 TECHNICAL INDEX ≤ 1. Frequency Range 5. Maximum consume current 150mA Φ Ω 87-108 6. Speaker: 66mm/8 /0.5W Φ Ω MW 526.5-1606.5 KHz 7. Earphone: 3.5mm32 SW1 5.95-6.20 8. Unit Size: 159x97x34mm SW2 7.10-7.30 9. Weight: 260g (without battery) SW3 9.50-9.90 SW4 11.65-12.05 MHz SW5 13.60-13.80 MHz SW6 15.10-15.60 MHz...
