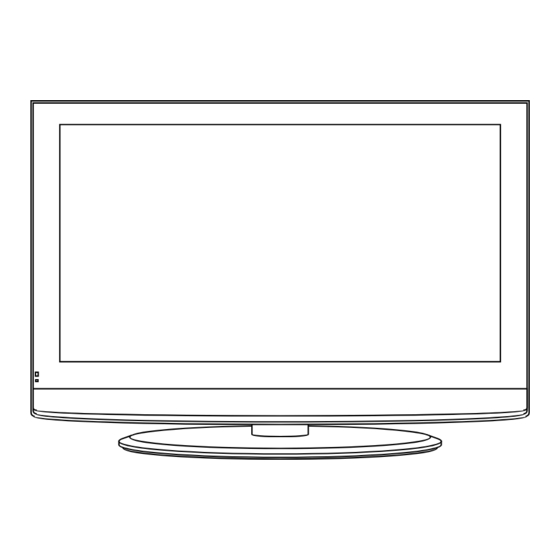

40" Full HD DVB-T/Multi System LCD TV
Model No.: ALT4070FWD
Attention:
Please kindly refer to "Tuner selection"(Page 9 of User's manual) for the choosing suitable
TV broadcasting system as per your living area when you use this unit firstly. TV Color system is
automatically searched regardless of your living area.
Advertisement
Table of Contents
Related Manuals for Avol alt4070fwd
Summary of Contents for Avol alt4070fwd

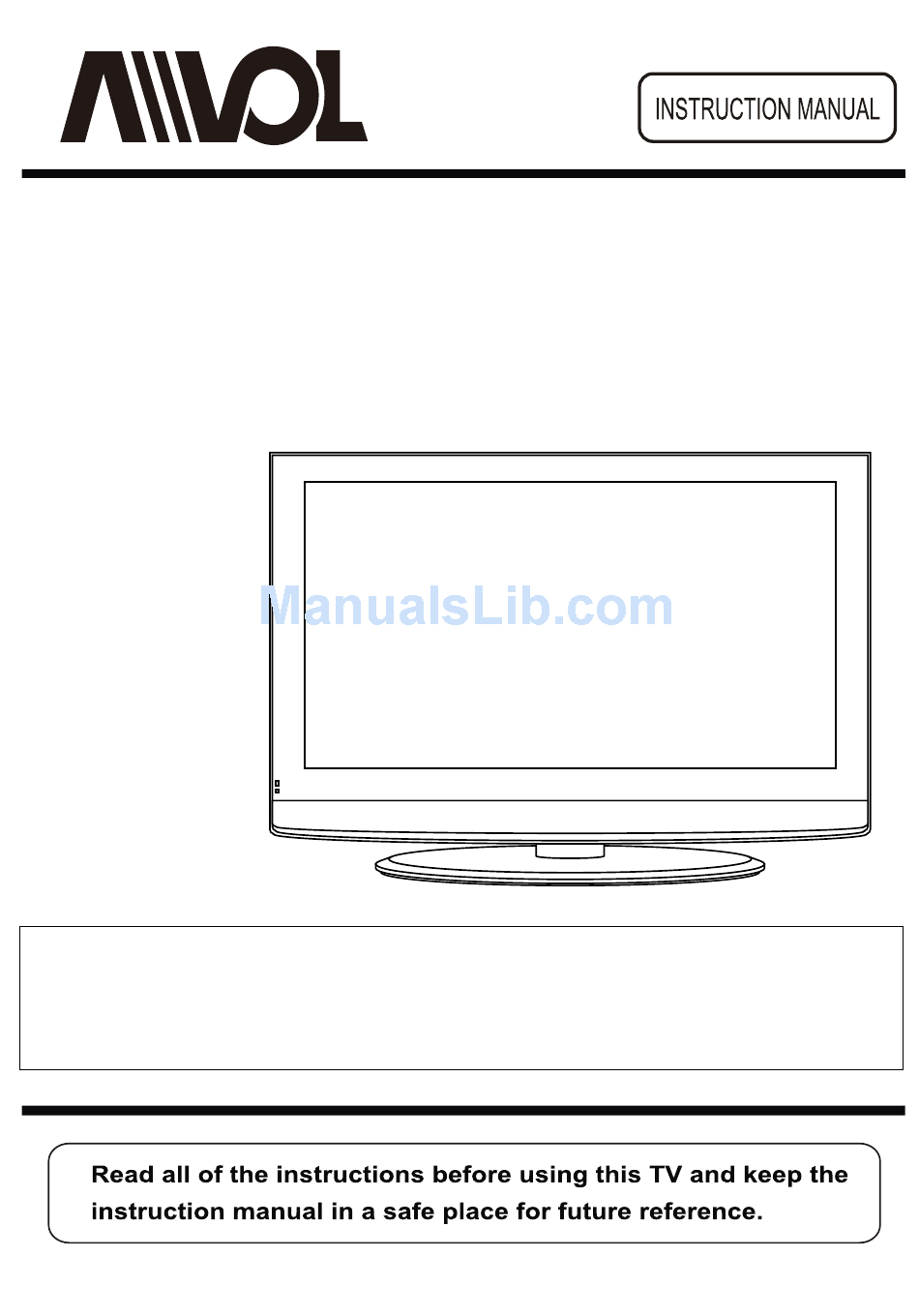

- Page 1 40” Full HD DVB-T/Multi System LCD TV Model No.: ALT4070FWD Attention: Please kindly refer to “Tuner selection”(Page 9 of User’s manual) for the choosing suitable TV broadcasting system as per your living area when you use this unit firstly. TV Color system is...
-
Page 3: Table Of Contents
Contents Caution Caution Safety Information Accessories Technical Specification Product Introduction Front View Rear View Connections Remote Control Basic Operation OSD Menu 9-15 1. CHANNEL menu 9-10 2. PICTURE menu 3. SOUND menu 4. TIME menu 5. OPTION menu 6. LOCK menu Simple Troubleshooting... -
Page 4: Caution
Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below . Electrical safety • The TV set should only be connected to a mains supply which matches that stated on the label on the mains adaptor. -
Page 6: Accessories
Accessories & Technical Specification Accessories CHANNEL LIST TV/RADIO User’s Manual Remote control Power cable 220V Power Socket * Note: The configuration of the components may look different from the folltowing illustration Technical Specification - TV System PAL, SECAM, NTSC, DVB-T - Sound System B/G, D/K, I, M - DVB-T System... -
Page 7: Product Introduction
Product Introduction Product Introduction Front View TV/AV: Display the input source menu. MENU: Display/exit the OSD menu. CH+/-: Scan through channels. VOL+/-: Adjust the volume. POWER: Turn on/standby the TV set. LED indicator Remote Control window(keep clear) (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby) LED indicator: Press POWER to turn on and off. -
Page 8: Connections
Connections Connections 10 11 1. Service: USB jack for upgrade. 2. HDMI1/2/3: Connect it to the HDMI of DVD or other equipment. 3. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC. 4. PC AUDIO IN: Connect it to the audio output terminal of PC. 5. -
Page 9: Remote Control
Remote Control Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER: Turn the TV on/standby. TV/AV: Press to display the input source menu. -
Page 10: Remote Control
Remote Control Remote Control 0-9,-/--: Choose channel directly. FAV: Display the favourite program list. : Return to the previous channel viewed. PICTURE: Select the picture mode. SOUND: Select the sound mode. NICAM: NICAM/A2 select. MUTE: Press to mute the sound, press again or press VOL+ to unmute. -
Page 11: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with a power code, and turn on the power switch. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. -
Page 12: Osd Menu
OSD Menu OSD Menu 1. CHANNEL menu Tuner selection PAL/SECAM Auto Scan DTV Manual Scan ATV Manual Scan Programme Edit CI Information Description Tuner selection: Select the tuner mode, PAL/SECAM or NTSC. Auto Scan: In NTSC mode: press OK button to enter the Auto scan menu, then start auto tuning by OK button. - Page 13 OSD Menu OSD Menu ATV Manual Scan: Press OK button to enter the ATV Manual Scan menu. Storage To: Select a position for storing the program searched. Current CH: Select a channel you want to manual tuning. Search: Press < / > button to manual search. Fin-Tune: Press <...
-
Page 14: Picture Menu
OSD Menu OSD Menu 2. PICTURE menu Tint Description Picture Mode: Select picture display mode. Contrast: Control the difference between the brightness and darkest regions of the picture. Brightness: Controls the overall brightness of the picture. Colour: Control the colour. Sharpness: Increase this setting to see crisp edges in the picture;... -
Page 15: Sound Menu
OSD Menu OSD Menu 3. SOUND menu Description Sound Mode: Select the sound mode. Treble(Could be adjusted when the sound mode is User): Controls the relative intensity of higher pitched sounds. Balance: To adjust the balance of the left and right sound track, or turn off the volume of the left and right sound track. -
Page 16: Time Menu
OSD Menu OSD Menu 4. TIME menu Clock Description Clock: Use the < and > buttons to select the position, and use the button to set the time. Note: User can not change time manually during DTV mode, for time is from signal source directly. -
Page 17: Option Menu
OSD Menu OSD Menu 5. OPTION menu English English Restore Setting Quit Back Select Description Language: Allows you to select menu language. Audio Language(Could be selected in TV mode): Allows you to select audio language. Subtitle Language(Could be selected in TV mode): Allows you to select subtitle language. Country: Display the current Country, and you should select the Country when you want to auto tuning. -
Page 18: Lock Menu
OSD Menu OSD Menu 6. LOCK menu Change Password Description Note: You should enter the code to operate the menu.(original code is 0000) Please enter password Lock Channel: Allows you to turn on or off the channel lock. When select “On”, chanel menu is closed. -
Page 19: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV.
