Avol ALT32130N Instruction Manual

32” atsc/ntsc system lcd tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

32" ATSC/NTSC System LCD TV
MODEL: ALT32130N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALT32130N and is the answer not in the manual?

Questions and answers

Related Manuals for Avol ALT32130N

Summary of Contents for Avol ALT32130N

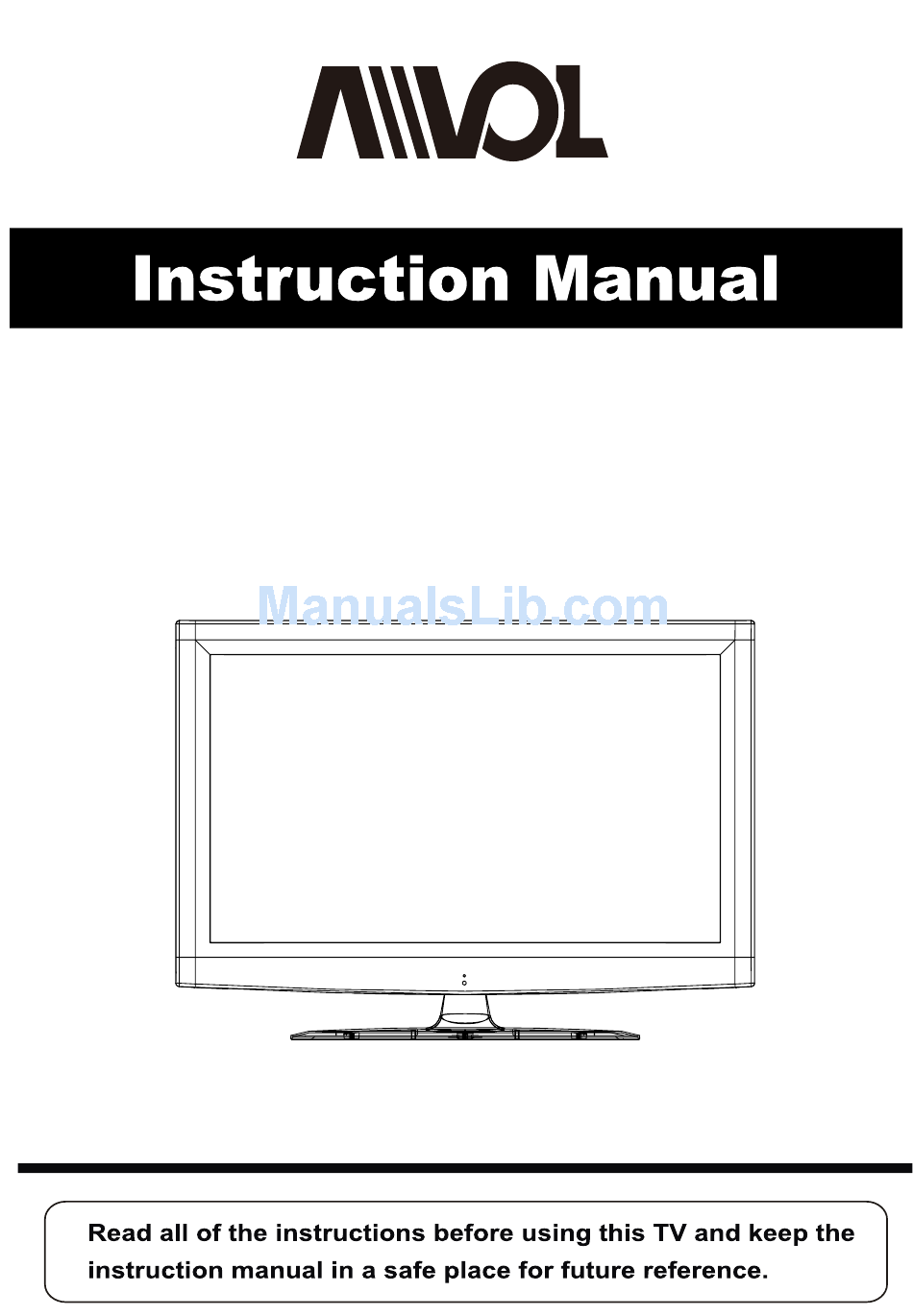

  • Page 1 32” ATSC/NTSC System LCD TV MODEL: ALT32130N...

  • Page 3: Table Of Contents

    Contents Contents Caution Safety Information Unit and Accessories Introduction 1. Front View 2. Rear View 3. Instruction for Wall Mount 4. Remote Control Basic Operation OSD Menu 11-18 1. Picture menu 11-12 2. Sound menu 3. Channel menu 4. Parental Control menu 15-16 5.

  • Page 4: Caution

    Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 5: Safety Information

    Safety Information Safety Information Electrical safety power Physical safety...

  • Page 6: Unit And Accessories

    Unit and Accessories Unit and Accessories SOURCE -/-- PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU TV set Remote control Batteries: 2xAAA (Model no.: NA001) AC Cord User's manual HDMI 220V Power Socket...

  • Page 7: Introduction

    Introduction Introduction 1. Front View Power Indicator Remote Control window (Keep clear) 1). (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20...

  • Page 8: Rear View

    Introduction 2. Rear View Video R in L in Coax PC-IN HDMI1 HDMI2 HDMI3 (Service) AUDIO OUT AC POWER IN: Connect it to AC100-240V~ 50/60Hz power supply with the mains cable. COAX : Digital audio output. RF : Connect antenna or cable 75 Ohm coaxial to receive TV signal. : Connect it to the HDMI output of video device.

  • Page 9: Instruction For Wall Mount

    - 4 pcs of type M6 screws are required for installing the wall mount bracket to your AVOL TV. Do not use screws that are longer tha n 10 mm. Screws that are too long may cause damage to the inside of the TV set.

  • Page 10: Remote Control

    Introduction 4. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. SOURCE SOURCE : Press to display the input source menu.
  • Page 11 Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don’t mix different types or used batteries with new ones. 3.

  • Page 12: Basic Operation

    Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press SOURCE button on the TV set or remote control to display input source menu, and use CH+/- button on the TV set or...

  • Page 13: Osd Menu

    OSD Menu OSD Menu 1. Picture menu Description Picture Settings: Press button to enter the Picture Settings menu. Picture mode: Select between Dynamic, Standard, Movie, User and Power Saving. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note: when select the "Power Saving", the machine is in energy-saving status.
  • Page 14 OSD Menu OSD Menu Advanced Picture Settings: Press button to enter the Advanced Picture Settings. Dynamic Contrast: Select the dynamic contrast mode between Off, Low, Medium and High. Film Mode: Activate or deactivate the Film Mode. Noise Reduction: If the broadcast signal received is weak, you can select the DNR option to reduce the video noise level between Off, Low, Medium and High.

  • Page 15: Sound Menu

    OSD Menu OSD Menu 2. Sound menu Description Sound Settings: Press button to enter the Sound Settings menu. Sound Mode: Select your desired picture mode as follow: Dynamic, Standard, Soft and User. You may select the sound mode directly by pressing the SOUND button on the remote control.

  • Page 16: Channel Menu

    OSD Menu OSD Menu 3. Channel menu Cable Description Channel List: Display the channel list. Favorite List: Display the favorite channel list. Channel Settings: Press > button to display the Channel Settings menu. Press button to select the item, and press OK button to change the setting.

  • Page 17: Parental Control Menu

    OSD Menu OSD Menu 4. Parental Control menu You must enter the password to gain access to the Parental Control menu. The default password is 0000. You may modify the following options: Description V-CHIP: Press button to enter the V-CHIP menu. US V-CHIP: Press button to enter the US V-CHIP menu.
  • Page 18 OSD Menu OSD Menu Canada V-CHIP: Press button to enter the Canada V-CHIP menu. English Rating: Select among: C, C8+, G, PG, 14+ and 18+. French Rating: Select among: G, 8ans+, 13ans+, 16ans+ and 18ans+. Block UnRated Show: Activate or deactivate the Block UnRated Show function. Downloadable Rating: Setting the Downloadable Rating in DTV mode when the program has the rating information.

  • Page 19: Setup Menu

    OSD Menu OSD Menu 5. Setup menu Description Closed Caption: Press button to enter the Closed Caption menu. Caption Display: Activate or deactivate the Caption displaying. Analog Caption Type: Allow you to select the basic selection among: CC1, CC2, CC3, CC4, Text1, Text2, Text3 and Text4.

  • Page 20: Others Menu

    OSD Menu OSD Menu 6. Others menu Description Blue Screen: Turn on/off the blue screen function when there’s no signal. No Signal Power Off: The TV will turn off automatically if there’s no signal after 10 minutes. No Operation Power Off: The TV will turn off automatically if there’s no operation on the TV after 3 hours.

  • Page 21: Simple Troubleshooting

    Simple Troubleshooting Simple Troubleshooting If the TV has failed or its performance has seriously deteriorated, check the TV by using the following simple troubleshooting guide. If you can not resolve the problem with this troubleshooting, please call Technical Support. No power - Check all power connections to the TV.
  • Page 22 32”(Diagonal) Viewing Picture Size (diagonal) Resolution 1366x768 Aspect Ratio 16:9 Display colours 16.7M Brightness 350 cd/m Contrast ratio 3000:1 Response time View angle (H)/176 TV system Digital TV: ATSC Analog TV: NTSC ATSC decode Video System MPEG-2MP@HL Sound System AC-3 Video System NTSC NTSC Sound System...

  • Page 23: Limited Warranty

    WARRANTY PERIOD MODEL# LABOR PARTS ALT32130N 90 Days 1 Year No other express warranty is applicable to this product. The duration of any implied warranties, including the implied warranty of merchantablility, is limited to the duration of the express warranty herein.
