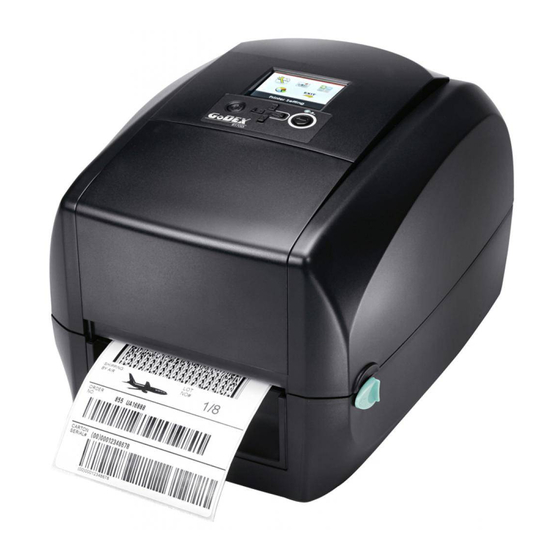

- Page 1 RT700i/RT730i BARCODE PRINTER USER MANUAL User Manual : RT700i series Version : Rev. 1.6 Issue Date : 2013.10.03 : 920-014811-00...
-
Page 2: Installing The Label Dispenser
Accessories Installing the Label Dispenser The Overview of the Label Dispenser PAPER SENSOR PAPER FEED ROLLER CONNECTION CABLE OF LABEL DISPENSER COVER Preparation Steps Please see the Section 5.1 Preparation Steps to complete the preparation steps before installing the label dispenser. Installing the Label Dispenser Pass the connection cable through the slot of the printer. - Page 3 Accessories Place label dispenser to align both holes of screw and then tighten the screws. Tighten the screw Open the cover Place the platen back to the printer and lock the clips. Lock the clip CLIP Close the printer cover and printing mechanism. Then to turn the printer upside down.
- Page 4 Accessories Open the cover on the bottom of printer. COVER OF THE MODULE CONNECTION JACKS Open the cover Plug the connector fo the label dispenser to the jack. Plug JACK CONNECTOR OF THE CONNECTION CABLE Close the cover of the module connection jacks. COVER OF THE MODULE CONNECTION JACKS Close the cover ****The printer must be switched off when plugging the connector, or the motherboard may be destroyed!
- Page 5 Accessories Loading Label Roll with the Label Dispenser Module Remove the first label from the label stock. LABEL STOCK LABEL LINER Tear a label THE FIRST LABEL Feed the Label stock through the label guides. And pull the label liner through the platen and the steel of the label dispenser. Through the label guides Through the platen and the steel...
- Page 6 Accessories The feeding path of label and liner should be as shown in below graphic. LABEL LABEL LINER PLATEN LABEL STOCK ROLLER Close the label dispenser and printer cover. The installation is completed now. Close the cover...
- Page 7 Accessories Press the FEED button to feed the label. The label will be peeled from the liner while it passes through the label dispenser. Press the feed key LABEL LABEL LINER **** There is a paper sensor on the Label Dispenser module. It will stop the printing if it is covered by label. Remove the last printed label and the printer will then continue to print next label.
