Set-up overview
There are three ways in which the controller can be set up. Select the one that is easiest for you: either "Wizard", "Quick settings" or a
review of "all parameters".

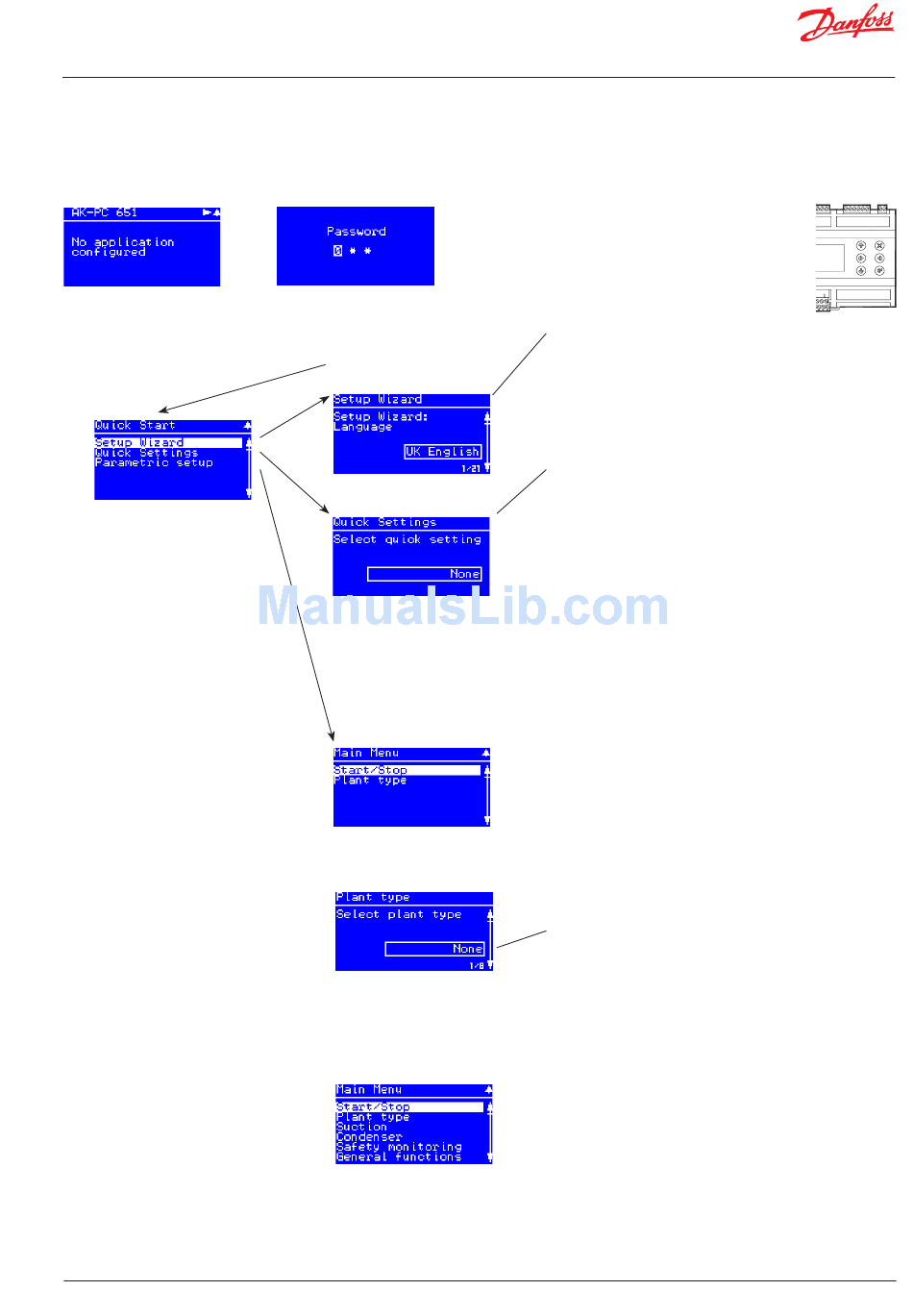

Start screen upon delivery
Hold "Enter"  down
for 2 seconds to come to
password entry
Select a set-up method. End
by pressing "Enter" 
© Danfoss | ADAP-KOOL® | 2015.10
The default password upon
delivery is 300. Use the arrow
keys to set the password. End
by pressing "Enter" 
Main Menu
The first setting is the
Plant type
When the Plant type has
been selected, it will al-
low several settings to be
made.
For example:
Continue to the next
menus.
All settings are explained
on the pages that follow.

Operating principles

1. Select position using arrow keys
2. Select using "Enter" 
3. Use the "X" to return
Wizard
Here you will be led through a series of settings, after
which the controller will be ready for start.
Image 1 of 28 is displayed here.
Quick
Select from the different combinations of compressors
and fans here.
Also see the overview on pages 18 and 19.
3C2U + FS
2C2U + 6F
4C1U + FS
3C1U + 6F
2C1U + 4F
8CD + FS
6CD + FS
6CD + 6F
4CD + 4F
8CS + FS
6CS + FS
6CS + 6F
4CS + 4F
8C + FS
6C + FS
6C + 6F
4C + 4F
None
The following options are available here:
Comp + Cond = suction group and condenser
Condenser = condenser only
Compressor = suction group only
None
Example:
6CD + FS =
6 Compressors,
one Digital,
+
fans speed controlled
RS8HA102 | 7
