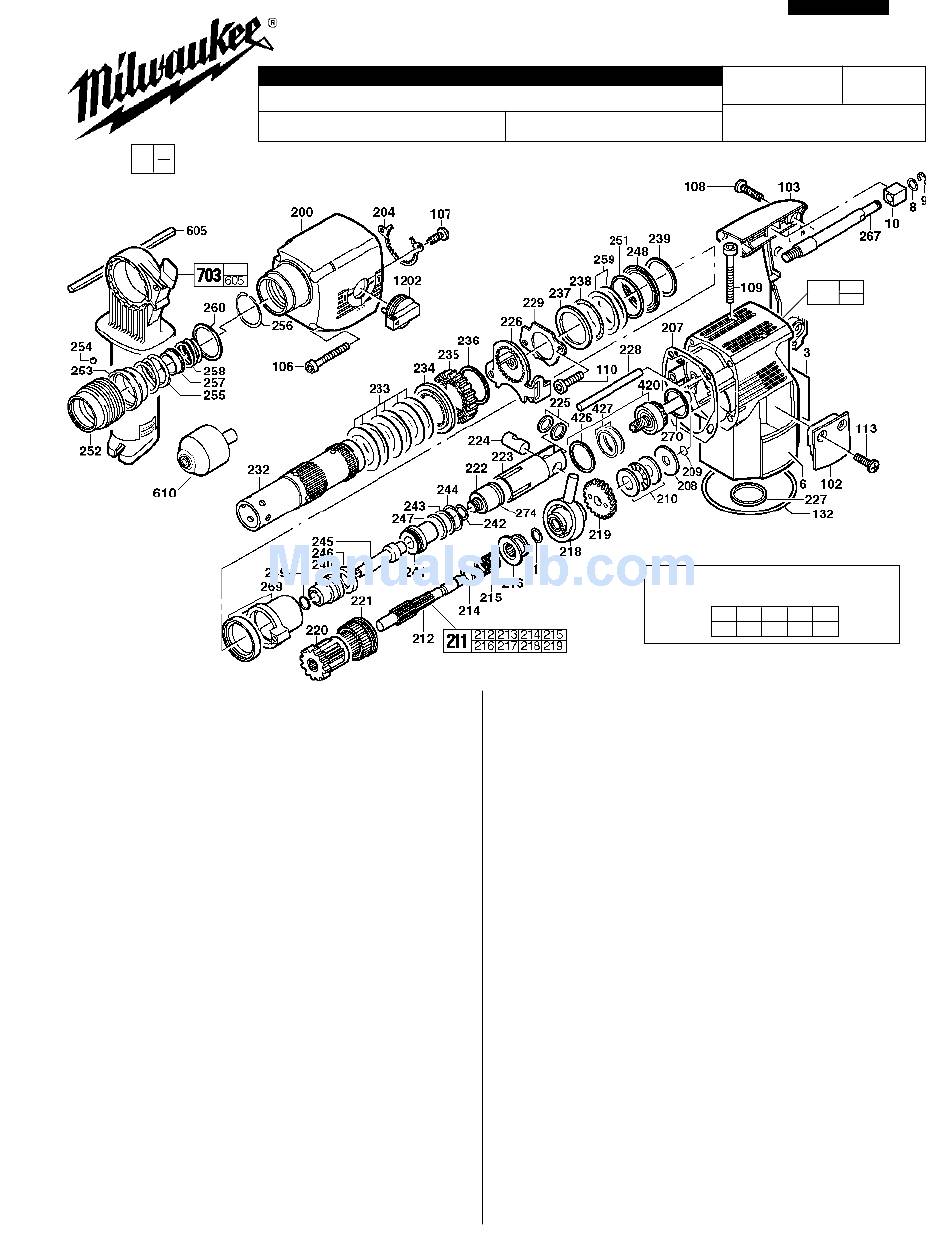

Milwaukee 5303-20 Service Parts List

EXAMPLE:
Component Parts (Small #) Are Included
00
0
When Ordering The Assembly (Large #).
FIG. PART NO. DESCRIPTION OF PART
3 12-20-0407 Nameplate
6 10-07-6215 Product Label
8 45-88-1245 Washer
9 44-90-0340 Snap Ring (Ext.)
10 43-87-0080 Isolation Block
102 31-15-0255 Brush Cover
106 05-74-0685 Screw
107 05-74-0715 Screw
108 05-78-0715 Screw
109 05-74-0695 Screw
110 05-74-0700 Screw
113 05-78-0745 Screw
132 34-40-0145 O-Ring
200 31-40-0040 Gearcase
204 44-86-0625 Splined Retainer
206 31-15-0305 Crankcase
207 43-44-0375 Gasket
208 45-88-8825 Washer
209 34-40-4440 O-Ring
210 02-80-6025 Thrust Bearing Set
«
211 14-73-0246 Wobble Shaft Assembly
«
212 36-66-3160 Reduction Gear Shaft
214 45-88-1250 Washer
215 40-50-8895 Spring
216 45-22-0300 Coupling Sleeve
217 45-88-1240 Washer
218 36-92-0745 Wobble Plate
219 32-60-2621 Reduction Gear
«
220 32-60-2155 Offset Gear
221 32-60-2165 Internal Gear
222 44-82-0190 Ram
223 --------------- Piston
224 44-60-1405 Wrist Pin
225 45-88-1180 Washer
«
226 44-90-4500 Shift Ring
227 34-40-4454 O-Ring
228 44-60-1485 Pin
229 44-66-6055 Retaining Plate
232 --------------- Spindle
233 40-50-7975 Belleville Spring
234 45-88-7765 Stop Washer
235 32-75-1205 Spindle Gear
236 44-90-4510 Retaining Ring (Ext.)
237 45-88-1255 Washer
SERVICE PARTS LIST
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
1-1/8" ROTARY HAMMER
5303-20
CATALOG NO.
NO. REQ.
(1)
(2)
(1)
(1)
(1)
(2)
(4)
(2)
(3)
(2)
(2)
(4)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(6)
(1)
(1)
(1)
(1)
SERIAL
893B
NUMBER
SEE SERVICE INSTRUCTION
SEE BACK PAGE OF THIS BULLETIN
FOR ADDITIONAL LUBRICATION
FIG. PART NO. DESCRIPTION OF PART
238 02-80-0150 Thrust Washer
239 45-88-0775 Locking Washer
---------------
240 45-60-0495 Striker Support
---------------
241 44-82-0085 Ram Catcher
242 34-40-4451 O-Ring
---------------
243 42-76-0725 Thrust Collar
244 44-90-4415 Retaining Ring
---------------
245 45-56-2535 Striker
---------------
246 45-88-1260 Washer
247 34-40-4452 O-Ring
248 45-88-1265 Washer
249 34-40-4453 O-Ring
251 34-40-4459 O-Ring
252 42-76-0265 Quik Change Collar
253 44-90-0105 Ring
254 02-02-0100 Ball
255 40-50-8900 Spring
256 44-90-0350 Snap Ring (Int.)
257 44-90-0110 --------------- Ring
---------------
258 40-50-8905 Spring
259 45-88-1270 Washer
260 45-88-1275 Washer
267 05-77-0030 Bolt
«
269 45-60-0511 Spindle Bearing Support
270 44-90-0115 Ring
274 34-40-4465 O-Ring
«
420 36-66-4266 Intermediate Gear Set
«
426 45-88-1170 Washer
«
427 45-88-1175 Washer
605 43-46-0170 Depth Gauge
---------------
610 48-03-3040 Quik Change SDS-Plus Chuck
700 48-55-5303 Carrying Case
703 49-15-0305 Side Handle w/Depth Rod
1202 44-10-0075 Shift Lever
10-15-0270 Warning Tag
14-46-5303 Lubrication Service Kit
14-46-5309 Service Instructions Notice
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
PAGE 1 OF 2
BULLETIN NO.
54-24-0576
REVISED BULLETIN DATE
54-24-0575 Feb. 2006
WIRING INSTRUCTION
58-01-1130
103
206
NOTICE 14-46-5309
AND SERVICE NOTES
223 232 240 241 243
245 246 257 258 610
NO. REQ.
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(6)
(1)
(1)
(1)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(2)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
Drwg. 4
