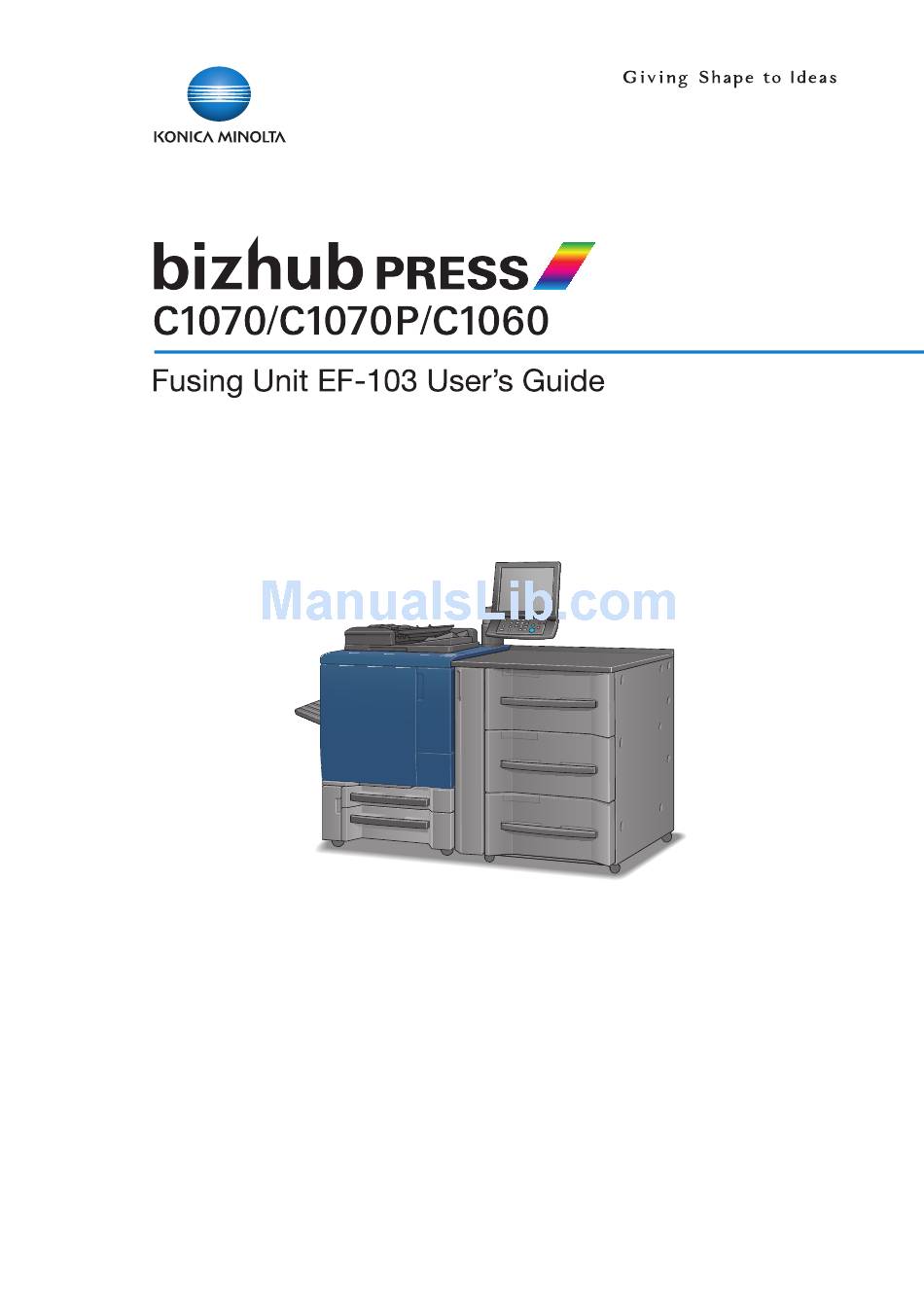

Konica Minolta bizhub press C1060 User Manual
Fusing unit ef-103
Hide thumbs
Also See for bizhub press C1060:
- Shortcut manual (36 pages) ,
- User manual (202 pages) ,
- Quick manual (159 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Konica Minolta bizhub press C1060
Summary of Contents for Konica Minolta bizhub press C1060
-
Page 3: Table Of Contents
Contents Introduction Introduction ............................. 1-2 Safety Precautions.......................... 1-3 1.2.1 Notices for Safety ..........................1-3 1.2.2 Precautions When Replacing Units ....................1-4 1.2.3 Warning and Caution Labels......................1-6 Installing Fusing Unit EF-103 Replacement Parts ......................... 2-2 Installation Procedures ........................2-3 2.2.1 Installing EF-103 on the Main Body.................... -
Page 4: Introduction
Introduction... -
Page 5: Introduction
Registered Trademarks KONICA MINOLTA, the KONICA MINOLTA logo, the symbol, and Giving Shape to Ideas are registered trade- marks or trademarks of KONICA MINOLTA, INC. bizhub PRESS is a registered trademark or trademark of KONICA MINOLTA, INC. -
Page 6: Safety Precautions
Safety Precautions Safety Precautions 1.2.1 Notices for Safety The followings are what you need to follow to safely replace the units. Please be sure to read the precautions before replacing the units. Keep the User's Guide at hand for your future reference and be careful not to lose it. Make sure you follow the safety precautions listed in the User's Guide. -
Page 7: Precautions When Replacing Units
Safety Precautions 1.2.2 Precautions When Replacing Units Preparation Tasks Before Replacing Units When replacing the units, be sure to receive instructions from our customer engineer, read the User' Guide in entirety and perform tasks in the specified order with appropriate tools. Do not perform any tasks that are not described in the User's Guide. -
Page 8: Power Plug
Safety Precautions Power Plug Do not unplug or plug in the power cord with a wet hand, as you could receive an electrical shock. Plug the power cord all the way into the power outlet. Failure to do this could result in a fire or an electrical shock. Do not tug the power cord when unplugging. -
Page 9: Warning And Caution Labels
Safety Precautions 1.2.3 Warning and Caution Labels This machine has warning label, caution labels and indicators for safety precaution in the following location. These labels and indicators advise you to pay special attention to avoid any dangerous situations or serious injury when you replace the units. -
Page 10: Installing Fusing Unit Ef-103
Installing Fusing Unit EF-103... -
Page 11: Replacement Parts
Replacement Parts Installing Fusing Unit EF-103 When replacing the fusing unit, follow the precautions below to perform the task. NOTICE When replacing the fusing unit, be sure to receive instructions from our customer engineer. NOTICE Please do not dispose of the packaging box of EF-103. Keep the packaging box and reuse it to store the replaced fusing unit. -
Page 12: Installation Procedures
Installation Procedures Installation Procedures 2.2.1 Installing EF-103 on the Main Body Turn off the machine's sub and main power switches, and then unplug the power cord from the outlet. % Be sure to turn off the sub power switch first. Open the front door [1]. - Page 13 Installation Procedures Pull out the fixing plate [1] forward. Holding the handles on the rear and front sides [2] of the fus- ing unit [1] by both hands, slide the fusing unit [1] forward to the position of arrow mark. Please be careful when working on the fusing unit;...
-
Page 14: Installing Parts In The Tray
Installation Procedures Tighten the screw [1] (1 piece) and close the exit section [2]. Insert the ADU drawer [3]. Raise the ADU release lever M1 [1] by turning it clockwise. Close the front door [1]. Store the removed fusing unit in the empty packaging of EF-103. - Page 15 Installation Procedures Using Envelopes of 100 to 139.7 mm in Width The following parts need to be installed when envelopes of the above size are used. Auxiliary guide (2 pieces) To use envelopes smaller than 139.7mm, use the small size guides of Paper Feeder Unit PF-707. Pull out tray 5.
- Page 16 Installation Procedures Insert the auxiliary guides (2 pieces) into the positioning screws on the side guides. NOTICE Do not move the paper control levers (2 pieces). Otherwise, the paper feeding performance may degrade. Push in tray 5 until it locks into place. Using Envelopes of 139.7 to 245 mm in Width Follow the procedure below to use envelopes of the above size.
-
Page 17: Removing Fusing Unit Ef-103
Removing Fusing Unit EF-103... -
Page 18: Removal Procedures
Removal Procedures Removing Fusing Unit EF-103 This section describes the procedures to remove EF-103 and the feed guide parts for envelopes. When using paper other than envelopes, follow the procedure below to replace the fusing unit and remove the parts installed in the tray. Removal Procedures 3.1.1 Removing EF-103 from the Main Body... - Page 19 Removal Procedures Open the paper exit section [2] while releasing the lever M6 [1] at the bottom. Loosen the screw [3] (1 piece). Pull out the fixing plate [1] forward. Holding the handles on the front and rear sides [2] of EF-103 [1] with both hands, slide EF-103 [1] forward to the position of the arrow mark.
- Page 20 Removal Procedures Holding the handles on the front and rear sides [2] of the fus- ing unit [1] with both hands, set the unit [1] on the fixing po- sition with arrow mark. Holding the handles on the front and rear sides [2] of the fus- ing unit [1] with both hands, slide it to the direction of arrow until it knocks in place.
-
Page 21: Removing Parts From The Tray
Removal Procedures Store the removed fusing unit in the empty packaging of EF-103. NOTICE Please wait until EF-103 gets cold before storing it in the packaging. 3.1.2 Removing Parts from the Tray If the auxiliary guides (2 pieces) are installed on the side guides of tray 5, perform the following steps to re- move them. - Page 22 Removal Procedures Remove the 4 positioning screws (2 screws for each position), and then install the 4 screws (2 screws for each position) that have been installed before. Push in tray 5 until it locks into place. bizhub PRESS C1070/C1070P/C1060...
-
Page 23: Copy/Print Operation
Copy/Print Operation... -
Page 24: Loading Envelopes In The Tray
Loading Envelopes in the Tray Copy/Print Operation This section describes how to load envelopes in the tray with the parts for envelopes installed, and to copy/print onto those envelopes. Loading Envelopes in the Tray Envelopes with the following specifications can be loaded in the tray. Paper size Width: 100 to 245 mm (3.92"... - Page 25 Loading Envelopes in the Tray Pull out tray 5. Widen the side guides and rear guide. Place envelopes with the print side up. % Align the envelopes to the left side of the tray with the flaps on the right. Align the side guides and rear guide to the edge of the envelopes.
-
Page 26: Copy Operation
Copy Operation Copy Operation In order to use envelopes, the paper setting for the tray loaded with the envelopes must be modified before selecting the desired copy conditions. Change the paper setting from [Tray Setting] on the Machine Screen when using the modified setting as a default, or from [Paper Presetting] on the Copy Screen to use it tempo- rarily. - Page 27 Copy Operation Select [Tray5], and then press [Recall]. % If any paper setting for envelopes has been registered, that setting is automatically selected (other settings become unavailable) on the screen. In this case, modify the items as necessary. Press [OK]. % Press [Change Set] to display the Change IndividualSet Screen.
- Page 28 Copy Operation Press [Paper Size]. % Enter the width and length of the envelopes. Press [(1)], then enter the width (size in crosswise di- rection) of the envelopes loaded in the tray. Similarly, press [(2)] and enter the length (size in feeding direction) of the envelopes.
- Page 29 Copy Operation Press the [COPY] tab to display the Copy Screen. Select [Tray5]. Choose the Simplex/Duplex setting. % When placing the original on the original glass, select [1->1]. % When placing the original on ADF, select [1->1] if the original is one-sided or select [2->1] if it is two- sided.
- Page 30 Copy Operation Select [Face Up] for Face and [1 to N] for Order in the Output Setting. % The items automatically set for Face/Order vary depending on whether the original is placed on the original glass or ADF. In either case, select [Face Up] for Face and [1 to N] for Order. Press [OK] on the Output Setting Screen to return to the Copy Screen.
-
Page 31: Print Operation
For Windows with PS Plug-in Driver Select the Print command of your application, then select the appropriate printer driver (the initial name: [KONICA MINOLTA C1070/C1060PS]). Click [Detail Setting] or [Properties]. The Printing Preferences window of the printer driver is displayed. - Page 32 Print Operation Click the [Paper/Quality] tab, then select [Tray 5] for "Paper Source". Select [Envelope] for "Media." Click [Advanced...] at the lower right corner of the window. The Advanced Options window is displayed. Select [PostScript Custom Page Size] for "Paper Size," and then enter the size of the envelope. % Provide all the necessary information, and then click [OK].
- Page 33 Print Operation Select [Tray5] for the paper tray. Click the [Layout] tab. Click [Custom Size] for the paper size and enter the size of the envelope. % For details of the envelope size, see Section 5 "Specifications." Provide all the necessary information, enter a desired name, and then click [Add]. Click the pull-down list next to "Paper Size"...
-
Page 34: Specifications
Specifications... -
Page 35: Specifications Of Fusing Unit Ef-103
Specifications of Fusing Unit EF-103 Specifications Specifications of Fusing Unit EF-103 Name EF-103 Type Fusing unit exclusively used for printing on envelopes (with feeding guide parts) Feeding reference point Center Paper weight 70 to 100 g/m (19 to 27 lb Bond) Envelope sizes •... - Page 37 http://konicaminolta.com...
