5.1

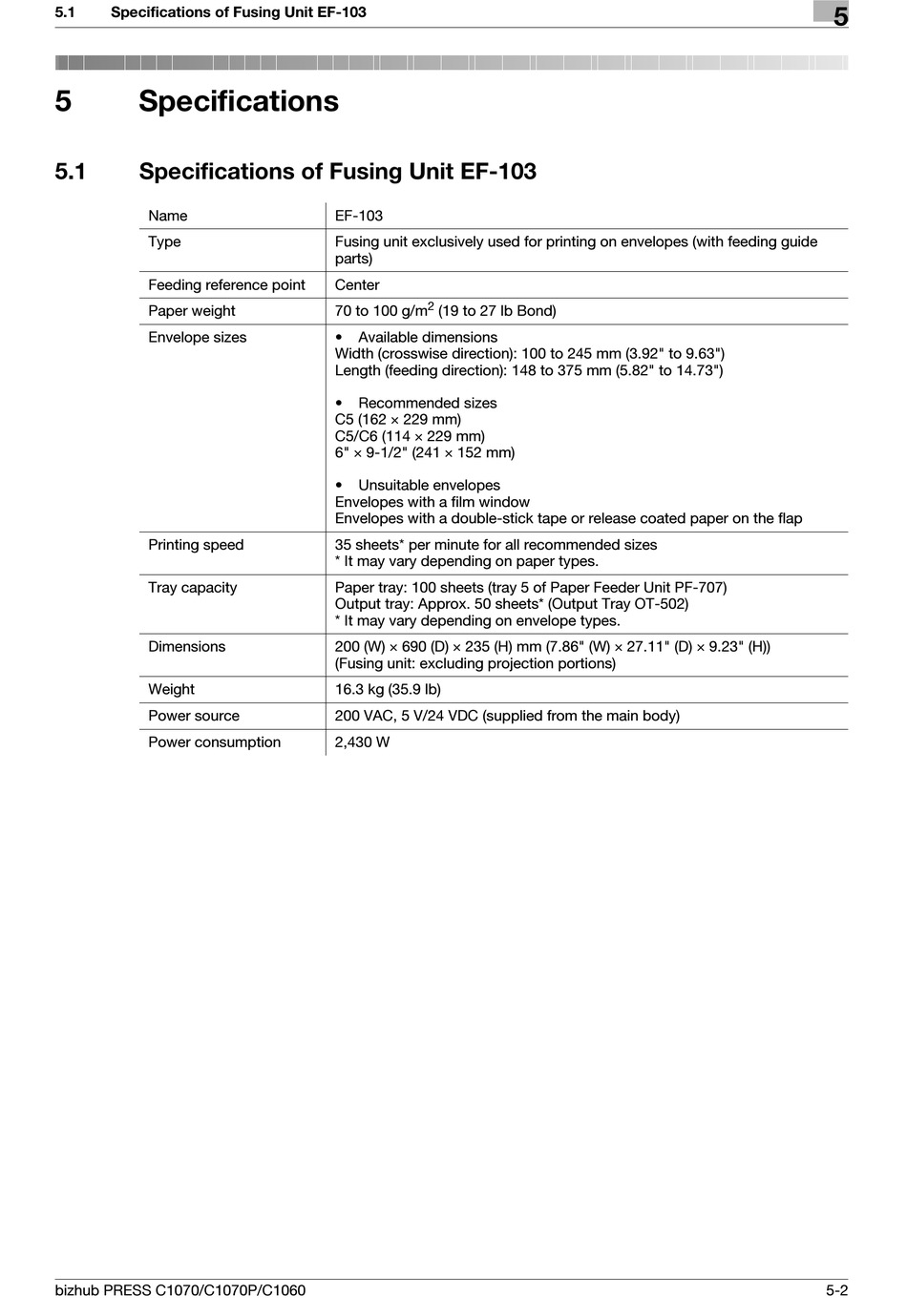

Specifications of Fusing Unit EF-103

5 Specifications
5.1 Specifications of Fusing Unit EF-103
Name
Type
Feeding reference point
Paper weight
Envelope sizes
Printing speed
Tray capacity
Dimensions
Weight
Power source
Power consumption
bizhub PRESS C1070/C1070P/C1060
EF-103
Fusing unit exclusively used for printing on envelopes (with feeding guide
parts)
Center
2
70 to 100 g/m (19 to 27 lb Bond)
• Available dimensions
Width (crosswise direction): 100 to 245 mm (3.92" to 9.63")
Length (feeding direction): 148 to 375 mm (5.82" to 14.73")
• Recommended sizes
C5 (162 e 229 mm)
C5/C6 (114 e 229 mm)
6" e 9-1/2" (241 e 152 mm)
• Unsuitable envelopes
Envelopes with a film window
Envelopes with a double-stick tape or release coated paper on the flap
35 sheets* per minute for all recommended sizes
* It may vary depending on paper types.
Paper tray: 100 sheets (tray 5 of Paper Feeder Unit PF-707)
Output tray: Approx. 50 sheets* (Output Tray OT-502)
* It may vary depending on envelope types.
200 (W) e 690 (D) e 235 (H) mm (7.86" (W) e 27.11" (D) e 9.23" (H))
(Fusing unit: excluding projection portions)
16.3 kg (35.9 lb)
200 VAC, 5 V/24 VDC (supplied from the main body)
2,430 W
5
5-2
