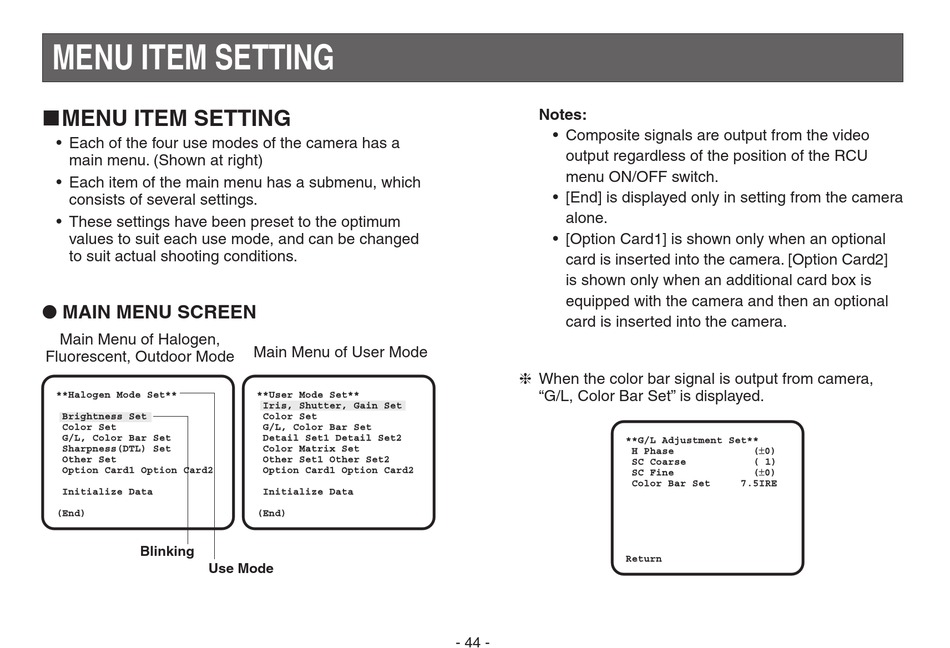

MENU ITEM SETTING

w MENU ITEM SETTING
• Each of the four use modes of the camera has a
main menu. (Shown at right)
• Each item of the main menu has a submenu, which
consists of several settings.
• These settings have been preset to the optimum
values to suit each use mode, and can be changed
to suit actual shooting conditions.
O MAIN MENU SCREEN
Main Menu of Halogen,
Fluorescent, Outdoor Mode
Blinking
Use Mode
Main Menu of User Mode
Notes:
• Composite signals are output from the video
output regardless of the position of the RCU
menu ON/OFF switch.
• [End] is displayed only in setting from the camera
alone.
• [Option Card1] is shown only when an optional
card is inserted into the camera. [Option Card2]
is shown only when an additional card box is
equipped with the camera and then an optional
card is inserted into the camera.
K When the color bar signal is output from camera,
"G/L, Color Bar Set" is displayed.
- 44 -
