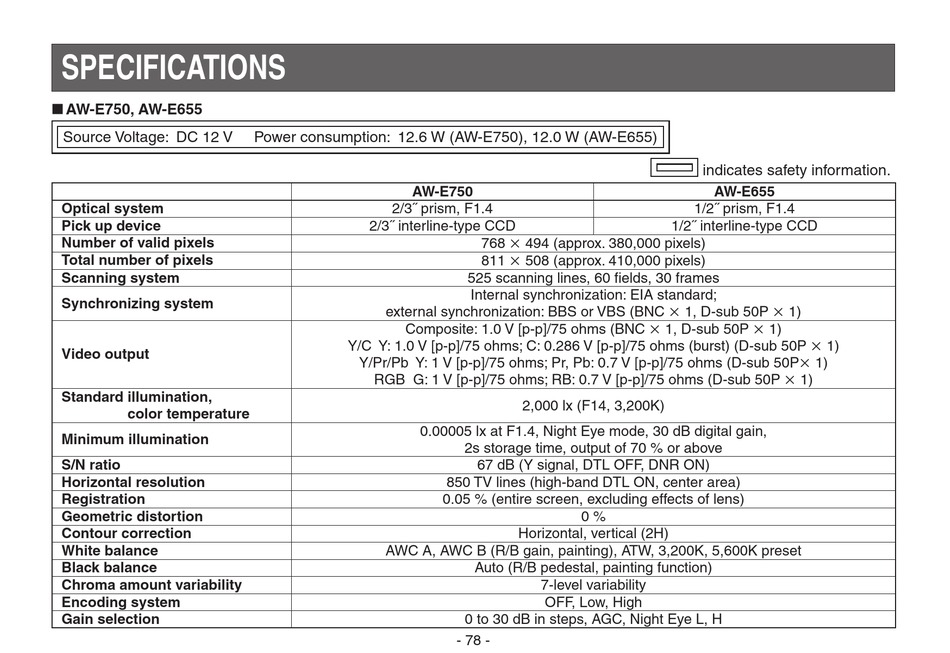

SPECIFICATIONS

w AW-E750, AW-E655
Source Voltage: DC 12 V
Optical system
Pick up device
Number of valid pixels
Total number of pixels
Scanning system
Synchronizing system
Video output
Standard illumination,
color temperature
Minimum illumination
S/N ratio
Horizontal resolution
Registration
Geometric distortion
Contour correction
White balance
Black balance
Chroma amount variability
Encoding system
Gain selection
Power consumption: 12.6 W (AW-E750), 12.0 W (AW-E655)
AW-E750
2/3˝ prism, F1.4
2/3˝ interline-type CCD
external synchronization: BBS or VBS (BNC M 1, D-sub 50P M 1)
Composite: 1.0 V [p-p]/75 ohms (BNC M 1, D-sub 50P M 1)
Y/C Y: 1.0 V [p-p]/75 ohms; C: 0.286 V [p-p]/75 ohms (burst) (D-sub 50P M 1)
Y/Pr/Pb Y: 1 V [p-p]/75 ohms; Pr, Pb: 0.7 V [p-p]/75 ohms (D-sub 50PM 1)
RGB G: 1 V [p-p]/75 ohms; RB: 0.7 V [p-p]/75 ohms (D-sub 50P M 1)
0.00005 lx at F1.4, Night Eye mode, 30 dB digital gain,
AWC A, AWC B (R/B gain, painting), ATW, 3,200K, 5,600K preset
768 M 494 (approx. 380,000 pixels)
811 M 508 (approx. 410,000 pixels)
525 scanning lines, 60 fields, 30 frames
Internal synchronization: EIA standard;
2,000 lx (F14, 3,200K)
2s storage time, output of 70 % or above
67 dB (Y signal, DTL OFF, DNR ON)
850 TV lines (high-band DTL ON, center area)
0.05 % (entire screen, excluding effects of lens)
0 %
Horizontal, vertical (2H)
Auto (R/B pedestal, painting function)
7-level variability
OFF, Low, High
0 to 30 dB in steps, AGC, Night Eye L, H
- 78 -
indicates safety information.
AW-E655
1/2˝ prism, F1.4
1/2˝ interline-type CCD
