2. Installation
Wall Mounting
The Handyflow is normally fitted immediately below the outlet to be supplied, but it
can be mounted above or to the side of the outlet provided it is vertical with the pipe
outlets at the top. The unit can either be placed directly on the floor or fixed to the
wall using the fixings provided.
Ensure the mounting surface is strong enough to support the Handyflow
including the weight of the water.
Plumbing connections
The hot and cold fittings are at the top of the unit. These connections are colour coded
(blue=cold, red=hot).
They are NOT interchangeable.

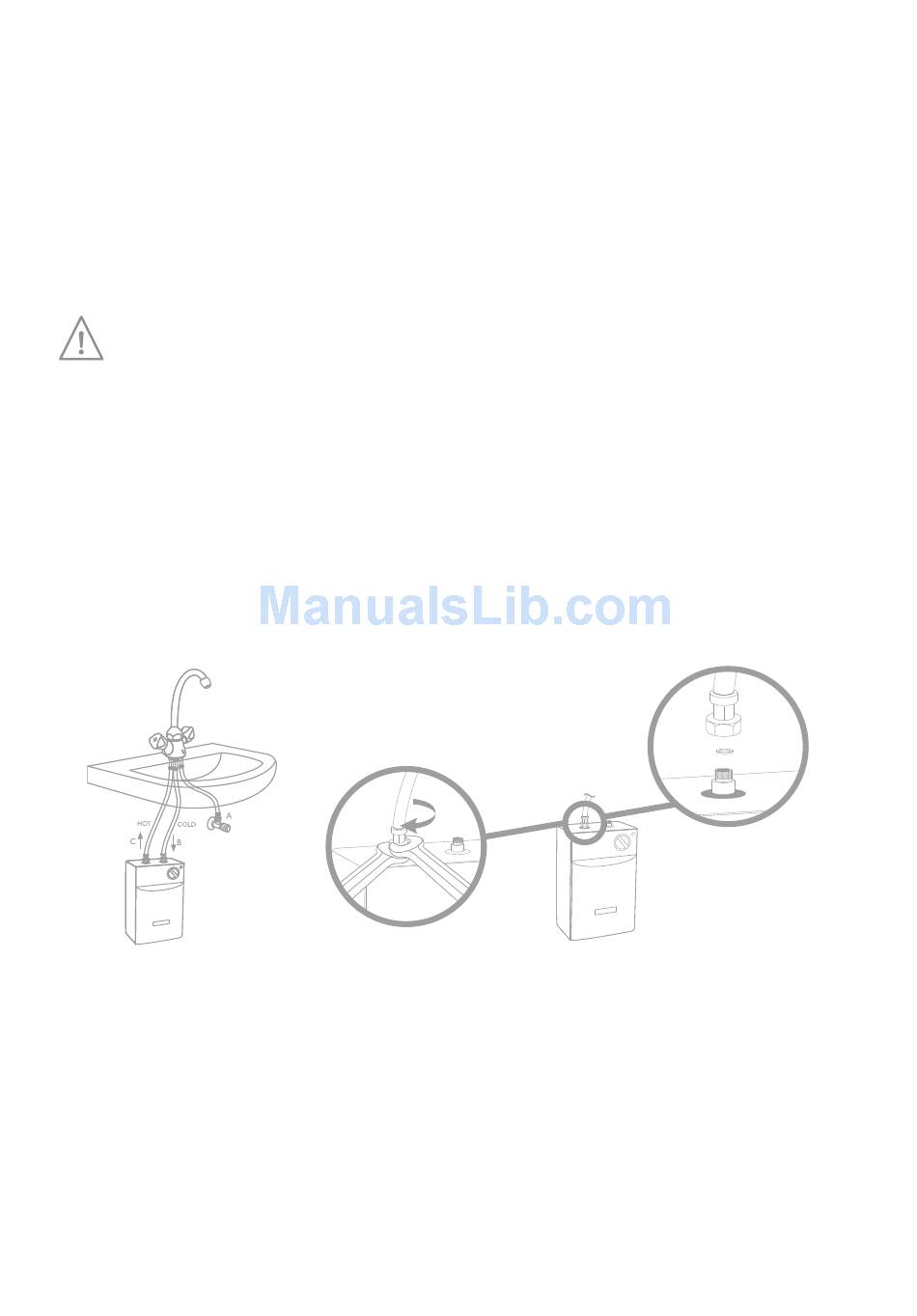

The diagram above shows a typical installation with the Hyco Vented mixer tap HFTAPQ.
• All fittings are provided so connection can be made via 15mm compression fittings.
• Please follow manufacturer's instructions provided with the vented tap.
Tighten all connections
to prevent from leaking.
