Service Instructions

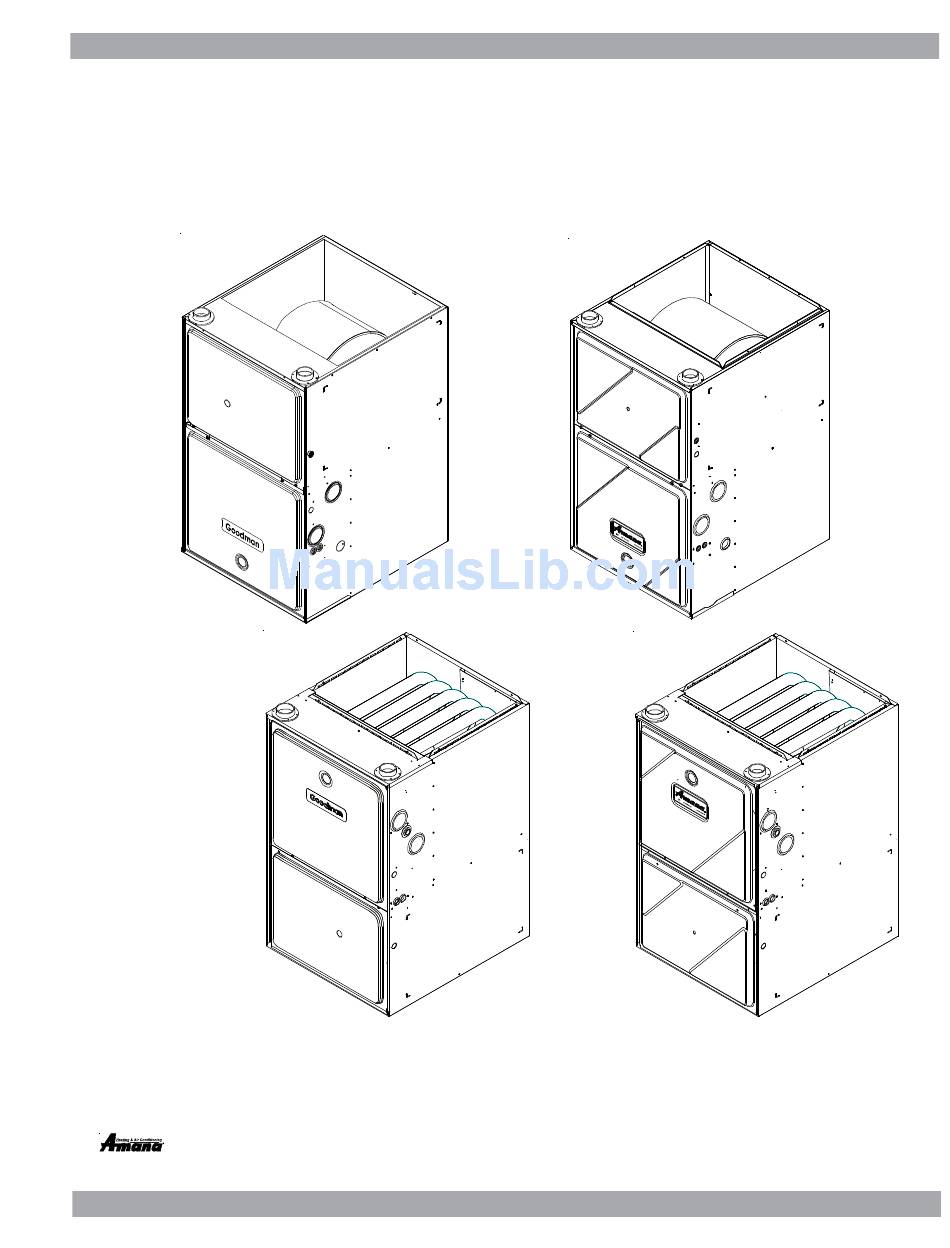

96% Modulating Gas Furnaces
ACVM, AMVM, GCVM, GMVM
& Accessories
RS6612001r9
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
November 2013
procedures or services performed by an unqualified person.
is a registered trademark of Maytag Corporation or its related companies and is used under license to Goodman Company, L.P., Houston, TX. All rights reserved.
Copyright © 2011 - 2013 Goodman Manufacturing Company, L.P.
1
