Goodman GMVC95 Manual

p s
roduct peciFications
GMVC95:
up to
GCVC9:
up to
H i :
46,000-115,000 Btu/
eating nput
*To receive the Lifetime Heat Exchanger Limited Warranty, 10-Year Unit Replacement Limited Warranty and
10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online
registration is not required in California or Québec. Full warranty details available at www.goodmanmfg.com.
SS-GMVC95
95% AFuE
93% AFuE
H
www.goodmanmfg.com
gMVc95/gcVc9
M -p
ulti
t -s /V
wo tage
g F
as

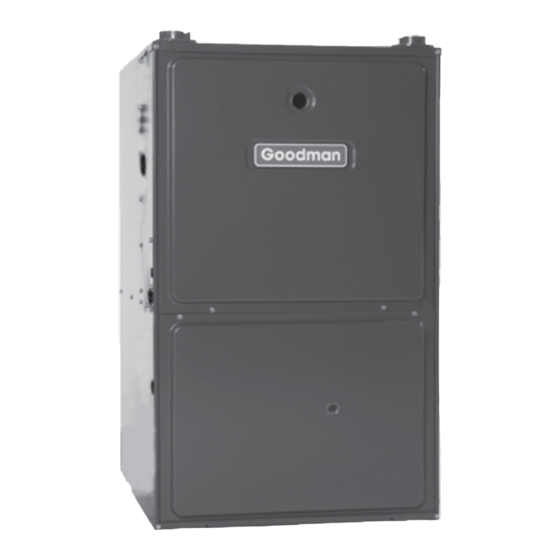

The Goodman® brand GMVC95/GCVC9 Two-Stage, Variable-
Speed Gas Furnaces feature a patented aluminized-steel
tubular heat exchanger and durable Silicon Nitride Hot
Surface Ignition system.
Standard Features
• Patented dual-diameter tubular heat exchanger with Lifetime
Limited Warranty* for as long as the original registered hom-
eowner owns their home plus 10-Year Limited Unit Replacement
Warranty*
• Two-stage gas valve operates with two-stage or single-
stage thermostats
• ComfortNet™ ready
• Efficient and quiet variable-speed circulator motor gently ramps up
or down according to heating or cooling demand
• 120V Silicon Nitride igniter designed for long igniter life
• Furnace control board with self-diagnostics, color-coded low-
voltage terminals, and provisions for electronic air cleaner and
120-volt or 24-volt humidifiers
• Low constant fan allows homeowner to activate very low speed
to efficiently circulate air throughout the home. This setting costs
as little as a 100-watt light bulb to operate.
• Dual-certified for sealed combustion direct vent (2-pipe)
or non-direct vent (1-pipe) applications
• Quiet two-speed induced draft blower
• All models comply with California NOx emissions standards
Cabinet Features
• Fully insulated, heavy-gauge steel cabinet with durable baked-
enamel finish
• Foil-faced insulation lines the heat exchanger
• Easy-to-install top venting is standard; alternate flue/vent located
on the right (GMVC95)
• Designed for multi-position installation - GMVC95: upflow,
horizontal left or right; GCVC9: downflow, horizontal left or right
• Airtight solid bottom for side return applications and easy-cut
tabs for effortless removal in bottom air inlet applications
• Convenient left or right connection for gas and electric service
• Coil and furnace fit flush for most installations
Contents
Nomenclature . ....................................................................................2
Product Specifications ........................................................................3
Dimensions .........................................................................................4
Airflow Specifications .........................................................................6
Wiring Diagrams ...............................................................................11
Schematics .......................................................................................12
Accessories ........................................................................................15
,
