Refer to Service Manual RS6612001 for installation, operation, and troubleshooting information.
•
Refer to the appropriate Parts Catalog for part number information.
•
Model numbers listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians only.
Goodman does not assume any responsibility for property damage or personal
injury due to improper service procedures or services performed by an unqualified
person.
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU AL
TECHNICAL MANU
TECHNICAL MANU
*CVM96 & *MVM96

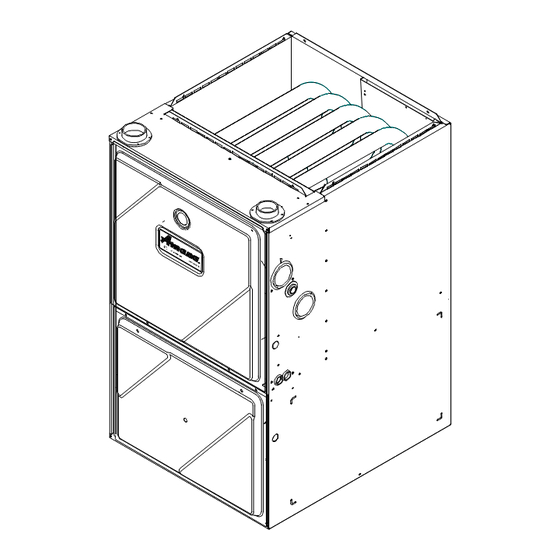

40" 96% Gas Furnace
Copyright ©
2011 - 2013 Goodman
Manufacturing Company, L.P.
AL
AL
AL
AL
RT6612023r4
August 2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Goodman GCVM960604CXA Series
Summary of Contents for Goodman GCVM960604CXA Series
- Page 1 Model numbers listed on page 3. This manual is to be used by qualified, professionally trained HVAC technicians only. RT6612023r4 Goodman does not assume any responsibility for property damage or personal August 2013 injury due to improper service procedures or services performed by an unqualified person.
-
Page 2: Product Identification
PRODUCT IDENTIFICATION The model and manufacturing number are used for positive identification of component parts used in manufacturing. Please use these numbers when requesting service or parts information. Brand Minor Revision G‐ Goodman A ‐ Initial Release B ‐ 1st Revision Configuration M ‐ Upflow/Horizontal Major Revision C ‐ Downflow/Horizontal A ‐ Initial Release B ‐ 1st Revision M otor V ‐ Variable Speed/Com fortNet... -
Page 3: High Voltage
WARNING that is not design certified by damage, personal injury, or death, Goodman for use with this unit. do not store combustible materials or use gasoline or Serious property damage, personal injury, reduced unit other flammable liquids or vapors in the vicinity of this performance and/or hazardous conditions may result appliance. -
Page 4: Product Design
PRODUCT DESIGN Notes: General Operation 1. Installer must supply one or two PVC pipes: one for com- Models covered by this manual come with a new 4-wire bustion air (optional) and one for the flue outlet (required). communicating PCB. When paired with a compatible Vent pipe must be either 2”... -
Page 5: Important Note
PRODUCT DESIGN High Altitude Derate Altitude certification of the *CVM96 and *MVM96 furnaces IMPORTANT NOTE is up to 10,000 ft. #13 MUST . T SWITCH MATCH THERMOSTAT TYPE O SE CTK01AA , #13 ... - Page 6 PRODUCT DESIGN Thermostat The modulating line of furnaces may be operated with CTK0*AA communicating thermostats or with a single or 2 stage non-communicating thermostat. Dip switch #13 must Furnace Integrated Control Module be checked and set for proper orientation regardless of the thermostat chosen.
-
Page 7: Component Identification
COMPONENT IDENTIFICATION Upflow/Horizontal Counterflow /Horizontal 1 Gas Valve 18 Coil Front Cover Pressure Tap 2 Gas Line Entrance (Alternate) 19 Coil Front Cover Drain Port 3 Pressure Switch(es) 20 Drain Line Penetrations 4 Gas Manifold 21 Drain Trap 5 Combustion Air Intake Connection 22 Blower Door Interlock Switch 6 Hot Surface Igniter 23 Inductor (Not All Models) -
Page 8: Product Dimensions
*MVM96_____XA* PRODUCT DIMENSIONS... - Page 9 *CVM96_____X* PRODUCT DIMENSIONS...
- Page 10 PRODUCT DESIGN...
-
Page 11: Primary Limit
PRODUCT DESIGN PRIMARY LIMIT Part Number 0130M00063 20162905 20162907 20162903 Open Setting (°F) A/GMVM960603BX A/GMVM960805CX A/GMVM961005DX A/GMVM961155DX A/GCVM960604CX A/GCVM960805DX A/GCVM961005DX ROLLOUT LIMIT SWITCHES 0130F00123 Part Number Open Setting (°F) A/GMVM960603BX A/GMVM960805CX A/GMVM961005DX A/GMVM961155DX A/GCVM960604CX A/GCVM960805DX A/GCVM961005DX AUXILIARY LIMIT SWITCHES Part Number 0130F00038 Open Setting (°F) A/GMVM960603BX... - Page 12 PRODUCT DESIGN Thermostats: NOTE: Complete lineup of thermostats can be found in the Thermostat Specification Sheets. Filters: Filters are required with this furnace and must be provided by the installer. The filters used must comply with UL900 or CAN/ULCS111 standards. Installing this furnace without filters will void the unit warranty. Upflow Filters This furnace has provisions for the installation of return air filters at the side and/or bottom return.
- Page 13 PRODUCT DESIGN UPFLOW COOLING AIRFLOW REQUIREMENT (CFM) 1000 1200 1400 1600 2000 0603__XA 627* 627* 0805__XA 836* 836* 836* 1005__XA 940* 940* 940* 1155__XA COUNTERFLOW COOLING AIRFLOW REQUIREMENT (CFM) 1000 1200 1400 1600 2000 0604__XA 320* 320* 0805__XA 427* 427* 427* 1005__XA *Minimum filter area dictated by heating airflow requirement.
-
Page 14: Furnace Specifications
FURNACE SPECIFICATIONS *MVM96 / *CVM96 *MVM960603B *MVM960805 *MVM961005 *MVM96115 *CVM960604 *CVM960805 *CVM961005 MODEL CXA* DXA* 5DXA* CXA* DXA* DXA* Btuh Input (US) 60,000 80,000 100,000 115,000 60,000 80,000 100,000 Output (US) 57,600 76,800 96,000 109,250 57,600 76,800 96,000 Input (CAN) 60,000 80,000 100,000... - Page 15 FURNACE SPECIFICATIONS *MVM960603 *CVM960604 MODEL BXB* CXB* Btuh Input (US) 60,000 60,000 Output (US) 57,600 57,600 Input (CAN) 60,000 60,000 Output (CAN) 57,600 57,600 A.F.U.E. 96.0% 96.0% Rated External Static (" w.c.) .20 - .50 .20 - .50 Temperature Rise (°F) 20-50 20-50 ID Blower Pressure Switch Trip Point ("...
-
Page 16: Blower Performance Specifications
BLOWER PERFORMANCE SPECIFICATIONS GMVM96 / AMVM96 Heating Speed Charts GMVM960603BX / AMVM960603BX GMVM960805CX / AMVM960805CX (Rise Range: 20 - 50°F) Rise Range: 35 - 65°F) Heating Heating Adjust Low-Stage High-Stage Rise Adjust Low-Stage High-Stage Rise Speed Speed CFM (70%) * CFM * (°F) CFM (70%) *... - Page 17 BLOWER PERFORMANCE SPECIFICATIONS GMVM96 / AMVM96 Cooling Speed Charts GMVM960603BX / AMVM960603BX GVMV960805CX / AVMV960805CX High Stage Low Stage High Stage Low Stage Adjust CFM* Adjust CFM* Adjust CFM* Adjust CFM* Minus(-) Minus(-) Minus(-) Minus(-) Normal Normal Normal Normal Plus (+) Plus (+) Plus (+) Plus (+)
- Page 18 BLOWER PERFORMANCE SPECIFICATIONS GCVM96 / ACVM96 High (Single) Stage Cooling Speed Charts High- or Single-Stage Cooling Speeds GCVM960604CX GCVM960805DX GCVM961005DX ACVM960604CX ACVM960805DX ACVM961005DX Cooling Adjust Cooling Adjust Cooling Adjust CFM * CFM * CFM * Speed Tap Speed Tap Speed Tap Minus(-) Minus(-) Minus(-)
- Page 19 BLOWER PERFORMANCE SPECIFICATIONS GCVM96 / ACVM96 Low Stage Cooling Speed Charts Low-Stage Cooling Speeds GCVM960604CX GCVM960805DX GCVM961005DX ACVM960604CX ACVM960805DX ACVM961005DX Cooling Adjust Cooling Adjust Cooling Adjust CFM * CFM * CFM * Speed Tap Speed Tap Speed Tap Minus(-) Minus(-) Minus(-) Normal Normal...
- Page 20 BLOWER PERFORMANCE SPECIFICATIONS GCVM96 / ACVM96 Heating Speed Charts GCVM960604CX / ACVM960604CX GCVM960805DX / ACVM960805DX Rise Range: 20 - 50°F) Rise Range: 20 - 50°F) Heating Heating Adjust Low-Stage High-Stage Rise Adjust Low-Stage High-Stage Rise Speed Speed CFM (70%) * CFM * (°F) CFM (70%) *...
- Page 21 BLOWER PERFORMANCE SPECIFICATIONS Circulator Blower Speed Adjustment Switches There are dual 7-segment LED's adjacent to the selection Note: The optional usage of a dehumidistat allows the dipswitches. The airflow rounded to the nearest 100 CFM, furnace’s circulator blower to operate at a slightly lower speed is displayed on the dual 7-segment LED's.
-
Page 22: Wiring Diagrams
WIRING DIAGRAMS *CVM96, *MVM96 Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
