Summary of Contents for SSS Siedle AVP 870-0

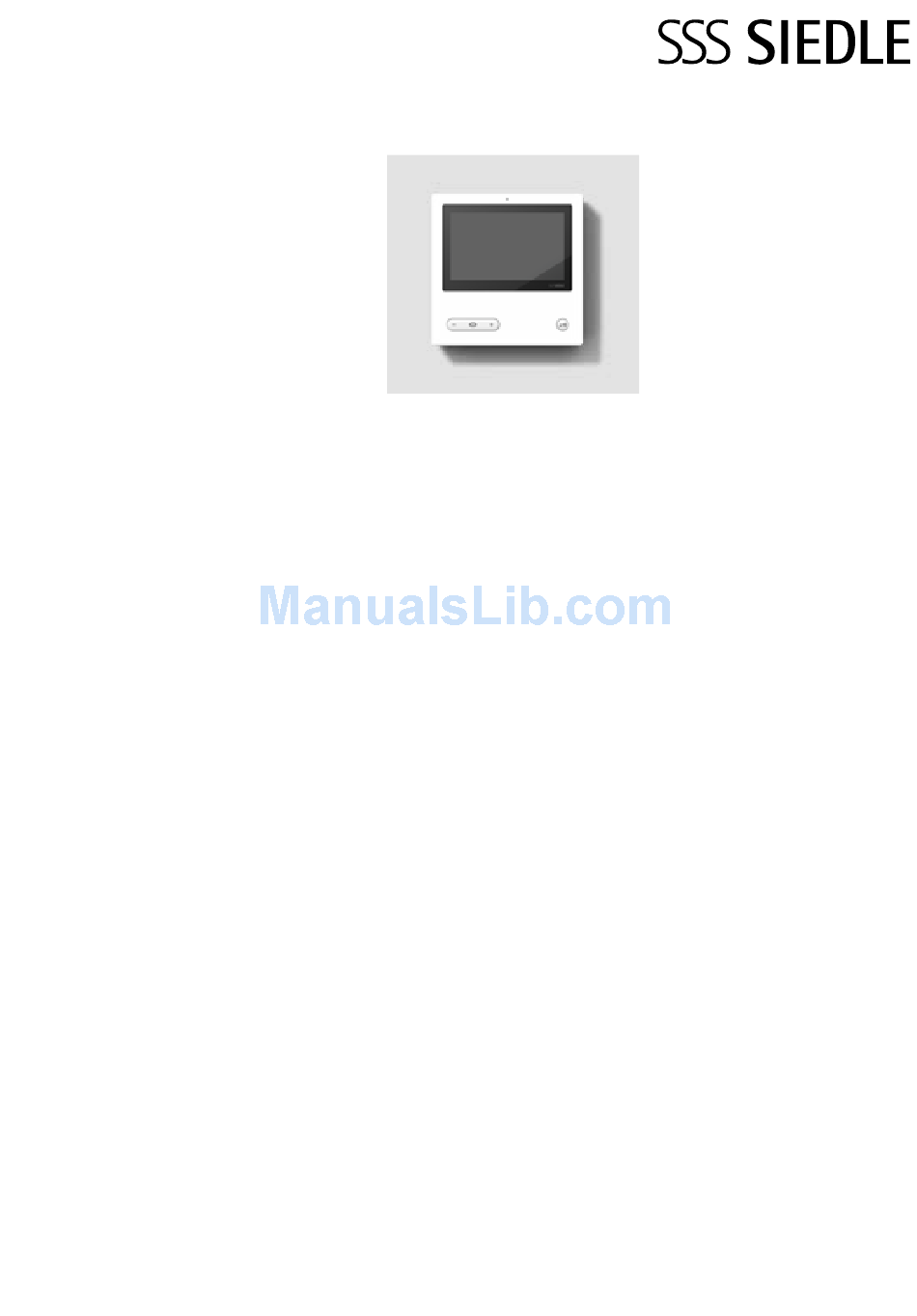

- Page 1 Operating Instructions for end users Access video panel AVP 870-0...
-
Page 2: Table Of Contents
Contents Safety remarks Operation Electrical voltage Door call Electrostatic charging Call/Internal call Commissioning requirements Calling a contact Application Dialling a contact using the start screen Intended application Dialling a contact using Operating remarks the Contacts menu Care instructions Missed calls – Callback Legal notice Selecting a door station General information... -
Page 3: Safety Remarks
Safety remarks Electrical voltage Application Care instructions Access video panel with touchscreen Dry, aggressive cleaning agents and 17.8 cm for the Access system, abrasive detergents can damage the made of high-grade plastic. The surface! panel is a system product with a Only ever clean your indoor device Mounting, installation and servicing low-profile surface-mount housing... -
Page 4: General Information
General information Functional scope Scope of supply Video memory With the functions calling, speech, • AVP 870-… (Base plate and Pictures are stored centrally on the vision, door release, light, remote housing with circuit board) server. There are currently no plans switching and call silencing. - Page 5 Product overview 08:00 | 16.12.2014 Start 10:10 20.05.2013 Front door Entrance Kitchen Study Hallway Entrance Kitchen Study Hallway Living room Ringtone Study Study Entrance Basement The Access video panel is charac- Clear symbols, intuitive operation: 1 Display with touch function terized by its generously dimen- The most important button is also (touchscreen)
-
Page 6: Product Overview
Product overview Speech button – Functions Accepting a call In the case of a door call, you can pick up the call within 60 seconds of the last ring tone. If an internal call is in progress, you can accept the call within 120 seconds after the last ring. -
Page 7: Touchscreen - Operation
Touchscreen – Operation Accessing menus 1 Tap on the required symbol. Start 08:00 | 16.12.2014 10:10 20.05.2013 Paul Lili Accessing functions 1 Tap on the required tile. Start 08:00 | 16.12.2014 10:10 20.05.2013 Paul Lili Moving tiles 1 Using any finger, touch the tile you wish to move on the start screen. -
Page 8: Changing Pages - Start Screen
Touchscreen – Operation Changing pages – Start screen 1 Use any optional finger to swipe the start screen horizontally using the touchscreen to change pages. Start 08:00 | 16.12.2014 10:10 20.05.2013 If you are on the first or last page, the swipe movement will only work back in the opposite direction. -
Page 9: Overview Of Menus And Symbols
Overview of menus and symbols Menu structure User interface Start Call forwarding Ringtone Doormatic Contacts Concierge Internal External Groups Doors Cameras Standard screen mode Full screen mode Switching All switching functions Doors General Light Status display Mail notification system Building automation * (Accessing building automation) Door call images Standard screen mode... -
Page 10: Explanation Of Symbols
Overview of menus and symbols Explanation of symbols Start/Start screen Building automation * Full screen mode Drop-down menu – Open Door call images Standard screen mode Drop-down menu – Close Delete all images Accepting a call Call forwarding On Delete image Microphone off Ringtone Off Settings... -
Page 11: Status Displays
Status displays Ringtone Off The symbol indicates that the acoustic signalling of door calls and telephone calls has been silenced. Missed calls The symbol indicates that at least one call has been missed. The call log opens when you tap on this symbol. The missed calls remain highlighted in a different colour until the call log is opened. -
Page 12: Display Navigation
Display navigation Navigation bar Start The Start menu is also the start page of the Access video panel with indi- vidual functions created individually using tiles and a drop-down menu with the functions: Call forwarding, ring tone and Doormatic. Using the start page, you can access the different tiles with control functions and intercom functions which have been set up using the Access server. -
Page 13: Start - Drop-Down Menu
Start – Drop-down menu Call forwarding Switching call forwarding on and off Incoming calls are forwarded to a different indoor device. As long as call forwarding is active, the relevant symbol appears in the status display. In case of call forwarding with time delay (forwarding after X seconds), incoming calls can still be accepted using your panel within the pro- grammed time. -
Page 14: Switching - Drop-Down Menu
Display navigation Switching – Drop-down menu All switching functions All available switching functions are displayed. Doors For switching functions, status displays and signalling functions to be displayed in the categories/filters, the Access server must have been programmed/configured. General Light Status display Mail notification system Door call images Standard screen mode... -
Page 15: Settings
Settings Audio Phone volume Call volume (adjustable in 5 stages) Ringtone volume Ring tone volume (adjustable in 5 stages) Display Brightness Brightness (adjustable in 5 stages) Language Language selection Deutsch Español English Dansk Français Svenska Italiano Polski Nederlands русский Image view Standard screen mode Standard icon view for images and video. -
Page 16: Operation
Operation Door call Save picture Taking a picture manually Light switching Triggering the light relay Door release Triggering the door release Full screen mode Large icon view for images and video. Reject call If you do not wish to accept an incoming call, tap the red receiver symbol. If the device belongs to a group, the call is retained at the other devices. -
Page 17: Call/Internal Call
Call/Internal call Full screen mode Large icon view for images and video. Reject call If you do not wish to accept an incoming call, tap the red receiver symbol. If the device belongs to a group, the call is retained at the other devices. Accepting a call Tap on the pick-up symbol (green receiver symbol) to accept an incoming call. -
Page 18: Calling A Contact
Operation Calling a contact 5 If the contact accepts the call, the Accessing building automation There are 2 ways of calling a con- display changes to the call mode. tact: Door calls are connected immedi- From Access server V 3.1…, the • Dialling a contact using the start ately. -
Page 19: Defining The Image View
Defining the image view Care instructions Reset to as-delivered status Dry, aggressive cleaning agents and Resetting the panel to the as-deliv- abrasive detergents can damage the ered status will only affect settings The required icon view for pictures surface! which you can change at the panel, and videos can be defined in the Only ever clean your indoor device such as the ring tone volume or dis-... -
Page 20: General Information
General information Disposal All electrical and electronic devices must be disposed of separately from the general house waste at the specially provided municipal waste facility. Responsible disposal and separate collection of end-of-life devices help to prevent potential environmental and health hazards, and form the basis for the recycling of used elec- trical and electronic devices. -
Page 21: Index
Index Accepting a call 6, 16, 17 Evaluating all missed calls System according to date and time Accepting/ending a call 16, 17 Touchscreen – Operation Explanation of symbols Accessing building automation User information Functional scope Accessing functions Video memory Idle status Accessing menus Image view 15, 19... - Page 24 S. Siedle & Söhne © 2015/07.16 Telefon- und Telegrafenwerke OHG Printed in Germany Best. Nr. 200049155-00 EN Postfach 1155 78113 Furtwangen Bregstraße 1 78120 Furtwangen Telefon +49 7723 63-0 Telefax +49 7723 63-300 www.siedle.de info@siedle.de...
