Manual

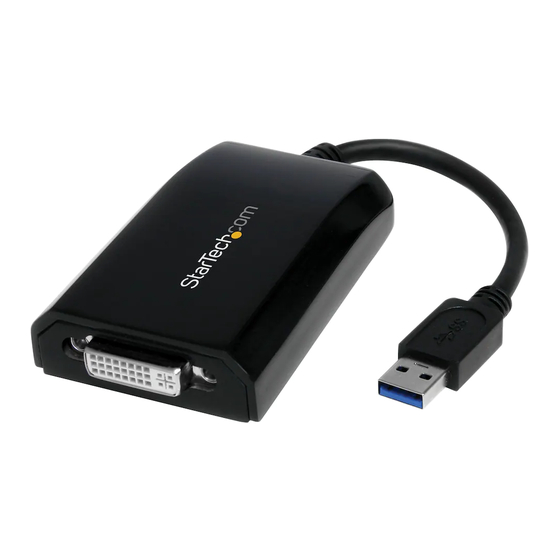

USB 3.0 to DVI External Video Card
USB32DVIPRO
WARNING!
Please ensure that the
latest drivers from the StarTech.com
website are installed before plugging in
the USB 3.0 Video Adapter
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/06/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com USB32DVIPRO
Summary of Contents for StarTech.com USB32DVIPRO
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/06/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Windows Vista/ 7 ............................2 How to Use ....................3 Display Modes ............................4 Specifications ..................7 Technical Support ..................8 Warranty Information ................8 Instruction Manual... -
Page 4: Introduction
Introduction The USB32DVIPRO USB 3.0 to DVI Adapter turns an available USB 3.0 port into a DVI output, with high resolution 2048x1152 video support - a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible... -
Page 5: Installation
Installation NOTE: Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB 3.0 Video Adapter Windows Vista/ 7 1. Insert the Driver CD (included) into the computer’s CD/ DVD drive. 2. Browse through the Driver CD and locate the “Setup.exe” file. Double- click on the “Setup.exe”... -
Page 6: How To Use
How to Use Configuring the image being displayed by the monitor that is connected to the USB 3.0 Video Adapter, can be done in one of two ways: 1. Accessing the Windows Display Settings • Windows Vista: right-click on a blank area of the desktop, select Personalize, then select the Display Settings option. -
Page 7: Display Modes
Windows 7 Windows Vista Display Modes “Extend” DISPLAY MODE (DEFAULT) A default display mode; this feature allows the attached USB 3.0 Video Adapter enabled display to work as an “Extended” display to the on-board display. The extended working space improves work efficiency. You may change the relative position of this extended display through the Windows Display Settings or the “Extend To”... -
Page 8: Display Rotation
“Off” DISPLAY MODE This option disables the video output from the USB 3.0 Video Adapter. Display Resolution Select the desired video display resolution for the connected monitor in Extend Mode. The default setting resolution is: 1024 x 768 * 32-bit. Display Rotation 4 options are available: 0°(Normal), 90°... - Page 9 Fit to TV When using “Extend” mode, if the image displayed on the remote display is not properly centered, then this option can be used to manually adjust the position of the image. Using the + and - buttons will adjust the image horizontally or vertically, and holding the CTRL key while pressing the + and - buttons will allow for smaller adjustments.
-
Page 10: Specifications
Specifications Video Signal DVI (digital)/ VGA (RGBHV) Host Interface USB 3.0 1 x 29-pin DVI-I female External Connectors 1 x USB 3.0 type A male LEDs None Maximum Video Resolution 2048 x 1152 Onboard Video Memory 512 MB DDR2 Maximum Number of Adapters Power Adapter USB powered Enclosure Material... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
