Manual

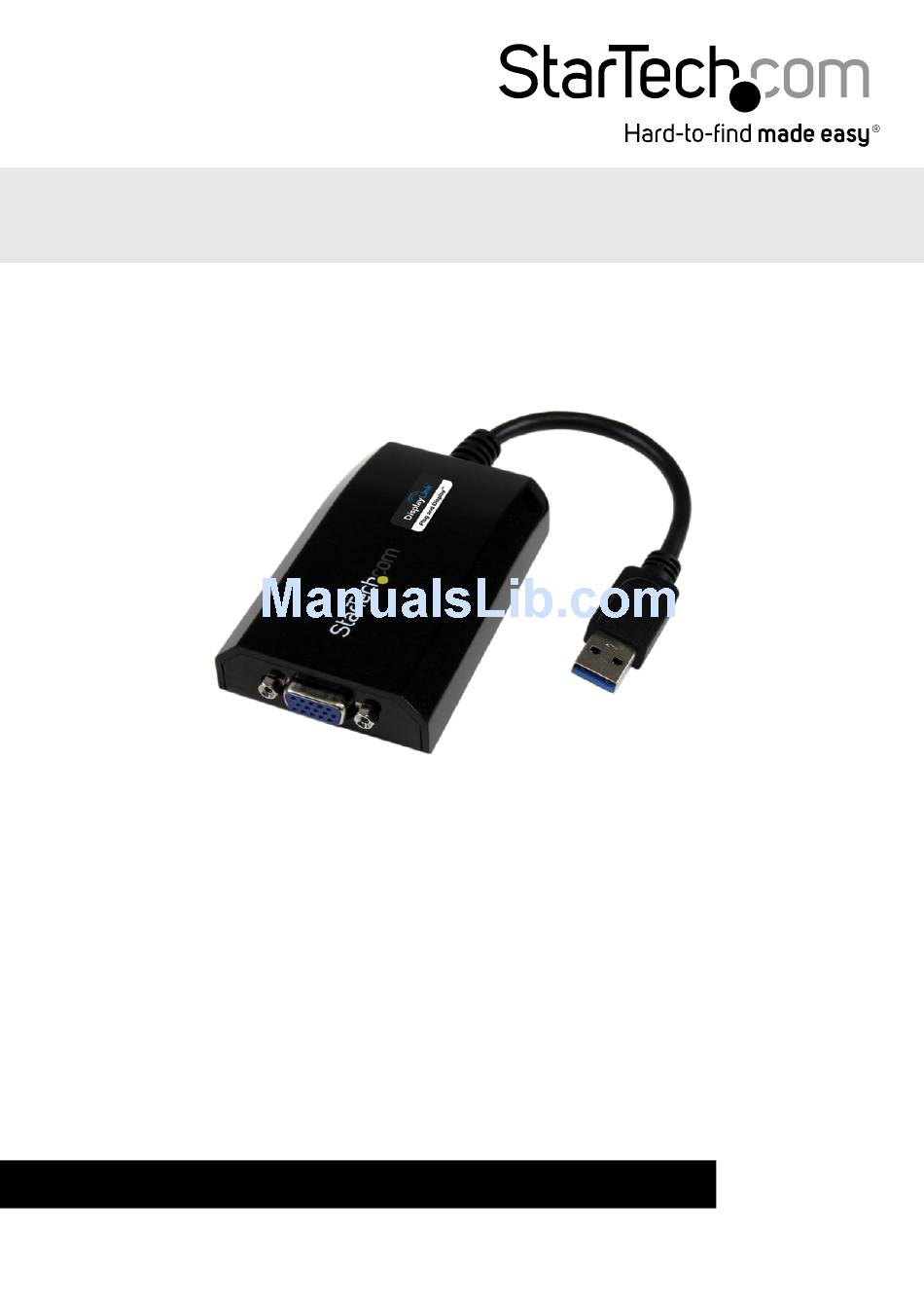

USB 3.0 to VGA External Video Card
USB32VGAPRO
WARNING! Install Drivers before plugging in USB video adapter.
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/28/2013
Advertisement
Table of Contents
Related Manuals for StarTech.com USB32VGAPRO
Summary of Contents for StarTech.com USB32VGAPRO
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/28/2013...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Windows Installation ..........................2 Mac OSX Installation ..........................3 Multiple USB Video Adapter Installation ..................4 Configuring the USB Video Adapter ............5 Windows® ..............................5 Mac OSX ............................... -
Page 4: Introduction
Introduction The USB32VGAPRO USB 3.0 to VGA Adapter turns an available USB 3.0 port into a VGA output, with 1920x1200/1080p video support - a convenient external video solution that makes it easy to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB... -
Page 5: Installation
Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB 3.0 Video Adapter 1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive. -
Page 6: Mac Osx Installation
Configuration screen may flash or go black during the install). *Some machines may require a system reboot for the USB Display Adapter to initialize. 6. Connect your VGA monitor to the available VGA port on the USB32VGAPRO device 7. The USB Video Adapter is now ready for use. -
Page 7: Multiple Usb Video Adapter Installation
Multiple USB Video Adapter Installation Ensure you have the latest version of the drivers installed, otherwise, please download them from the StarTech.com website (www.startech.com). 1. Complete the standard driver installation steps, up to when you plug in the first USB Video Adapter. -
Page 8: Configuring The Usb Video Adapter
Configuring the USB Video Adapter Windows® When devices are attached, an icon appears in the taskbar. This gives you access to the DisplayLink manager menu. 1. From the taskbar, click the Show hidden icons arrow to show all available icons. 2. - Page 9 Extend The monitor attached to the USB32VGAPRO USB Graphics adapter displays an extension of the user’s active Windows desktop. The extra desktop area is a great productivity aid, allowing more applications or documents to be visible at a time. The device is now extended in the direction it was the last time the display was in this mode.
- Page 10 USB32VGAPRO in relation to the systems on board monitor. Screen Resolution This option allows you to change the resolution on the monitor connected to the USB32VGAPRO device. Simply select the desired option from the list of supported resolutions displayed in the sub menu. Screen Rotation This option allows you to change orientation in which the screen is viewed.
-
Page 11: Mac Osx
Mac OSX To configure the display settings and monitor positions, bring up the Displays Preferences from the System Preferences menu: The Display settings for each display will appear on the individual monitors themselves. To configure them all from a single location, press the “Gather Windows” button and each screen’s Displays Preferences windows will appear on that display. - Page 12 Changing the Primary Display You can change which display is the primary display by moving the Menu Bar between displays. Changing the primary display affects where new windows appear and the position of the Dock. To move the Menu Bar, click the white menu bar and drag it to the display you wish to become the primary.
-
Page 13: Specifications
Specifications Audio Specification 5.1 Channel Surround (48Khz) AV Input USB 3.0 Interface Max Resolution 1920 x 1200 AV Output DisplayPort Cable Length 0.91m Chipset ID Displaylink DL3500 Color Black Enclosure Type Plastic Audio Memory 512MB DDR II Windows® 7 (32/64 bit) *Aero 3D interface supported OS Compatibility Mac OSX Output Signal... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
