ENGLISH
CL200
Instruction Manual
GENERAL SPECIFICATIONS
The Klein Tools CL200 is a multi-featured clamp meter. It measures
AC / DC voltage, AC current, resistance, capacitance, frequency, duty cycle,
and temperature. It can also test diodes and continuity.
• Operating Altitude: 2000 meters
• Relative Humidity: 75% max
• Operating Temperature: 32°F ~ 104°F (0°C~ 40°C)
• Storage Temperature: 14°F ~ 122°F (-10°C ~ 50°C)
• Accuracy Temperature: 64°F ~ 82°F (18°C ~ 28°C)
• Temperature Coef cient: 0.1*(specified accuracy) / °C
• Sampling Frequency: 3 samples per second
• Dimensions: 8" x 3" x 1" (203 mm x 76 mm x 25 mm)
• Weight: 10 oz. (283 g)
• Calibration: Accurate for one year
• Safety Rating: CAT III 600V
• Accuracy: ± (% of reading + # of least significant digits)
WARNINGS
To ensure safe operation and service of the tester, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
• Before each use, verify meter operation by measuring
a known voltage or current.
• Never use the meter on a circuit with voltages that exceed the
category based rating of this meter.
• Do not use the meter during electrical storms, or in wet weather.
• Do not use the meter or test leads if they appear to be damaged.
• Ensure meter leads are fully seated, and keep fingers away from
the metal probe contacts when making measurements.
• Do not open the meter to replace batteries while the probes
are connected.
• Use caution when working with voltages above 60V DC,
or 25V AC RMS. Such voltages pose a shock hazard.
• To avoid false readings that can lead to electrical shock,
replace batteries if a low battery indicator appears.
• Unless measuring voltage or current, shut off and lock out
power before measuring resistance or capacitance.
• Always adhere to local and national safety codes. Use individual
protective equipment to prevent shock and arc blast injury where
hazardous live conductors are exposed.
SYMBOLS
~
AC Alternating Current Warning or Caution
DC Direct Current Dangerous levels
DC/AC Voltage or Current Double Insulated Class II
Safe for disconnect
Ground
from live conductors
AC Source
CL200 Instruction Manuals - MASTER.indd 5-8

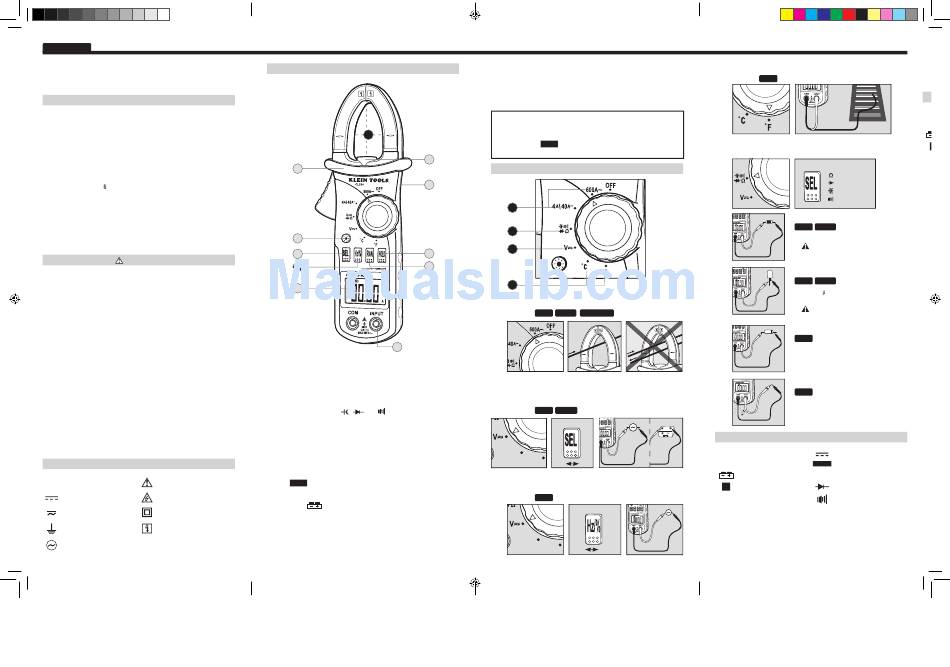

FEATURE DETAILS
1
H
B
G
On Back
H
C D
E
3
F
A
A. Use CAT III rated leads or higher.
Do not attempt to measure more than 600V or
any current on lead input.
B. Keep hands below line when measuring high current levels.
C. Select Functionality Button
• Switch between AC and DC.
Ω
• Switch between , , , and .
D. Data Hold
• Press to hold the current input on the display.
• Press again to return to live reading.
E. Auto / Manual Range
• Press repeatedly to cycle through manual ranges.
• Hold for 2 seconds to return to auto ranging mode.
•
AUTO is displayed on LCD only during auto ranging mode.
F. G. Battery Replacement
• When indicator is displayed on the LCD,
batteries must be replaced.
• Remove the back screw and replace 3 x AAA batteries.
H. Backlight / Worklight
• Hold button down to enable worklight and backlight.
• On release, lights will turn off automatically after 5 to 15 seconds.
• Worklight only operates during AC current measurement.
• Using lights drains the battery significantly.
Auto Power-Off
• Device will power off after 30 minutes non-use.
• Turn the dial or press a button to wake.
• Press the button while turning on to disable
HOLD
Auto Power-Off feature.
FUNCTION INSTRUCTIONS
1
5
2
4
AC Current: < 600A
1.
Features: HOLD RANGE WORKLIGHT
• Center wire in guides for best accuracy.
• Opposing currents cancel (use line-splitter when necessary).
AC / DC Voltage: < 600V
2.
Features: HOLD RANGE
PRESS
PRESS
AUTO
AUTO
AC
A
AC
A
˚C
AC DC
˚F
• Select AC or DC voltage source.
3. Frequency (Hz) / Duty Cycle
Features:
HOLD PRESS
PRESS
AUTO
AC
A
˚C
Hz Duty
˚F
Duty
4. Temperature: -4° ~ 1832°F (-20° ~ 1000°C)
Features:
HOLD
AC
A
• Use included thermocouple.
5. Resistance / Capacitance / Diode / Continuity
PRESS TO SELECT
TO SELECT
Resistance
Diode
Capacitance
Continuity
Resistance Features:
AUTO HOLD RANGE
AC
A
Ω
• < 40MΩ
• Do not measure resistance
on a live circuit.
Capacitance Features:
HOLD RANGE
AUTO
AC
A
F
• < 100 F
• Wait up to 60 seconds for measurement.
• Safely discharge capacitor before
measurement.
Diode Features:
AUTO
HOLD
AC
A
Display shows:
• Forward voltage drop if forward biased.
• "O.L." if reverse biased.
Continuity Features:
AUTO
AC HOLD
A
• Display shows resistance.
• Buzzer sounds if less than 60Ω
SYMBOLS USED ON LCD
~
AC Measurement DC Measurement
-
Negative DC Value Auto Range Active
AUTO
A
Low Battery Current in Amps
H
Hold Active Diode Test
V
Voltage Measurement Continuity Test
Hz %
Frequency in Hertz Duty Cycle
F F
Capacitance in Farads ° Temperature in Fahrenheit
Ω M
Resistance in Ohms
Mega 10 6
m k
Milli 10 -3 Kilo 10 3
n
Nano 10 -9 μ Micro 10 -6
