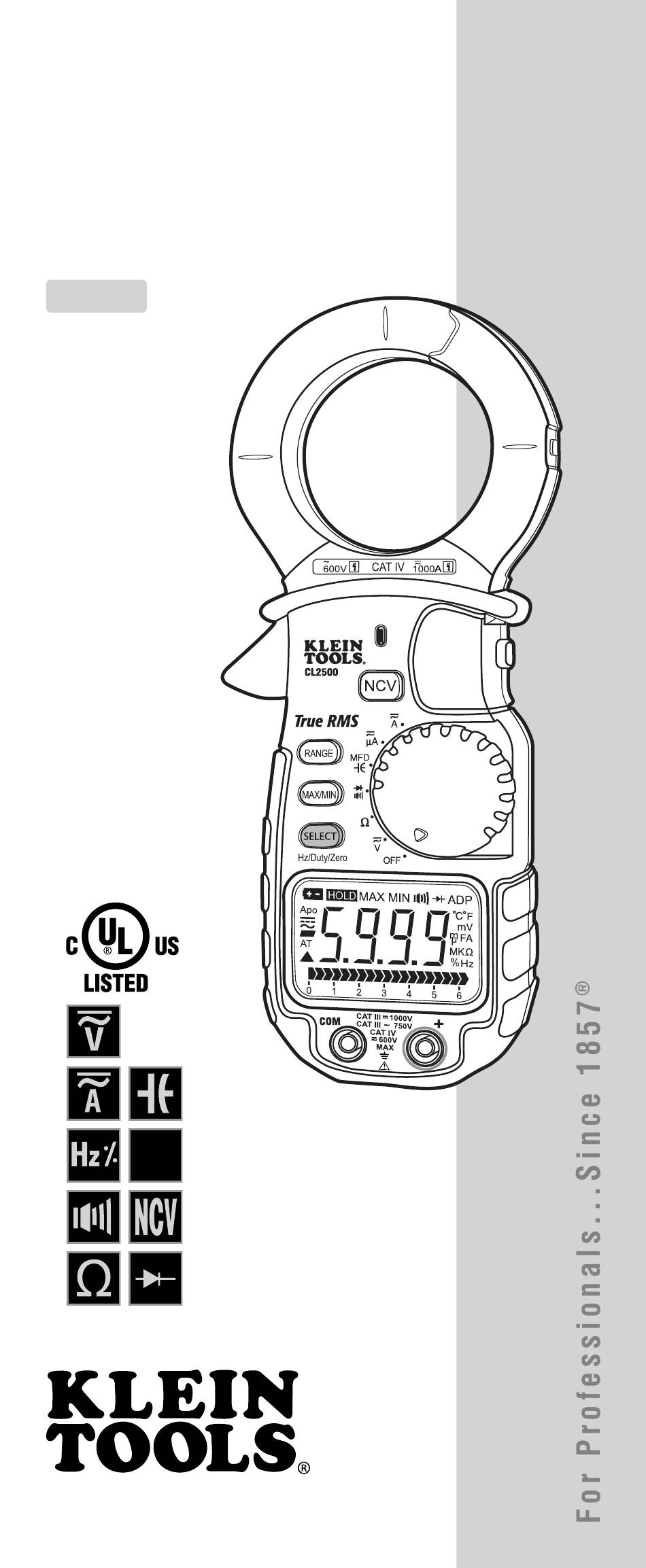

- Page 1 Instruction Manual CL2500 ENGLISH • 1000A AC/DC • TRUE RMS • DC ZERO • BACKLIGHT • WORKLIGHT • BAR GRAPH • MAX / MIN / HOLD • 3-5/6 DIGIT 5999 COUNT LCD • AUTO / MANUAL RANGE • NON CONTACT...

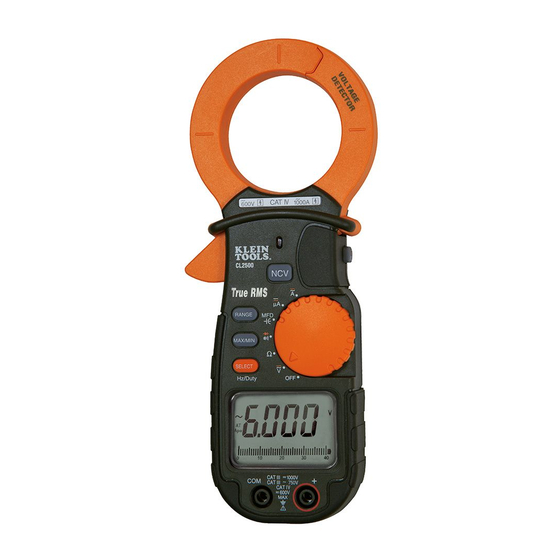

- Page 2 CL2500 Instruction Manual GENERAL SPECIFICATIONS The Klein Tools CL2500 is a True RMS, auto-ranging clamp meter. It measures AC / DC voltage, AC / DC current, resistance, capacitance, frequency, and duty cycle. It can also test non-contact voltage, diodes, and continuity.
- Page 3 FEATURE DETAILS Use CAT IV 600 rated leads or higher. Do not attempt to measure more than 1000V DC or 750V AC or 2000µA. Keep hands below line when measuring high current levels. Auto Power-Off (Apo) • Device will power off after 30 minutes non-use. • Turn the dial or press a button to wake.
- Page 4 H. I. Battery Replacement • When indicator is displayed on the LCD, batteries must be replaced. • Remove the back screw and replace 2 x AAA batteries. Magnetic Back • Attach instrument to metal for hands-free use. Bar Graph • The bar graph shows an approximate analog representation of a measurement.
- Page 5 Frequency (Hz) / Duty Cycle (See Feature Details) Features: HOLD • Select , , or setting. Resistance: < 60M Ω Features: HOLD RANGE MAX/MIN • Do not measure resistance on a live circuit. Capacitance: < 6000µF Features: HOLD • Safely discharge capacitor before measurement. • Reading may take up to 60 seconds for large capacitors.
- Page 6 ENGLISH Non Contact Voltage (NCV): > 25V AC SYMBOLS USED ON LCD AC Measurement DC Measurement Negative DC Value Auto Range Active O.L. Overload: Range Exceeded Auto Power-Off Active Low Battery Hold Active HOLD Minimum Reading Maximum Reading Duty Cycle Mode Frequency Mode Voltage Measurement Current in Amps...
- Page 7 Overload Protection: 600V RMS • Voltage: 2000µA (leads), 1000A (clamp) • Current: AC Current Measurement Range Resolution Accuracy 600µA 0.1µA ± (2.0% + 5 digits) 2000µA 1µA ± (1.5% + 5 digits) 0.01A ± (2.9% + 15 digits) 600A ~ 1000A 0.1A ~ 1A ±...
- Page 8 Any implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the express warranty. Klein Tools shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expenses or economic loss.
