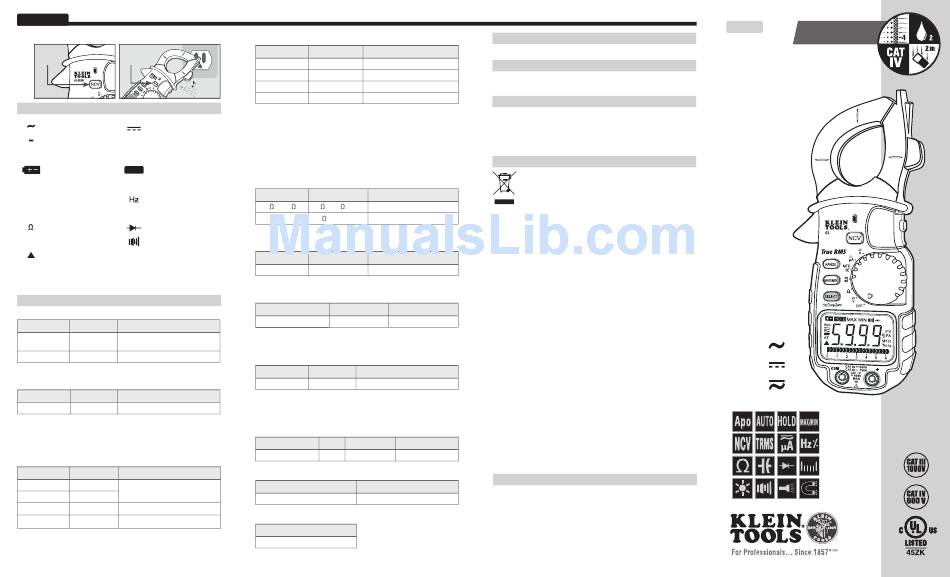

Klein Tools CL2200 Instruction Manual

ENGLISH
8. Non Contact Voltage (NCV): > 25V AC
PRESS & PRESS &
HOLD HOLD
SYMBOLS USED ON LCD
AC Measurement DC Measurement
AT
Negative DC Value Auto Range Active
O.L. Overload: Range Exceeded Apo Auto Power-Off Active
Low Battery Hold Active
HOLD
MIN MAX
Minimum Reading Maximum Reading
%
Duty Cycle Mode Frequency Mode
V A
Voltage Measurement Current in Amps
Resistance in Ohms Diode Test
F
Capacitance in Farads Continuity Test
n
Relative / Zero Mode Nano 10 -9
m Milli 10 µ Micro 10
-3 -6
M k
Mega 10 Kilo 10
6 3
ELECTRICAL SPECIFICATIONS
DC Voltage Measurement
Range Resolution Accuracy
0.1mV to
600mV to 600V ± (0.5% + 4 digits)
100mV
1000V 1V ± (0.8% + 10 digits)
Overload Protection: 1000V
AC Voltage Measurement
Range Resolution Accuracy
600mV to 750V 0.1mV to 1V ± (2.0% + 5 digits)
Overload Protection: 750V RMS
Frequency Response: 45 to 400 Hz
Minimum Voltage for Frequency Measurement: 200mV
Response: True RMS
DC Current Measurement
Range Resolution Accuracy
600µA 0.1µA
± (1.2% + 3 digits)
2000µA 1µA
60A 0.01A ± (2.5% + 15 digits)
600A 0.1A ± (1.5% + 8 digits)
Overload Protection:
Voltage: 600V RMS
•
Current: Leads 2000µA, Clamp 600A
•
AC Current Measurement
Range Resolution Accuracy
600µA 0.1µA ± (2.0% + 5 digits)
2000µA 1µA ± (1.5% + 5 digits)
60A 0.01A ± (2.9% + 15 digits)
600A 0.1A ± (1.9% + 8 digits)
Overload Protection:
Voltage: 600V RMS
•
Current: Leads 2000µA, Clamp 600A
•
Frequency: 45 to 400Hz
Minimum Current for Frequency Measurement: 400µA or 20A
Minimum Current for Clamp Measurement: 0.2A
Response: True RMS
Resistance Measurement
Range Resolution Accuracy
600 to 6M 0.1 to 1k ± (1.0% + 4 digits)
60M 10k ± (2.0% + 4 digits)
Overload Protection: 600V RMS
Capacitance Measurement
Range Resolution Accuracy
60nF to 6000µF 0.01nF to 1µF ± (3.5% + 6 digits)
Overload Protection: 600V RMS
Frequency Measurement (Voltage)
Range Resolution Accuracy
99.99Hz to 499.9kHz 0.01Hz to 100Hz ± (0.1% + 4 digits)
Overload Protection: 600V RMS
Sensitivity: 2.5V RMS
Duty Cycle Measurement
Range Resolution Accuracy
1 to 99% 0.1% ± (0.1% + 5 digits)
Overload Protection: 600V RMS
Sensitivity: 1.2Vpp ~ 50Vpp
Frequency Range: < 500 Hz
Diode Test
Overload Protection Range Test Current Open Circuit Voltage
6.0V Appx. 0.25mA < 1.8V DC
600V RMS
Continuity Test
Overload Protection Open Circuit Voltage
< 0.44V
600V RMS
Non Contact Voltage Detector
On Voltage
Appx. 25V AC
WARRANTY
www.kleintools.com/warranty
CLEANING
Turn instrument off and disconnect test leads. Clean the instrument by using
a damp cloth. Do not use abrasive cleaners or solvents.
STORAGE
Remove the batteries when instrument is not in use for a prolonged period of
time. Do not expose to high temperatures or humidity. After a period of storage
in extreme conditions exceeding the limits mentioned in the Specifications
section, allow the instrument to return to normal operating conditions before
using it.
DISPOSAL / RECYCLE
Do not place equipment and its accessories in the trash. Items
must be properly disposed of in accordance with local regulations.
CUSTOMER SERVICE
KLEIN TOOLS, INC.
450 Bond Street
Lincolnshire, IL 60069
1-877-775-5346
customerservice@kleintools.com
www.kleintools.com
139704 Rev. 09/14 B
CL2200
ENGLISH
INSTRUCTION MANUAL
600A AC/DC TRMS Clamp Meter
• NON CONTACT
VOLTAGE TESTER
• TRUE RMS
• AUTO / MANUAL
RANGE
• DATA HOLD
• MAX / MIN
• BAR GRAPH
2200
• BACKLIGHT
• WORKLIGHT
• 3-5/6 DIGIT
5999 COUNT LCD
750V
1000V
600A
