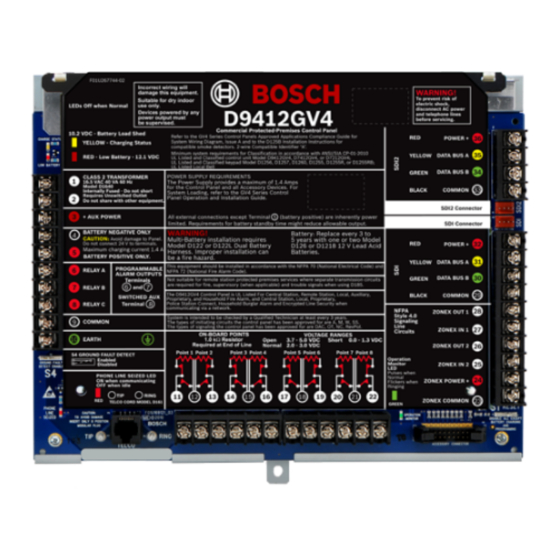

D9412GV4/D7412GV4 v2.03
en
UL Installation Guide

Advertisement

Table of Contents
loading

Related Manuals for Bosch D9412GV4

Summary of Contents for Bosch D9412GV4

  • Page 1 D9412GV4/D7412GV4 v2.03 UL Installation Guide...

  • Page 3: Table Of Contents

    Diagrams Faceplates Power Supply Side Wiring Diagrams 3.2.1 D9412GV4/D7412GV4 v2.00 (and higher) Power Supply Side System (D113, D122/ D122L, D192G, D928, D1640, D8132) Wiring Diagram (Power and Phone) 3.2.2 Wiring D125B to G-series control panels D9412GV4/D7412GV4 v2.00 (and higher) Input Points and Peripheral Devices (D125B,...

  • Page 4: En | Table Of Contents

    | Table of contents Specifications B520 Specifications Terminal Wiring Requirements Compatibilities Circuit Classes 2016.07 | 04 | F.01U.291.483 UL Installation Guide Bosch Security Systens, Inc.

  • Page 5: Introduction

    Bosch Security Systems, Inc. product manufacturing dates Use the serial number located on the product label and refer to the Bosch Security Systems, Inc. website at http://www.boschsecurity.com/datecodes/. The following image shows an example of a product label and highlights where to find the manufacturing date within the serial number.

  • Page 6: Installation

    Mount the control panel assembly in any of the enclosures listed below: – D8103 Universal Enclosure (tan) – D8109 Fire Enclosure (red) for the D9412GV4 and D7412GV4 Control Panels – D8108A Attack Resistant Enclosure (tan) Refer to the Approved Applications chapter inside the D9412GV4/D7412GV4 v2.03 Installation and System Reference Guide (P/N: F01U265457) to determine if the application requires a specific enclosure.

  • Page 7: Installing The Control Panel

    Tighten the screw to secure the control panel in the enclosure. Connect earth ground to the control panel before making any other connections. Refer to Connecting Earth Ground. Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...

  • Page 8: Connecting Earth Ground

    Restoral Report is sent. 2.5.3 Enabling Ground Fault Detection To enable the Ground Fault Detect Enable feature, lock (close) the S4 Ground Fault Detect Pin on the control panel. 2016.07 | 04 | F.01U.291.483 UL Installation Guide Bosch Security Systens, Inc.

  • Page 9: Ground Fault Impedance Specifications

    RPS over a phone line unless the Answer Armed program item has a value other than zero in it. No entry is required for network or RPS Enhanced direct connection communication. Refer to RPS Parameters in RPS Help. Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...
  • Page 10 | Installation Figure 2.3: Reset Pin Callout - Description 1 - Reset pin locked (closed) 2 - Reset pin normal (open) 2016.07 | 04 | F.01U.291.483 UL Installation Guide Bosch Security Systens, Inc.

  • Page 11: Diagrams

    11 - Reset pin 5 - Phone LED (red) 12 - SDI interconnect wiring connector 6 - Tip 13 - SDI2 interconnect wiring connector 7 - Telephone cord connector Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...

  • Page 12: Power Supply Side Wiring Diagrams

    | Diagrams Power Supply Side Wiring Diagrams 3.2.1 D9412GV4/D7412GV4 v2.00 (and higher) Power Supply Side System (D113, D122/D122L, D192G, D928, D1640, D8132) Wiring Diagram (Power and Phone) Figure 3.5: Side System Wiring Diagram Callout - Description Callout - Description 1 - If required by local AHJ, connect D113 8 - To Output A or Output B Battery Lead Supervision Module.

  • Page 13: Wiring D125B To G-Series Control Panels

    Not suitable for remote station protected premises services where separate transmission circuits are required for fire, supervisory (when applicable) and trouble signals when using D185. D125B RELAY B The D9412GV4 Control Panel is UL Listed For Central Station, Remote Station, Local, Auxiliary, BLACK COMMON SWITCHED AUX...

  • Page 14: D9412Gv4/D7412Gv4 V2.00 (And Higher) Input Points And Peripheral Devices

    ZONEX OUT 2 are required for fire, supervisory (when applicable) and trouble signals when using D185. RELAY B Loop B- SWITCHED AUX The D9412GV4 Control Panel is UL Listed For Central Station, Remote Station, Local, Auxiliary, BLACK COMMON SWITCHED AUX RELAY C...

  • Page 15: Sdi And Zonex Devices Wiring Diagrams

    D9412GV4 SDI and Zonex Devices (B420/B426, B450, D1255/D1255RB, D1256RB, D1257RB, D1265, D8125, D8128D, D8129, DX4020, ITS-DX4020- G, D9210C D9127U/T) System Wiring Diagram Figure 3.8: D9412GV4 System Wiring Diagram, SDI and Zonex Devices Callout ￚ Description Callout ￚ Description 1 ￚ Up to 16 supervised, D1255 (all versions), D1255RB, 6 ￚ...

  • Page 16: D7412Gv4 Sdi And Zonex Devices

    D8128D OctoPOPITs connected to the same terminal. Refer to the D8128D Installation Guide (P/N: F01U070537) or the D8129 Operation and Installation Guide (P/N: F01U036302) for specific information. 2016.07 | 04 | F.01U.291.483 UL Installation Guide Bosch Security Systens, Inc.

  • Page 17: D9412Gv4/D7412Gv4 Sdi2 Devices

    Terminals 24 through 36 are power limited, supervised. Fire and Intrusion devices must be on separate circuits. Refer to ICP-SDI-9114 Installation Instructions (P/N: F01U030068). D9412GV4/D7412GV4 SDI2 Devices (B208, B308, B420/B426, B450, B520, B810, B820, B915/B920/B921C/B930/B942/ B942W) System Wiring Figure 3.10: SDI2 Devices System Wiring Diagram Callout - Description 1 –...
  • Page 18 Notice! Terminals 33 through 36 are power limited, supervised. Fire and Intrusion devices must be on separate circuits. Refer to ICP-SDI-9114 Installation Instructions (P/N: F01U030068). 2016.07 | 04 | F.01U.291.483 UL Installation Guide Bosch Security Systens, Inc.

  • Page 19: Sdi2 Bus Wiring Recommendations

    The following rules must be followed when wiring the SDI2 bus. – The SDI2 bus requires the use of non-shielded cable from 12 AWG to 22 AWG. – Maximum overall cable length based on the table listed below: Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...

  • Page 20: Keyswitch Wiring

    4 - Point Input 5 – End of Line (EOL) resistor* 6 - Open on a circuit arms the area 7 - Short on a circuit toggles the arming state 2016.07 | 04 | F.01U.291.483 UL Installation Guide Bosch Security Systens, Inc.
  • Page 21 Diagrams | en *Use proper EOL for the specific device you are using. Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...

  • Page 22: Power Supply And Power Outputs

    4.1.1 Primary (AC) Power Circuit The primary source is a 16.5 VAC, 40 VA, internally-fused transformer (Bosch Security Systems, Inc. Model D1640). The control panel draws 225 mA when idle and 300 mA when in an alarm state. The total available auxiliary current is 1.4 A. Transient suppressors and spark gaps protect the circuit from power surges.

  • Page 23: Power Terminals - Secondary

    Use a D122/D122L Dual Battery Harness to ensure proper and safe connection. Refer to the Standby Battery and Current Rating Chart in the Approved Applications section of the D9412GV4/D7412GV4 v2.02 Installation and System Reference Guide (P/N: F01U265457) for battery standby time calculations.
  • Page 24 Refer to the Battery Terminals illustration. Figure 4.13: Battery Terminals Callout - Description 1 - Battery terminals. Terminal 5 is non-power limiting. 2016.07 | 04 | F.01U.291.483 UL Installation Guide Bosch Security Systens, Inc.

  • Page 25: Power Outputs - Circuit Protection

    Terminal 8: Output C (Switched Auxiliary Power) PTC CB5 protects Terminal 24: Zonex Power. PTC CB1 protects Terminal 32: SDI Power +. PTC CB3 protects Terminal 36: SDI2 Power +. Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...

  • Page 26: Power Outputs - Total Available Power

    Bell, for example) when they are assigned to an area. Outputs can be assigned to one or more areas. The Bosch defaults set Output A (Terminal 6) as a Steady Alarm Bell output, Output B (Terminal 7) as a Pulsed Fire Bell output, and Output C (Terminal 8) as a Verification or Reset output for smoke detectors.

  • Page 27: Terminals 6 And 7

    Terminals 6 and 7. In formula format: 1.4 A - NSC current required (Step 1) = Alarm current available Refer to the Approved Applications chapter inside the D9412GV4/D7412GV4 v2.02 Installation and System Reference Guide (P/N: F01U265457) for module or accessory current requirements. 4.6.4 Terminal 8 Terminal 8 provides continuous positive (+) 12.0 VDC Nominal power.
  • Page 28 Verification/Reset Output The default program sets Output C (Terminal 8) as a verification and reset output. Refer to Output Parameters and Point Assignments in the D9412GV4/D7412GV4 v2.02 Program Entry Guide (P/N: F01U265459) for instructions on programming verification/reset outputs and points.

  • Page 29: Specifications

    Control Panel: Idle 225 mA; Alarm 300 mA. Refer to the Current Rating Requirement Chart for Standby Battery Calculations section in the D9412GV4/D7412GV4 v2.03 Installation and System Reference Guide (P/N: F01U265457) for the current draw requirements of other system components.
  • Page 30 Connection: RJ31X or RJ38X jack can connect the control panels. Connections Two telco Bosch Security Systems, Inc. D928 Dual Phone Line lines: Module required for two phone line service. Supervision supplied by the control panel. See SDI2 Bus Wiring Recommendations for more details...
  • Page 31 *For UL 864 applications, refer to the Compatible Accessories section. Minimum Operating 10.2 VDC Voltage SDI2 Bus SDI2 Bus A: 8 VDC-2000 ft (610 m) maximum SDI2 Bus B: 8 VDC-2000 ft (610 m) maximum Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...
  • Page 32 18 AWG min (up to 14 AWG max) + AUX POWER Terminal accommodates 14 to 22 AWG, use appropriate wire size based on current. BATTERY - Bosch supplied wire lead, included with panel. BATTERY + Bosch supplied wire lead, included with panel. OUTPUT A Terminal accommodates 14 to 22 AWG, use appropriate wire size based on current.
  • Page 33 Terminal accommodates 14 to 22 AWG, use appropriate wire size based on peripheral device current. SDI2 COMMON Terminal accommodates 14 to 22 AWG, use appropriate wire size based on peripheral device current. Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...
  • Page 34 SDI2 POWER Terminal accommodates 14 to 22 AWG, use appropriate wire size based on peripheral device current. *D9412GV4 only. Terminals 25 and 26 are NOT USED on the D7412GV4 Control Panel. Compatibilities Notice! Where the fire alarm transmitter is sharing on-premise communications equipment, the shared equipment must be UL Listed (ITE or fire protective signaling).
  • Page 35 Release Module D8132 Battery Charger Module D9127U/T POPIT Module D9210C Access Control Interface Module DX4010V2 USB/Serial Interface Module DX4020 Network Interface Module ITS-DX4020-G GPRS/GSM Communicator ICP-SDI-9114 SDI Splitter Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...
  • Page 36 Version 1.04 or above. Compatible with version 2.xx or higher Refer to Two-Wire Smoke Detectors section in the Approved Applications chapter in the D9412GV4/D7412GV4 v2.02 Installation and System Reference Guide (P/N: F01U265457) for a listing of compatible two-wire smoke detectors (Household Fire Alarm Applications only).
  • Page 37 Notification Appliance Circuit (NAC) The control panels do not have an onboard NAC. A D192G can be added to the control panel (or D8129/B308) and is Class B, Style W. Bosch Security Systens, Inc. UL Installation Guide 2016.07 | 04 | F.01U.291.483...
  • Page 40 Bosch Security Systems, Inc. Bosch Sicherheitssysteme GmbH 130 Perinton Parkway Robert-Bosch-Ring 5 Fairport, NY 14450 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Security Systems, Inc., 2016...
