www.weslo.com

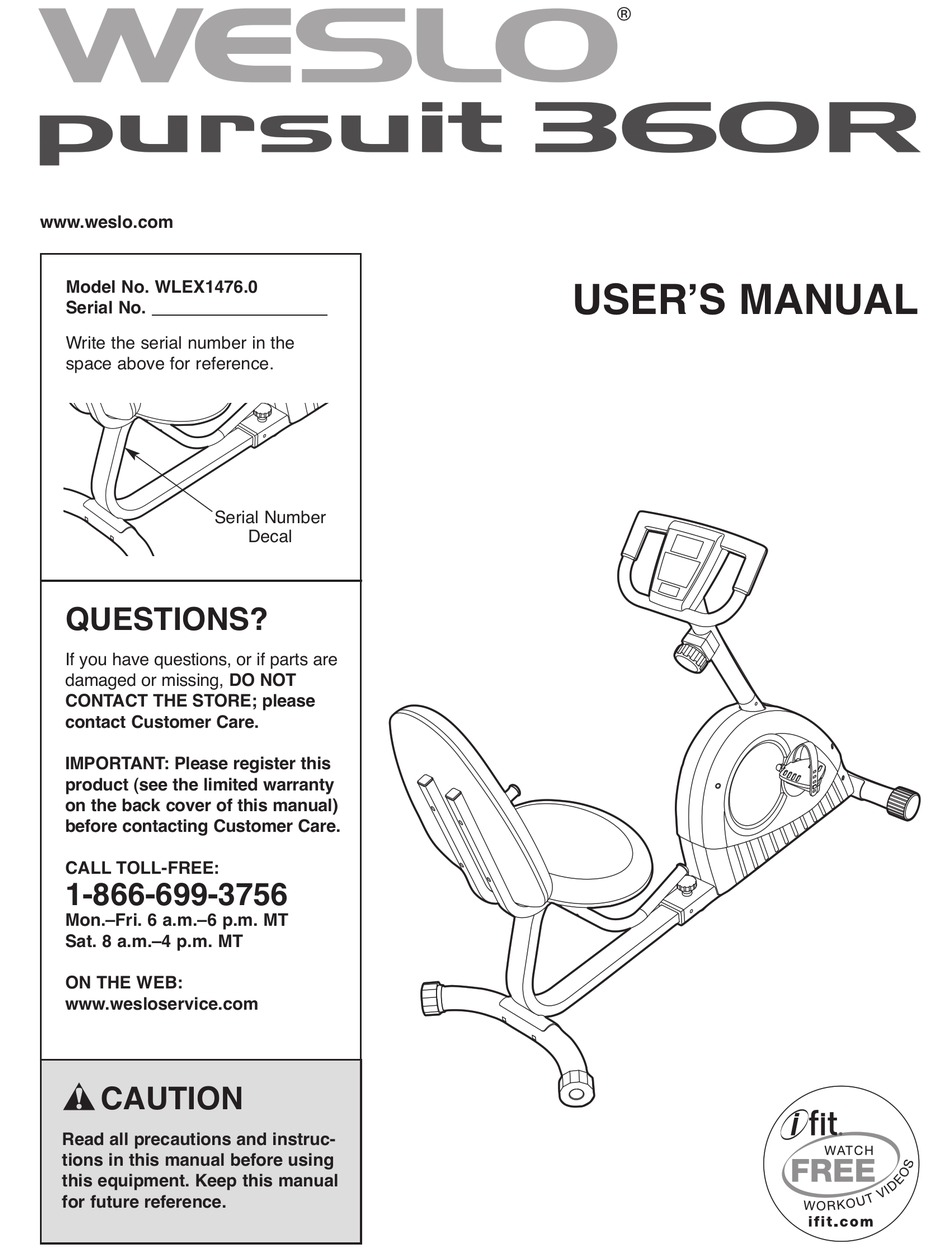

Model No. WLEX1476.0
Serial No.
Write the serial number in the
space above for reference.
Serial Number
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
1-866-699-3756
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Decal
USERʼS MANUAL
Advertisement
Table of Contents
Related Manuals for Weslo pursuit 360R WLEX1476.0
Summary of Contents for Weslo pursuit 360R WLEX1476.0
- Page 1 USERʼS MANUAL Model No. WLEX1476.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care.
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your exercise cycle before using your exercise cycle. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product. -
Page 4: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the new WESLO PURSUIT tions after reading this manual, please see the front ® 360R exercise cycle. Cycling is an effective exercise cover of this manual. To help us assist you, note the... -
Page 5: Assembly
ASSEMBLY To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480. Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack- ing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included tool(s), assembly requires a Phillips screwdriver , two adjustable wrenches... - Page 6 To make assembly easier, read the information on page 5 before you begin. Turn the Front Stabilizer (2) so that the large holes are facing the Frame (1). Attach the Front Stabilizer (2) to the Frame (1) with two M10 x 60mm Button Screws (33). Large Holes 2.
-
Page 7: 14, 15) With Four M6 X 35Mm Button Screws
4. Attach the Left and Right Seat Brackets (14, 15) to the Seat Frame (5) with two M8 x 125mm Bolts (62), four M8 Washers (54), and two M8 Locknuts (10) as shown. Do not tighten the Locknuts yet. 5. Attach a Seat Handle (59) to the round tube on the Left Seat Bracket (14) with two M6 x 30mm Button Bolts (64), two M6 Curved Washers (69), and two M6 Locknuts (63). -
Page 8: 14, 15) With Four M6 X 35Mm Button Screws
7. Attach the Seat (12) to the Seat Brackets (14, 15) with four M6 x 35mm Button Screws (61) and four M6 Washers (68). 8. While another person holds the Upright (13) in the position shown, connect the Extension Wire (52) to the Reed Switch Wire (43). - Page 9 9. The Console (16) requires four AA batteries (not included); alkaline batteries are recommended. Batteries IMPORTANT: If the exercise cycle has been exposed to cold temperatures, allow it to warm to room temperature before inserting batteries into the Console. If you do not do Battery this, the console displays or other electronic Cover...
-
Page 10: How To Use The Exercise Cycle
HOW TO USE THE EXERCISE CYCLE HOW TO ADJUST THE SEAT FRAME HOW TO ADJUST THE PEDALING RESISTANCE For effective exer- To increase the cise, the seat should resistance of the be in the proper pedals, turn the position. As you resistance knob pedal, there should clockwise;... - Page 11 CONSOLE DIAGRAM HOW TO USE THE MANUAL MODE 1. Turn on the console. To turn on the console, press the On/Reset button or begin pedaling. The entire display and the pace guide will light for a moment; the console will then Indicators be ready for use.
- Page 12 Pulse—This display shows your heart rate when To reset the display, press the On/Reset button. you use the thumb pulse sensor. To pause the console, stop pedaling. When the Scan—This display shows the speed, time, dis- console is paused, the time will flash in the dis- tance, calories, fat calories, and pulse displays, for play.
- Page 13 HOW TO USE A PACE PROGRAM IMPORTANT: The pace guide is intended only to provide a goal. Make sure to pedal at a pace 1. Turn on the console. that is comfortable for you. See step 1 on page 11. The display will show the time remaining in the program.
-
Page 14: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING Inspect and tighten all parts of the exercise cycle reg- Repeat until the console displays correct feedback. ularly. Replace any worn parts immediately. When the Reed Switch is correctly adjusted, reattach the left shield and the left pedal. To clean the exercise cycle, use a damp cloth and a small amount of mild detergent. -
Page 15: Exercise Guidelines
EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy. - Page 16 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
- Page 17 NOTES...
-
Page 18: Part List
PART LIST—Model No. WLEX1476.0 R1009A Key No. Qty. Description Key No. Qty. Description Frame Flywheel Front Stabilizer Magnet – (Not Used) Flywheel Axle Front Stabilizer Cap M10 Small Washer Seat Frame M4 x 25mm Screw Rear Stabilizer M8 Split Washer Handlebar Cap Reed Switch/Wire Rear Stabilizer Cap... -
Page 19: Exploded Drawing
EXPLODED DRAWING—Model No. WLEX1476.0 R1009A... -
Page 20: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
