Turn the power on. Press the POWER and the 1Φ3Φ buttons to select the 3P3W system.
The type of system will be displayed at the bottom right of the LCD.
b.

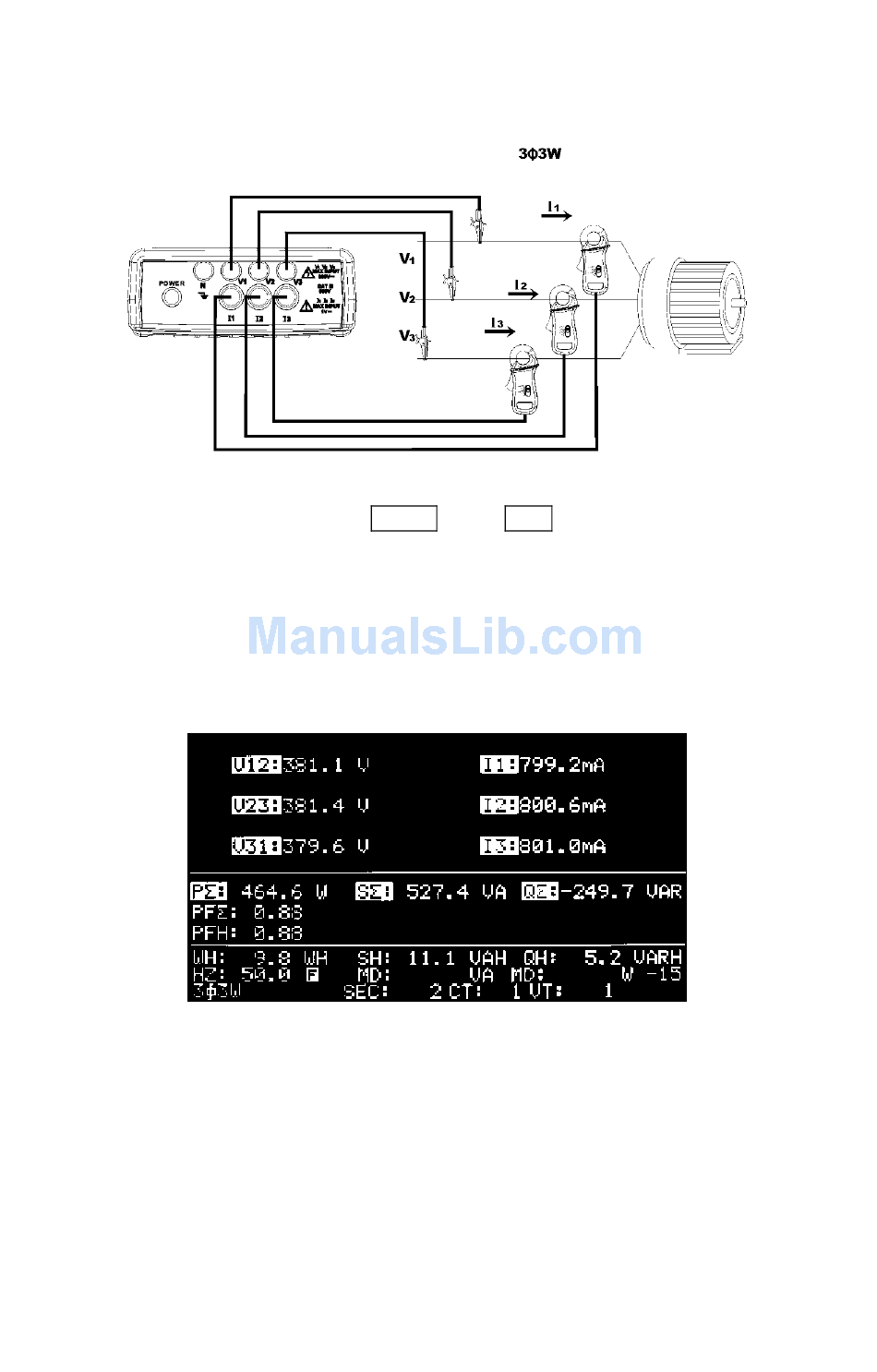

Connect the four test leads to the voltage terminals L1, L2, and L3 of the system.
c.
Connect the three current probes to the power analyzer input terminal I1, I2, and I3.
d.
Clamp on to the L1, L2, and L3. Make sure the current flows from the front of the current probe
to the back.
e.
All parameters of the system will be shown in the LCD
For a description of each parameter, refer to XIV. NOMENCLATURE.
