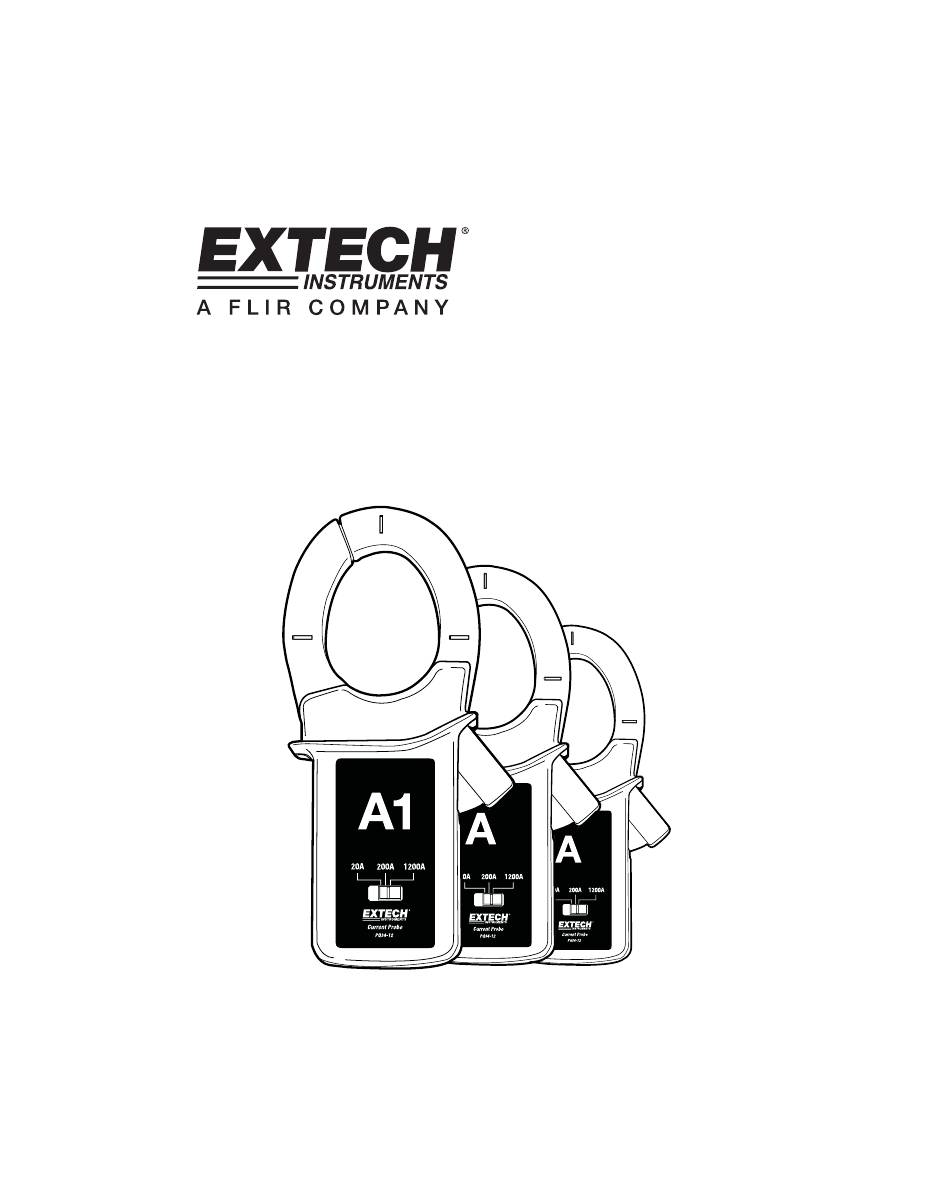

- Page 1 User's Guide 1200A Current Probe Set Model PQ34-12 PowerMeterStore 1.800.561.8187 www. Shop for Power Metering products online at:...

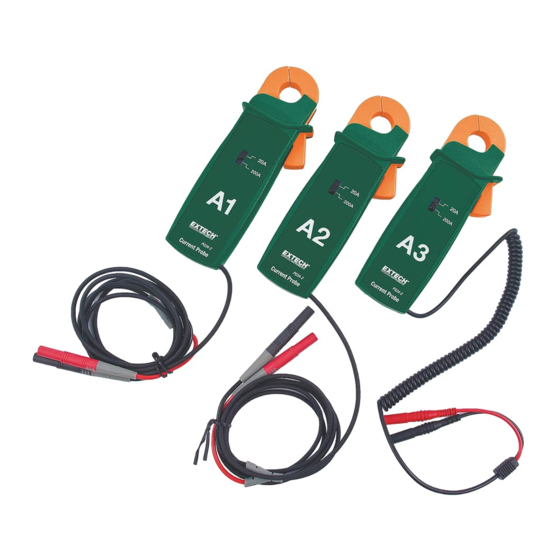

- Page 2 Introduction Congratulations on your purchase of this Extech Current Probe Set. A set of three 1200A current probes designed to be used with the Extech PQ3450 or PQ3470 Power Analyzers. These probes are shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Safety This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information.
- Page 3 Probe Description 1. Current Sensing Jaws 2. Jaw Trigger 3. 1200A-200A-20A range switch 4. Signal output plug ( +, red ) 5. Signal output plug ( -, black ) 6. DCV power plug Operation Connect the “A1” signal output cables to the matching input sockets on the top of the analyzer.
- Page 4 Specifications Measurement ranges 20A, 200A and 1200A, switch selectable Output sensitivity 10mV/A on the 20A range 1mV/A on the 200A range 0.1mV/A on the 1200A range Output coupling AC coupled. Accuracy (50/60Hz) ± 1% F.S. @ 23 ± 5°C Frequency range 45 to 400 Hz.
