USER GUIDE


Differential Pressure Manometers
Model PS101, PS106, and PS115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS101 and is the answer not in the manual?

Questions and answers

Related Manuals for Extech Instruments PS101

Summary of Contents for Extech Instruments PS101

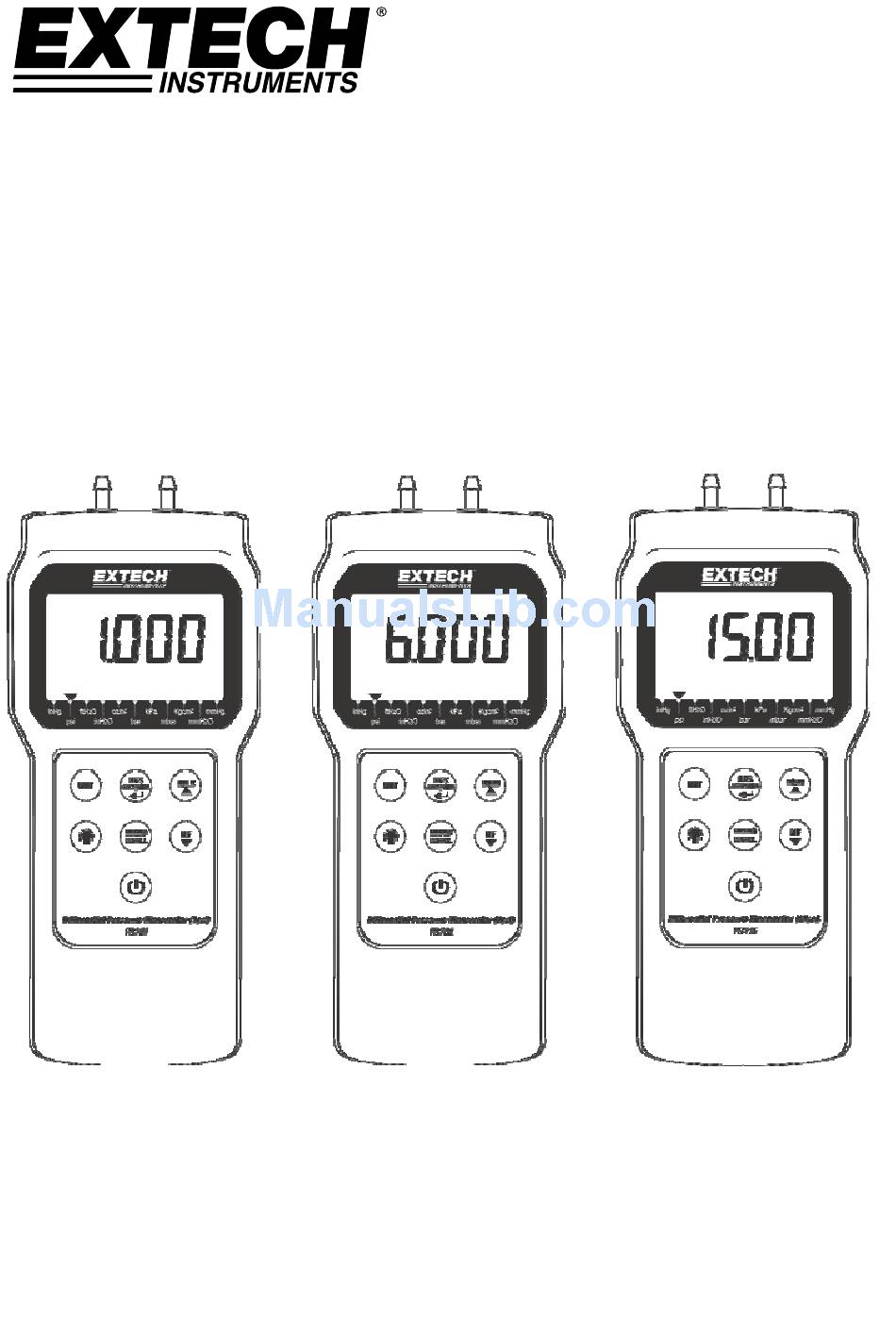

  • Page 1 USER GUIDE                                        Differential Pressure Manometers Model PS101, PS106, and PS115...
  • Page 2 (DIF mode). The PS101 (±1psi), PS106 (±6 psi), and the PS115 (±15 psi) models offer 11 units of measure, a 99 reading storage utility, MAX/MIN recording with Relative mode, Time Stamp, Data Hold, Auto Power OFF, Zero function, PC interface, and large Backlit LCD.
  • Page 3 Display Description Primary Display Area MAX-MIN mode active Recording active Data Hold active Low battery voltage Stored reading memory location Single reading storage mode Review stored data record Elapsed timer 10. Unit of measure selector arrows 11. Difference mode (actual reading minus reference value) 12.

  • Page 4: Getting Started

    Connections Pressure hoses are connected to the meter via the connectors at the top of the meter. Note the range for each meter model: PS101 (±1psi), PS106 (±6 psi), and the PS115 (±15 psi). Units of Measure The arrow on the bottom of the LCD points to the currently selected unit of measure. To change the unit of measure, press the UNIT key until the arrow points to the desired unit of measure.
  • Page 5 Difference (DIF) Display The meter can display readings that represent the current measurement minus a stored reference value. To store a reference value, press the DIF ▼key when the desired reference value is on the display. The DIF icon will appear on the LCD indicating that the difference mode is active. Subsequent readings will now represent the current measurement minus the stored reference.

  • Page 6: Specifications

    General Specifications Display Backlit multifunction LCD Status indicators Multifunction display icons and low battery indicator Ranges Model PS101: 1psi Model PS106: 6psi Model PS115: 15 psi Measurement Units bar, mbar, psi, Kg/cm , mm Hg, inch Hg, meters of H...
  • Page 7 Input Range and Resolution table Model PS101 Model PS106 Model PS115 in Hg 2.036 12.216 30.540 1.000 6.000 15.000 ft H 2.307 13.840 34.600 in H 27.68 166.08 415.20 oz in 16.00 96.00 240.00 0.069 0.414 1.034 6.89 41.36 103.42 mbar 68.9...

This manual is also suitable for:

Ps106Ps115
