Summary of Contents for Bang & Olufsen BeoLab 5 6881

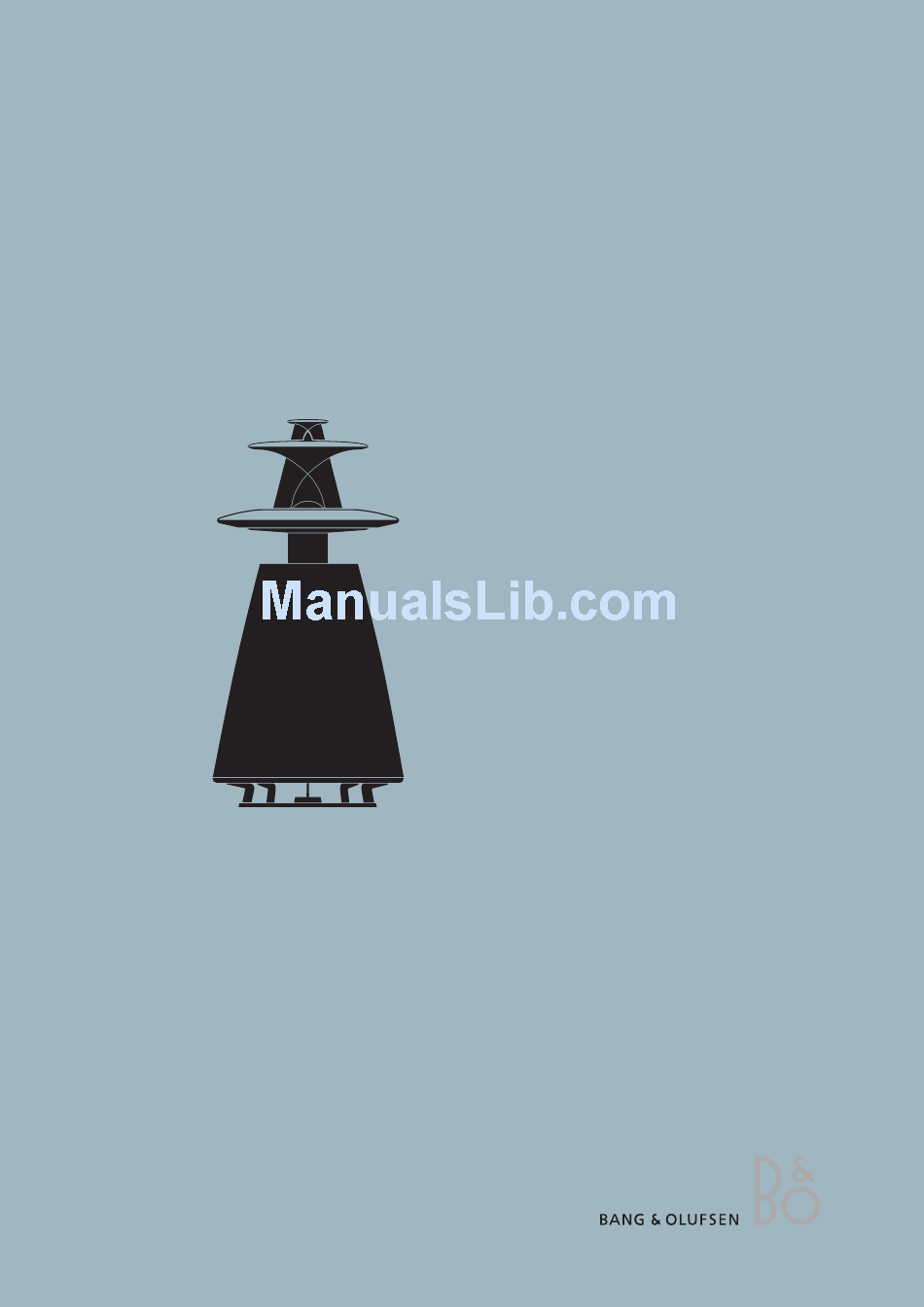

- Page 1 BeoLab 5 Type 6881, 6882, 6883, 6884, 6885, 6886, 6887, 6888 From serial no. 19375256 Service Center repair guide English...
- Page 3 How to service, English How to service Front line service BeoLab 5 must be serviced in the customers home in terms of electrical symptoms or exhange of mechanical parts such as cloth frame, microphone or foot. In this way you avoid having to transport the heavy loudspeaker (967mm/Ø485mm,61kg) from and back to the customer.
- Page 4 Warnings – PIN code protection, English Warnings STATIC ELECTRICITY MAY DESTROY THE PRODUCT When electrical replacements or disassembly is taking place, use a ESD-mat. The internal electronic are very sensitive to static electricity. General warnings Wear cutton cloves to avoid any fingerprints on the product. The aluminium surfaces on the product is very sensitive, so handling should be done with great care to avoid damage.
- Page 5 �pec�fic���on �����e��ne� fo� �e�v�ce ��e �.�� �.�� �.�� Specification guidelines for service use BeoLab 5 Type no. ����� ����� ���ope �� ���� ���ope �� ���� Type no. ���� ���� �n���n�� �� ���� �n���n�� �� ���� Type no. ���� ���� ����� ��n���� �� ����� �����...
- Page 6 �.�� Ove���� b�ock �������m �.�� �.�� Ove���� b�ock �������m Overall block diagram...
- Page 7 W���n� �������m �.� �.� W���n� �������m �.� Wiring diagram...
- Page 8 ��.�� �v����b�e p���� ��.�� ��.�� �v����b�e p���� Available parts Lens 9001 9012 9002 9013 9003 9014 Incl. pos. nos. 3, 9005, 9006 9004 9005 9006 Incl. pos. nos. 3, 5, 6, 7 9015 9007 Incl. pos. nos. 3, 5, 6, 7, 9009, 9010 9008 9016 9009...
- Page 9 �v����b�e p���� ��.� ��.� �v����b�e p���� ��.� Lens 9���� �����9���� Topp���e�� comp�e�e 9��� ��������7 Ho���e� 9��� ��������� Len� f/�n���c��o� 9���� ������7�� Len� f/TW �nc�. po�. no�. ��� 9������ 9��� 9���� �9��7��� Fe�� f/TW�� ����e 9��� �9��7��7 Fe�� f/TW�� �m��� 9��7 ������7�...
- Page 10 ��.� �v����b�e p���� ��.� ��.� �v����b�e p���� Speakers 9025 9034 9035 9026 9036 9037 9038 9027 9039 9028 9040 9029 9030 9041 9031 9042 9032 9033 9043...
- Page 11 Available parts Speakers 9025 3320719 Cloth frame 9026 8013627 Transformer, EU, KOR 8013628 Transformer, JPN 8013629 Transformer, US 8013630 Transformer, AUS 9027 3340246 Gasket, set 9028 3332094 Damping material, back 9029 3332095 Damping material, side 9030 3332097 Damping material, ring 9031 8480376 Woofer - 165mm, 61⁄2”...
- Page 12 Available parts Wire bundles See wiring diagram page 3.2. The part no. is printed on the diagram above the wire bundle, as shown. Parts not shown 3395224 Back-up suitcase with PIN code protection 3375007 Product cover 3624521 Service bracket 3624161 Service holder f/topcover pos. no. 9016 6270900 Dig.
- Page 13 Available parts Packing 9301 9302 9303 9304 9305 9302 9306 9307 9301 3392766 Outer carton, top 9302 3396196 Foam packing, set of top and bottom 9303 3392074 Distance pipe - order 4pcs. 9304 3392772 Outer carton, side 9305 3392772 Outer carton, side 9306 3392766 Outer carton, bottom 9307...
- Page 15 Service tips, English The main chassis in the back-up suitcase, is setup as a EU version. If it should be used in a JPN or US product, it will need to be converted. See page 6.4. Service tips Symptom: The loudspeaker does not switch on, and the stand-by diode is always red. Cause: The amplifier is in protection-mode.
- Page 16 Service tool - Replacement of driver, English Service tool To service BeoLab 5 a LabTop with the Bang & Olufsen service tool application is needed. With the “Service Tool” it is possible to read error codes, service counters and product ID and to save them in a file. (The service tool is downloaded from the Retail System).
- Page 17 Replacement of EEPROM/Chassis & Cleaning, English Replacement of EEPROM If the EEPROM is defect the data for all the drivers must be written into a new EEPROM. The serial number for the drivers can be found on the drivers/cabinet. The serial number refers to the data for the actually driver. Procedure: When the defect EEPROM is replaced the data of the drivers must be written to the EEPROM via the service tool:...
- Page 18 Replace cloth frame Replace cloth frame ��� Special tool f/topcover No. 3629144 Torx key 3040001...
- Page 19 BeoLab 5 in service position BeoLab 5 in service position See page 6.1, Remove cloth frame TX20 ...
- Page 20 Replace main chassis BeoLab 5 Replace main chassis See page 6.1, Remove cloth frame See page 6.2, BeoLab 5 in service position TX25 Mounting new main chassis...
- Page 22 Replace woofer 165mm, 61⁄2” Replace woofer 165mm, 61⁄2" See page 6.1, Remove cloth frame TX10 ...
- Page 23 Replace woofer 381mm, 15” Replace woofer 381mm, 15" See page 6.1, Remove cloth frame TX25 See page 6.2, BeoLab 5 in service position See page 6.3, Remove main chassis, 1 - 5 TX25 ...
- Page 24 Replace foot Replace foot See page 6.1, Remove cloth frame See page 6.2, BeoLab 5 in service position See page 6.3, Remove main chassis, 1 - 5 See page 6.6, Remove woofer 381mm, 15" TX10...
- Page 25 Replace transformer Replace transformer See page 6.1, Remove cloth frame See page 6.2, BeoLab 5 in service position ...
- Page 26 Replace microphone Replace microphone TX10 TX10 ...
- Page 27 6.10 Replace loudspeaker cabinet Replace loudspeaker cabinet See page 6.1, Remove cloth frame See page 6.2, BeoLab 5 in service position See page 6.3, Remove main chassis, 1 - 5 See page 6.5, Remove woofer 165mm, 61⁄2" See page 6.8, Remove transformer See page 6.6, Remove woofer 381mm, 15", ...
- Page 28 Replace topplate 6.11 Replace topplate ���...
- Page 29 6.12 Dismantling lens for tweeter Dismantling lens for tweeter See page 6.11, Remove topplate TX10 ...
- Page 30 Replace tweeter 19mm, 3⁄4” 6.13 Replace tweeter 19mm, 3⁄4" See page 6.11, Remove topplate Remount tweeter 19mm, 3⁄4" TX10 TX20 ...
- Page 31 6.14 Replace aluminiumplate for tweeter Replace aluminiumplate for tweeter See page 6.11, Remove topplate See page 6.12, Remove tweeter, 1 - 4 TX20 ...
- Page 32 Replace midrange 76mm, 3” 6.15 Replace midrange 76mm, 3" See page 6.11, Remove topplate See page 6.12, Remove tweeter, 1 - 4 See page 6.13, Remove aluminiumplate for tweeter TX10 Remounting midrange 76mm, 3" ...
- Page 33 6.16 Replace aluminiumplate for midrange Replace aluminiumplate for midrange See page 6.11, Remove topplate See page 6.12, Remove tweeter, 1 - 4 See page 6.13, Remove aluminiumplate for tweeter See page 6.14, Remove midrange, 1 - 2 ...
- Page 34 Replace topcover 6.17 Replace topcover See page 6.10, Remove topplate See page 6.11, Remove tweeter, 1 - 4 See page 6.12, Remove aluminiumplate for tweeter See page 6.13, Remove midrange, 1 - 2 See page 6.14, Remove aluminiumplate for midrange ...
- Page 35 6.18...
- Page 36 Insulation test, English Insulation test BeoLab 5 must be insulation tested if it has been dismantled. Make the test when the BeoLab 5 is reassembled and is ready to be returned to the customer. Insulation test at the Service center Short-circuit the two pins of the mains plug and connect them to one of the terminals of the Insulation tester.
- Page 38 Bang & Olufsen DK-7600 Struer Denmark Phone +45 96 84 11 22* Fax +45 97 85 39 11 3538053 06-06...
