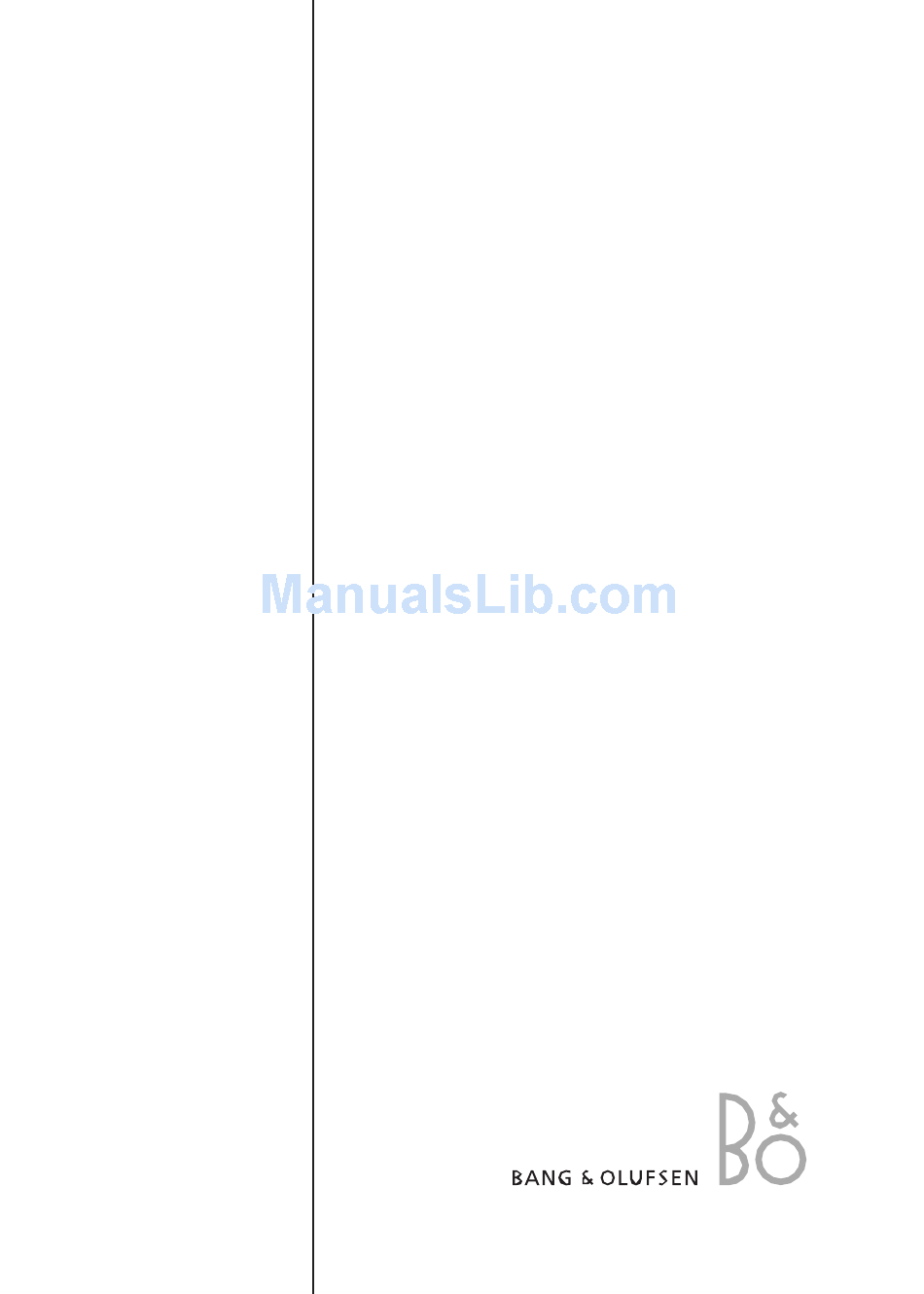

- Page 1 BeoLab 7-4 Guide...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No User-serviceable parts inside. Refer servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
-
Page 3: Daily Use
Daily use When you have fi nished setting up the loud speaker as described on the following pages, connect the entire system to the mains. Loudspeaker protection The loud speaker is equipped with a thermal protection system which prevents damage from overheating. If an error occurs –... -
Page 4: Set Up The Loudspeaker
– Connect the entire system to the mains again. Set up the loudspeaker ‘Type 1 bracket’ ‘Type 2 bracket’ BeoLab 7-4 brackets: The loud- speaker must be fastened to one of the brackets shown here, and on a suitable Bang & Olufsen stand or wall bracket. - Page 5 Here is shown how to fasten the loud speaker with a ‘type 1 bracket’ to a Bang & Olufsen ‘single-column’ stand (or wall bracket). Use the same procedure if you wish to fasten the loud- speaker to a Bang & Olufsen ‘double-column’...
-
Page 6: Cable Connections
The loudspeaker is primarily intended to be used in a surround sound setup with BeoVision 7*. It may, how ever, be used with other Bang & Olufsen systems as well – for example in a BeoVision 4 surround sound setup. If used in a setup not including BeoVision 7, you will require a mains cord and a Power Link... - Page 7 Connection to BeoVision 7 … Connect the loudspeaker to one of the Power Link sockets on the left BeoVision 7 socket panel. For further information about the BeoVision 7 socket panels, refer to the Guides enclosed with the product. Connection to other Bang & Olufsen systems …...
-
Page 8: Adapt The Loudspeaker To Your Room
When a loudspeaker is placed in a corner or close to a wall, the bass level is boosted compared to the bass level from a loudspeaker placed in a more free-standing position. To remove this excessive bass boost, use the POSITION switch to ensure that the bass level suits the placement of the loudspeaker. - Page 9 The POSITION switch is located on the loud speaker socket panel. How to measure: The distance is measured as shown here – the loud- speaker seen from above.
- Page 10 To get access to the approval labels, remove the loudspeaker front grill: Push the front grill downwards until stop (~ 10 cm/4"). The front grill can now be removed. Note: When attaching the front grill again, first insert the centre peg into the bottom end of the groove (a), and move the front grill upwards.
- Page 11 For the Canadian market only! This class B digital apparatus meets all require ments of the Canadian Interference-Causing Equipment Regulations. This product fulfils the conditions stated in the EEU directives 89/336 and 73/23. Technical specifications, features and the use thereof are subject to change without notice! 3509130 0508...
- Page 12 www.bang-olufsen.com...
