Page 1: User Manual

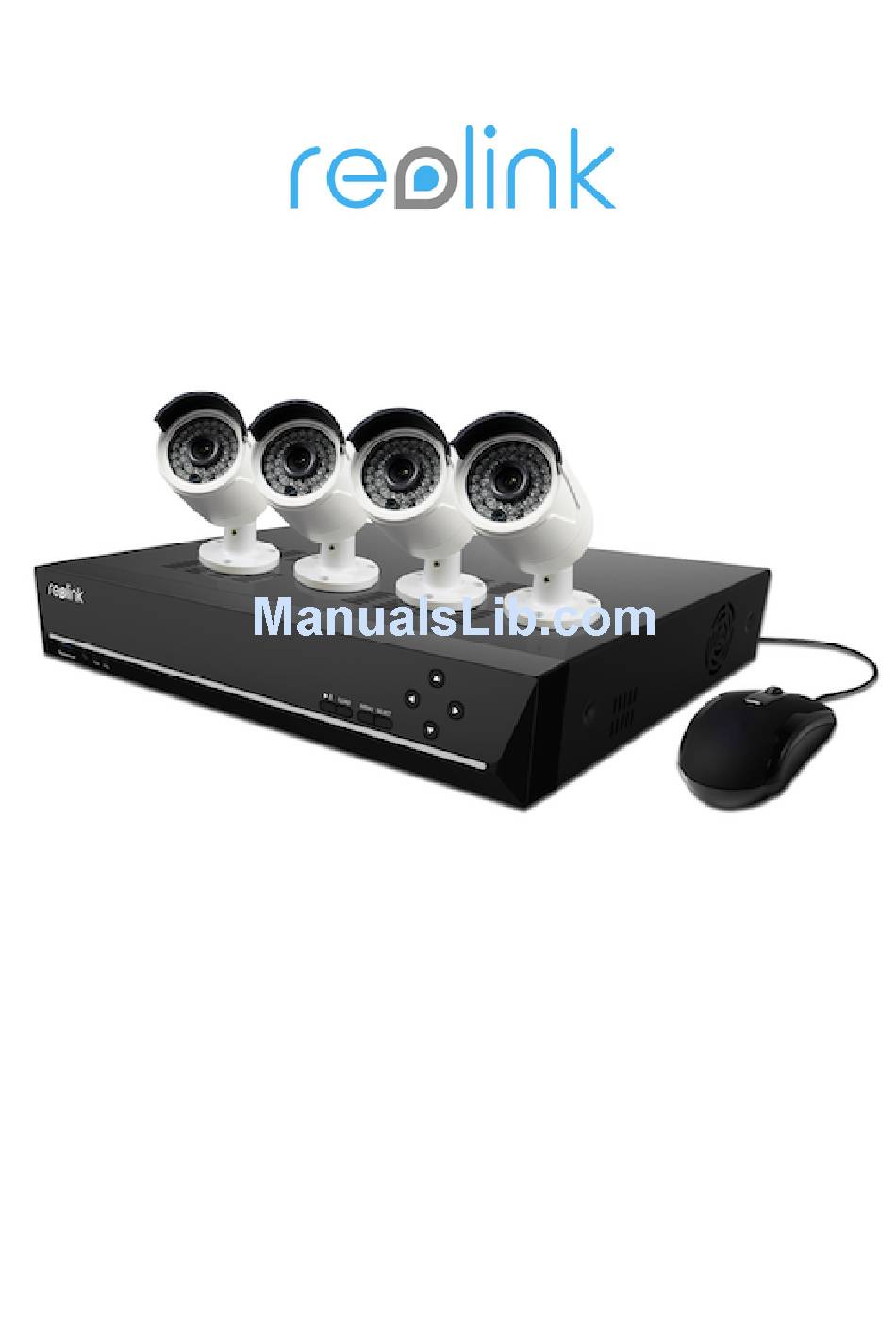

User Manual 4CH/8CH Super HD 4.0MP Network Video Recorder 4.0MP Network Camera （For NVR） ... -
Page 2: Getting Started
Getting Started Thank you for purchasing the Reolink Network Video Surveillance（4CH/8CH) Product . For the latest User Manual, Product Updates and more information about the products , please visit our website at : www.reo-link.com CAUTION CAUTION: TO REDUCE THE RICK OF ELECTRIC SHOCK DO NOT REMOVE COVER. - Page 3 GETTING STARTED We have developed user friendly products and documentation. Please read the Quick Start Guide and User Manual before you install this product. Consumer Guides and Video Tutorials are available on our web site at www.reo-link.com If you require further installation assistance, please contact a professional installer.
-
Page 4: Notice
NOTICES FCC Verification Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Feature
• Instant Mobile Viewing on compatible Smartphones Dedicated iPad® and Android tablet apps with multi-channel live viewing and playback • ReoLink Easy Connect Internet Set-up Wizard • Reolink Client Software • PC (Windows 7，8 ) compatible using client software (included) & web browser. -
Page 6: Table Of Contents
CONTENTS Getting Device : PTZ………………………… Started…………………….. Device :HDD………………………… Notice………..………………………. Feature………………………………. Preview: PTZ Setting……………….. Contents………………………..…… Preview Basic Setting………………. Getting Started………………………. Preview : Advanced Settings ………… NVR Overview ……………………… Playback……………………………… Connection Diagram ………………. Setup Wizard ……………………… Warranty Terms & Conditions Setting your Smartphone………… Client Software Setting up your PC …………………... -
Page 7: Getting Started
Getting Started The system comes with the following components: 4 Channel NVR Bullet Camera Ethernet Cable 1TB Hard Drive ( Installed ) POE Cable Optical Mouse Power Adapter HDMI Cable Quick Start Guide... -
Page 8: Nvr Overview
NVR Overview Front Panel Power LED : Solid red indicates the NVR is supplied with power and turned on. HDD LED : Blinking green indicates the NVR is writing to / reading from the installed hard drive. USB : For connecting the USB mouse . Play/Stop : to play or stop the selected Channel . -
Page 9: Connection Diagram
Connection Diagram You can follow below steps to connect your system : Step 1 : Connect the NVR to a Monitor or TV Use the HDMI cable (supplied ) to connect your NVR to the TV HDMI port . Or VGA : Use the HDMI cable (supplied ) to connect your NVR to the TV HDMI port . Step 2 : Connect the IP Cameras Connect the camera’s LAN Video port to any POE Camera port on the... - Page 10 Connection Diagram Step 3 : Connect to your network Connect an Ethernet cable from the LAN port on the NVR to LAN port on your router. Step 4 : Connect the Mouse Connect the mouse to the USB port. The USB Mouse Left click: Selects an item or confirms a choice.
- Page 11 Connection Diagram Step 5 : Connect the Power Adapter Please use the supplied power adapter . For POE NVR device , it is 48 voltage . Camera voltage is 12V only . Please don’t use the NVR 48V power adapter directly to Camera , Otherwise , it will burn the camera .
-
Page 12: Setup Wizard
UK is GMT +0:00, and the East Coast of Australia is GMT +10:00. Menu Date Format: How you’d like the date to be displayed. UID: This is the NVR’s Unique IDentifier number which will be used later to connect your PC or SmartPhone to the NVR using Reolink p2p technology. - Page 13 Setup Wizard : System Time Camera Here you can see a list of cameras are connected to the NVR . IP Address: Displays the unique IP number and port number that is assigned to the network camera. MAC Address: The Media Access Control address. This is a unique code which nothing else should share.
- Page 14 UID: This is the NVR’s Unique IDentifier number. We will use this UID to configure the Reolink app & software and connect to your NVR. You can click the Send UID button to receive an email containing the UID (that’s assuming your email details are configured) or alternatively just make a note of the UID on a...
- Page 15 Setup Wizard : System Time NTP stands for “Network Time Protocol”. It’s a way for the NVR to connect to the Internet and automatically update and maintain accurate time. There’s no requirement to use NTP, but it’s easy to setup and free to use, so there’s really no reason not to.
- Page 16 Setup Wizard : Account Here you need to create a password of the Admin account for on-going protection against unauthorized access, The default password here is blank , you must create a new password to continue . User Name: The NVR’s default administration account, which is always called “Admin”. You can’t change Admin user name.
-
Page 17: Setting Up Your Smartphone Or Tablet
Setting up your Smartphone or Tablet With the free Reolink app , you can turn your iOS or Android mobile device into a monitoring center for your NVR security system . You can monitor your home at any time from any place . With the latest p2p technology , you can connect NVR so easy , it only takes minutes to get it up and running . - Page 18 Setting Up your Smartphone or Tablet 5, Tap “ Device Name” to name your NVR . 7，when the app has successfully connected with Enter the password the one that you created in the your NVR , tap the “Start preview” button . setup wizard or create a new password here .
- Page 19 Use Reolink App Menu button (Arrow down)- you can access to options such as add, edit and delete a device. You can also access built-in manual , version information and check the playback video recorded to your mobile device . Tap the play button to exit the menu.
-
Page 20: Local Playback
Local playback - To play video files that are directly recorded to your mobile device , you can find where you install the App , and find the file from File-> storage -> Reolink ,Tap on one of the files to play . -
Page 21: Setting Up Your Pc
• adjust settings and configure the NVR. In fact, the Reolink software is so powerful, you don’t even need to connect a monitor to the NVR if there’s a computer on the local network that you’re running Reolink on. -
Page 22: Preview
Setup Wizard or create a new password here to continue , then click Login. After a few seconds, you will see your cameras live on your PC. Reo-link Interface After you successful log on to ReoLink, you will see the following screen:... - Page 23 Client Software - Preview Using the Live View Screen Live View is the default mode for the NVR. The NVR can display video feeds from up to four or eight cameras depending on model . 1-Preview and 2-Playback Tab: you can switch from the Preview and playback Tab to view live or the record file .
- Page 24 Client Software - Preview Click to compress the image to center or click to stretch image fit the full windows . Click to show the Digital zoom page . Here you can click choose the zoom region Zoom In Zoom Out estore zoom back to default setting exit Digital zoom Click Capture button...
-
Page 25: Local Setting
Local Settings button on the upper right of the screen , you will see below pages . The local Setting screen is where you can customize how ReoLink will store and process footage on the local PC when you download it from the NVR. -
Page 26: Device Setting
Client Software - Device Settings Click the Gear Look icon on the upper right of the screen , you will open the Device setting page . On this page , we can set the following parameters : Display —> Camera , Output Recording —>... -
Page 27: Display : Camera
Display -> Camera Click Camera icon，you will see below Channel : Choose the Channel you want to Set Channel Name : Enable to show channel name or disable , you can rename the Channel here . Position Settings : you can put the Channel name on the upper left , lower Left , upper Right , lower Right ，top Center or Bottom Center . -
Page 28: Display : Output
Display -> Output The Display Output menu is where you can control how the NVR is going to deliver an image to your television, screen or monitor. You’ll be able to adjust items such as: • screen resolution and position on your monitor •... -
Page 29: Recording : Encode
Recording -> Encode The Recording: Encode menu allows you to alter and customize how the NVR records footage and “encodes” the files. You can choose and alter: • the resolution (per channel), • the frame rate (how many images per second the NVR records), and •... -
Page 30: Recording :Option
Recording ->Option Overwrite: When enabled, the NVR will record over the files already stored on the hard drive. The NVR will always record over the oldest files on your hard drive first. Using the overwrite option is advisable, as the NVR will always be able to record events as they happen. However, it does mean that you’ll need to get important events off the HDD before they’re overwritten. -
Page 31: Recording : Schedule
Recording -> Schedule This example image shows some of the NVR’s recording modes. If the NVR was started with this schedule, the selected channel (in this case CH1) would: • Record based on Motion from midnight (00:00) to 2pm (14:00). •... -
Page 32: Network : General
MAC Address: The Media Access Control address. This is a unique code which nothing else should share. You can’t change this one - it’s pre-set when the NVR ships out. Note: Many of the following networking settings are not required when using ReoLink P2P for remote access. -
Page 33: Network: Advanced
RTSP port is 554 UPNP enable (This feature is not required if you are using ReoLink P2P to access the NVR): UPnP makes configuring your network easier and faster. To use the UPnP setting on the NVR, you’ll need a router which supports this feature, with UPnP enabled. -
Page 34: Network : Advanced Ddns
Network -> Advanced -> DDNS In much the same way as your home network can use static or dynamic IP addresses, many Internet providers don’t issue (or charge more for) a static IP address for users. The easiest way to find out is to contact your Internet service provider. -
Page 35: Network : Advanced Ntp
Network -> Advanced -> NTP NTP Setup NTP Server: The server you intend to use to access the current date and time. The default is pool.ntp.org. NTP Port: The port that the NTP server uses. The default for pool.ntp.org is 123. Enable Auto-Synchronize : click the checkbox to enable Auto-Sync Synchronize Every : to set the Sync interval time . - Page 36 Network -> Advanced -> E-mail We suggest using Gmail as your email client - it’s quite easy to set up an account and use it solely for the NVR.Other email servers may not work correctly - many interpret the procedurally generated email from the NVR as spam and block the mail from...
-
Page 37: Network : Advanced Ip Filter
Network -> Advanced -> IP Filter The IP Filter can be used to modify which IP addresses have permission to talk to the NVR and which do not. This is an advanced feature, and is recommended for advanced users only. - Page 38 Device Setting -> Network -> Status Here you can find the network information refers to IP Address / Subnet Mask / Gateway /Preferred DNS / Alternate DNS. For more details , you can refer to Device Setting -> Network -> General .
-
Page 39: Alarm : Motion
Device Setting -> Alarm -> Motion How Motion Detection Works The way that the NVR looks for motion is quite straight forward - it’s a process where it compares one frame with the next. A certain amount of “difference” between these two “frames” is interpreted as motion. As a result, the NVR is able to detect when there is a change in the picture. - Page 40 Device Setting -> Alarm -> Motion Sensitivity: The Sensitivity setting is controlled by a slider, allowing you to set a value between 0 and 50. The lower the number, the more sensitive the motion detection will be. There are four time periods which you can define different motion sensitivity values for.
- Page 41 Device Setting -> Alarm -> Motion Motion Detection - Schedule Here you can set the schedule time 7 day 24 hours a week , red box means when motion detect , it will alarm . Action: The action you’d like the NVR to take when motion occurs.
-
Page 42: Alarm : Video Loss
Alarm -> Video Loss Video Loss is regarded as a potential alarm event, and is considered to occur any time that the NVR doesn’t receive an active video signal on any of its inputs. The default behavior of the NVR, when a channel has no incoming video signal, is simply to display “Video Loss”... -
Page 43: Alarm : Exception
Device Setting -> Alarm -> Exception An Exception is any deviation from the NVR’s normal behavior - phrased another way, it’s like saying the NVR’s been working fine except for these events Exception Type: What event type you’d like the NVR to react to. By configuring the Action for these events, you can create any combination of audio alerts (see below) or auto-emails to be sent for different event types. -
Page 44: System : General
Device Setting -> System -> General Video Standard: Here you can choose between PAL and NTSC. PAL is used in Western Europe and Australia, NTSC is used in the US, Canada and Japan. If the NVR’s picture is black and white, flickering or similar, then this is probably caused by the video system being set incorrectly. ... -
Page 45: System : Information
Device Setting -> System -> Information If you’re looking at the System Information screen, you’ve probably been directed to do so by Technical Support. If we haven’t told you to come here, you might be wondering what all the information means. On a day-to- day level, the answer is “very little”. -
Page 46: System ：Maintenance
Firmware Upgrade : Instructs the NVR to update its firmware. You’ll only need to use this option if instructed to do so by Reolink Technical Support. (Remember to Export your configuration first so you don’t have to re-set everything!) Default Settings : Loads the factory default settings. ... -
Page 47: System : Shut Down
Device Setting -> System -> Shut down Shutting Down If you want to shut down or reboot the NVR, or simply log out of the user account you’re logged in as, access the Shutdown menu which is accessible via the main menu. To ensure the integrity of your data and recordings, always select Shut Down when powering off the NVR. -
Page 48: Search : Log Search
Device Setting -> Search -> Log Search The Log Search menu will show you recordings that were triggered by the NVR detecting motion. Typically, the majority of recordings based upon “Events” are likely to be recordings triggered by the NVR’s motion detection feature. The search function operates in the same way as the main playback search: the only difference is you’ll select an Event Type rather than a Video Type. -
Page 49: Device : Ptz
Device Setting -> Device -> PTZ You can set the PTZ device Specification here , this function only valid when you connect with PTZ function devices . Baud rate: baud rate is the number of symbol changes made to the transmission medium per second using a digitally modulated signal or a... -
Page 50: Device :Hdd
Device Setting -> Device -> HDD Init.: Initializes the hard drive. You’ll only need to do this for drives once, assuming that it’s not already initialized. If the Mount column reads “No” then choose Init. to initialize the drive. Label: A quick way of differentiating between hard drives. For the first setup, there will usually only be one hard drive - you can always add and initialize another hard drive later (connected via the eSATA port). -
Page 51: Preview: Ptz Setting
Preview -> PTZ Setting Preset : When user’s device have Pan/Tilt function , you can regard 1 target position as a preset , for example , front door , windows , counter , back yard etc. The set position can be saved on device . If you set front door as preset 1 , you can directly click preset 1 , then camera will turn to front door . -
Page 52: Preview Basic Setting
Preview -> Basic Setting Basic Settings - OSD - Please refer to Device Setting -> Display -> Camera Basic Settings - Encode - Please refer to Recording -> Encode Basic Settings - Image Brightness: Changes how light the image appears to be. Contrast: Increases the difference between the blackest black and the whitest white in the image. -
Page 53: Preview : Advanced Settings
Preview -> Advanced Setting Advanced Settings: Adjust various camera settings according to the environment where the camera is installed. • Anti-flicker: Use this feature if some devices such as TV screens and lights are flickering. For USA and Canada, set this to 60Hz. For Australia and the UK, set this to 50Hz. -
Page 54: Playback
Playback Device Tree Control Panel Here is a general view of the Playback windows . 1. From Device tree area , choose the channel you want to play ,double click the channel , it will show the play signal on the selected channel , 2. -
Page 55: Warranty Terms & Conditions
Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Reolink. The end user is responsible for all freight charges incurred to send the product to Reolink’s repair centre.
