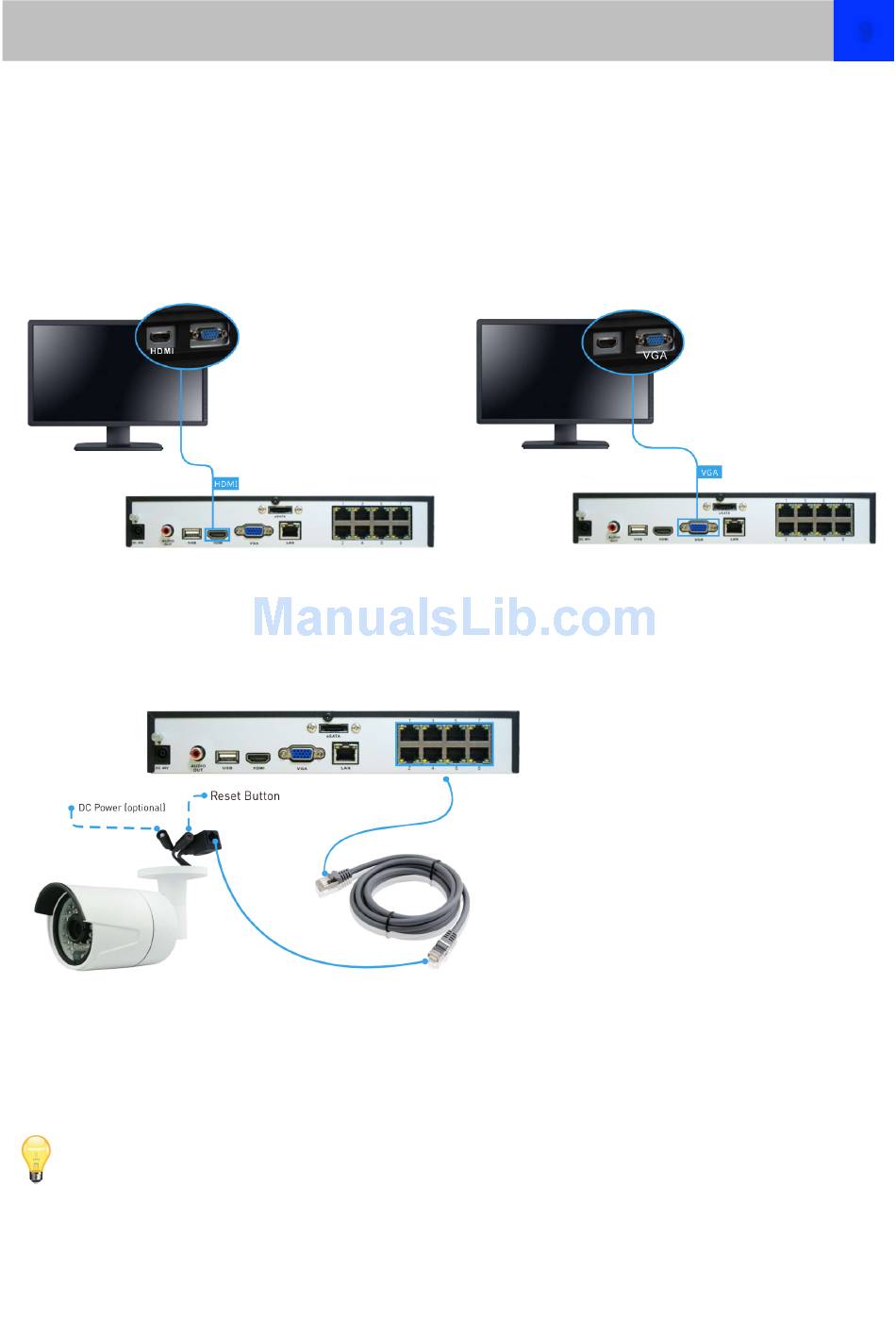

Connection Diagram

You can follow below steps to connect your system :
Step 1 : Connect the NVR to a Monitor or TV
Use the HDMI cable (supplied ) to connect your NVR to the TV HDMI port .
Or VGA : Use the HDMI cable (supplied ) to connect your NVR to the TV HDMI port .
Step 2 : Connect the IP Cameras
Camera Reset button: It enables you to reset the camera's admin password back to
factory default.
Please make sure POE Cable is 8 pin network Cable, for some Cable is 4 pin only . 4
Pin cable can't be used for POE Camera
Connect the camera's LAN Video
port to any POE Camera port on the
NVR using the Ethernet cables
provided.
You can also purchase longer
LAN cables if required.
.
9
